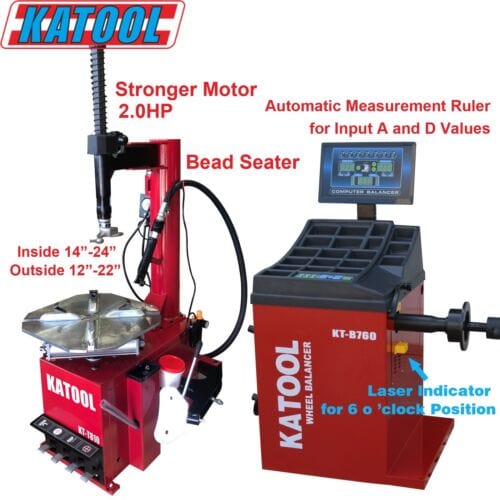

Katool Tire Changer KT-810 & Wheel Balancer KT-B760 Combo

The Katool KT-T810 and KT-B760 is a matched tire changer and wheel balancer combo built for North American shops that need a high-cycle, accurate setup for passenger cars and light trucks. The T810 runs on a 120V/1-phase/2.0 HP motor — spec'd specifically for North American electrical service rather than adapted from a 220V configuration — and the B760 balances to ±1g accuracy on a 3mm steel body with 8mm sensor mounting boards that keep vibration out of the measurement. Both machines are built around pure copper-wound motors selected for faster heat dissipation, lower defect rates, and longer service life under continuous shop use.

The T810's alloy steel jaw is carburized to a depth of 0.8–1.1mm and through-hardened — harder on the outside for wear resistance, tougher through the core to resist cracking under repeated clamping loads. A stainless steel mounting head with solution treatment and interface polishing handles the rim contact surface, and both the jaw and head ship with plastic rim protectors to prevent alloy wheel damage during service. The pull-type pedal control system keeps both hands on the tire during operation, and a closed body design protects the internal pneumatic and mechanical components from shop floor debris. On the balancer, the automatic measurement ruler inputs A and D values without manual entry, cutting per-wheel setup time. The quench-hardened φ36mm shaft handles heavier wheels without flex, and a built-in self-calibration and fault diagnosis program runs without pre-set parameters — the machine stays accurate without technician intervention between calibrations. A longer shaft and optional wheel guard are available for shops running wider fitments.

This combo is built for independent tire shops and repair facilities running steady volume on passenger cars and light trucks, dealership service departments that need a reliable matched pair on a North American power supply, and shops upgrading aging equipment who want consistent build quality across both machines rather than mixing brands

Features

KT-T810 Tire Changer — Features

• Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
• Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
• Inflation gauge with pedal control for convenient, hands-free inflation
• High-quality spade cover effectively prevents rim damage during operation
• Pull-type pedal control system for easy changing and straightforward maintenance access
• Top-grade motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
• High-quality filter system ensures reliable oil separation and effective air filtration for longer pneumatic system life
• Enclosed body design protects internal components from shop debris and damage

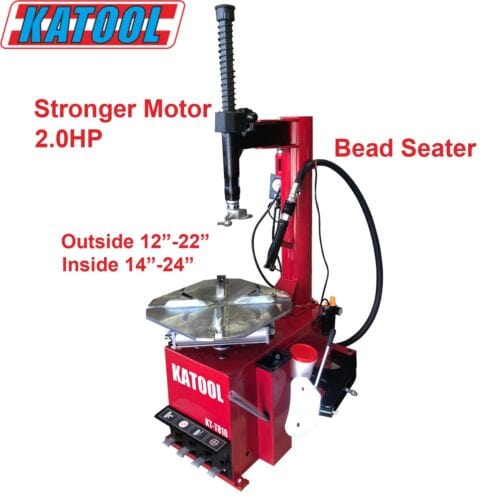

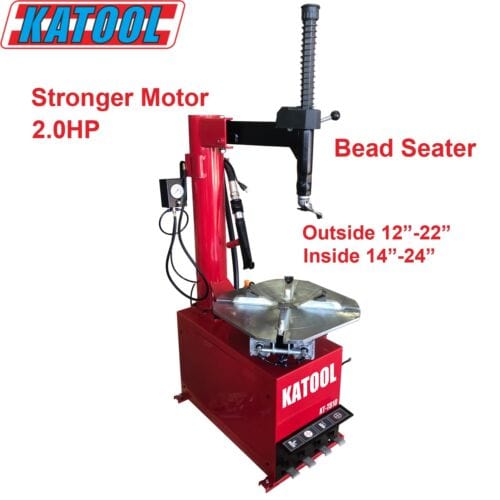

• 120V / 1PH / 2.0 HP motor configured for North American use, delivering strong power and high-efficiency performance

KT-B760 Wheel Balancer — Features

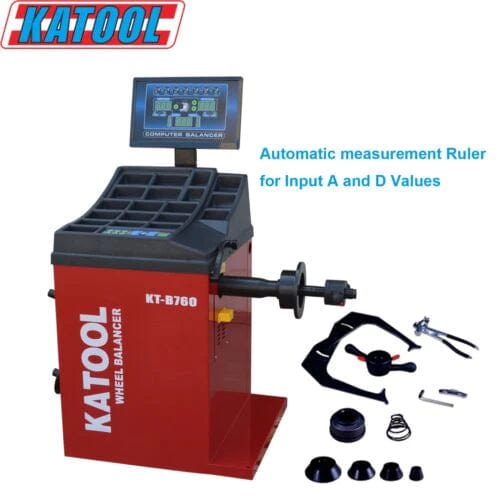

• Automatic measurement ruler for hands-free A and D value input
• Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
• All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
• Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
• φ36mm quench-hardened shaft thread for superior strength and durability
• Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
• Multiple balance modes tailored to different rim types for precise, accurate balancing
• Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
• Selectable units for Ounce/Gram and MM/Inch measurements
• High-quality integrated power board ensures stable, consistent performance
• Extended shaft accommodates wider wheels
• Optional wheel guard available

Specifications

KT-T810 Wheel Clamp Tire Changer Machine

KT-B760 Wheel Balancer

Warranty

Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.

What's Covered

Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.

Warranty Conditions

• Claims must be submitted within the active warranty period
• Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
• Approved replacement parts are provided at no cost, with free shipping included
