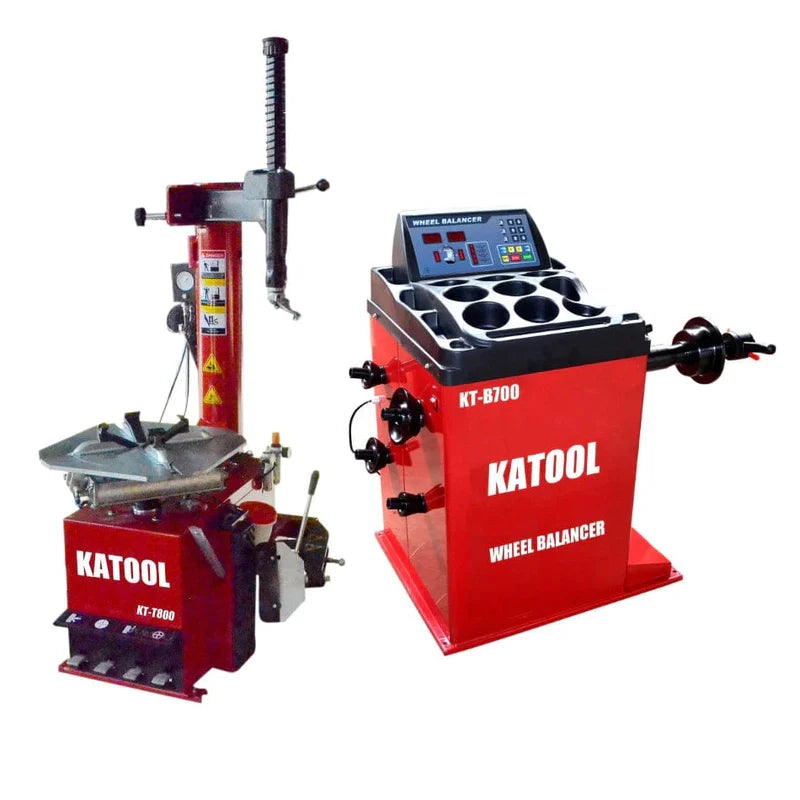

The Katool KT-T800 and KT-B700 is a matched tire changer and wheel balancer combo built for North American shops running steady volume on passenger cars and light trucks. The T800 runs on a 110V/1-phase/2.0 HP motor — spec'd for North American single-phase service — and shares the same core construction philosophy as the KT-T810/B760 combo: pure copper-wound motors on both machines for faster heat dissipation and longer service life, and a 3mm steel body with 8mm sensor mounting boards on the balancer to keep vibration isolated from the measurement circuit. The key difference from the T810 combo is voltage — the T800 runs on 110V where the T810 requires 120V, making the T800 the fit for shops on standard North American residential or light-commercial circuits.
The T800's alloy steel jaw is carburized to 0.8–1.1mm depth and through-hardened for the same wear-and-toughness profile as the T810 — harder outer surface for clamping durability, tougher core to resist cracking under repeated load cycles. The stainless steel mounting head with solution treatment and interface polishing handles rim contact, and both the jaw and head include plastic rim protectors for alloy wheel service. A high-quality lubricator filters compressed air and delivers consistent oil-drop lubrication to the pneumatic circuit, extending service intervals on the components that wear first. The pull-type pedal control keeps both hands on the tire during mounting and demounting, and the closed body design keeps internal components protected from shop floor debris. On the B700, the quench-hardened φ36mm shaft, self-calibration and fault diagnosis program, and automatic unit selection (oz/g, mm/inch) match the B760 spec — a longer shaft and optional wheel guard are available for wider fitments.
This combo suits independent tire shops and repair facilities on 110V service that want a matched pair with consistent build quality across both machines, smaller shops and new operations setting up a complete tire service station without a 220V circuit, and anyone replacing aging equipment who wants North American voltage compatibility without sourcing an adapter or rewiring the bay.
Features

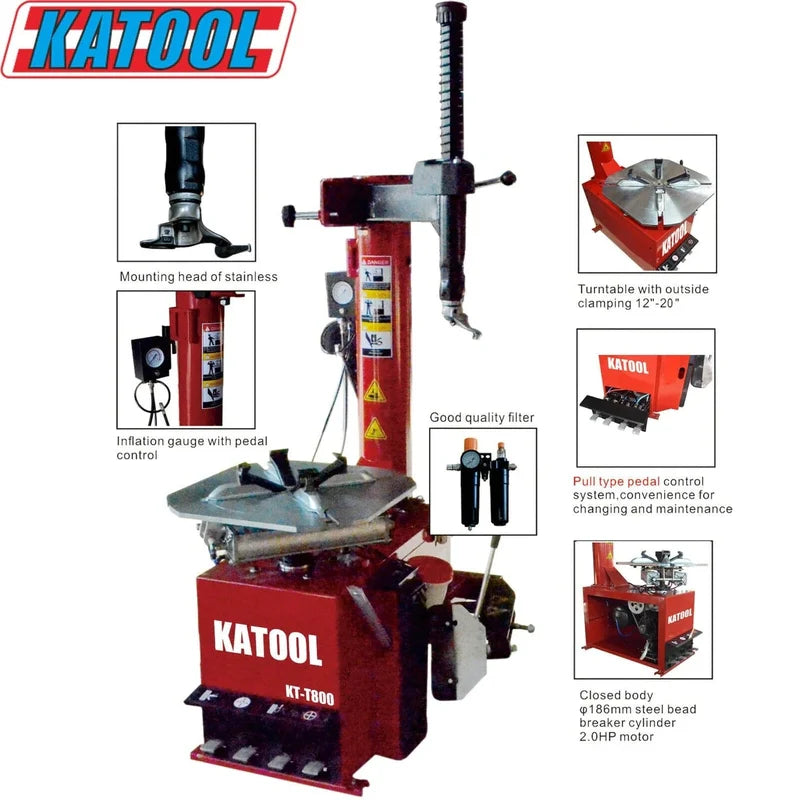

KT-T800 Tire Changer — Features
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included

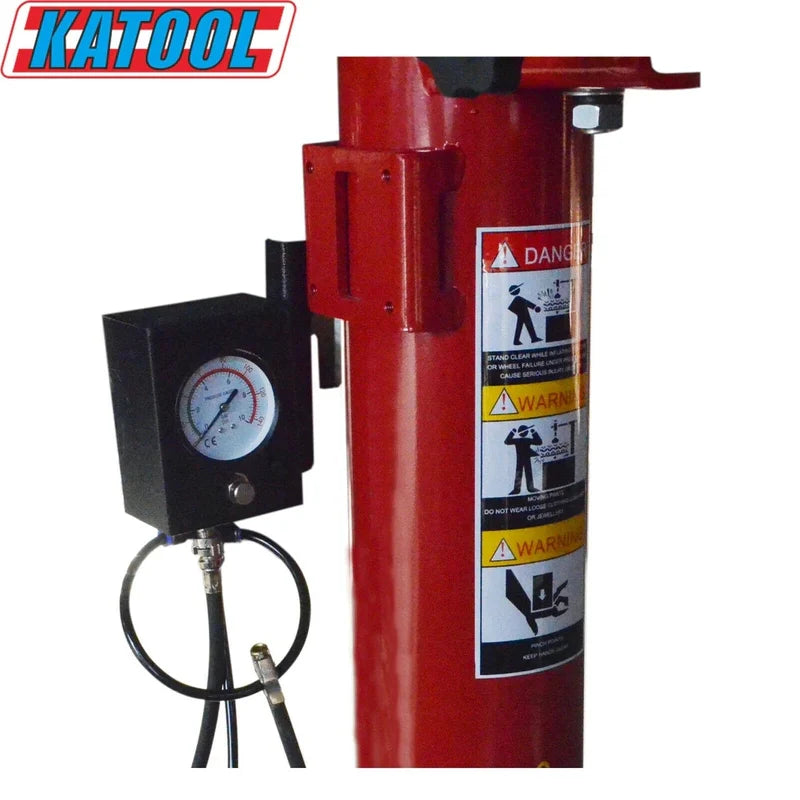

- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access

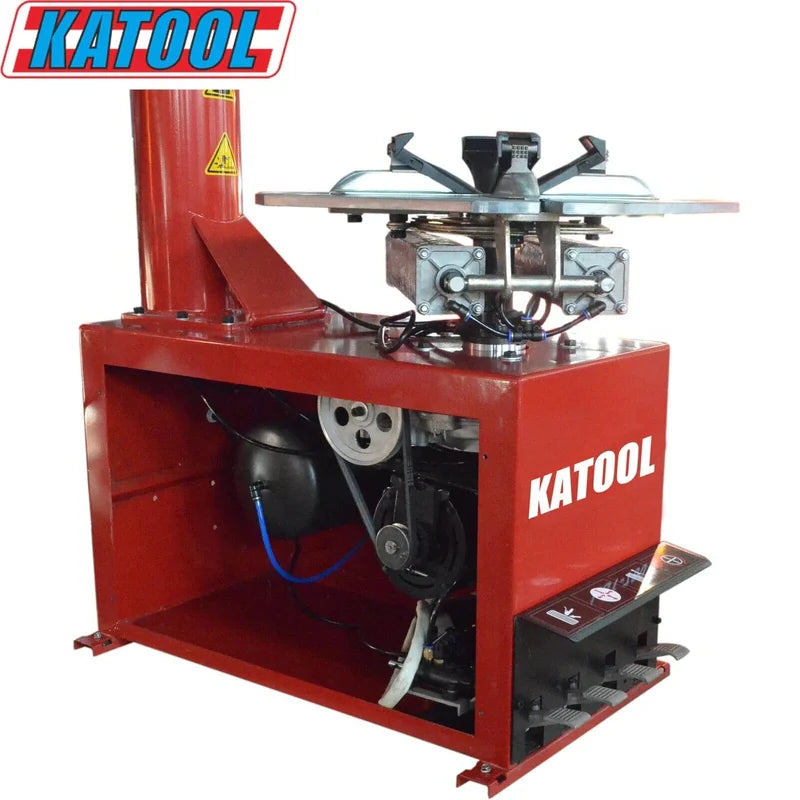

- Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
- High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance
KT-B700 Wheel Balancer — Features

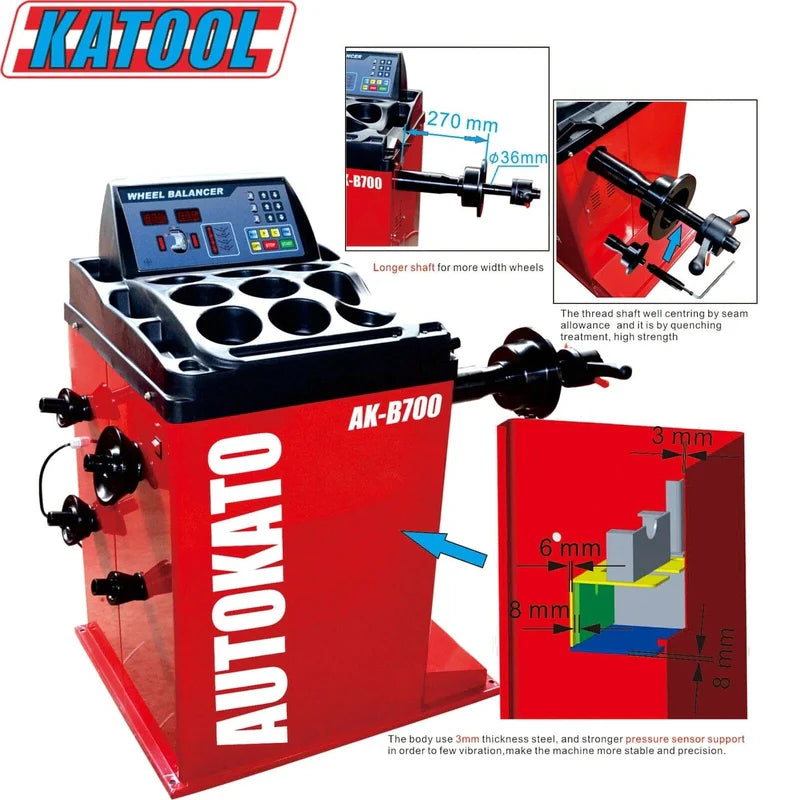

- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life

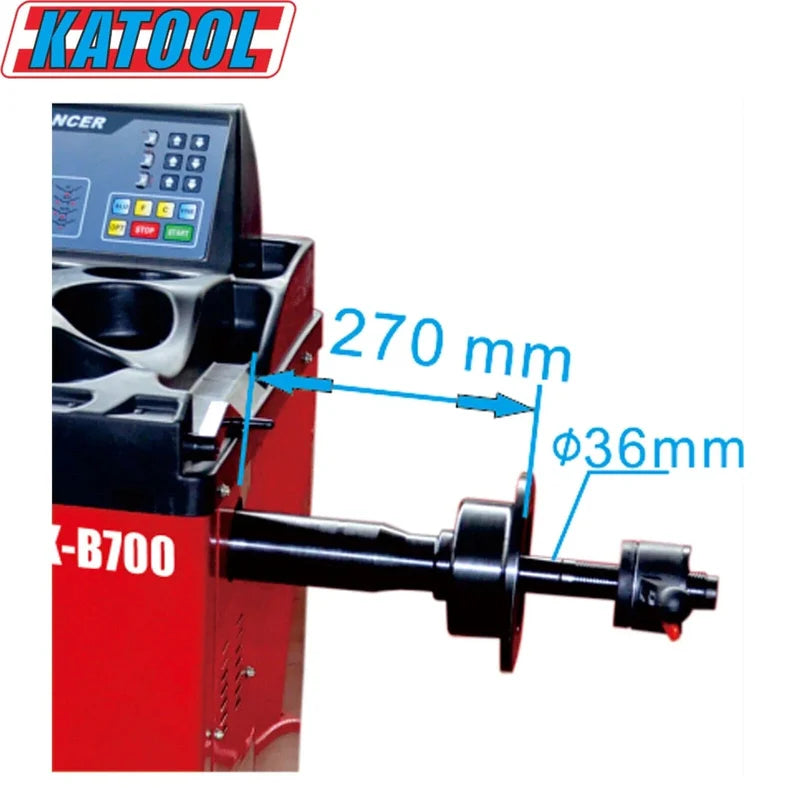

- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance

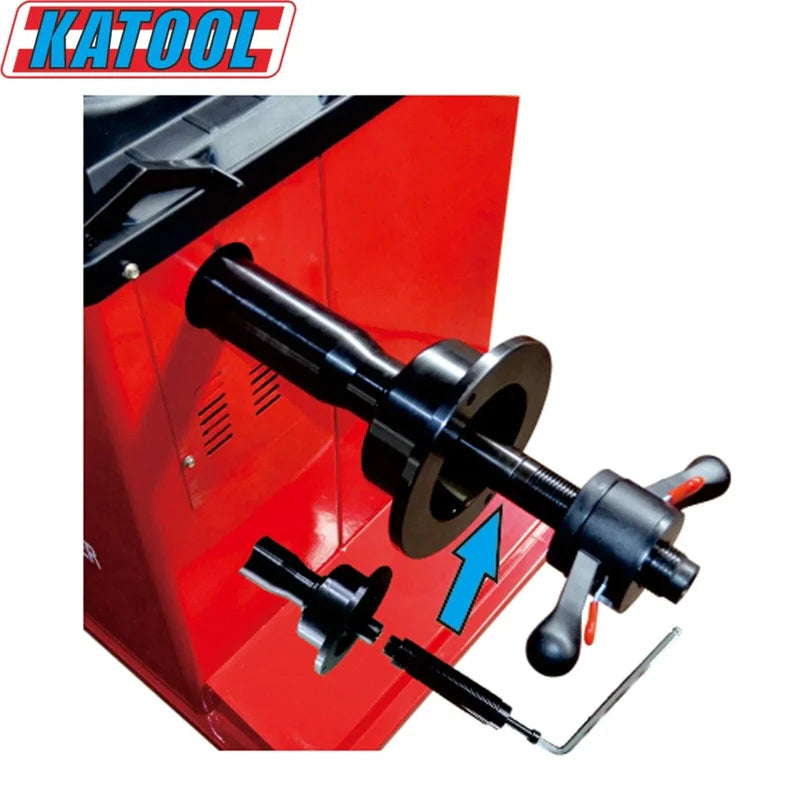

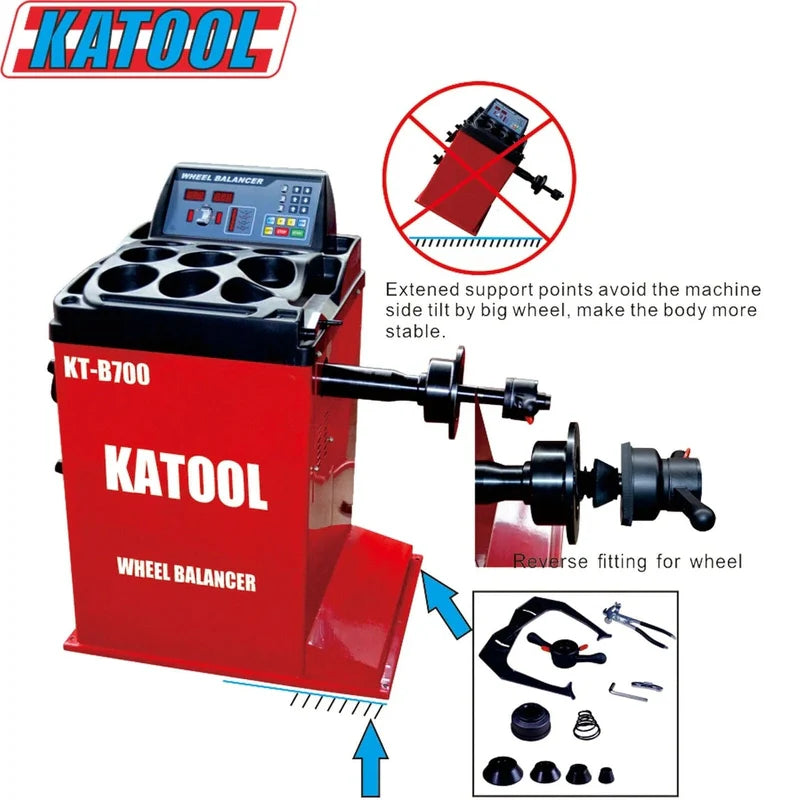

- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications

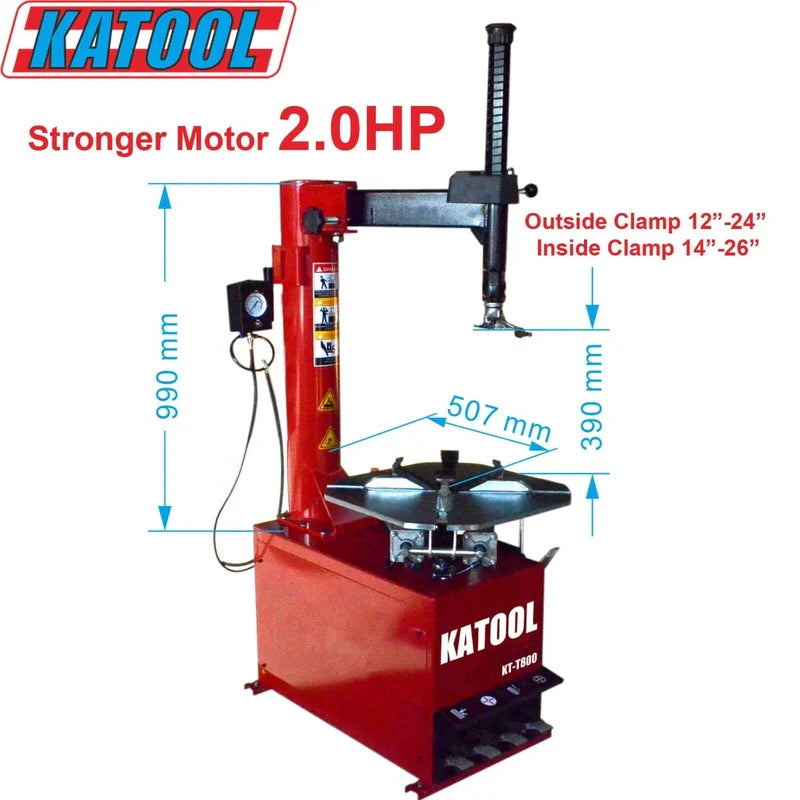

KT-T800 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-20" |
| Inside Clamp: |
14"-24" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
186KG/410lbs |
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |

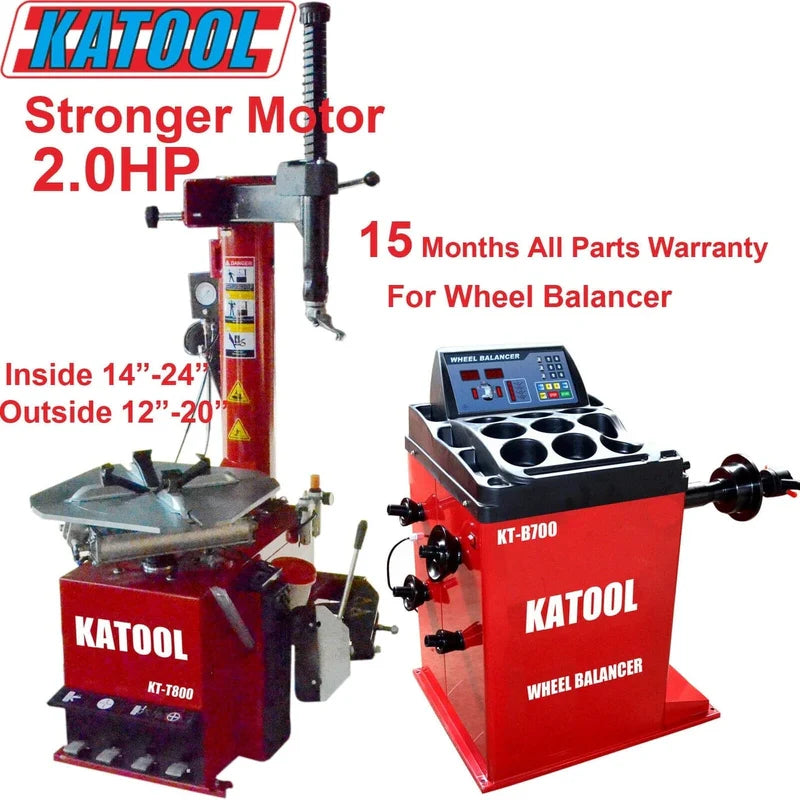

Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
