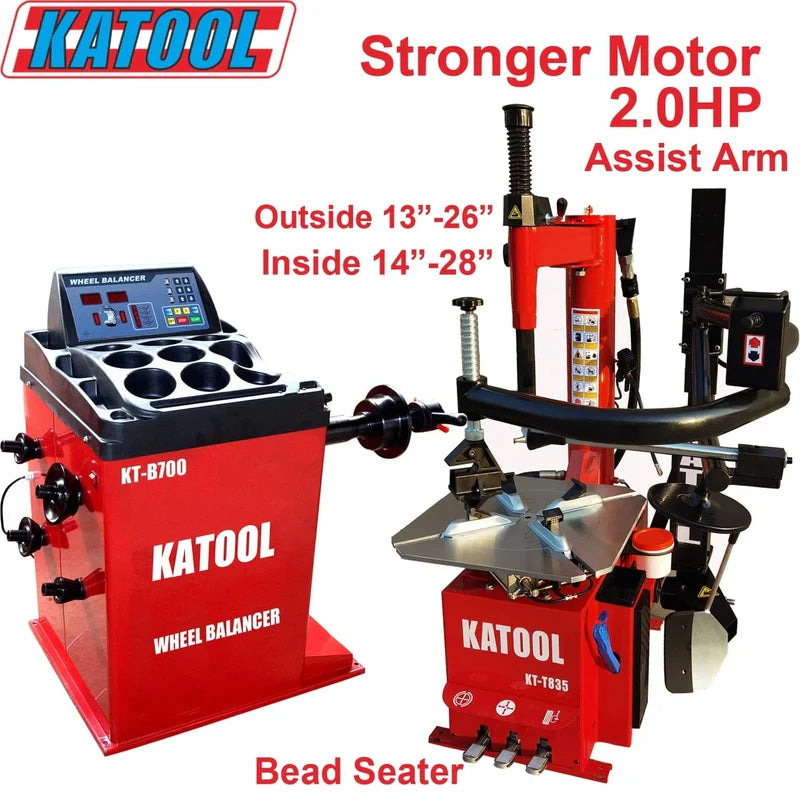

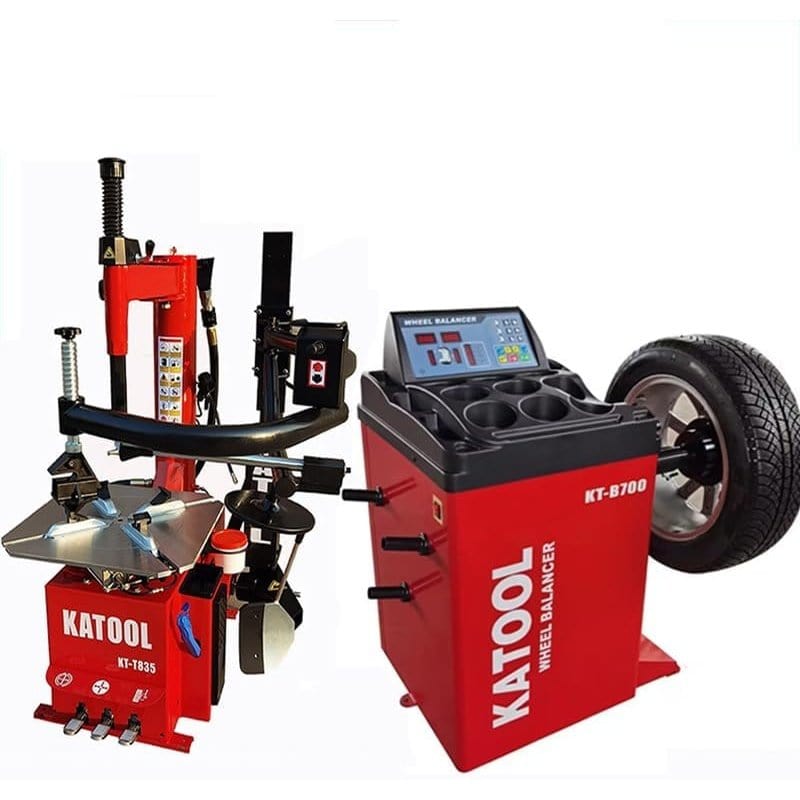

The Katool KT-T835 and KT-B700 pairs a 110V/1-phase/2.0 HP wheel clamp tire changer with the B700 wheel balancer — a complete tire service station on a standard North American single-phase circuit. The T835 is built around the same core construction as the upper tier of the Katool changer line: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened for wear resistance with a tough core, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces for alloy wheel service. A double-side assist arm, bead blast seater with post tank, and 186mm stainless steel bead breaker cylinder handle run-flat tires, stiff low-profile fitments, and resistant beads that a basic wheel clamp changer can't manage cleanly. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit, and the closed body design protects internal components from shop debris.
The B700 delivers consistent balancing across the full wheel range: 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for strength under heavier wheels, and a built-in self-calibration and fault diagnosis program that runs without pre-set parameters — accurate without technician intervention between calibrations. Various balance modes cover different rim types, unit selection runs oz/g and mm/inch, and a longer shaft with optional wheel guard handles wider fitments.
This combo suits independent tire shops and service bays on 110V service that need a capable changer for a full range of tire types — including run-flats and low-profiles — paired with a reliable, straightforward balancer. It's a solid entry point into the assist-arm tier of the Katool lineup without adding the automatic measurement feature of the B760.
Features

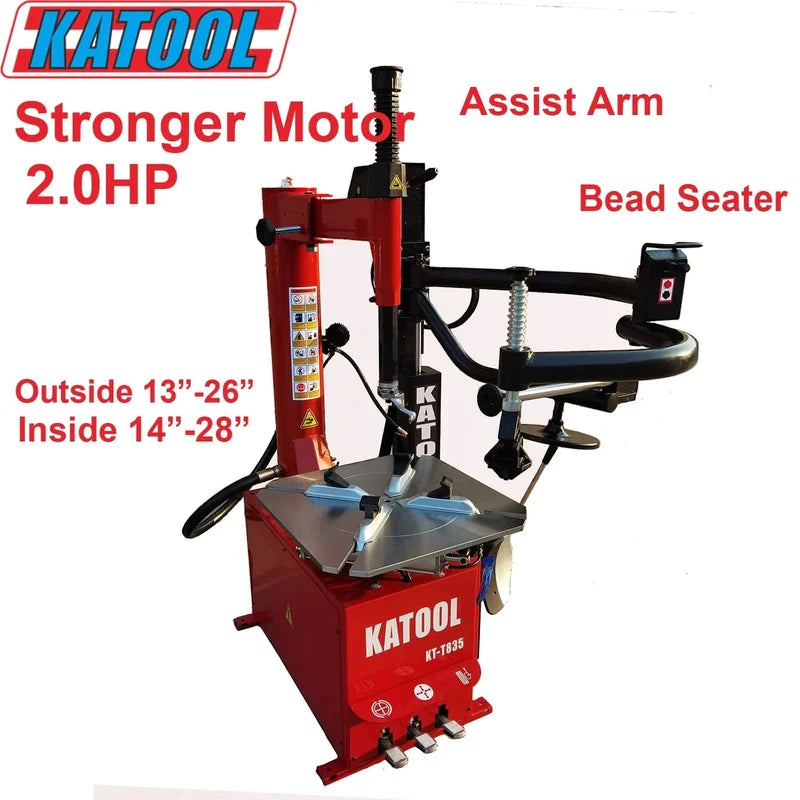

KT-T835 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
- High-quality filter system ensures reliable oil separation and effective air filtration for longer pneumatic system life

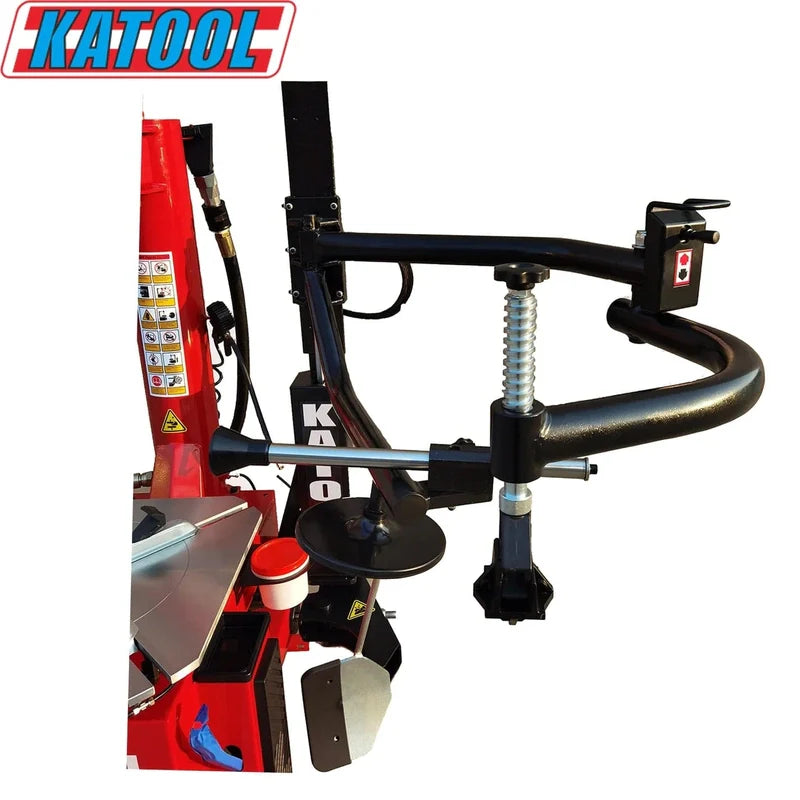

- Double-sided assist arm for enhanced tire mounting support
- Bead blast seater head with post tank for powerful, reliable bead seating
- 186mm stainless steel bead breaker cylinder for heavy-duty breaking performance
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering strong power and high-efficiency performance

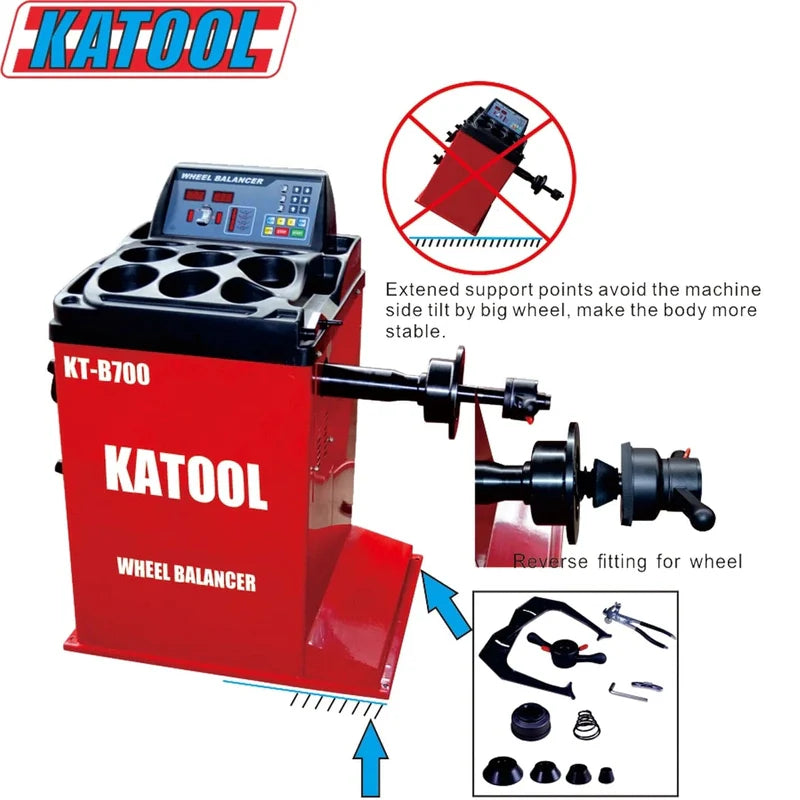

KT-B700 Wheel Balancer

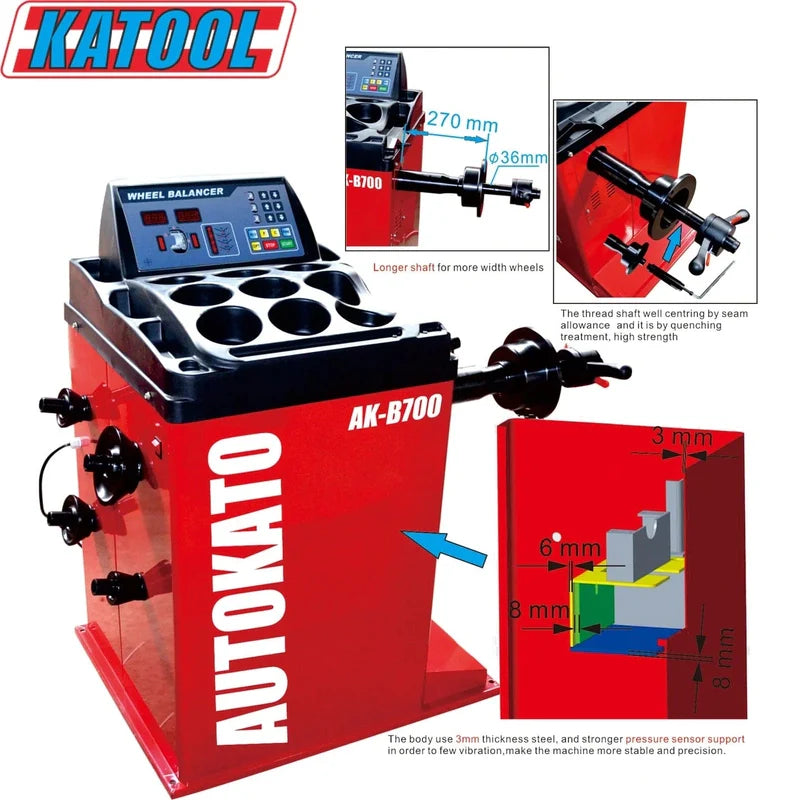

- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life

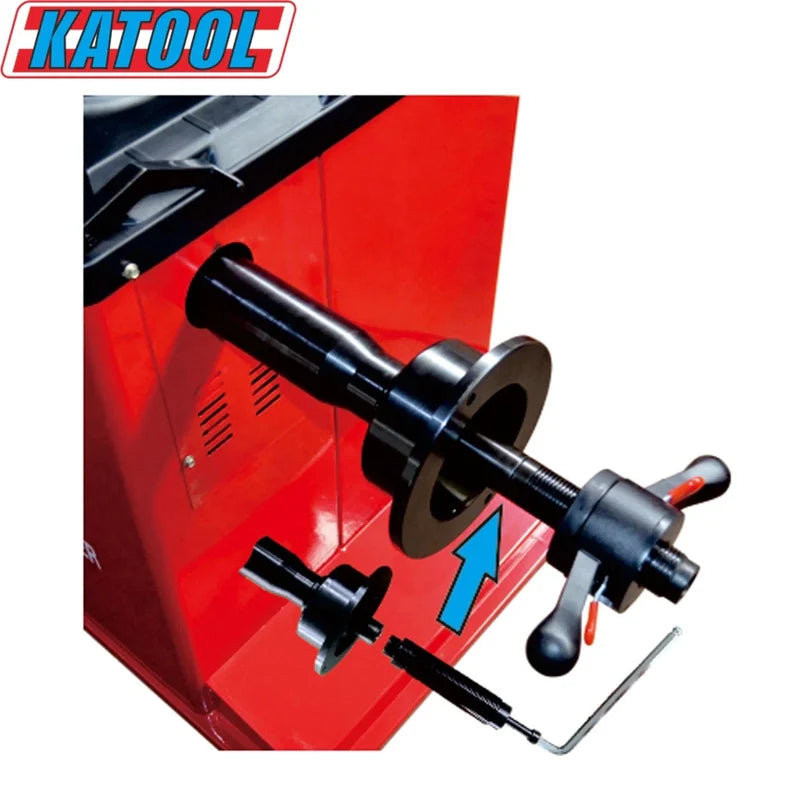

- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance
- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

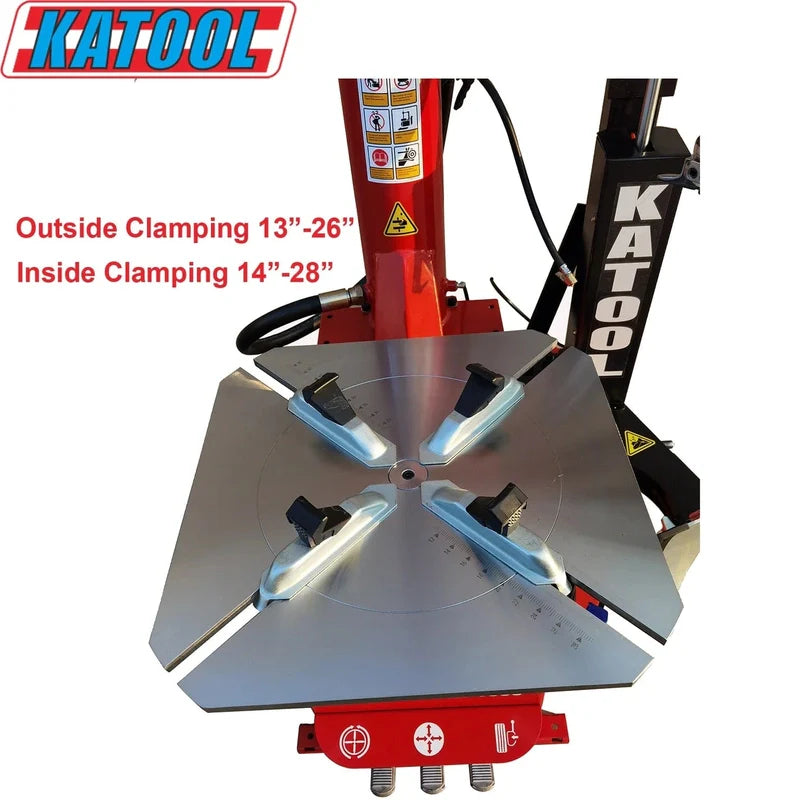

Outside Clamp:
|
13"-26" |
|
Inside Clamp :
|
14"-28" |
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
582lbs |
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included.
