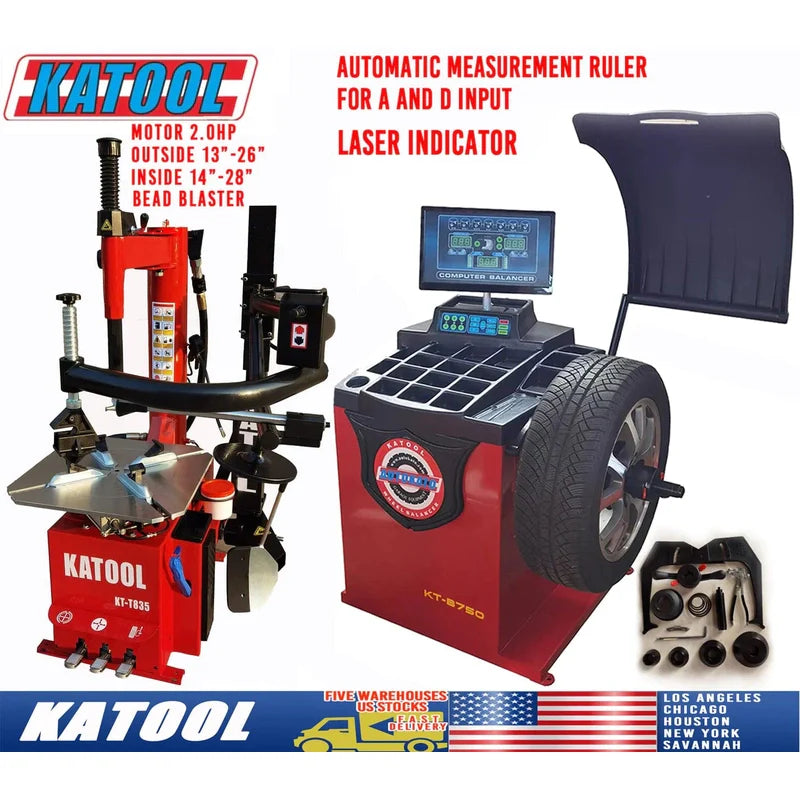

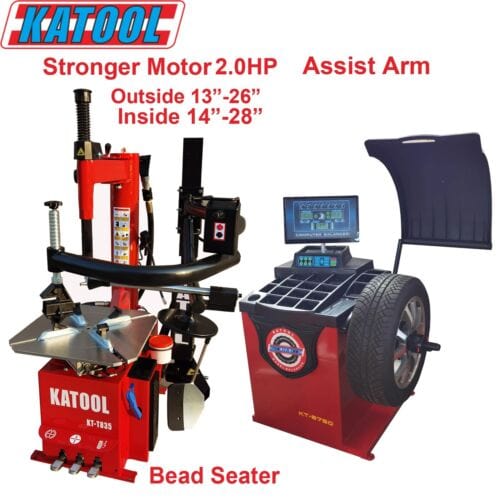

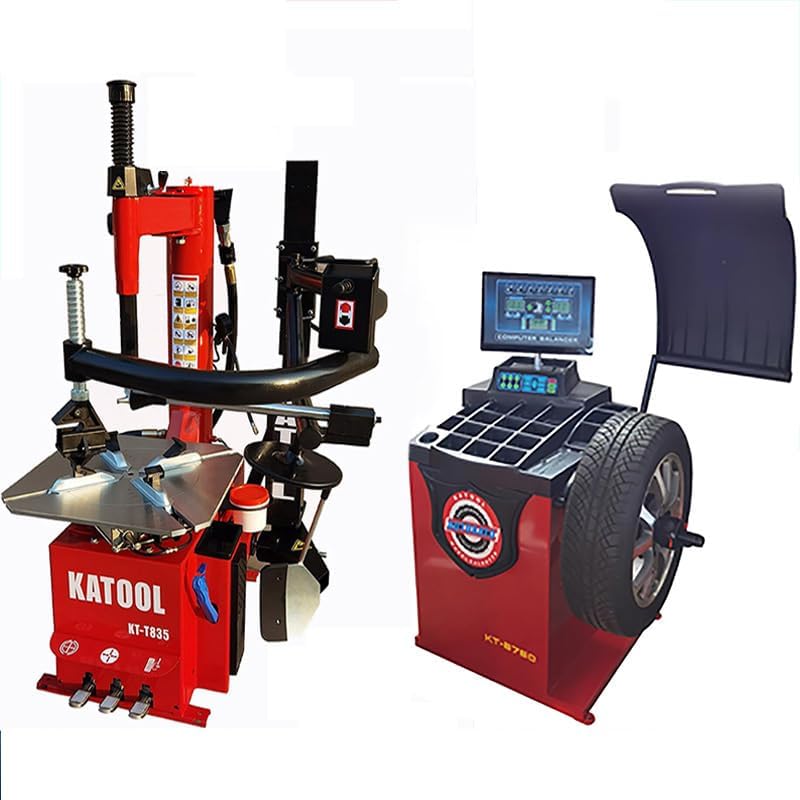

The Katool KT-T835 and KT-B750 pairs the 110V/1-phase/2.0 HP T835 tire changer with the B750 wheel balancer — a step up from the T835/B700 in balancer capability, and a step down from the T835/B760 in price. The B750 sits between the two: it includes the automatic measurement ruler that inputs A and D values without manual entry — the same time-saving feature as the B760 — while the structural spec matches the B700. Both machines run pure copper-wound motors for faster heat dissipation and longer service life under continuous shop use.
The T835 carries the full construction spec shared across the assist-arm tier of the Katool changer line: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces. A double-side assist arm, bead blast seater with post tank, and 186mm stainless steel bead breaker cylinder handle run-flat tires, stiff low-profile fitments, and resistant beads without requiring a second technician or manual workarounds. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit, and the closed body design protects internal components from shop debris. The B750 delivers 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for heavier wheels, automatic measurement ruler for fast per-wheel setup, and a built-in self-calibration and fault diagnosis program requiring no pre-set parameters. A longer shaft and optional wheel guard cover wider fitments.
This combo fits independent tire shops on 110V service that process enough daily volume to benefit from automatic balancer measurement, handle a regular mix of run-flat and low-profile tires, and want a mid-tier balancer spec without stepping up to the full B760 price point.
Features

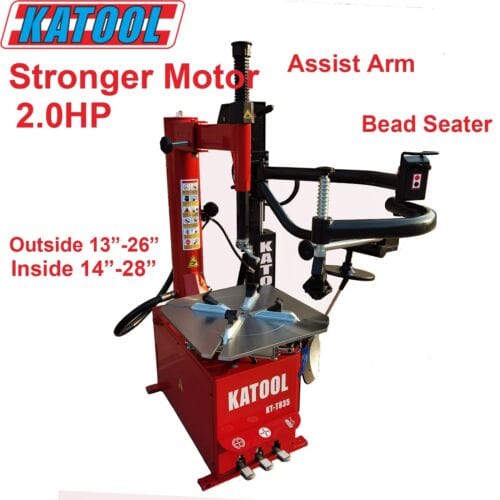

KT-T835 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
- High-quality filter system ensures reliable oil separation and effective air filtration for longer pneumatic system life

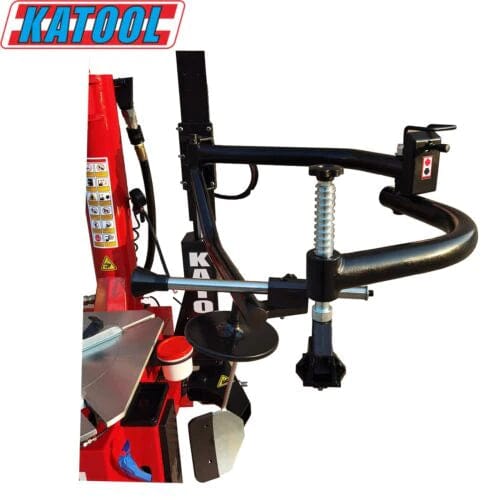

- Double-sided assist arm for enhanced tire mounting support
- Bead blast seater head with post tank for powerful, reliable bead seating
- 186mm stainless steel bead breaker cylinder for heavy-duty breaking performance
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering strong power and high-efficiency performance

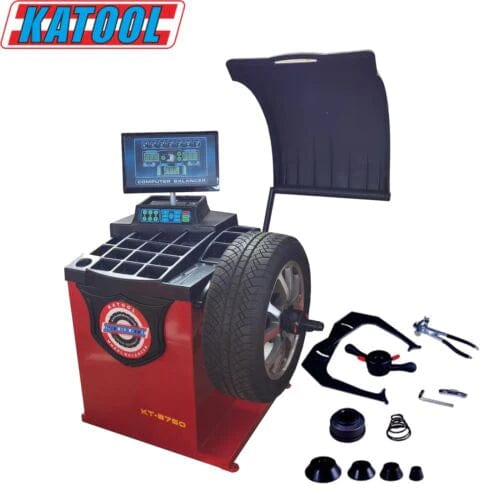

KT-B750 Wheel Balancer
- Automatic measurement ruler for hands-free A and D value input
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance

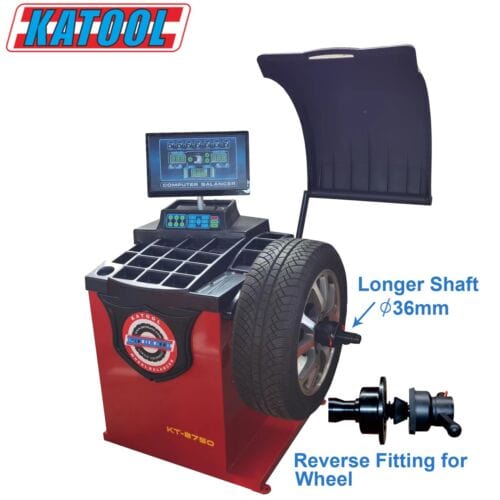

- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

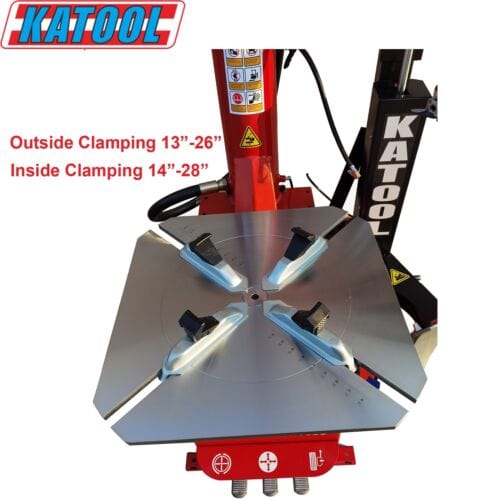

Outside Clamp:
|
13"-26" |
|
Inside Clamp :
|
14"-28" |
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
582lbs |
KT-B750 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included.
