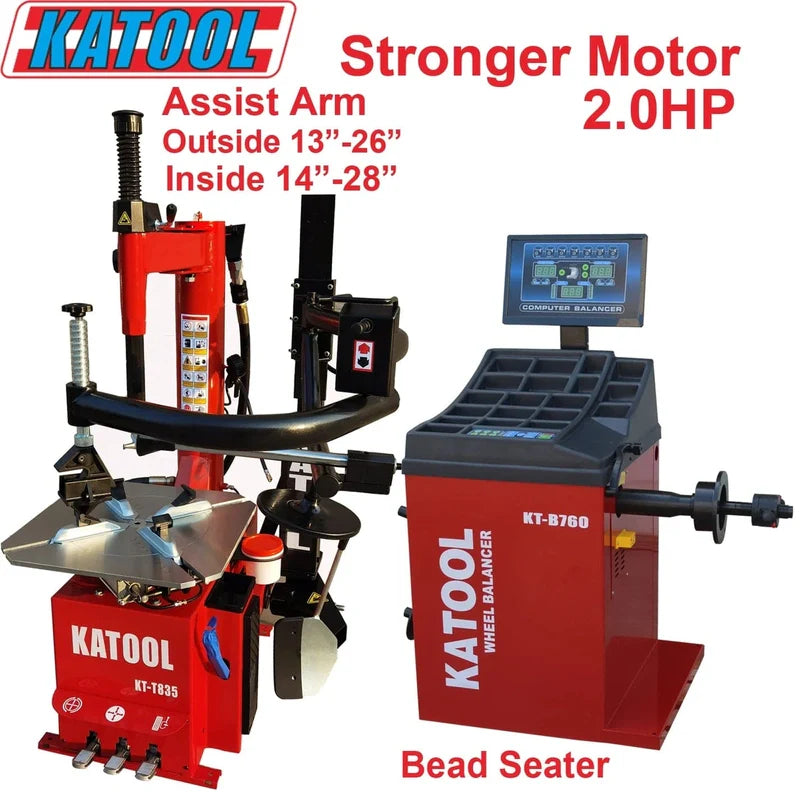

The Katool KT-T835 and KT-B760 is the top-spec 110V combo in the Katool tire changer lineup — the T835's full assist-arm and bead blast capability paired with the B760, the highest-spec balancer in the range. The T835 runs on 110V/1-phase/2.0 HP and brings a double-side assist arm, bead blast seater with post tank, and 186mm stainless steel bead breaker cylinder to handle run-flat tires, stiff low-profile fitments, and resistant beads that a standard wheel clamp changer can't service cleanly. The B760 adds an automatic measurement ruler that inputs A and D values without manual entry, cutting per-wheel setup time on the balancer throughout the shift. Both machines run pure copper-wound motors for faster heat dissipation and longer service life under continuous use.
The T835 carries the full construction spec shared across the assist-arm tier: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces. The double-side assist arm supports the tire from both sides during demounting and mounting — the feature that makes run-flat and low-profile work manageable for one technician without manual workarounds. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit, and the closed body design protects internal components from shop debris. The B760 delivers the full balancer spec: 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for heavier wheels, and self-calibration with fault diagnosis requiring no pre-set parameters. A longer shaft and optional wheel guard are available for wider fitments.
This is the combo for high-volume independent tire shops and dealership service bays on 110V service that see a regular mix of run-flat, low-profile, and standard tires and need both machines at the top of their class. For shops where difficult tires are routine and balancer setup time adds up across a full day of service, the T835/B760 is the 110V configuration that covers every scenario without compromise.
Features

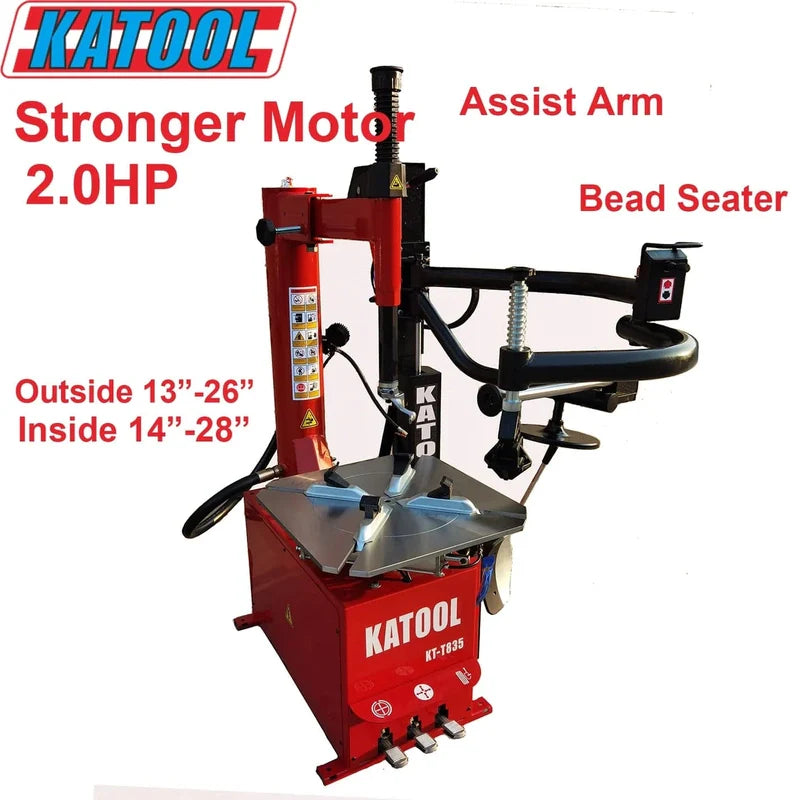

KT-T835 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
- High-quality filter system ensures reliable oil separation and effective air filtration for longer pneumatic system life

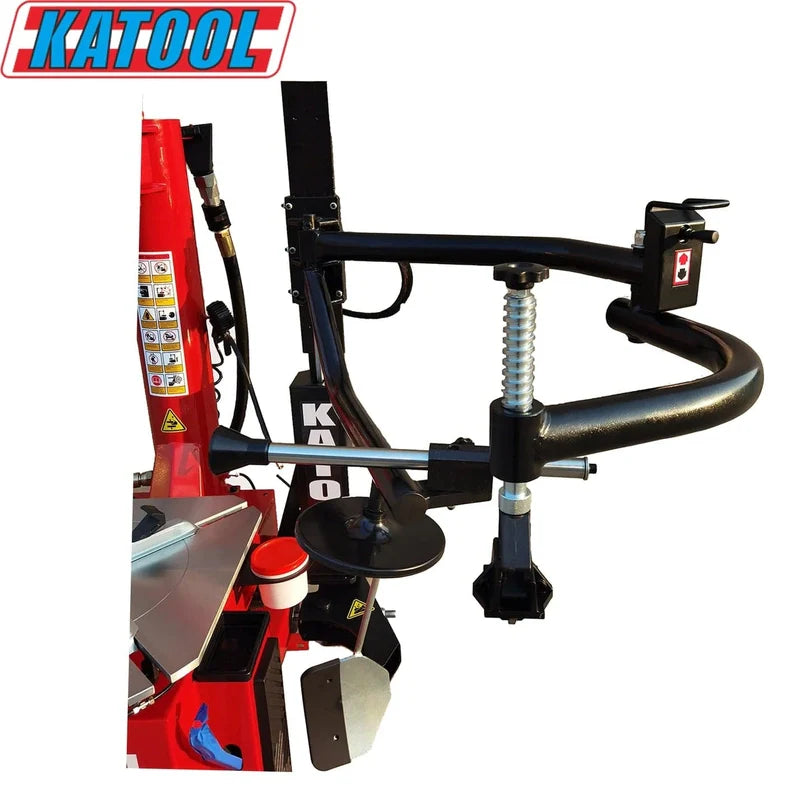

- Double-sided assist arm for enhanced tire mounting support
- Bead blast seater head with post tank for powerful, reliable bead seating
- 186mm stainless steel bead breaker cylinder for heavy-duty breaking performance
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering strong power and high-efficiency performance
KT-B760 Wheel Balancer

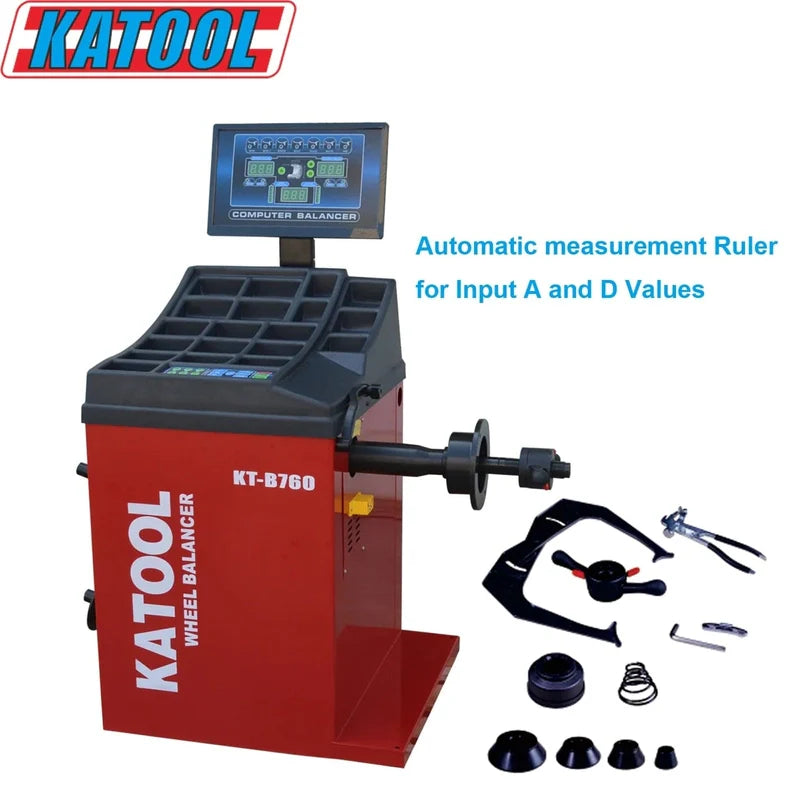

- Automatic measurement ruler for hands-free A and D value input
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance
- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

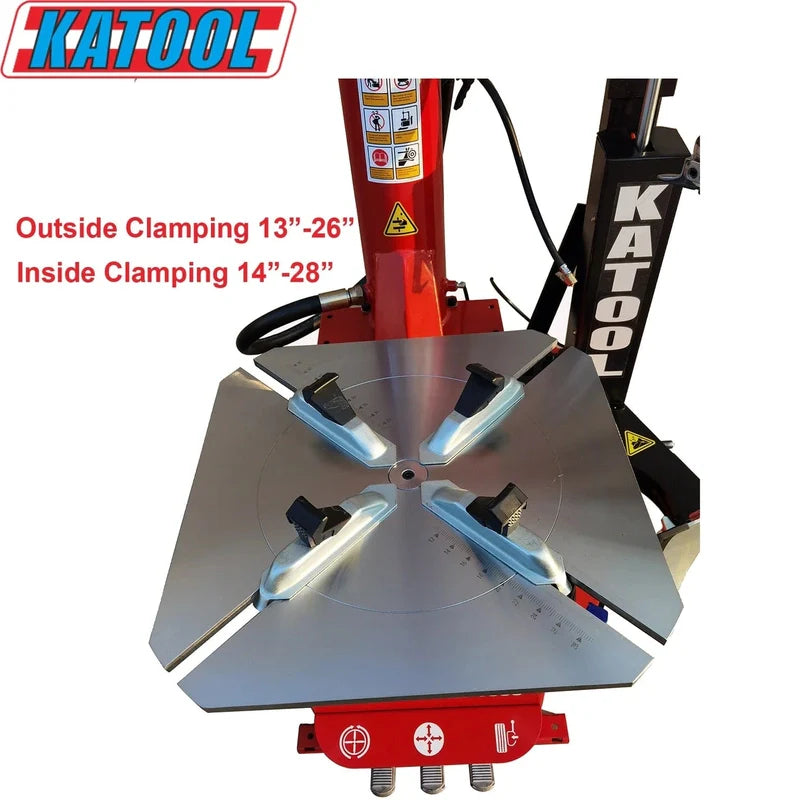

Outside Clamp:
|
13"-26" |
|
Inside Clamp :
|
14"-28" |
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
582lbs |
KT-B760 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
110V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included.
