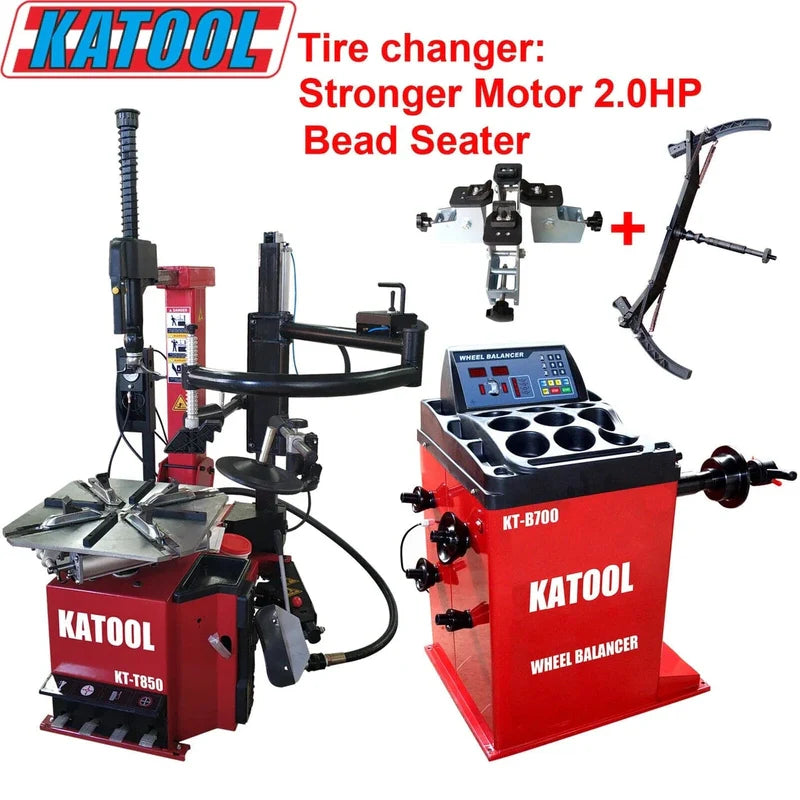

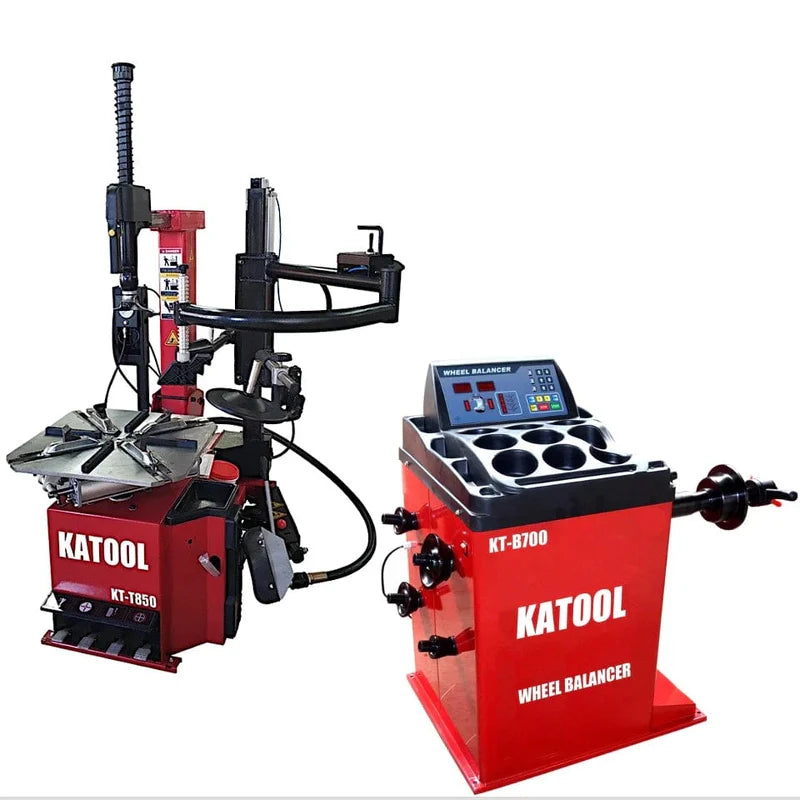

The Katool KT-T850 and KT-B700 introduces a tilt-arm wheel clamp tire changer into the Katool combo lineup — the key mechanical difference from the T830 and T835 is the tilt-back arm design, which swings the tool head away from the wheel during loading and unloading rather than requiring the operator to work around a fixed column. Combined with assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder, the T850 handles the same run-flat, low-profile, and resistant-bead work as the T830/T835 while the tilt-arm geometry reduces operator effort and repositioning time per tire. It runs on 110V/1-phase/2.0 HP on a pure copper-wound motor for heat dissipation and service life consistent with the rest of the lineup.
The jaw and mounting head carry the full construction spec: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces for alloy wheel service. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit, extending service life on the components that see the most wear. The B700 delivers the standard balancer spec: 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for heavier wheels, and a built-in self-calibration and fault diagnosis program requiring no pre-set parameters. Various balance modes cover different rim types, unit selection runs oz/g and mm/inch, and a longer shaft with optional wheel guard handles wider fitments.
The T850/B700 is the right fit for independent tire shops on 110V service where the tilt-arm design is preferred over a fixed-column setup — shops where technician ergonomics and per-tire cycle time matter, and where the full assist-arm and bead blast capability of the T850 handles the difficult tires without a separate machine or manual workarounds.
Features
KT-T850 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
- High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life

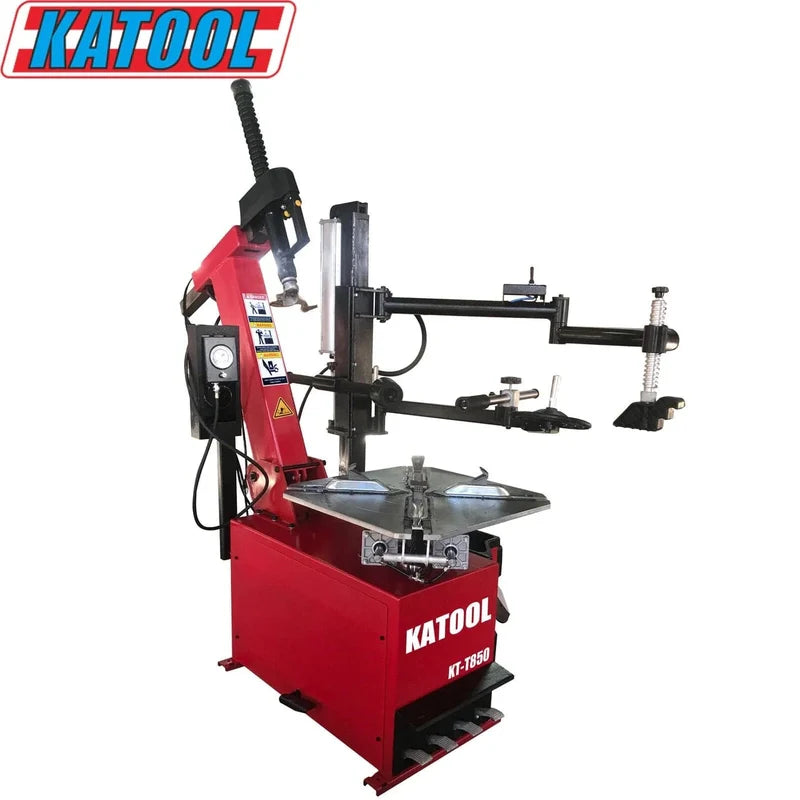

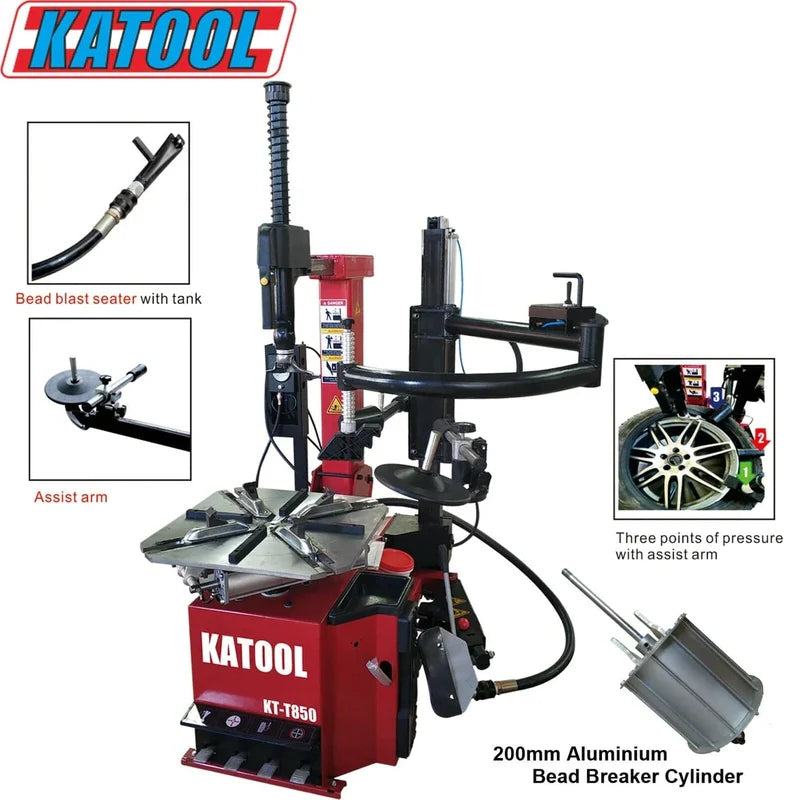

- Equipped with assist arms for enhanced tire mounting support
- Bead blast seater for powerful, reliable bead seating
- 200mm aluminum bead breaker cylinder for smooth, heavy-duty breaking performance
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance
KT-B700 Wheel Balancer

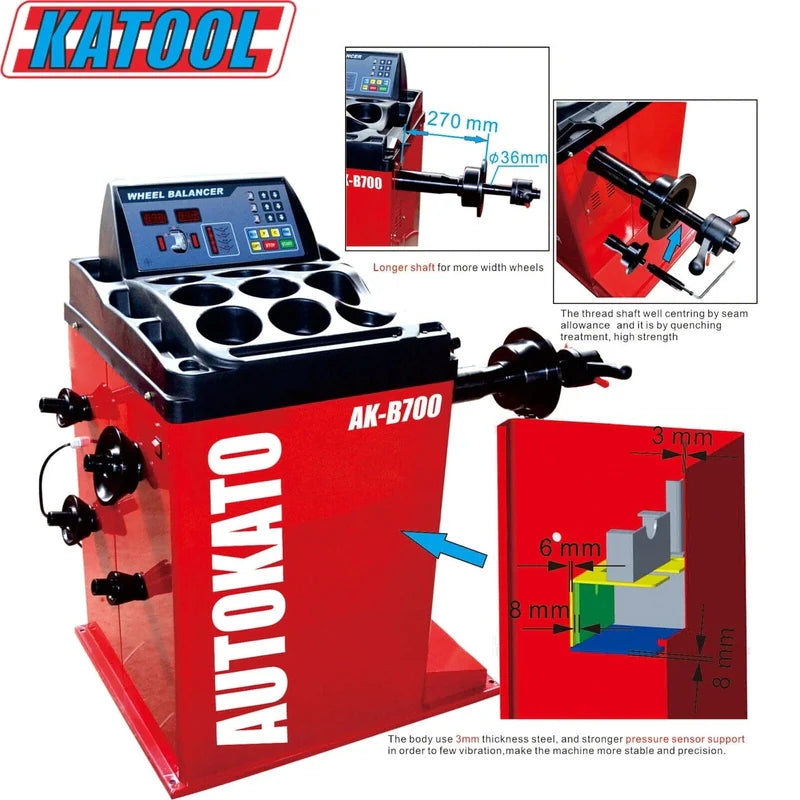

- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life

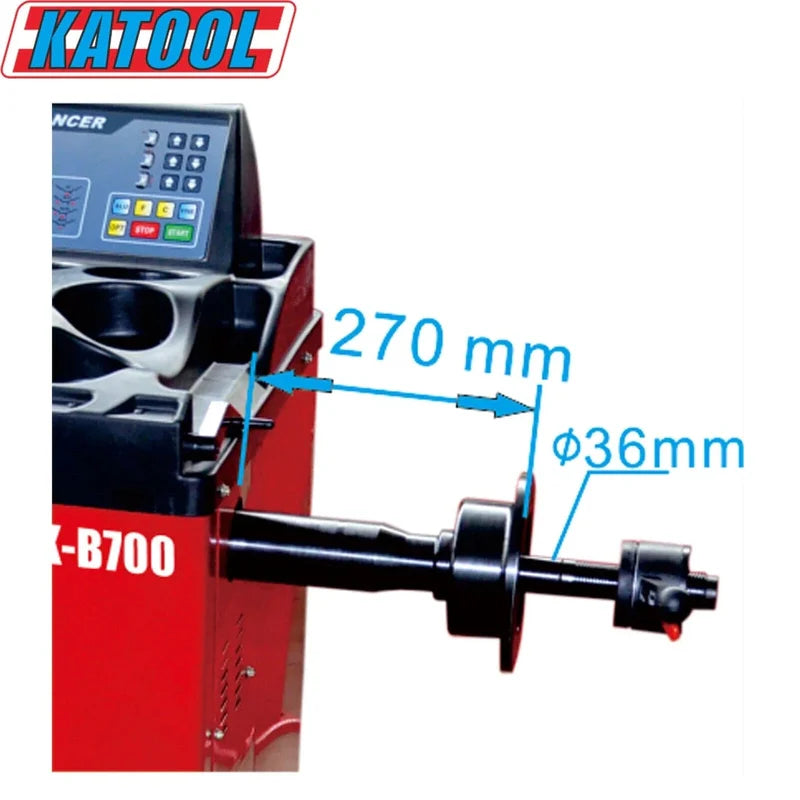

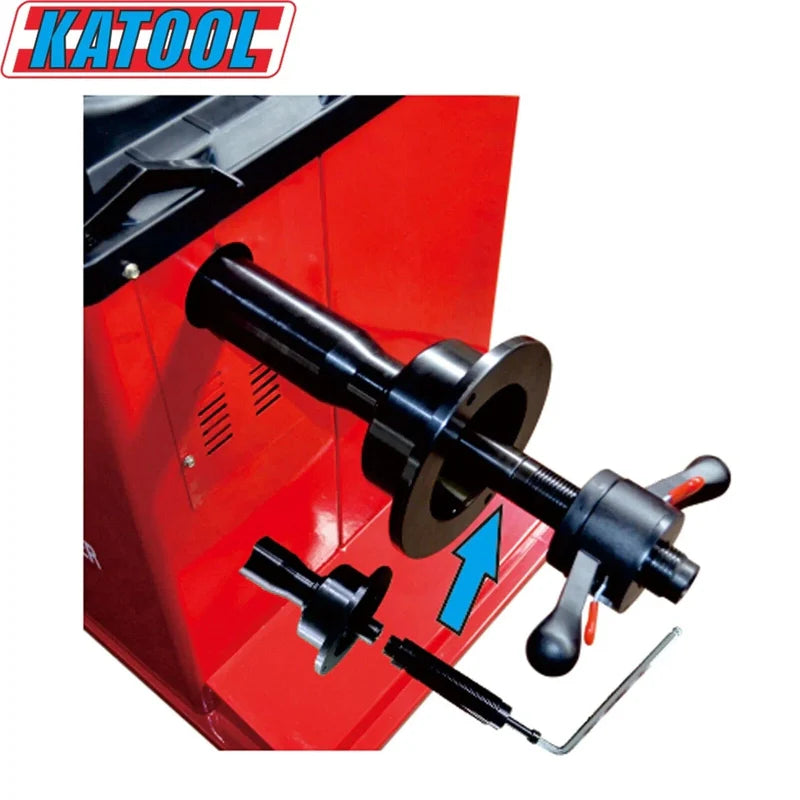

- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance

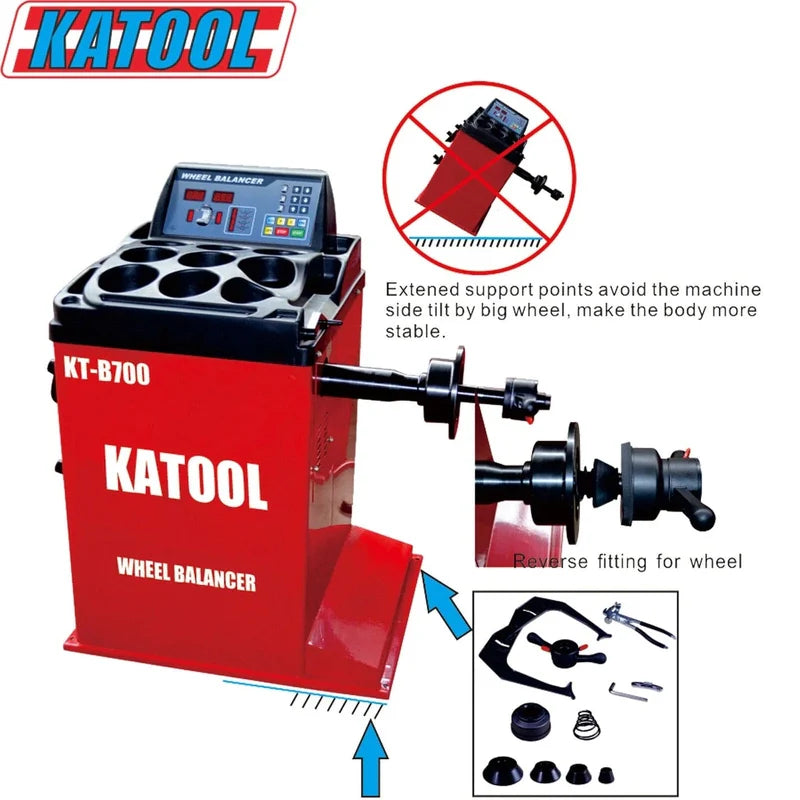

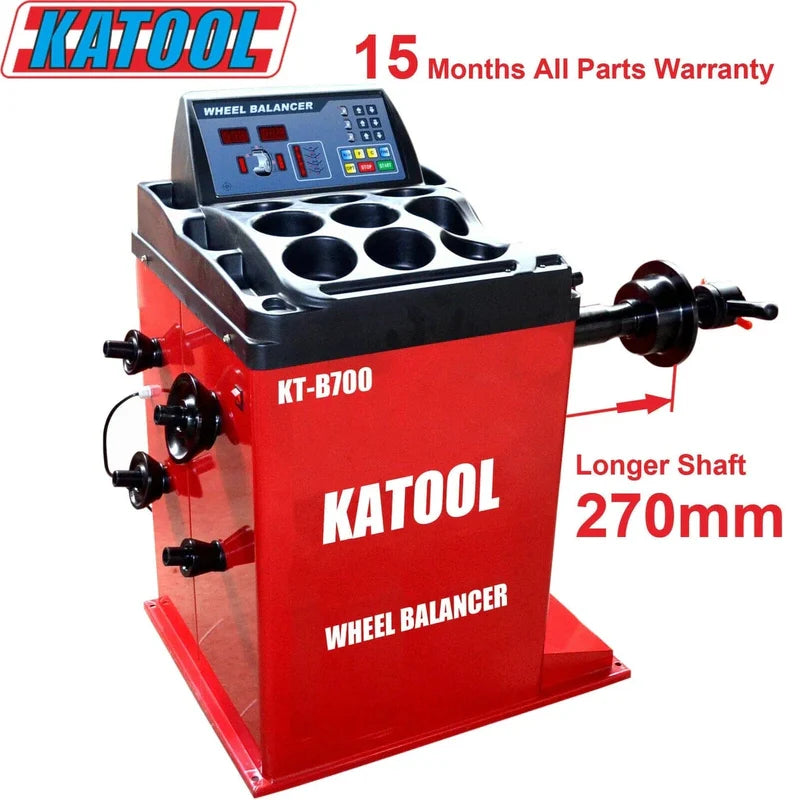

- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
47"/1200mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
14"-26" |
| Inside Clamp: |
16"-28" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
340KG / 750lbs |
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
