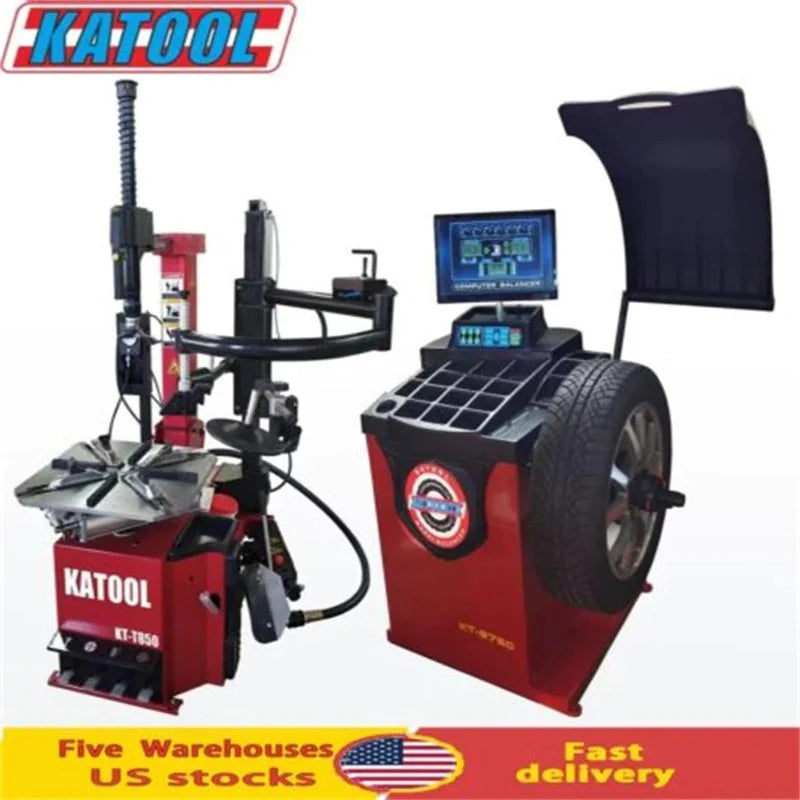

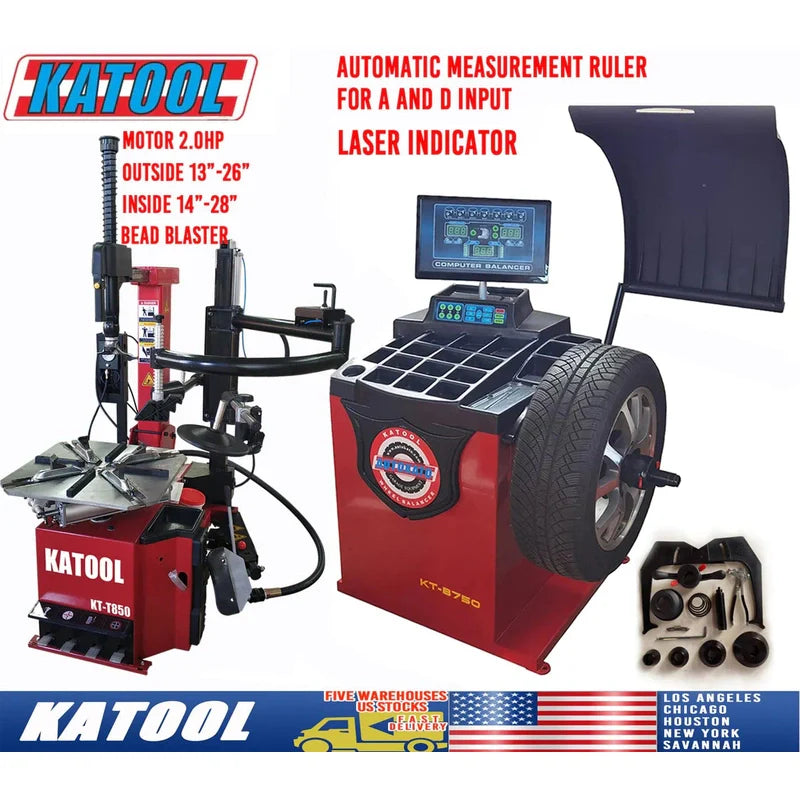

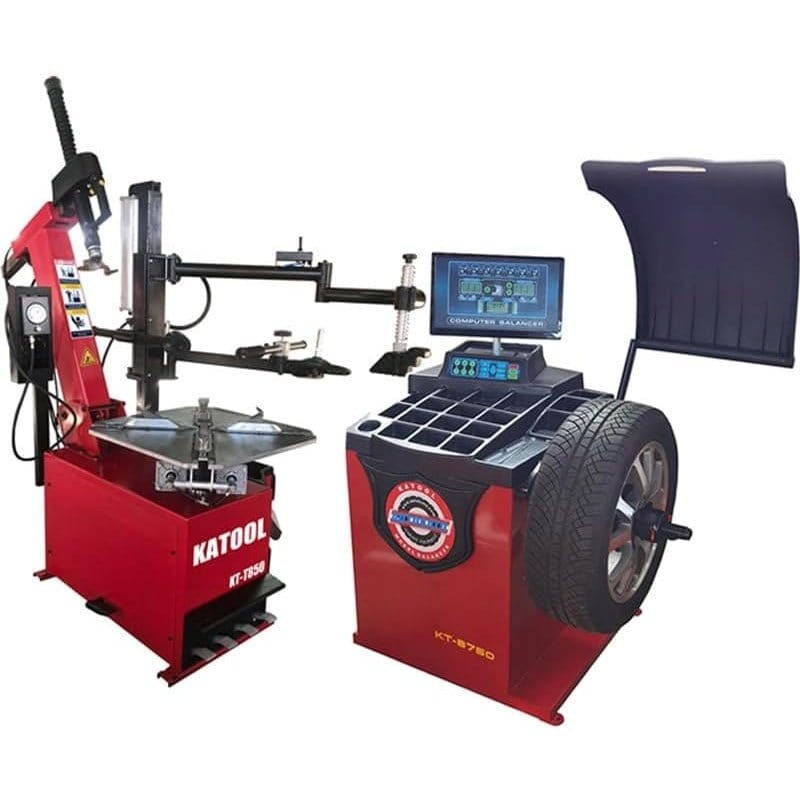

Katool Tire Changer KT-T850 & Wheel Balancer KT-B750 Combo

The Katool KT-T850 and KT-B750 pairs the tilt-arm T850 tire changer with the B750 balancer — the same T850 from the T850/B700 combo, stepped up to a balancer with automatic measurement. The T850 runs on 110V/1-phase/2.0 HP with a tilt-back arm design that swings the tool head clear during loading and unloading, reducing operator repositioning time per tire compared to a fixed-column setup. Assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder handle run-flat tires, stiff low-profile fitments, and resistant beads. The B750 adds an automatic measurement ruler that inputs A and D values without manual entry — the upgrade over the B700 that pays back in time saved on the balancer across a full day of service. Both machines run pure copper-wound motors for faster heat dissipation and longer service life.

The T850 carries the full construction spec: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit. The B750 delivers 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for heavier wheels, and a built-in self-calibration and fault diagnosis program requiring no pre-set parameters. Various balance modes cover different rim types, unit selection runs oz/g and mm/inch, and a longer shaft with optional wheel guard handles wider fitments.

The T850/B750 suits independent tire shops on 110V service that prefer the tilt-arm changer format and process enough daily volume that automatic balancer measurement reduces per-wheel time meaningfully — the middle tier between the B700's manual input and the B760's full feature set.

Features

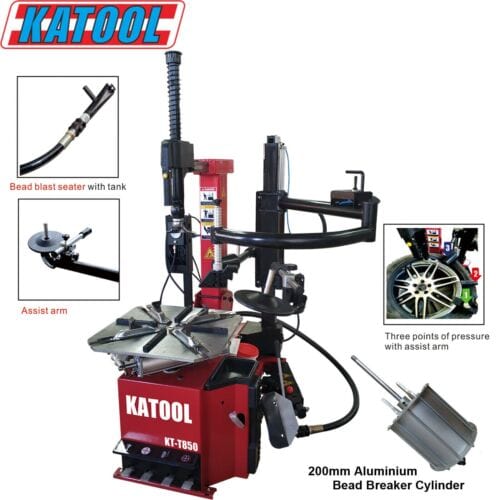

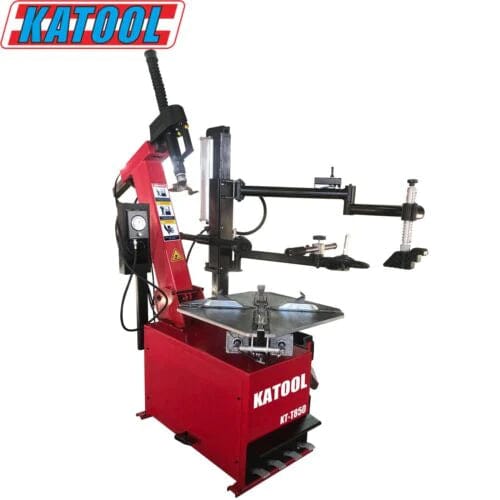

KT-T850 Tire Changer

• Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
• Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
• High-quality spade cover effectively prevents rim damage during operation
• Pull-type pedal control system for easy tire changing and straightforward maintenance access
• Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
• High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life
• Equipped with assist arms for enhanced tire mounting support
• Bead blast seater for powerful, reliable bead seating
• 200mm aluminum bead breaker cylinder for smooth, heavy-duty breaking performance
• 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance

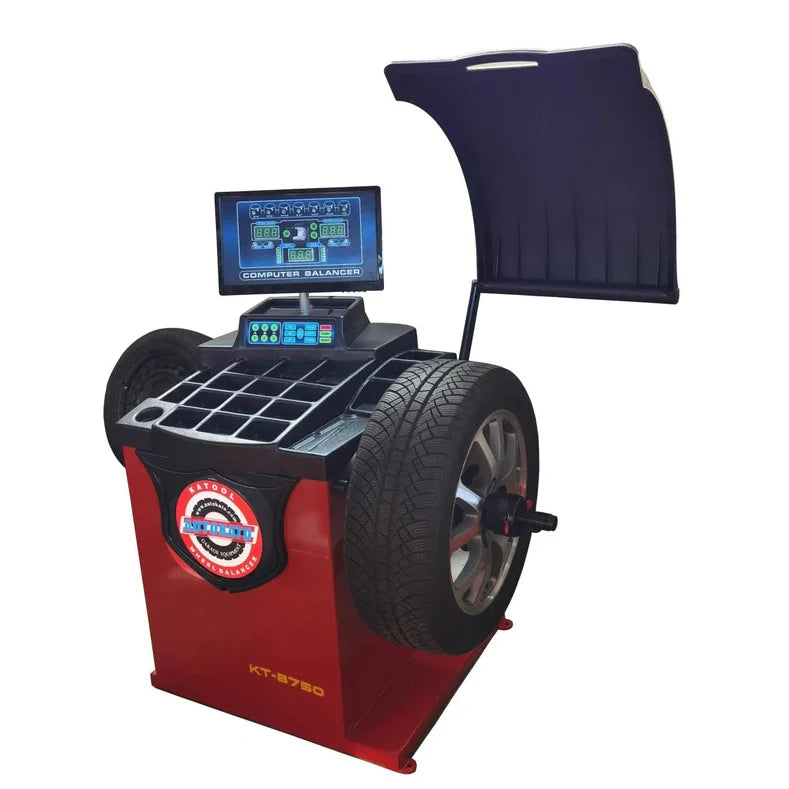

KT-B750 Wheel Balancer

• Automatic measurement ruler for hands-free A and D value input
• Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
• All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
• Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
• φ36mm quench-hardened shaft thread for superior strength and durability
• Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
• Multiple balance modes tailored to different rim types for precise, accurate balancing
• Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
• Selectable units for Ounce/Gram and MM/Inch measurements
• High-quality integrated power board ensures stable, consistent performance
• Extended shaft accommodates wider wheels
• Optional wheel guard available

Specifications

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

KT-B750 Wheel Balancer

Warranty

Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.

What's Covered

Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.

Warranty Conditions

• Claims must be submitted within the active warranty period
• Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
• Approved replacement parts are provided at no cost, with free shipping included
