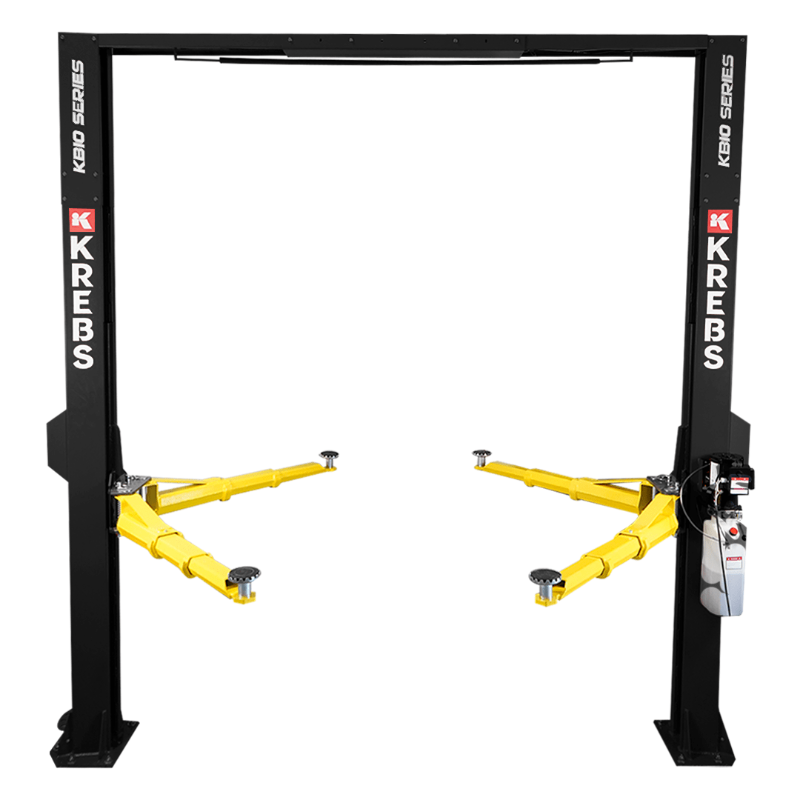

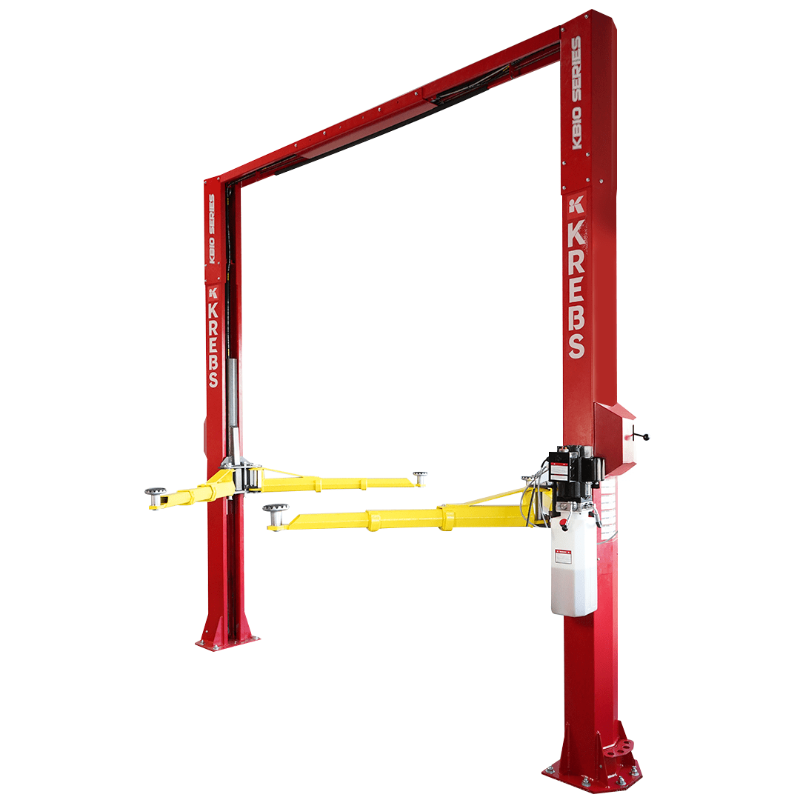

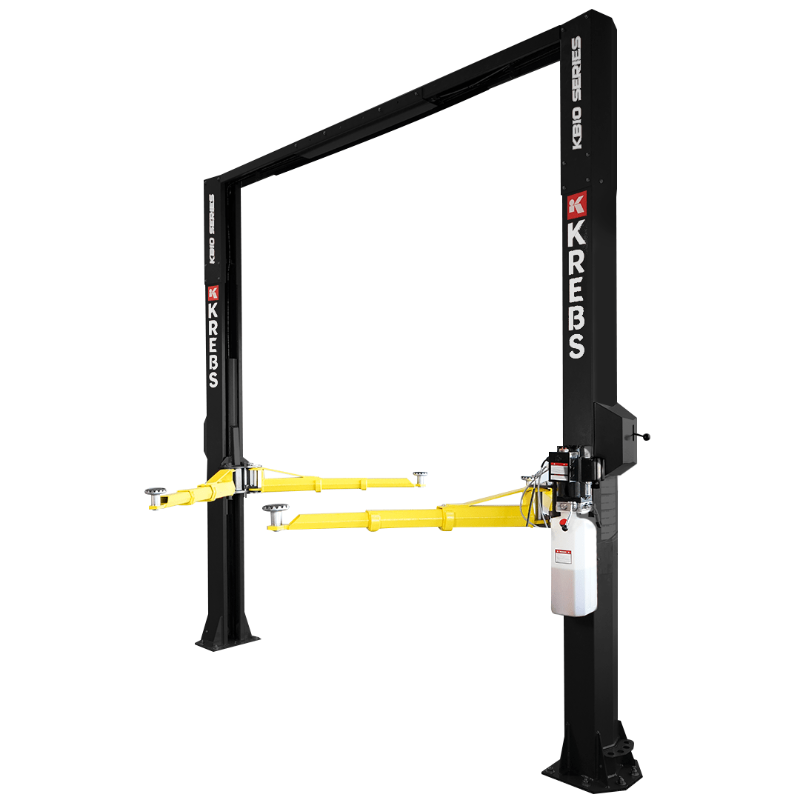

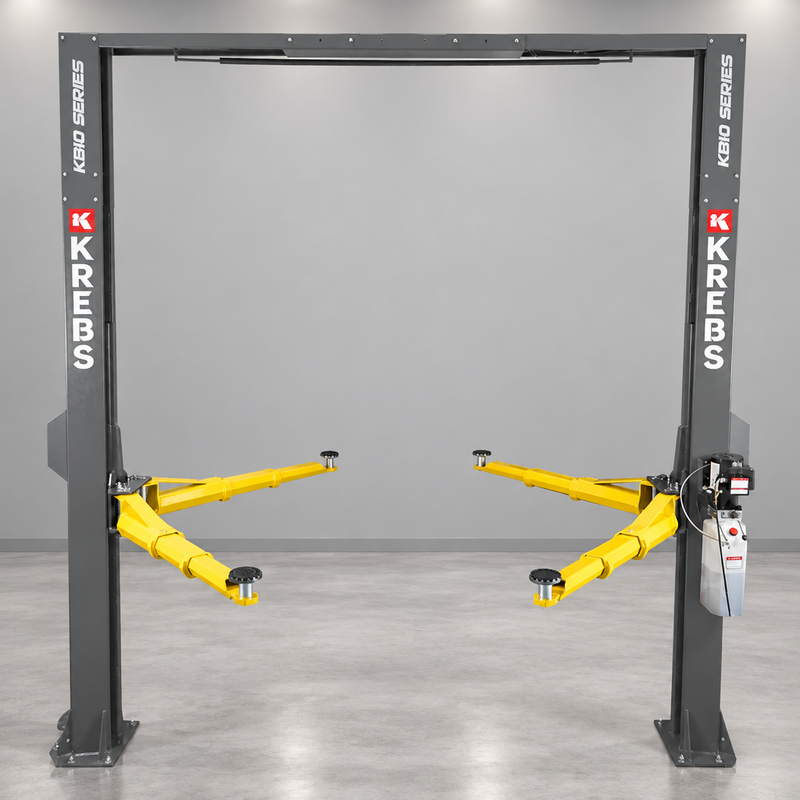

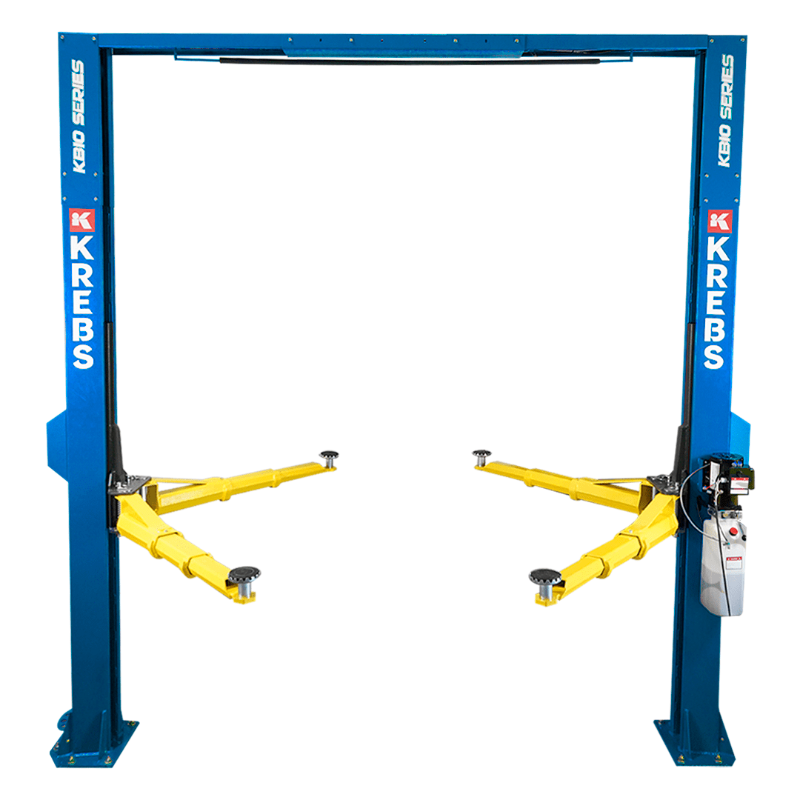

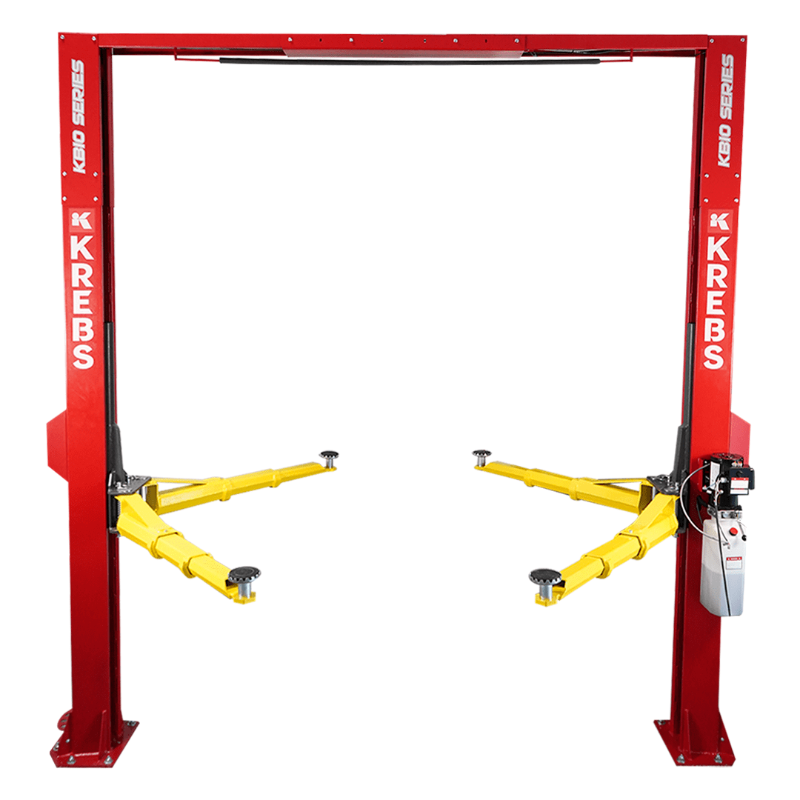

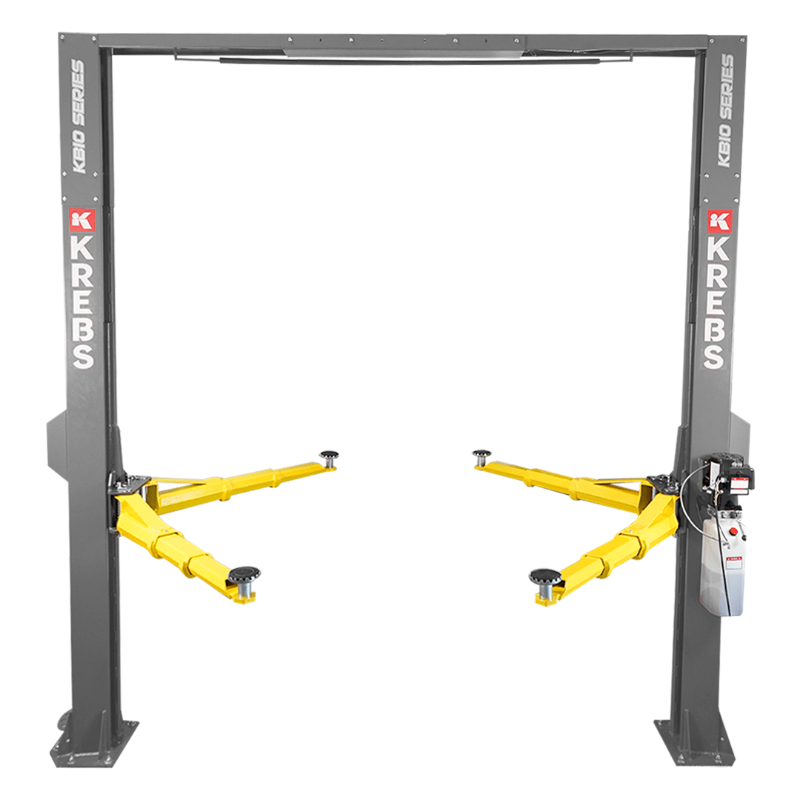

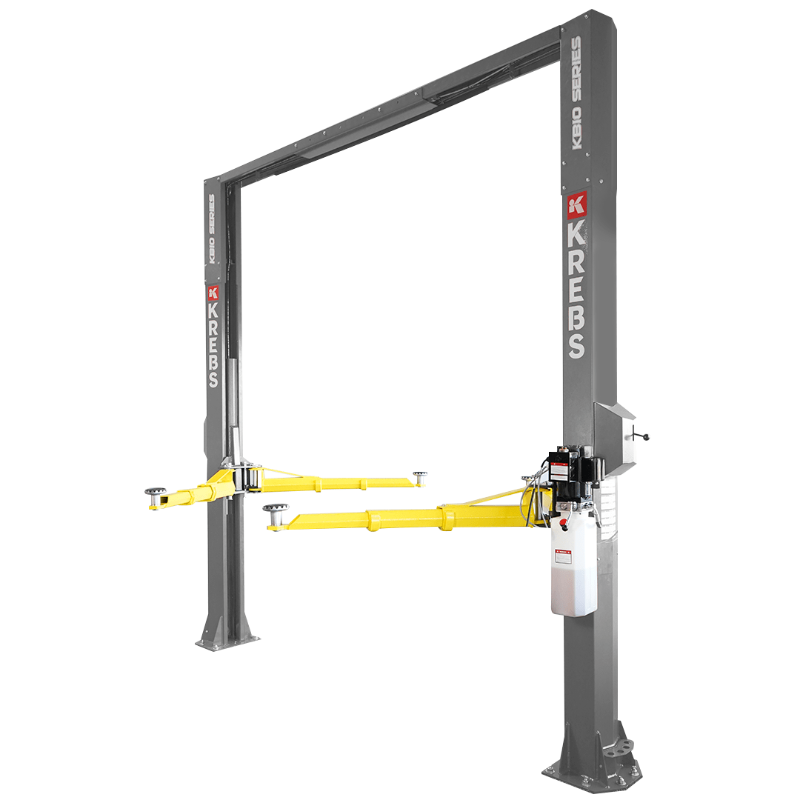

The KREBS KB10/H is a 10,000 lb ALI Certified overhead two-post lift built for busy repair shops and serious home garages. Its engineered column design and signature hexagonal sliding arms provide a stable setup for cars, light trucks, and many SUVs, while the overhead configuration keeps the bay floor open for easier access around the vehicle. The lift is available in Light Gray, Red, Blue, or Black and raises vehicles in approximately 50 seconds, with a controlled descent of about 27 seconds.
The KB10/H combines several features designed to make daily lifting more straightforward. Safety locks engage every 3 inches, giving technicians more flexibility when choosing a working height, while the single-point lock release allows both columns to be released in one motion. The arm design adds versatility, with three-stage front arms and two-stage rear arms to accommodate different vehicle pickup points and wheelbases. Included 3-1/2" and 5" extension adapters provide additional pad height when needed, and arm positioning locks help keep the arms secure once the vehicle is positioned.
With a 10,000 lb capacity, flexible arm reach, and ALI certification, the KB10/H is suited to professional automotive repair shops, service bays, and well-equipped home garages working on a mix of passenger vehicles, light trucks, and SUVs. Its structural components use ASTM A36 certified carbon steel, while the shaped column profile is designed to provide rigidity without unnecessary bulk. The result is a two-post lift configured for repeatable vehicle positioning, efficient bay operation, and routine undercar, brake, suspension, and general repair work.
Key Highlights
-
ALI Certified — Designed and built to meet recognized lift safety standards
-
10,000 lb lifting capacity — Suitable for cars, light trucks and many SUVs
-
Overhead two-post design — Keeps the floor area open for easier bay access
-

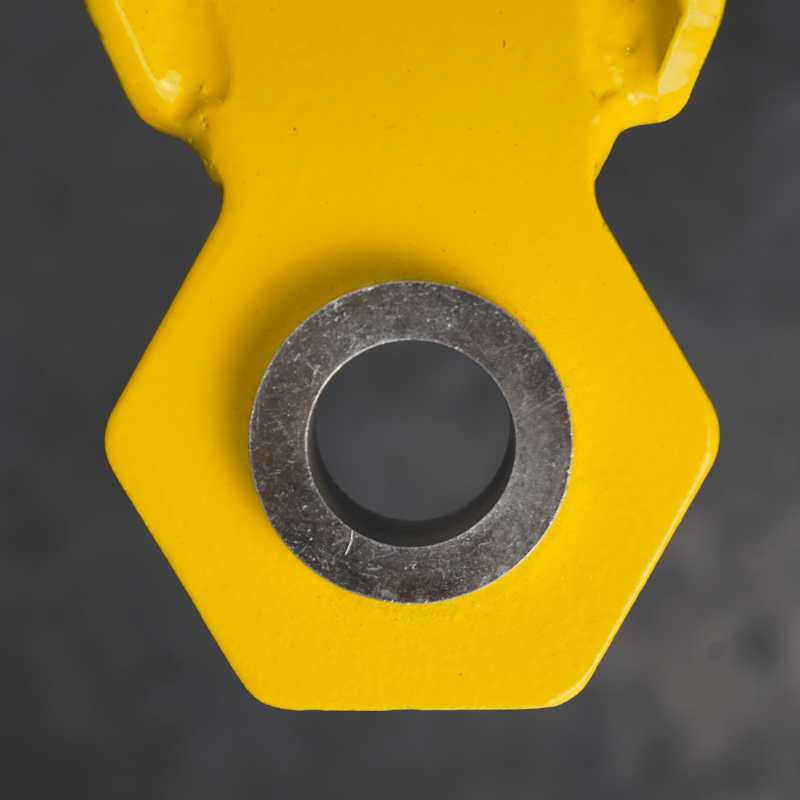

Signature hexagonal sliding arms — Three-stage arm design helps improve vehicle positioning
-
Flexible arm positioning — Two-stage rear arms and three-stage front arms accommodate a wide range of pickup points
-
Safety locks every 3" — Provides precise lifting positions with a single-motion release
-

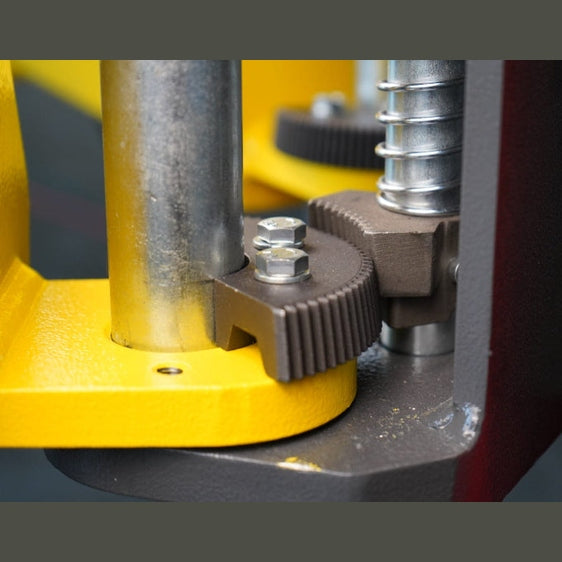

Arm-positioning locks — Help keep the arms securely positioned during service
-

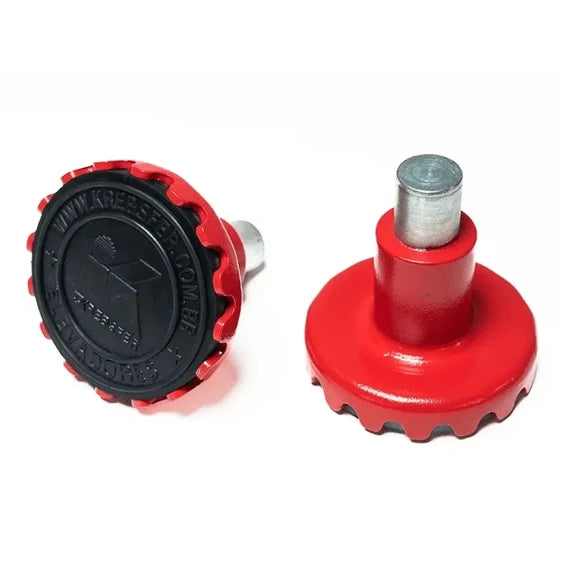

Quick-coupling support shoes — Simplify pad and shoe setup
-
ASTM A36 carbon steel construction — Structural steel selected for durability
-
3-1/2" and 5" height adapters included for additional vehicle clearance
Structural Strength & Materials

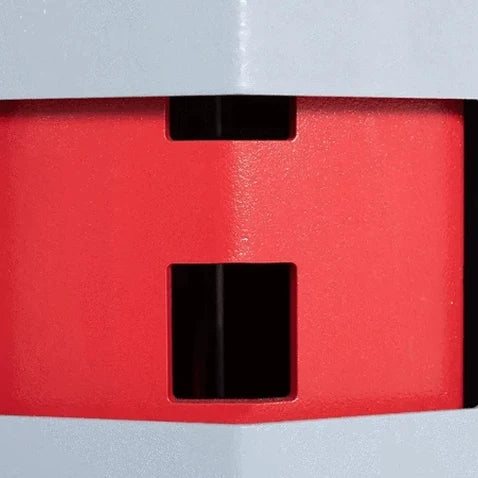

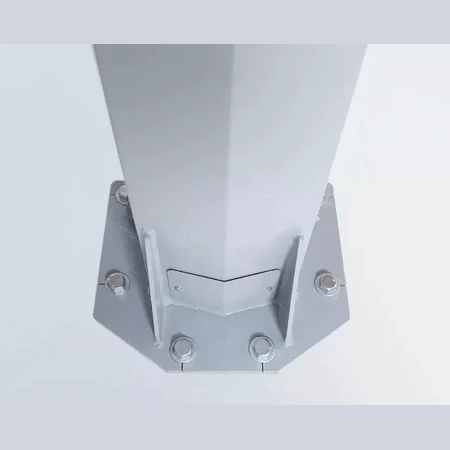

The KB10/H uses formed and shaped steel columns designed to provide structural rigidity without unnecessary bulk. The lift is constructed with ASTM A36 carbon steel and engineered for daily vehicle-lifting applications.
Safety & Control
-
Safety locks every 3" for precise lifting-height adjustment
-
Single-point lock release for straightforward operation
-
Arm-positioning locks help keep the pickup points secure during service

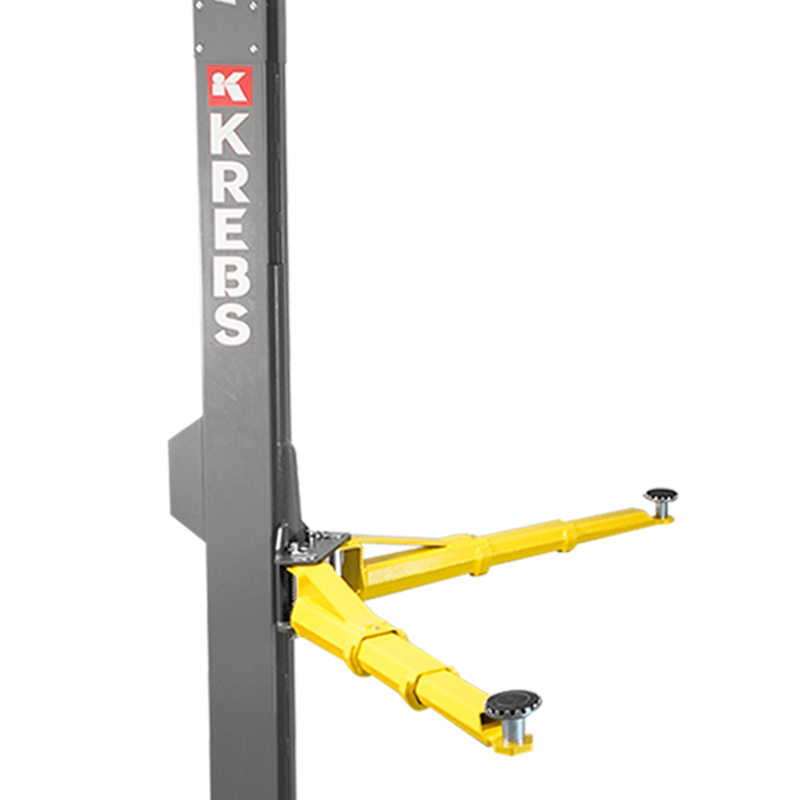

Arms, Reach & Vehicle Fitment
The KB10/H combines two-stage rear arms with three-stage front arms for flexible vehicle positioning. Its sliding-arm design accommodates a range of wheelbases and chassis configurations.
-
Sliding Arm Reach, Max: 4' – 3 7/8"
-
Sliding Arm Reach, Min: 2' – 2 3/8"
-
Front Swing Arm to Rear Sliding Arm Reach: 5' – 2 3/4" to 10' – 0"
Performance
The KB10/H has a listed 50-second rise time and 27-second descent time.
-
Rise Time: 50 sec
-
Descent Time: 27 sec

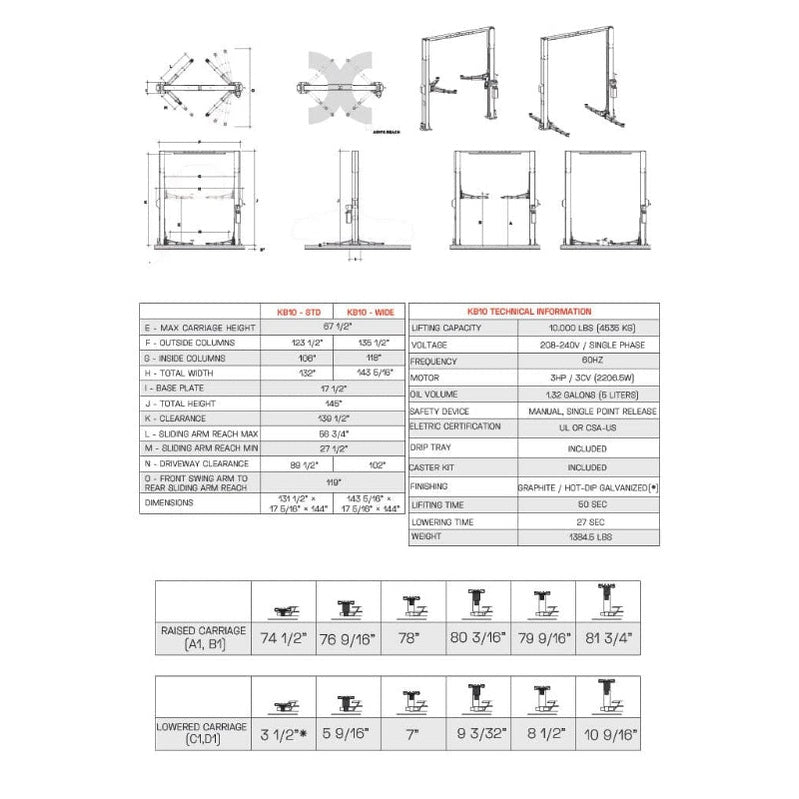

Dimensions & Technical Specs
Rated Load Capacity: 10,000 lbs
Heights
-
Max. Working Height (A): 6' – 5 5/16"
-
Max. Rising Height with Pad (B): 6' – 1/4"
-
Max. Carriage Height (C): 5' – 7 7/8"
-
Pad Height (D): 6 1/16"
-
Lifting Height with Lift Pad, Lowered (E): 11 1/16"
-
Total Height (J): 12' 5/16"
-
Clearance (K): 11' – 8 1/8"
Width / Bay Fit
| Dimension |
STD |
Wide |
| Outside Columns (F) |
10' – 3 5/8" |
11' – 3 3/8" |
| Inside Columns (G) |
8' – 10 1/8" |
9' – 9 7/8" |
| Total Width (H) |
10' – 11 1/2" |
11' – 11 5/16" |
| Driveway Clearance (N) |
8' – 1 7/8" |
9' – 3/4" |
Base & Weight
-
Base Plate (I): 1' – 5 5/16"
-
Weight: 1,384.5 lbs
Overall Dimensions (W × D × H)
-
STD: 10' – 11 1/2" × 1' – 5 5/16" × 12'
-
Wide: 11' – 11 5/16" × 1' – 5 5/16" × 12'
What's Included
- KREBS KB10/H overhead two-post lift — Light Gray
-
3-1/2" extension adapters
-
5" extension adapters
- Quick-coupling support shoe attachments
- Single-point lock release system
-
Integrated safety locks every 3"
