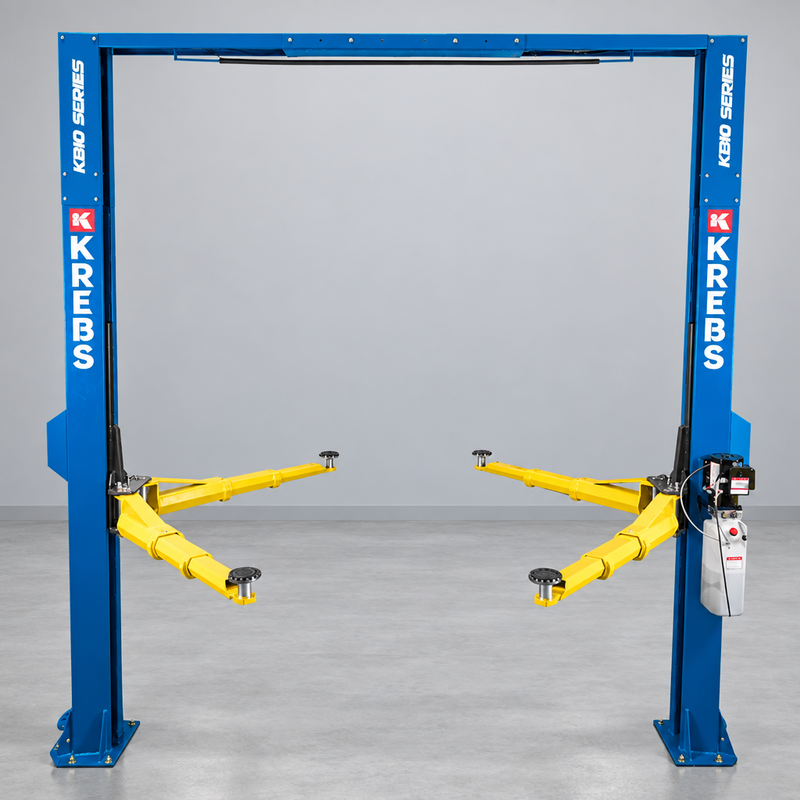

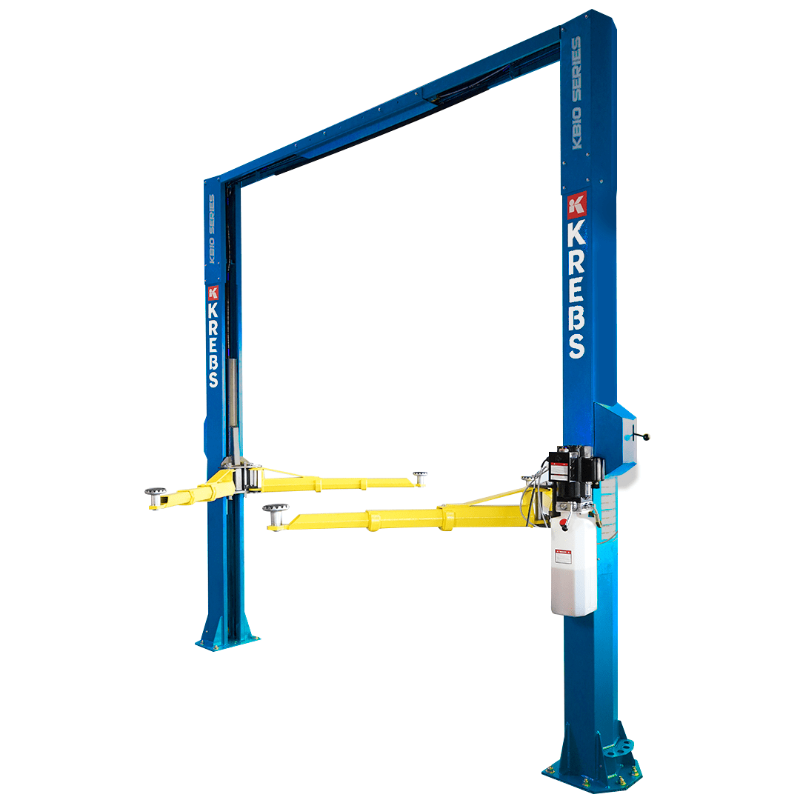

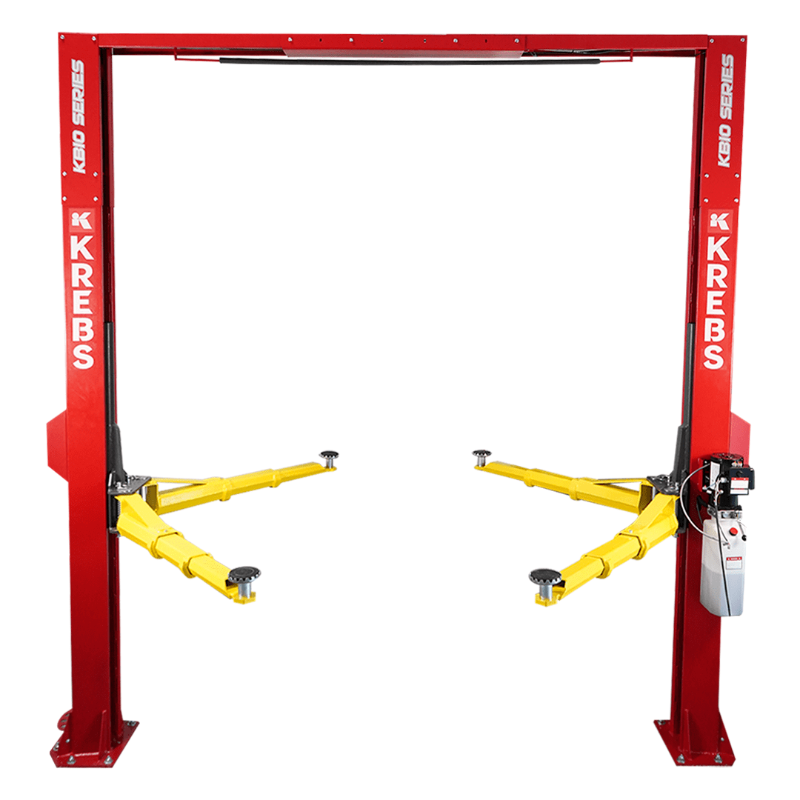

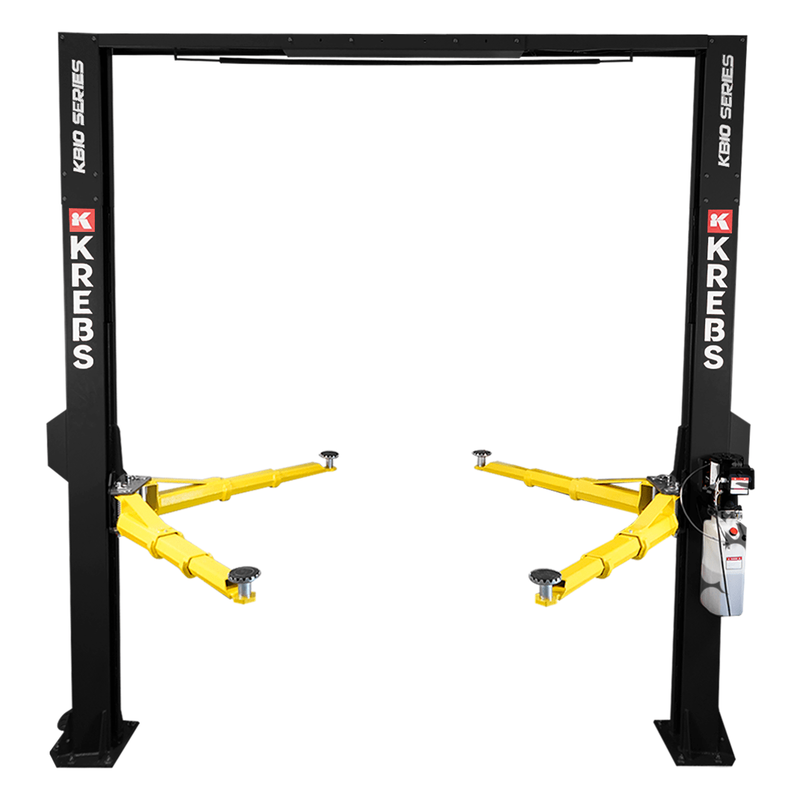

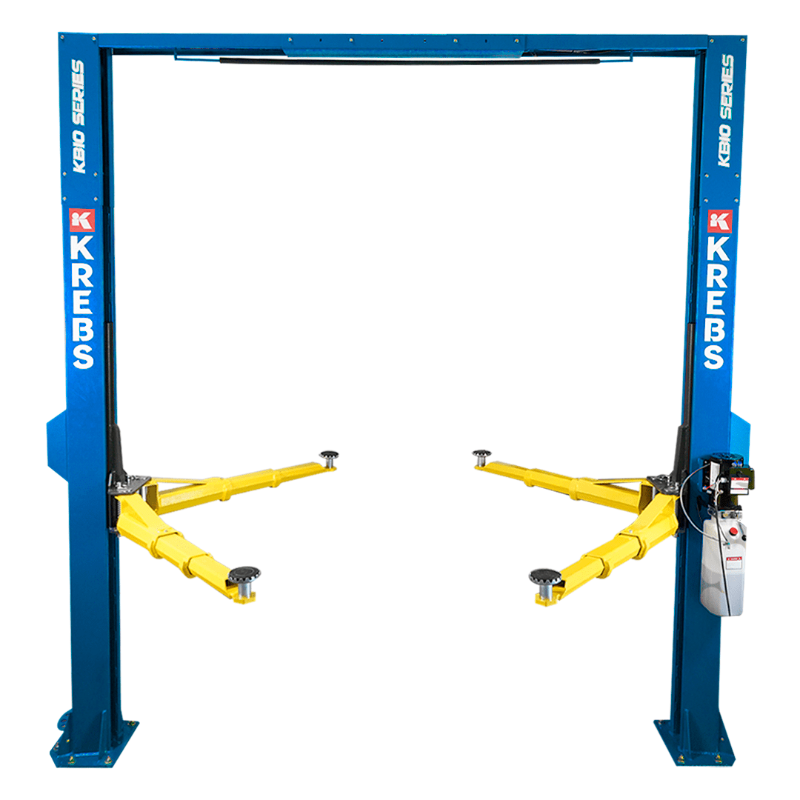

The KREBS KB10/H-T is a 10,000 lb ALI Certified overhead two-post lift designed for shops and home garages that need flexible vehicle positioning across different ride heights. Its threaded spin-up adapter allows finer pad-height adjustment, while the overhead configuration keeps the bay floor clear. The lift uses a 15-bend structural column design and Krebs’ hexagonal sliding arms, with STD and Wide configurations available to suit different bay layouts. Note: total height is approximately 12 feet, so verify available ceiling clearance before installation.
The KB10/H-T combines the spin-up adapter with three-stage front arms and two-stage rear arms to give technicians more options when positioning pads under different chassis and wheelbases. Safety locks engage at 3-inch increments, and the single-point release operates the locks in one motion. Quick-coupling support shoes simplify pad setup, while the included 3-1/2" and 5" extension adapters provide additional height when the standard pad position is not enough. With a rise time of about 50 seconds and descent time of approximately 27 seconds, the lift is also configured for efficient day-to-day service work.
With its 10,000 lb capacity, adjustable width, and flexible arm configuration, the KB10/H-T is suited to professional repair shops, service bays, and serious home garages working on passenger cars, light trucks, and many SUVs. The structure uses ASTM A36 certified carbon steel, while the sliding-arm design is intended to provide stable positioning across a range of pickup points. Choose the STD or Wide configuration based on the available bay width, and use the threaded adapter and extension accessories when vehicle height or lift-point location requires additional adjustment.
Key Highlights
-
ALI Certified Safety: Designed to meet recognized industry standards for professional vehicle lifting.
-
10,000 lb Capacity: Built to accommodate cars, light trucks, and many SUVs.
-
Threaded Spin-Up Adapters: Provide precise pad-height adjustment for uneven or taller vehicles.
-
Overhead Two-Post Design: Keeps hoses and cables elevated for a cleaner, more organized service bay.
-
15-Bend Structural Columns: Engineered for rigidity and long-term durability.
-
Hexagonal Sliding Arms: KREBS’ signature design helps provide stable vehicle positioning.
-
Versatile Arm Configuration: Two-stage rear arms and three-stage front arms accommodate a wide range of wheelbases.
-
3″ Safety Lock Increments: Provide precise working-height adjustment with a single-motion release.
-
Quick-Coupling Support Shoes: Speed up setup and vehicle positioning.
-

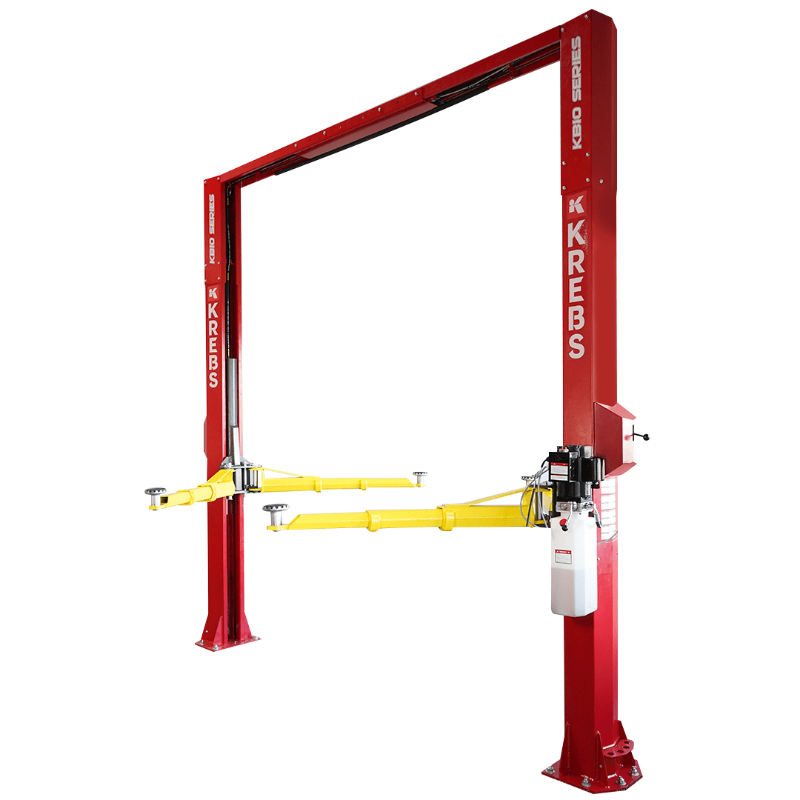

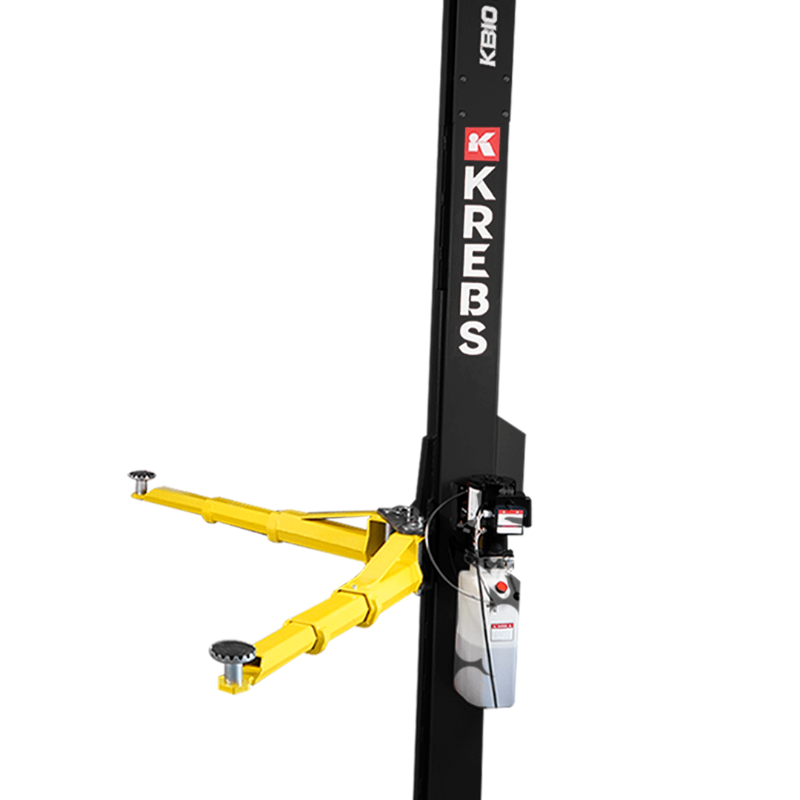

Professional Finish: Available in Black/Red/Blue for a clean shop-ready appearance.
Structural Strength & Materials
The KB10/H-T uses strategically formed steel columns designed to balance installation weight with structural rigidity. The 15-bend column profile adds reinforcement where it matters, supporting dependable performance through regular shop use.
Constructed from ASTM A36 certified carbon steel, the lift is built for consistent structural performance and durability in demanding service environments.
Safety & Control

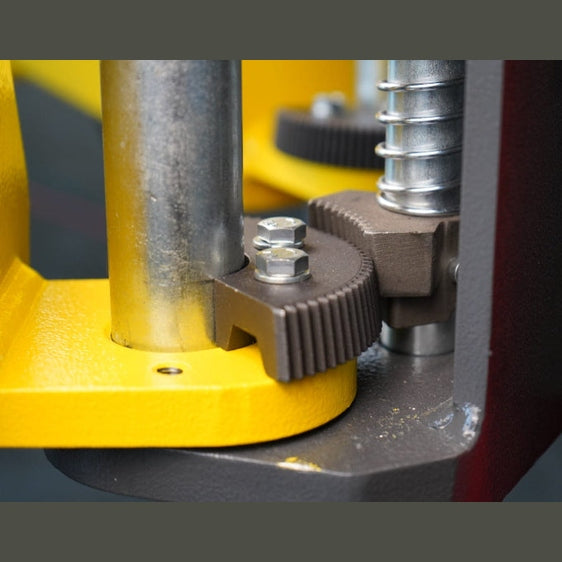

The KB10/H-T is designed for controlled operation throughout the lifting cycle. Safety locks engage every 3 inches, allowing you to select a precise working height, while the single-point lock release provides convenient, synchronized release. Arm positioning locks help keep the support arms securely positioned during service.
-
Locking Increments: Every 3″
-
Release System: Single-point, single-motion operation
-
Vehicle Stability: Arm positioning locks help secure the support arms
Arms, Reach & Vehicle Fitment

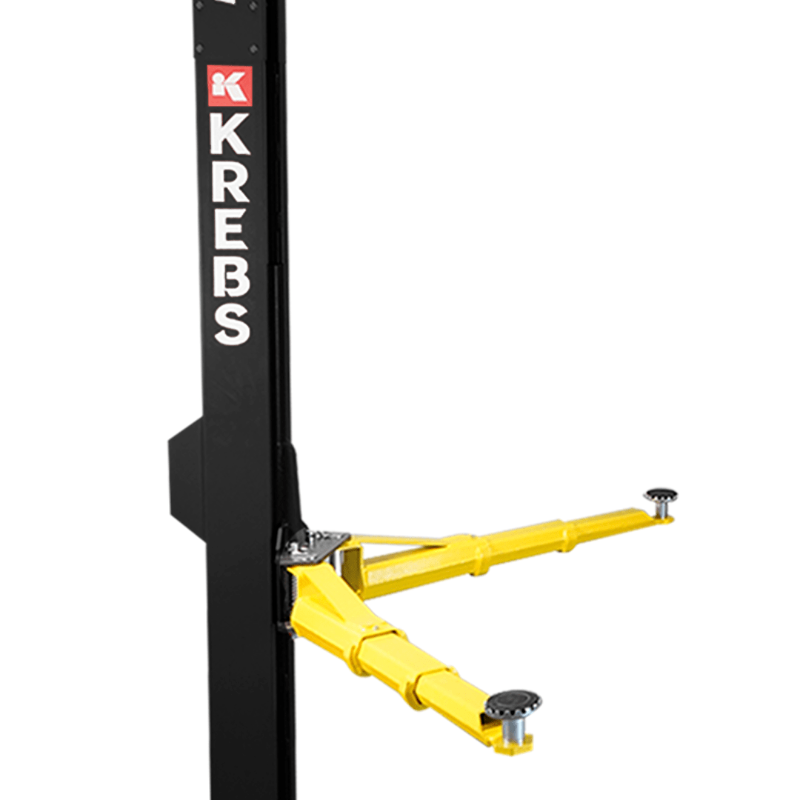

The combination of two-stage rear arms, three-stage front arms, and threaded spin-up adapters provides flexibility when positioning lift pads across different vehicle sizes, wheelbases, and ride heights.
-
Sliding Arm Reach, Max.: 4′ – 3 7/8″
-
Sliding Arm Reach, Min.: 2′ – 2 3/8″
-
Front Swing Arm to Rear Sliding Arm Reach: 5′ – 2 3/4″ to 10′ – 0″
Performance
The KB10/H-T is designed to keep vehicle service moving with controlled lifting and lowering speeds.
-
Rise Time: Approximately 50 seconds
-
Descent Time: Approximately 27 seconds

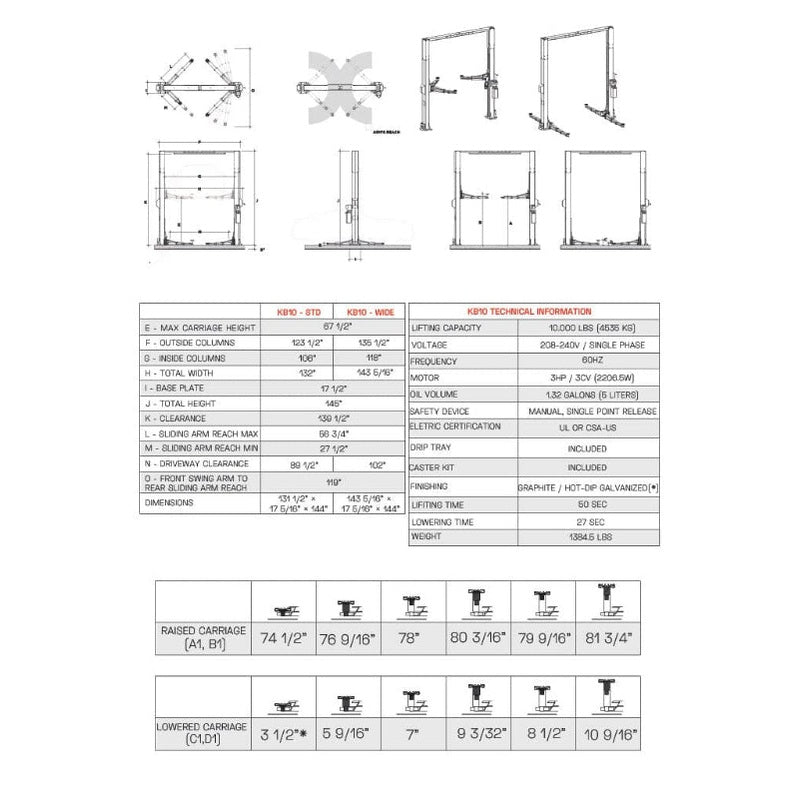

Dimensions & Technical Specifications
Rated Load Capacity: 10,000 lbs
Heights
-
Max. Working Height (A): 6′ – 5 5/16″
-
Max. Rising Height with Pad (B): 6′ – 1/4″
-
Max. Carriage Height (C): 5′ – 7 7/8″
-
Pad Height (D): 6 1/16″
-
Lifting Height with Lift Pad, Lowered (E): 11 1/16″
-
Total Height (J): 12′ 5/16″
-
Clearance (K): 11′ – 8 1/8″
Width & Bay Fit
| Dimension |
STD |
Wide |
| Outside Columns (F) |
10′ – 3 5/8″ |
11′ – 3 3/8″ |
| Inside Columns (G) |
8′ – 10 1/8″ |
9′ – 9 7/8″ |
| Total Width (H) |
10′ – 11 1/2″ |
11′ – 11 5/16″ |
| Driveway Clearance (N) |
8′ – 1 7/8″ |
9′ – 3/4″ |
Base & Weight
-
Base Plate (I): 1′ – 5 5/16″
-
Weight: 1,384.5 lbs
Overall Dimensions (W × D × H)
-
STD: 10′ – 11 1/2″ × 1′ – 5 5/16″ × 12′
-
Wide: 11′ – 11 5/16″ × 1′ – 5 5/16″ × 12′
What’s Included
- KREBS KB10/H-T overhead two-post lift
- Threaded spin-up adapters
-
3 1/2″ extension adapters
-
5″ extension adapters
- Quick-coupling support shoe attachments
- Single-point lock release system
-
Integrated safety lock system with 3″ increments
Why the KB10/H-T Stands Out
The KREBS KB10/H-T combines a 10,000 lb lifting capacity with an overhead two-post configuration, versatile arm positioning, and precise height adjustment. Its threaded spin-up adapters, quick-coupling support shoes, and 3-inch safety-lock increments make vehicle positioning and working-height adjustment straightforward, while the reinforced ASTM A36 steel columns provide a durable foundation for everyday shop use.
