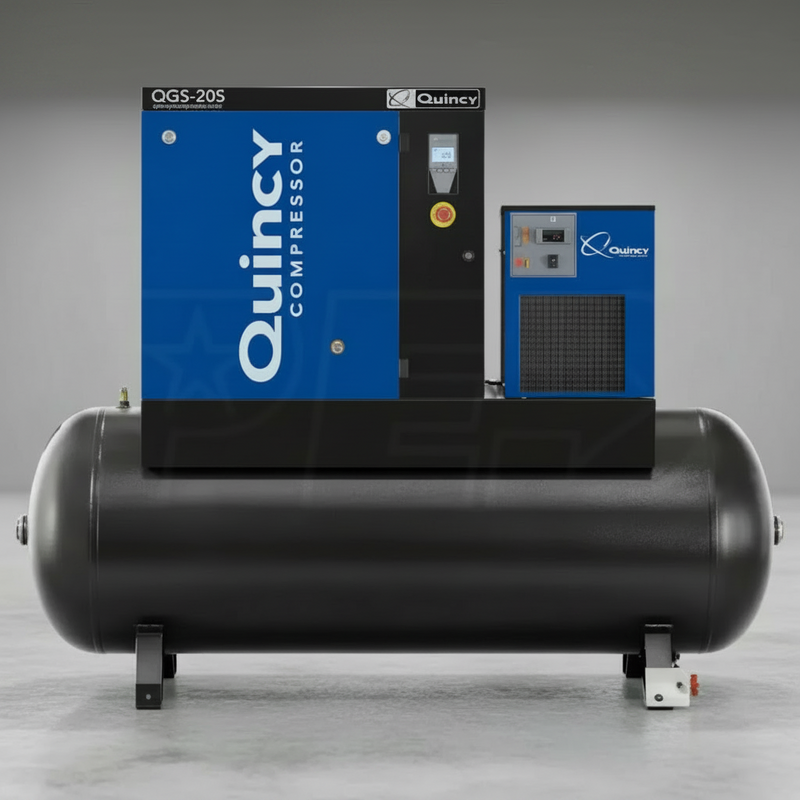

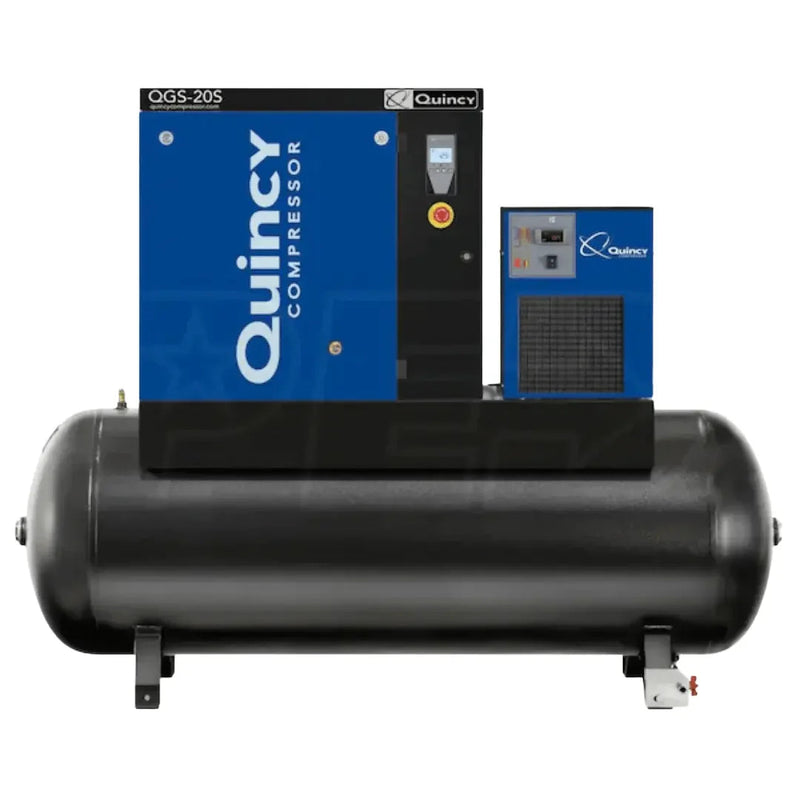

Quincy Air Compressor 132 Gallon Rotary Screw with Dryer

The Quincy QGS-20S Value Package combines a rotary screw airend, 132-gallon horizontal receiver, and refrigerated air dryer into one factory-assembled system. The interconnecting piping, mounting, and control wiring are already matched and installed, eliminating the need to configure and connect separate compressor and dryer components. It delivers 60.9 CFM at 71 dBA on a 100% duty cycle, providing continuous air for demanding shop applications without the noise level typically associated with high-output equipment. Note: the assembled package measures 74" × 30.7" × 72.2" and weighs 1,296 lbs, so verify delivery access and installation clearance.

The integrated refrigerated dryer is the key advantage of this configuration. Air leaves the oil-injected twin-screw airend hot and saturated, while the aftercooler removes bulk moisture before the refrigerated dryer further reduces the dew point. That gives your shop cleaner, drier compressed air for tools and finishing equipment and reduces moisture-related problems throughout the air system. The 100% duty-cycle design supports continuous operation, while the factory-matched assembly avoids the extra pipework, connections, and installation coordination required when purchasing the components separately. Note: the published 60.9 CFM figure has a slight discrepancy with another product data field, so confirm the exact rating with Quincy if your application requires precise air-demand calculations.

This package is a strong fit for multi-bay automotive and truck shops, body and paint operations, fabrication facilities, and light-production environments that need continuous, dry compressed air. It is particularly useful when you want the compressor, receiver, and dryer handled as a single integrated installation rather than separate equipment. The system requires 208–230/460V three-phase power and includes a magnetic starter with Wye-Delta reduced-voltage starting. Quincy does not publish a fixed amp or breaker specification for this configuration, so have a licensed electrician size the electrical service, feeder, and disconnect from the machine nameplate.

The Numbers This Unit Will Actually Stand Behind

One of the useful things about this particular part number is how complete its published data is. It lists 60.9 CFM of free-air delivery and a sound level of 71 dBA — two specifications that are missing units or otherwise unclear in some related models. Here, you have meaningful numbers to work with when sizing the compressor and planning where it will operate.

At 60.9 CFM, this is a substantial continuous air supply for a busy workshop. It is well suited to multiple pneumatic tools operating throughout the day and to applications with sustained air demand that can quickly overwhelm a reciprocating compressor.

The 71 dBA sound level is also worth noting if the compressor will be located near the working area. The enclosure helps make the unit more practical for shops where placing the compressor in a separate mechanical room is not an option.

There is one qualification on the airflow figure. The marketing copy for this product lists 60.9 CFM, while the product specification data records a slightly different value for the same rating. The difference is fractional, but if you are sizing the compressor very close to a fixed equipment requirement, contact us and we will confirm the exact rating against the current Quincy datasheet rather than asking you to design around an unresolved discrepancy.

Continuous Duty, and the Dryer That Goes With It

The compressor is rated for a 100% duty cycle, meaning it is designed for continuous operation. Its oil-injected twin-screw airend uses the compressor fluid for both lubrication and cooling, supporting the demands of sustained operation.

Continuous compression also produces continuous moisture. That makes the air-treatment package particularly important. The compressed air leaves the airend hot and saturated; the aftercooler lowers its temperature and removes bulk moisture, while the integrated refrigerated air dryer further reduces the moisture content to provide a controlled pressure dew point downstream.

Proper air treatment can help prevent moisture-related problems throughout the distribution system and at the point of use, including corrosion in piping, water accumulation in air tools and contamination of finishing applications.

For this particular package, the dryer is not a disputed specification. The title, feature list and specification table all identify the integrated refrigerated air dryer as included. That distinction matters because other configurations in this compressor family do not necessarily have the same air-treatment package.

Will It Fit, and Can Your Building Supply It?

The assembled package measures approximately 74 inches long × 30.7 inches wide × 72.2 inches high and weighs approximately 1,296 lbs.

This is the heaviest configuration in this cabinet family, reflecting the integrated receiver and dryer package. Check ceiling height, door openings and the entire route from the unloading point to the installation area before delivery. Once positioned, leave adequate clearance around the hinged doors and detachable panels for service access rather than placing the compressor directly against a wall.

The receiver outlet is 1 inch, so size the downstream distribution piping appropriately from that connection.

Electrical supply should be confirmed before ordering. This is a 208–230/460V, 3-phase machine with a magnetic starter and Wye-delta reduced-voltage starting.

Quincy does not publish an amp draw or recommended breaker size for this configuration; both fields state “Consult Certified Electrician.” We will not substitute an estimated electrical specification for the manufacturer's guidance.

Have a licensed electrician size the service, feeder and disconnect from the actual machine nameplate and installation conditions before delivery.

Perfect For

• Multi-bay automotive and truck service shops that need clean, dry compressed air throughout the working day without a separate plant room.
• Body shops and finishing operations where moisture control is an important part of air quality.
• Fabrication and light-production facilities with steady, sustained compressed-air demand.
• Shops that want an integrated package, rather than sourcing a compressor, receiver, dryer and connecting equipment separately.

Specifications

What's Included

According to the manufacturer's feature list and specification table, the package includes the QGS-20S rotary screw compressor with gear-driven airend, Infologic2 Basic Controller with display panel, TEFC electric motor with IP55 wash-down protection, integrated refrigerated air dryer, 132-gallon horizontal receiver, aftercooler, air filter, pressure gauge, oil sight glass, magnetic starter, low-oil shutdown and spin-on fluid filter.

An electronic drain valve is not included. Unless an automatic drain is added separately, plan on a manual tank-draining routine.

Shipping and Delivery

This unit ships by freight within the lower 48 states, with the current freight cost calculated at checkout based on your delivery address.

We deliberately do not publish a fixed shipping figure because carrier rates vary by destination and can change over time. At this size and weight, unloading must be arranged before shipment. Plan for a suitable loading dock or forklift with sufficient capacity, or arrange pickup from the carrier's terminal if the delivery location cannot accommodate the freight.

Residential delivery carries an additional residential fee.

Inspect the crate and equipment carefully when it arrives. Check for visible damage to the receiver, panels, gauges, guards and other exposed components. If you find damage, document it and have it recorded on the bill of lading before signing for the shipment.

Warranty

The standard recorded warranty is 1 year for consumer use and 1 year for commercial use. An extended 3-year factory warranty is available, and the True Blue 5-Year Warranty applies when the machine is commissioned through a Quincy-authorized startup, subject to the applicable warranty terms.

Because authorized startup is a condition of the extended coverage, schedule it as part of the installation rather than treating it as an optional service afterward.

If a fault develops, stop the compressor and contact us before opening or dismantling anything. Unauthorized disassembly can complicate warranty evaluation and may affect coverage. Keep the unit intact until you have received instructions on how the issue should be handled.
