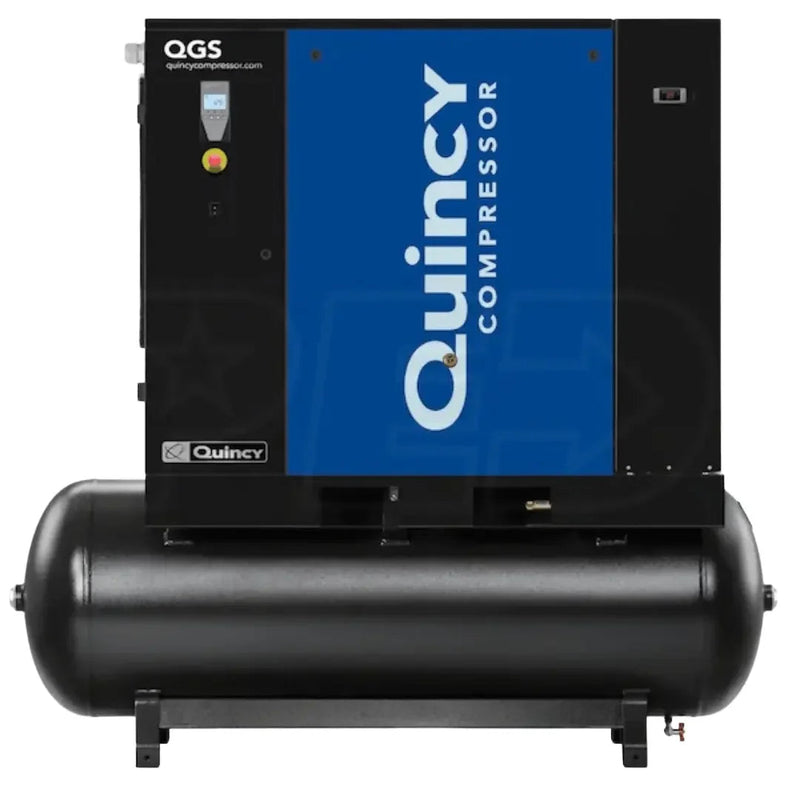

The Quincy QGS rotary screw compressor is built for shops that may need to expand their compressed-air capacity over time. Its Infologic2 Basic microprocessor controller can network with up to six compatible QGS compressors in the 20–30 HP range, allowing multiple units to operate as a coordinated system rather than independently loading whenever header pressure drops. That makes it a practical choice for a shop planning future growth. The compressor uses a belt drive, so belt inspection and eventual replacement are part of routine maintenance.
The integrated refrigerated air dryer is a major part of the package, and the available product data consistently identifies it as included. The dryer removes condensed moisture before it can travel through the distribution system and reach air tools, pneumatic equipment, or finishing applications. The compressor is rated for 100% duty cycle and uses an oil-injected twin-screw airend with synthetic lubricant rated for up to 8,000 hours. A TEFC motor with IP55 protection, low-oil shutdown, an oil sight glass, and a spin-on fluid filter provide additional protection during continuous operation, while Wye-Delta reduced-voltage starting helps manage electrical inrush.
This package is suited to busy automotive service shops, fabrication facilities, light manufacturing operations, and growing businesses that need reliable compressed air throughout the workday. It is especially useful for facilities that may add another compressor later and want the option to coordinate multiple QGS units. The complete package measures 74" × 30.7" × 72.2" and weighs 1,296 lbs, so verify door and overhead clearances before delivery. It requires 208–230/460V three-phase power; Quincy does not publish a universal amp or breaker requirement, so a licensed electrician should size the electrical installation from the machine's nameplate and your site's requirements.
Belt Drive on This Particular Unit
The pump drive recorded for this model is belt driven. That is worth stating plainly because the drive type affects maintenance.
Belts are scheduled wear components. They should be inspected periodically for condition and tension and eventually replaced as part of normal maintenance. The upside is that belt drives are straightforward to service, relatively inexpensive to maintain and use widely available components.
Other compressors in the same QGS family use gear-driven airends instead. If avoiding belt maintenance is a priority, ask us about the comparable gear-driven models in the range. It is a genuine configuration difference worth considering before you order.
Continuous Running, and How the Machine Is Protected
The compressor is rated for a 100% duty cycle, meaning it is designed for continuous operation.
The oil-injected twin-screw airend uses compressor fluid for lubrication and cooling, while the specified premium synthetic lubricant is rated for up to 8,000 hours under the applicable operating conditions.
The motor is a TEFC design with IP55 protection, providing protection appropriate to the environments for which this equipment is designed.
Additional protective and service features include low-oil shutdown, an oil sight glass and a spin-on fluid filter. The low-oil protection is designed to stop the machine when the oil level reaches an unsafe condition, while the sight glass and filter support routine maintenance.
Starting uses Wye-delta reduced-voltage starting, which reduces the initial electrical demand associated with starting the motor compared with full-voltage starting.
Will It Fit, and Can Your Building Feed It?

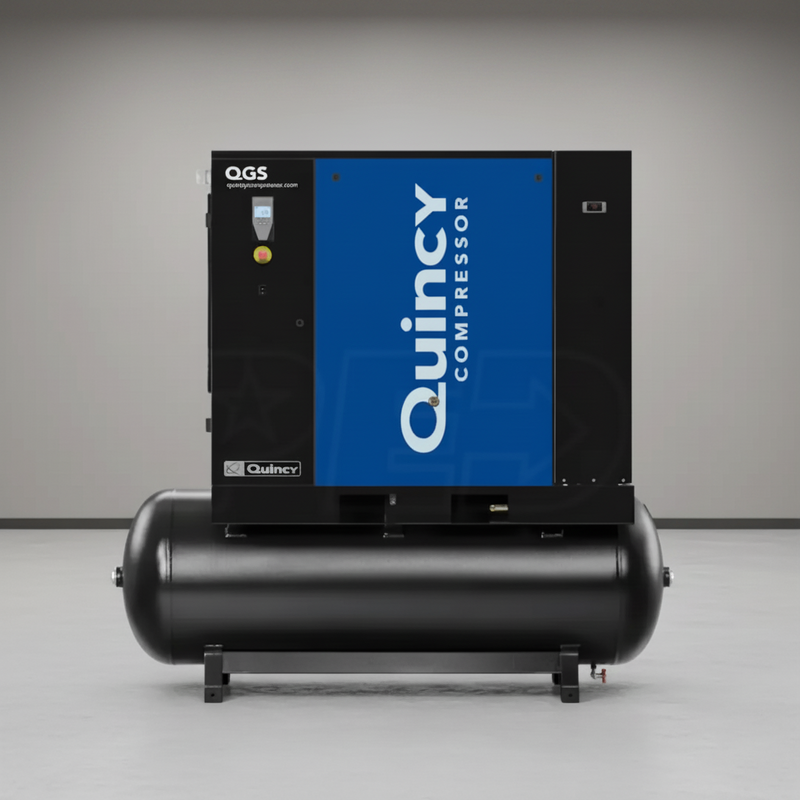

The complete package — compressor, dryer and horizontal receiver — measures approximately 74" long × 30.7" wide × 72.2" high and weighs approximately 1,296 lbs.
It is a relatively tall assembly, so check door heights, overhead obstructions and the complete delivery route, not just the available floor space. Once installed, leave sufficient clearance around the service panels and other access points.
The receiver outlet is 1", providing the connection point for the downstream compressed-air distribution system.
Electrical supply must be confirmed before ordering. This configuration is designed for 208–230/460V, three-phase power and includes a magnetic starter.
Quincy does not publish an amp draw or recommended breaker size for this configuration; both fields direct the buyer to “Consult Certified Electrician.” We will not replace that instruction with an estimate. Have a licensed electrician verify the available service and size the feeder, protection and disconnect according to the actual nameplate, installation conditions and local code.
Perfect For
-
Busy multi-bay automotive shops running pneumatic tools throughout the day.
-
Fabrication and light-manufacturing facilities that need continuous compressed air with integrated moisture control.
-
Finishing and pneumatic applications where reducing moisture downstream is important.
-
Growing operations that want substantial capacity now and the option to add another sequenced compressor later.
Specifications
| Motor |
20 HP, electric, TEFC with IP 55 wash-down protection |
| Supply |
208-230/460V, 3-phase, Wye-Delta start, magnetic starter included |
| Amp draw / breaker |
Manufacturer states "Consult Certified Electrician" |
| Duty cycle |
100% |
| Max pressure |
125 PSI |
| Pump |
Rotary screw, oil-lubricated, belt drive, aftercooler fitted |
| Receiver |
132 gallon horizontal, 1 inch outlet |
| Air treatment |
Integrated refrigerant dryer and air filter |
| Dimensions (L x W x H) |
74 in x 30.7 in x 72.2 in |
| Weight |
1,296 lbs |
| Networking |
Infologic2 Basic, up to six QGS units, 20 HP to 30 HP |
What's Included
According to the manufacturer's feature list, this package includes the QGS rotary screw compressor, Infologic2 Basic Controller with display panel, TEFC electric motor with IP55 protection, integrated refrigerated air dryer, 132-gallon horizontal receiver, air filter, pressure gauge, oil sight glass, aftercooler, low-oil shutdown, magnetic starter and spin-on fluid filter.
Shipping and Delivery
This unit ships by freight to addresses within the lower 48 states, with the current freight rate calculated at checkout for your delivery address.
We do not publish a fixed shipping figure because freight rates vary by destination and carrier. At this size and weight, you need to arrange unloading before shipment. Plan for a loading dock, an appropriately rated forklift or suitable terminal pickup if the destination cannot safely unload the machine.
Residential deliveries carry an additional residential-delivery fee.
Inspect the shipment carefully when it arrives. Check the crate, receiver, panels, gauges, fittings and other visible components for damage, and have any damage documented on the bill of lading before signing. Once a shipment has been signed for without damage being noted, resolving a freight-damage claim can become considerably more difficult.
Warranty
The recorded standard coverage is 1 year for consumer use and 1 year for commercial use. An extended 3-year factory warranty is available, and the True Blue 5-Year Warranty may apply when the unit is commissioned through a Quincy-authorized startup, subject to the manufacturer's warranty terms and conditions.
Because authorized startup is a condition of the extended coverage, arrange it as part of the installation rather than treating it as an optional service afterward.
If a fault develops, shut the compressor down and contact us before dismantling or opening the equipment. Opening the unit before the warranty claim has been evaluated can complicate the manufacturer's assessment and may affect coverage. Document the issue and let us coordinate the next step.
