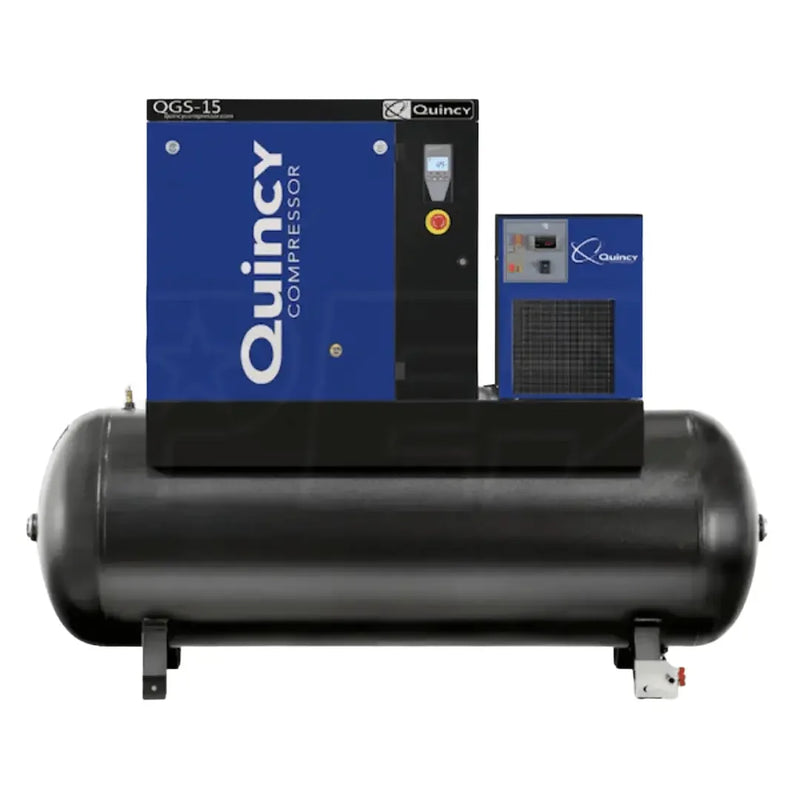

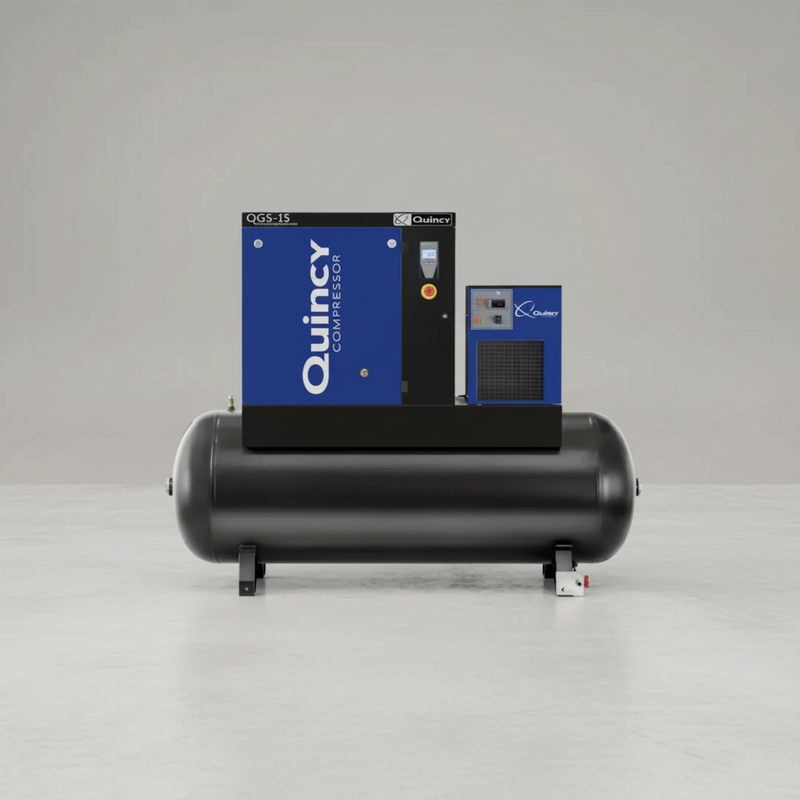

The QGS rotary screw compressor delivers 54.9 CFM at 125 PSI with a 100% duty cycle, giving multi-bay shops continuous air for demanding tool use without relying on recovery periods. Its standout feature is Auto-Dual operation, which allows programmed shutdowns during periods of no demand and automatic restart when scheduled. An integrated refrigerated air dryer is also included, while the package uses a 120-gallon horizontal receiver. Note: this configuration requires 208-230/460V, 3-phase power.
Auto-Dual addresses one of the less obvious costs of a rotary screw compressor: unnecessary standby operation. The compressor is designed to run continuously, but it does not need to maintain pressure all night when the shop is closed. Programmable shutdown lets the machine remain available during working hours and stop during predictable idle periods. When production resumes, it can restart without requiring someone to manually operate the compressor. The 54.9 CFM continuous output is suited to several technicians using impact wrenches, ratchets, air hammers and blow guns, with additional capacity for equipment such as sanders or small blast cabinets.
The integrated refrigerated air dryer handles moisture removal before compressed air enters the shop's distribution system. This model does not list an aftercooler, so the dryer carries the primary air-treatment load; keeping its condenser clean and confirming the required dewpoint before purchase are particularly important for demanding applications. A long-life V-belt drive provides straightforward service access, while premium synthetic lubrication is rated for 8,000 hours. TEFC motor construction, low-oil shutdown on the engine and pump, and an oil sight glass support routine operation.
This package is well suited to independent automotive shops, fabrication and welding facilities, woodworking operations and other commercial shops with extended air demand and periods of predictable downtime. Its horizontal configuration measures 76" long, 25" wide and 58" tall and weighs approximately 980 lbs, so it works well where wall length is available but floor width or ceiling height is limited. The receiver outlet is 1/2". Electrical service, feeder and disconnect sizing must be confirmed by a licensed electrician using the machine nameplate.
Integrated Dryer for Moisture Control
This model includes an integrated refrigerated air dryer, confirmed across the manufacturer's title, feature list and specifications. The dryer removes moisture, oil mist and debris before they reach your air lines and tools.
The specifications also show no aftercooler, meaning the refrigerated dryer handles the moisture control on its own. Keep the dryer's condenser clean, and if you need a specific dewpoint for finishing or instrument air, confirm the requirement with us before ordering.
Long-Life V-Belt Drive
The compressor uses a long-life V-belt drive with premium synthetic lubricant rated for 8,000 hours. The TEFC motor, quiet enclosure, low-oil shutdown and oil sight glass support reliable, low-maintenance operation.
Will It Fit?
-
Dimensions: 76" L × 25" W × 58" H
-
Weight: 980 lbs
-
Receiver: Horizontal 120-gallon
-
Outlet: 1/2"
-
Power: 208-230/460V, 3-phase
-
Breaker: Sized by a licensed electrician
Perfect For
-
Automotive shops running air tools across multiple bays.
-
Fabrication and welding shops needing dry air for plasma work.
-
Woodworking and cabinet shops where moisture can damage finishes.
-
Facilities with variable demand that benefit from automatic shutdown during idle periods.
Specifications
| Motor |
15 HP, electric, TEFC |
| Free air delivery |
54.9 CFM |
| Max pressure |
125 PSI |
| Supply |
208-230/460V, 3-phase, magnetic starter included |
| Amp draw / breaker |
Manufacturer states "Consult Certified Electrician" |
| Duty cycle |
100% |
| Pump |
Rotary screw, oil-lubricated, long-life V-belt drive |
| Aftercooler |
Not fitted — see the note above |
| Receiver |
120 gallon horizontal, 1/2-inch outlet, no electronic drain valve |
| Air treatment |
Integrated refrigerated dryer plus air filter |
| Dimensions (L x W x H) |
76 in x 25 in x 58 in |
| Weight |
980 lbs |
What's Included
The package includes the QGS rotary screw compressor, long-life V-belt drive, integrated refrigerated air dryer, 120-gallon horizontal receiver, TEFC motor, quiet enclosure, Auto-Dual control, air filter, oil sight glass, low-oil shutdown and premium synthetic lubricant.
Not included: electronic drain valve. A pressure gauge is also not listed in the specifications; ask us if you need one at the receiver.
Shipping and Delivery
Ships by freight to the lower 48 states, with shipping calculated at checkout for your address. At nearly 1,000 lbs, arrange a loading dock, forklift or terminal pickup. Residential deliveries may incur an additional fee.
Inspect the crate, base rails and cabinet corners before signing, and record any damage on the bill of lading.
Warranty
Standard coverage is 1 year for consumer and commercial use. A 3-year factory warranty is available, while the True Blue 5-Year warranty requires commissioning by a Quincy-authorized startup.
