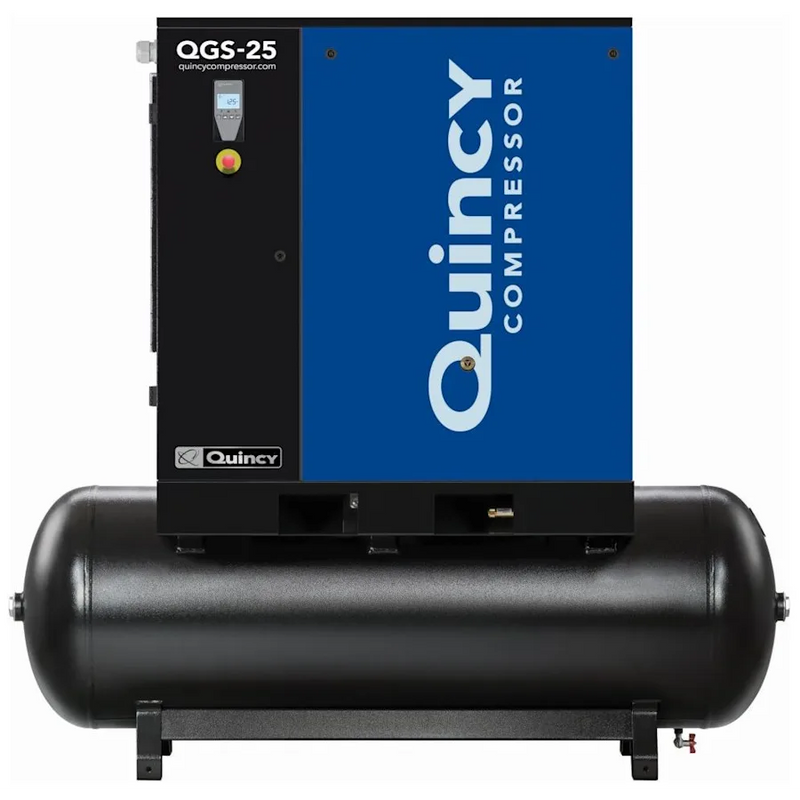

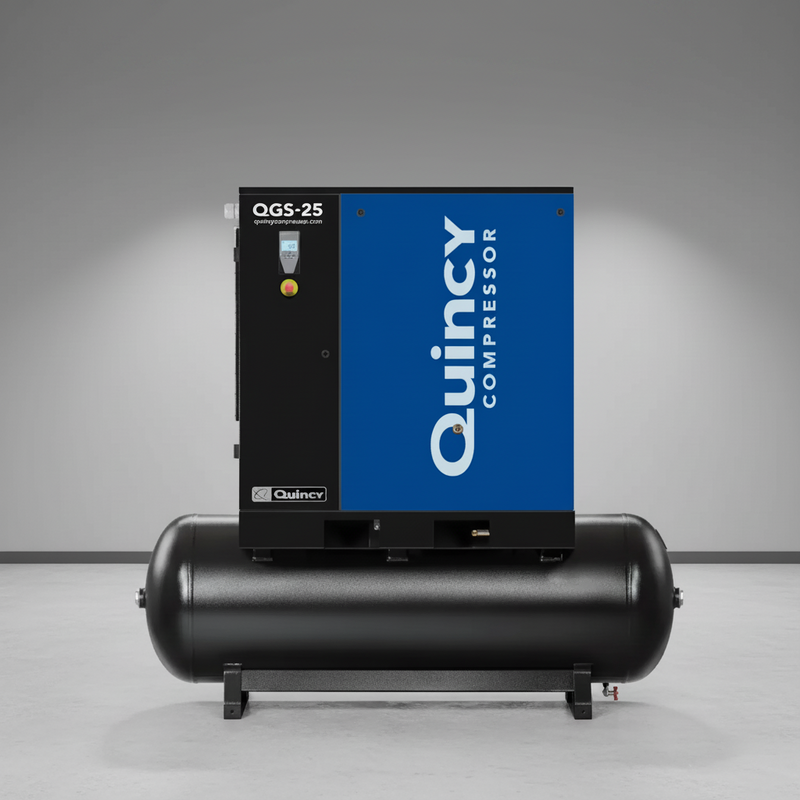

Quincy Air Compressor 4152026529 QGS 25 HP 132 Gallon Rotary Screw 208-230/460V 3 Phase

The 25 HP QGS delivers higher compressor capacity without increasing the footprint of the smaller versions in this package. It measures 74" long, 30.7" wide and 72.2" tall and uses a 132-gallon horizontal receiver, making it a practical way to add air capacity without changing an existing QGS installation area. The oil-injected twin screw airend is rated for a 100% duty cycle, while the gear-driven transmission and TEFC motor are built for continuous commercial operation. Note: requires 208-230/460V, 3-phase power.

The gear drive transfers motor power directly through a geared transmission rather than a belt system, eliminating routine belt tension checks and replacement. Premium synthetic lubrication is specified for 8,000 hours, with a spin-on fluid filter, air filter and oil sight glass supporting routine maintenance. The TEFC motor carries IP 55 wash-down protection, and Wye-Delta reduced-voltage starting helps control electrical inrush. Low-oil shutdown is fitted on both the engine and pump to protect the compressor if lubrication falls below the required level.

The Infologic2 Basic controller adds useful operating and expansion controls, including programmable auto-restart, remote start/stop and sequencing for up to six QGS compressors in the 20–30 HP range. That allows this 25 HP unit to operate as part of a coordinated compressor group if air demand grows later. The display provides operating information including pressure, temperature, dewpoint and motor start limits. An aftercooler is specified, but published information conflicts on whether an integrated refrigerated dryer is included, so confirm the dryer configuration with us before ordering if it is important to your application.

This package is suited to production shops, fabrication facilities, machining operations and heavy automotive applications where several air-consuming tools may operate simultaneously. It is also appropriate for facilities planning a future sequenced compressor installation. The 1" receiver outlet should be considered when sizing distribution piping. Allow adequate clearance around the hinged and removable service panels, and have a licensed electrician size the electrical service, feeder and disconnect from the machine nameplate; Quincy does not publish a fixed amp or breaker requirement.

Confirm the Air Dryer Before Ordering

Published information conflicts on the integrated refrigerated dryer. The manufacturer's feature list and marketing description say one is included, while the specification table says “No.”

If air drying is important, contact us before ordering so we can confirm the current factory configuration. The unit does include an aftercooler, which reduces discharge temperature and removes bulk moisture, but it does not provide the same dewpoint as a refrigerated dryer.

Built for Continuous Operation

The 100% duty cycle is designed for continuous operation. The TEFC IP55 motor, Wye-Delta reduced-voltage starting and low-oil shutdown support reliable operation in demanding shop environments.

The Infologic2 Basic controller provides programmable auto-restart, remote start/stop, and monitoring of pressure, temperature, dewpoint and motor limits. It can also sequence up to six QGS compressors from 20–30 HP.

Will It Fit?

• Dimensions: 74" L × 30.7" W × 72.2" H
• Weight: 1,201 lbs
• Receiver outlet: 1"
• Power: 208-230/460V, 3-phase
• Starter: Magnetic starter included
• Breaker: Consult a certified electrician

Perfect For

• Production shops needing more capacity without a larger footprint.
• Fabrication, machining and heavy automotive work with multiple high-demand tools.
• Facilities planning a sequenced compressor system.

Specifications

What's Included

• QGS rotary screw compressor with gear-driven airend
• Infologic2 Basic Controller with display
• TEFC IP55 motor
• 132-gallon horizontal receiver
• Aftercooler, air filter and pressure gauge
• Oil sight glass
• Magnetic starter
• Low-oil shutdown
• Spin-on fluid filter

An electronic drain valve is not included; draining is manual unless an automatic valve is added. The refrigerated dryer remains the disputed item noted above.

Shipping & Delivery

Ships by freight to the lower 48 states, with shipping calculated at checkout.

Due to the unit's 1,200+ lb weight, arrange a loading dock, properly rated forklift, or terminal pickup. Residential deliveries incur an additional fee.

Inspect the crate before signing and record any damage on the bill of lading.

Warranty

• 1-year consumer warranty
• 1-year commercial warranty
• Optional 3-year extended factory warranty
• True Blue 5-Year warranty with Quincy-authorized startup

Warranty Details
