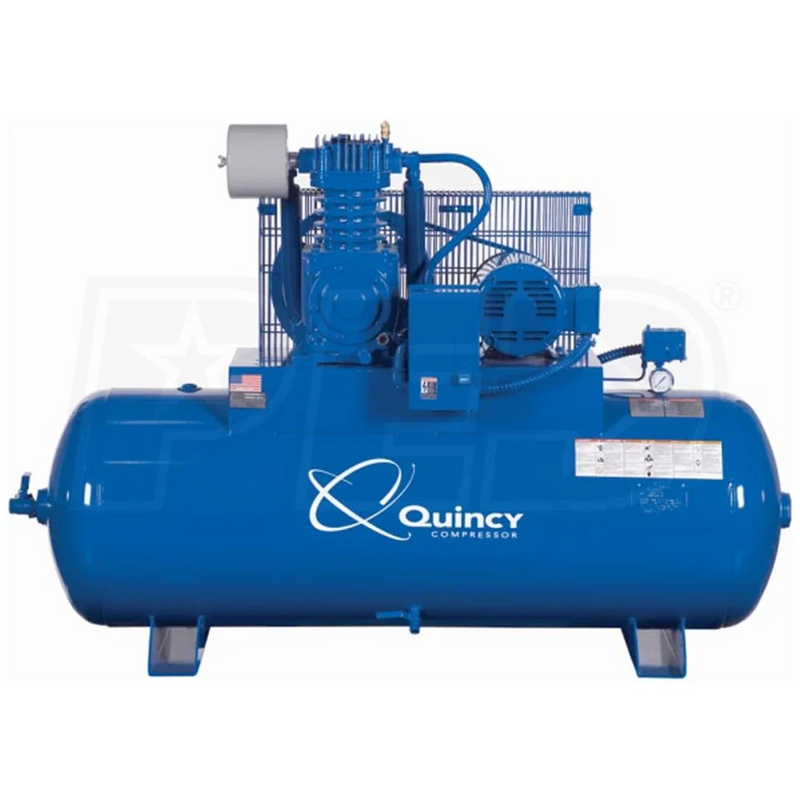

The Quincy QT Pro 5 HP delivers 17.2 CFM at 175 PSI from a deliberately slow-running pump turning at just 942 RPM. That low pump speed is a defining feature of this industrial reciprocating design, reducing piston travel, friction, heat, and operating noise compared with faster compressors at the same horsepower. The two-stage, cast-iron QT-5 pump is mounted on an 80-gallon horizontal receiver and operates on 230V single-phase power, so it does not require three-phase service. Note: Quincy specifies a 60-amp breaker for this model.
The slow-running design is backed by a pump built for long-term service. Cast-iron construction provides the mass and durability needed for a compressor designed to accumulate hours rather than simply maximize output from a compact package. Two-piece connecting rods allow service without removing the crankshaft, while finned cooling helps manage operating temperatures. Compression takes place in two stages, with a high-efficiency finned-tube intercooler between them to cool the air before it enters the second stage. The result is a 175 PSI working pressure that gives the compressor enough reserve for demanding pneumatic equipment without relying on high pump speed.
A factory-installed magnetic starter provides contactor switching and motor overload protection, while the open drip-proof motor is suited to a reasonably clean, dry installation environment. The horizontal receiver keeps the unit relatively low at approximately 70" long × 23" wide × 47" high, with a 3/4" tank outlet. With 17.2 CFM available, this compressor is well suited to one- and two-bay automotive shops, tire and quick-service operations, farm workshops, small fabrication shops, and serious home garages that need industrial-style construction on standard single-phase power. For shops running several high-consumption tools simultaneously, compare total CFM demand against the compressor's output before ordering.
Single-Phase Power
This QT Pro runs on single-phase power and requires a 60-amp breaker. Confirm your electrical service can support it before ordering.
A factory-fitted magnetic starter provides contactor switching and motor overload protection. The open drip-proof motor should be installed in a clean, dry location.
Slow-Speed, Long-Life Pump
The pump runs at 942 RPM, reducing noise, heat and component wear compared with high-speed designs. The cast-iron QT-5 industrial pump uses finned cooling and serviceable two-piece connecting rods.
Two-Stage Performance
- 17.2 CFM
- 175 PSI maximum pressure
- 3/4" tank outlet
Will It Fit?
-
Dimensions: Approx. 70" L × 23" W × 47" H
-
Weight: Approx. 660 lbs
-
Receiver: 80-gallon horizontal
-
Power: Single-phase
-
Breaker: 60 A
-
Outlet: 3/4"
Perfect For
-
One- and two-bay shops without three-phase power.
-
Home and hobby workshops where low noise matters.
-
Tire and quick-service bays using impact tools.
- Small fabrication and farm workshops.
- Shops replacing high-speed compressors with a quieter, slower-running design.
What's in the Box
- QT-5 cast-iron two-stage pump
- Finned-tube intercooler
- Belt guard
- Open drip-proof slow-speed motor
- Magnetic starter
- Gauges and oil sight glass
- Safety relief valve
- ASME-coded 80-gallon horizontal receiver
Specifications
| Motor |
5 HP, 230V, 1-Phase, open drip-proof, magnetic starter fitted |
| Pump speed |
942 RPM |
| Delivered air |
17.2 CFM |
| Maximum pressure |
175 PSI |
| Pump |
QT-5 two-stage cast iron, belt drive, splash lubricated, two-piece connecting rods |
| Tank |
80-gallon horizontal, ASME coded |
| Tank outlet |
3/4" |
| Dimensions |
70" long × 23" wide × 47" high |
| Weight |
660 lbs |
| Circuit |
60 Amp breaker specified |
Certification, Stated Plainly
The tank is ASME coded, while the specification lists UL and CSA for the electrical components. These certifications do not cover installation or replace local inspection and insurance requirements.
Freight & Delivery
Ships by freight on a pallet to the lower 48 states. At approximately 660 lbs, you will need a forklift or pallet jack, or can arrange terminal pickup with a suitable trailer.
Residential delivery is available for an additional fee, with freight calculated at checkout.
Inspect the shipment before signing and record any damage on the bill of lading while the driver is present.
Warranty
Includes a 1-year factory warranty, extendable to a 3-year “No Bull” warranty under Quincy's conditions, including registration and, on some models, a maintenance kit purchased with the compressor.
