Quincy Air Compressor 453DS80VCB23 QT Pro 5 HP 80 Gallon Two Stage 230V 3 Phase

The QT Pro 5 HP air compressor combines a horizontal 80-gallon receiver with a two-stage industrial pump for facilities that have the right three-phase power but limited ceiling height. The 460V 3-Phase motor draws less current than lower-voltage versions of the same 5 HP package, making this configuration well suited to buildings with higher-voltage distribution and longer electrical runs. The pump delivers 17.2 CFM at 175 PSI, while a factory-mounted magnetic starter with thermal overload and low-oil shutdown provides built-in protection.

The horizontal receiver keeps the machine to approximately 47" tall while putting the drain, oil sight glass, and belt guard within easier reach. The pump uses cast iron construction with an aluminum head, splash lubrication, and two-stage compression with a high-efficiency finned intercooler between stages. This cooling helps manage operating temperatures and supports the 175 PSI working pressure. An oversized oil reservoir helps control oil temperature during continuous operation, while the slow-speed ODP motor reduces heat and component wear. Automatic condensate draining also removes the need for routine manual tank draining.

This configuration is designed for industrial buildings with 460V three-phase service, particularly facilities where lower current is advantageous for longer cable runs. The horizontal tank makes it a practical choice for low-ceiling plant rooms, bays, and workshops where an upright 80-gallon compressor will not fit. It is also suited to production environments, fabrication shops, blasting applications, and other operations requiring continuous compressed air from multiple tools or workstations.

Two Codes for One Machine

Our records list 453DS80VCB23 in the product title/specifications and 253DS80VCB23 in the manufacturer copy. Both refer to this compressor. If you are matching an installed unit or ordering parts, ask us to confirm the correct code before ordering.

Built for Continuous Duty

Continuous operation depends on the complete system working together: an aluminum head, balanced cast-iron flywheel, finned intercooler, oversized oil reservoir, slow-speed ODP motor, industrial bearings, and cast-iron cylinders.

These features help manage heat, maintain oil performance, and reduce wear during extended operation.

Two-Stage Compression

Air is compressed in two stages, with cooling between them. The finned intercooler reduces heat before the second stage, supporting reliable operation at 175 PSI and helping limit heat-related valve and carbon buildup.

Published output is 17.2 CFM at 175 PSI, with oil carryover under 5 PPM.

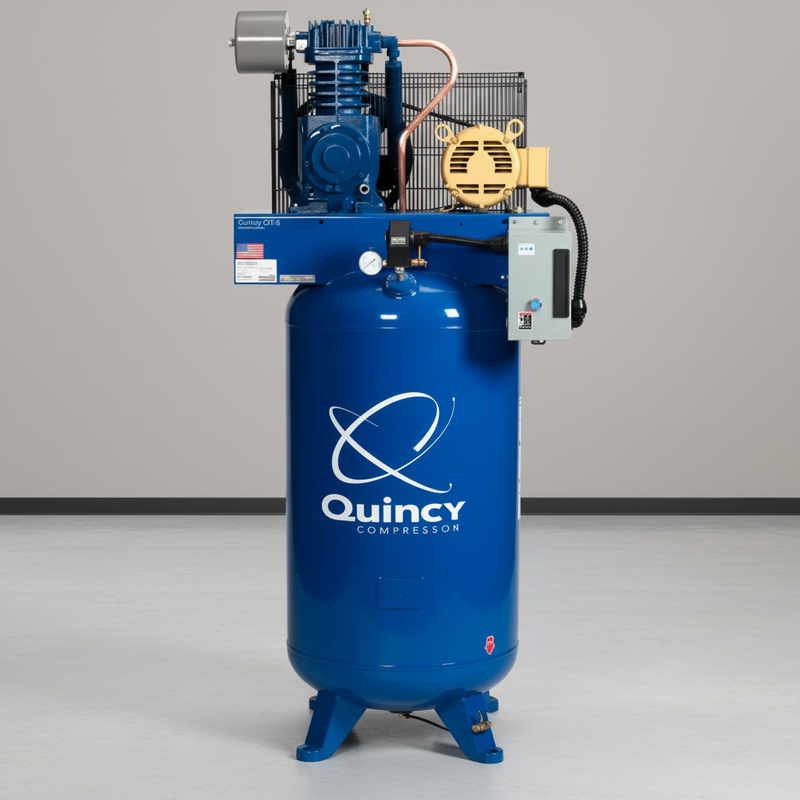

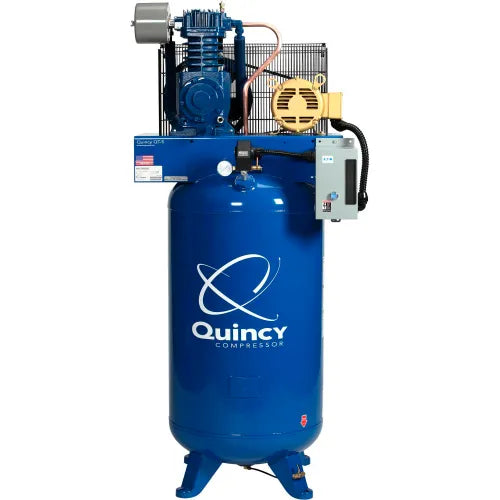

Vertical 80-Gallon Receiver

The vertical receiver measures approximately 37" × 24" at the floor and 74" high. It suits installations where floor space is limited but ceiling clearance is available.

Measure for overhead clearance and service access before delivery. At 680 lb, the compressor requires a flat, solid, level surface.

The 3/4" tank outlet is provided, but no aftercooler or air dryer is included. Filtration, drying, regulation, and shop piping must be designed separately.

Factory-Fitted Protection

Included from the factory:

• Magnetic starter with thermal overload
• Low-oil shutdown
• Automatic tank drain
• Oil sight glass
• Enclosed belt guard

For electrical installation, provide your electrician with the actual load: 5 HP, 230V, 3-phase. Conductor and breaker sizing depend on run length, installation conditions, and local code. Manufacturer current data is available if needed.

Perfect For

• Shops requiring extended or continuous air use
• 230V 3-phase commercial and industrial facilities
• Installations with limited floor space and adequate ceiling height
• Spray and instrument applications where low oil carryover matters

What's in the Box

Complete factory-built compressor with two-stage splash-lubricated cast-iron pump, aluminum head, slow-speed ODP motor, magnetic starter with thermal overload, finned intercooler, balanced cast-iron flywheel, oversized oil reservoir, sight glass, belt guard, low-oil shutdown, automatic drain, and vertical 80-gallon coded receiver with relief valves and 3/4" outlet.

Not included: aftercooler, air dryer, filters, regulators, or shop piping.

Specifications

Supply and motor

Pump

Tank and size

Certification, Stated Plainly

The listing supports two claims: a coded pressure vessel built to American standards with relief valves, and UL/CSA recognition for the electrical components.

These are not the same as a third-party safety listing for the complete assembled machine. If your insurer, inspector, or facility standard requires that specific listing, confirm the required documentation with us before ordering.

Shipping & Receiving

Ships palletized freight throughout the lower 48 states, with shipping calculated at checkout based on your delivery address.

Plan unloading in advance. Have a loading dock, forklift, or pallet jack ready on firm, level ground. If unavailable, terminal pickup may be an option. Residential delivery carries an additional fee.

Inspect before signing. Photograph the pallet and crate, and record any damage on the bill of lading with the driver present. Damage discovered after a clean signature may be difficult to claim.

Warranty

The machine includes a 1-Year factory warranty and may qualify for Quincy's 3-Year “No Bull” warranty, subject to manufacturer requirements. Review the warranty handbook and confirm the conditions for this model before relying on the extended coverage.
