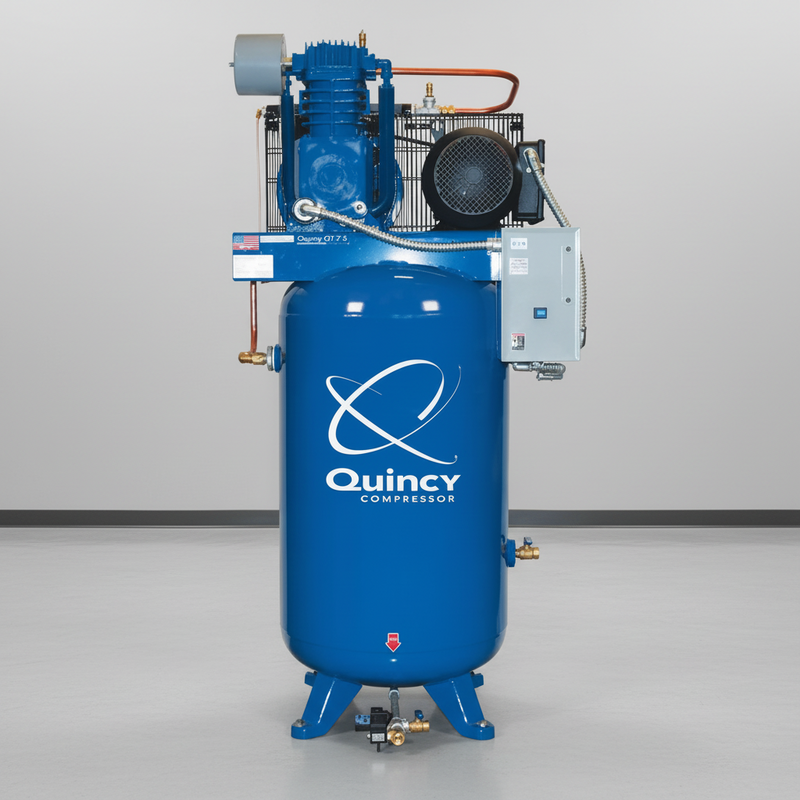

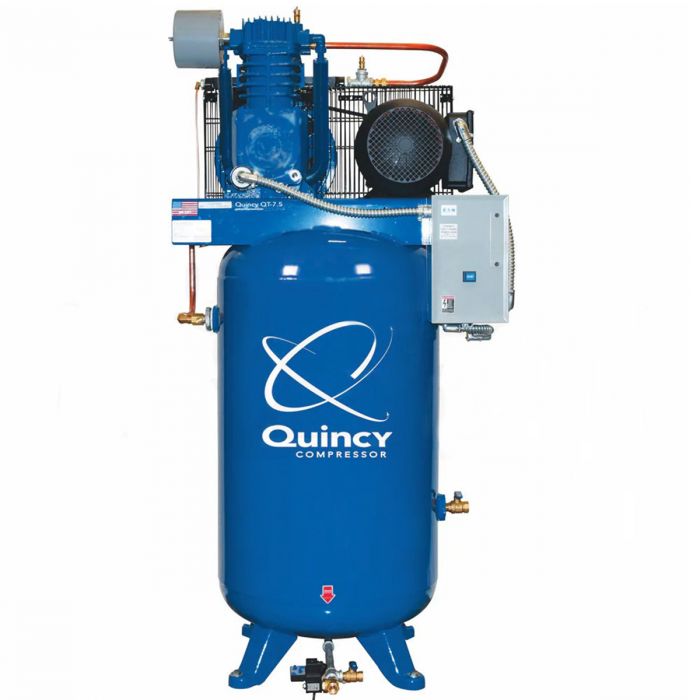

The Quincy QT Pro 7.5 HP delivers 22.6 CFM at 175 PSI with a 100% duty cycle, giving professional shops continuous compressed-air capacity from a remarkably compact footprint. Its vertical 80-gallon receiver and two-stage cast-iron pump occupy roughly 37" × 24", while the 208V three-phase motor provides the power needed for sustained operation. The approximately 74" overall height makes this configuration a strong space-saving choice where floor area is limited. Note: confirm your 208V three-phase service, ceiling clearance, and the exact model code before ordering.
The two-stage pump uses a high-efficiency finned intercooler between compression stages to remove heat before the air reaches the second cylinder and is compressed to 175 PSI. A large balanced cast-iron flywheel helps smooth operation and moves cooling air across the pump, while the belt drive allows the pump to operate below motor speed. The 80-gallon receiver acts as a reserve for demand peaks and reduces unnecessary cycling. This build uses splash lubrication and includes an oil sight glass for manual level checks; it does not include an electronic tank drain or low-oil shutdown, so those maintenance tasks remain the operator's responsibility.
This compressor is designed for multi-bay repair shops, body and paint facilities, fabrication operations, fleet and dealership workshops, and other professional environments that need sustained airflow without sacrificing valuable floor space. The vertical configuration is especially useful in compact shops with sufficient ceiling height but limited room around workbenches and service bays. At approximately 740 lbs, it requires a flat, level, load-bearing concrete floor with adequate clearance for airflow and service access. The 208V three-phase motor cannot be reconfigured for other electrical supplies, so have a qualified electrician verify the circuit, disconnect, and protection requirements before installation.
Confirm These Two Things Before Ordering
Automatic drain & low-oil protection. Earlier descriptions mentioned an integrated condensate drain and low-oil shutdown, but the current specification lists neither. Plan to drain the receiver manually and monitor the oil through the sight glass. An automatic tank drain can be quoted as an add-on.
Model code. The page URL differs slightly from the model code listed in the heading and specifications: 473DS80VCB20. Send us the code on your quote and we'll confirm the exact build in writing before shipment.
Choosing the Right Footprint
A vertical and horizontal receiver of the same capacity hold the same amount of air; the difference is the space they occupy.
This vertical model requires approximately 37" × 24" of floor space and 74" of height. Check for adequate clearance above the pump for servicing, including the oil fill and belt guard. Account for lighting, ductwork, sprinklers, mezzanines, and door tracks.
If ceiling height is tight, the horizontal version of this compressor may be a better fit.
What 22.6 CFM Supports
The pump's 22.6 CFM output determines how much air the compressor can continuously supply; the 80-gallon receiver buffers short demand peaks.
Size the compressor based on the tools you expect to run simultaneously, not simply the tools you own. Leave headroom above their combined continuous consumption. If your demand approaches 22.6 CFM, contact us before ordering.
How It's Built
The two-stage pump uses a high-efficiency finned intercooler, cast-iron cylinders with aluminum heads, a balanced cast-iron flywheel, belt drive, and splash lubrication.
The belt drive keeps pump speed below motor speed, while the intercooler manages heat between stages. The pump is designed for long service life with serviceable wear components.
Power & Siting
The motor is specifically wound for 208V 3-Phase and cannot be reconfigured. A magnetic starter is included, and the specification calls for an 80A breaker.
Have a qualified electrician confirm the circuit, disconnect, and protection against your panel and local code before ordering. Electrical installation and site preparation are the buyer's responsibility.
At approximately 740 lb, the compressor requires a level, load-bearing concrete surface, proper securing, and adequate airflow around the pump. Do not enclose it in a cabinet or tight space.
Perfect For
- Multi-bay service shops with three-phase power
- Body and paint shops
- Fabrication and welding shops
- Fleet and dealership workshops
- Facilities with limited floor space and adequate ceiling height
What's in the Box
Complete compressor package including:
- Two-stage cast-iron pump
- Finned intercooler
- Belt guard
- Industrial motor
- Magnetic starter
- Gauges and oil sight glass
- Vertical 80-gallon receiver
- 3/4" tank outlet
Not included: air dryer, aftercooler, electronic drain valve, low-oil shutdown, piping, hose, or point-of-use regulation.
Specifications
| Motor |
7.5 HP, 208V, 3-Phase, magnetic starter fitted |
| Delivered air |
22.6 CFM |
| Maximum pressure |
175 PSI |
| Duty cycle |
100% |
| Pump |
Two-stage, 2-cylinder cast iron with aluminum head, belt drive |
| Tank |
80-gallon vertical receiver |
| Tank outlet |
3/4" |
| Footprint |
37" × 24" |
| Overall height |
74" |
| Weight |
740 lbs |
| Circuit |
80 Amp breaker specified |
Certification, Stated Plainly
Quincy's specification sheet lists ASME certification for the pressure vessel and UL and CSA recognition for the electrical components. These cover different parts of the equipment and do not replace local inspection or insurer requirements.
If a specific listing or filing is required, verify it against the data plate before ordering. We can provide the manufacturer documentation published by Quincy.
Warranty
The unit includes a 1-Year factory warranty and may qualify for Quincy's 3-Year “No Bull” warranty, subject to the manufacturer's conditions, including registration. We'll confirm the requirements for this model before purchase.
Warranty Details
Freight & Delivery
Ships by palletized freight throughout the lower 48. Plan for a forklift or pallet jack at delivery, or arrange terminal pickup with a suitable trailer. Residential delivery carries an additional fee. Freight is calculated at checkout based on your delivery address.
Inspect before signing. Check the pallet, tank, guard, motor, and gauges. Record any damage on the bill of lading with the driver present. A clean signed receipt can make freight claims difficult.
