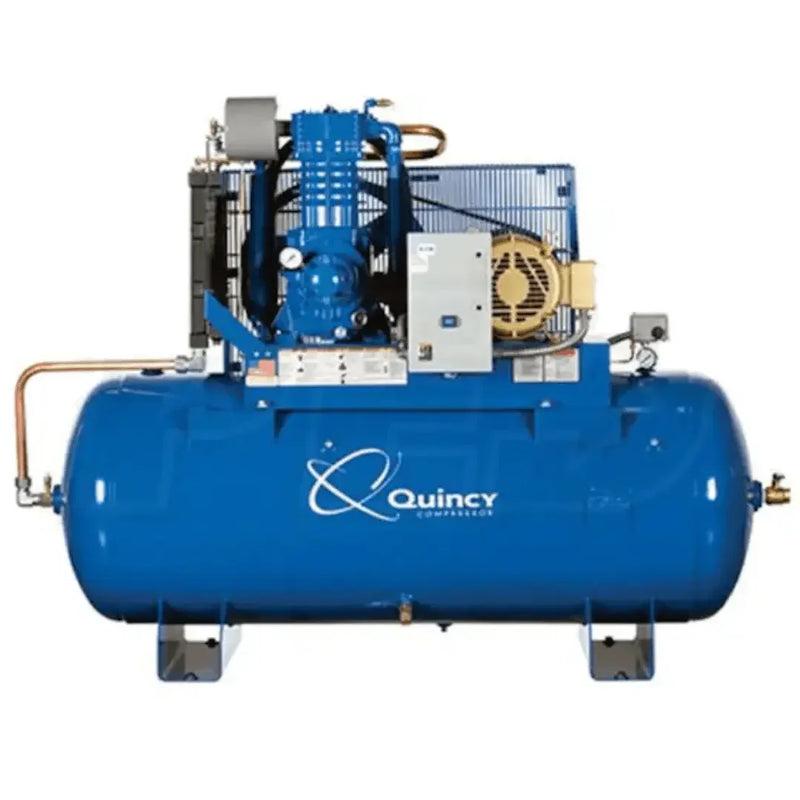

The Quincy QP Pro 10 HP compressor is built to order, with Quincy allowing up to 10 business days for production before shipment. That matters if your installation is being coordinated with an electrician, shop shutdown, or equipment replacement schedule. Once built, this 460V 3-phase model delivers the QP Pro combination of pressure lubrication, cast-iron construction, and a 120-gallon horizontal receiver rated to 175 PSI. The 460V configuration is a specific industrial power setup, so confirm your available electrical service before placing the order.
The cooling and lubrication systems are designed around the demands of continuous compressor operation. An electronically balanced, fan-type cast-iron flywheel moves air across the fin-and-tube intercooler, cylinders, and heads while the pump runs, helping control operating temperature and reduce vibration. Cast-iron cylinders add durability, while the intercooler lowers the temperature between compression stages. Inside the pump, a Gerotor positive-displacement oil pump sends pressurized oil to the crankshaft, bearings, and rods, with a spin-on filter cleaning the circulating lubricant. Quincy rates this lubrication system for up to 15% longer life than a splash-lubricated pump.
This compressor is suited to larger automotive shops, manufacturing facilities, fabrication operations, and industrial installations with existing 460V 3-phase service and planned air requirements. Its horizontal receiver measures 78" × 28" × 55" and the complete unit weighs 995 lbs, so the installation needs adequate floor space and access for servicing the belt, oil sight glass, and filter. Keep the flywheel side clear for cooling airflow, and plan electrical work around the production lead time. With a 1" discharge outlet and 175 PSI maximum working pressure, it is well suited to hard-piped shop air systems serving multiple workstations.
Why It’s Built to Order
This 460V three-phase configuration is built against confirmed orders rather than typically held in stock. The motor, starter and controls are matched to the specified supply.
The benefit is a recently assembled machine. The tradeoff is lead time: if you need a compressor immediately, this is not the right configuration for an emergency replacement. Plan the compressor build and site preparation together.
The Flywheel Is Part of the Cooling System
The electronically balanced, fan-type cast-iron flywheel moves air across the intercooler, cylinders and heads as the pump operates. Its balanced design also helps minimize vibration at operating speed.
Combined with cast-iron cylinders and a high-efficiency fin-and-tube intercooler, the cooling system helps control operating temperatures and protect sealing and lubrication performance.
The QP Pro lubrication system uses a Gerotor positive-displacement oil pump to pressure-lubricate the crankshaft, bearings and rods, with a spin-on oil filter in the circuit. Quincy rates this arrangement at up to 15% longer life than a splash-lubricated pump.
Will It Fit?
-
Receiver: Horizontal, 120 gallons
-
Dimensions: 78" L × 28" W × 55" H
-
Weight: 995 lbs
-
Outlet: 1"
-
Maximum pressure: 175 PSI
-
Service clearance: Leave access to the belt guard, oil sight glass and filter, with clear airflow around the flywheel.
Power: 460V three-phase. The magnetic starter is included. Breaker and conductor sizing must be determined by a certified electrician based on your actual service and installation.
If your facility does not already have 460V three-phase service, allow for the additional electrical work and lead time. Confirm power, floor space, doorway clearance and delivery access before ordering.
Perfect For
-
Plants and larger shops with existing 460V service
-
Planned shop installations that can accommodate build time
-
Continuous-duty applications supplying multiple stations or a hard-piped ring main
-
Scheduled compressor replacements rather than emergency breakdowns
What Arrives
Factory-assembled compressor with horizontal 120-gallon receiver, Gerotor oil pump, spin-on oil filter, stainless steel reed valves with bumpers, graphite cylinder and head gaskets, balanced fan-type cast-iron flywheel and fin-and-tube intercooler.
Compressor oil, hose, filtration, dryers, regulators and isolation valves are not listed as included. Treat these as separate purchases unless confirmed otherwise before ordering.
Specifications
| Availability |
Built to order, up to ten business days to ship from Quincy |
| Motor |
15 HP, 460V, 3-phase, magnetic starter fitted |
| Compression |
Two-stage belt drive, cast-iron cylinders with aluminum head |
| Lubrication |
Full pressure by gerotor oil pump, spin-on filter, up to 15% longer life than splash |
| Cooling |
Electronically balanced fan-type cast-iron flywheel, fin and tube intercooler |
| Maximum pressure |
175 PSI |
| Air receiver |
120 gallons, horizontal, 1-inch outlet |
| Dimensions |
78 inches long, 28 inches wide, 55 inches high |
| Weight |
995 lbs |
Certification, Stated Plainly
The specification sheet records ASME, UL and CSA marks for this compressor. ASME applies to the pressure vessel/receiver, while the electrical marks apply to the applicable motor and control components.
These certifications do not certify the compressed air, replace local permitting requirements, or eliminate pressure-vessel inspection requirements where applicable. Confirm your local requirements before installation.
Shipping & Delivery
Ships by freight within the lower 48 states, with shipping calculated at checkout based on your delivery address.
Before ordering, plan for unloading. The unit requires a forklift or loading dock, or you can arrange terminal pickup. Residential delivery carries an additional residential fee.
Inspect the shipment before signing. Check the receiver, guards, gauges and packaging for damage, and record any issues on the bill of lading while the driver is present.
Warranty
Includes a 1-year Quincy factory warranty, with extended coverage available when the unit is registered and maintained using the required Quincy maintenance kit listed in the specifications.
Register the compressor promptly after delivery. If a fault occurs, contact us before opening or disassembling any components. Disassembly before a warranty claim can affect coverage.
