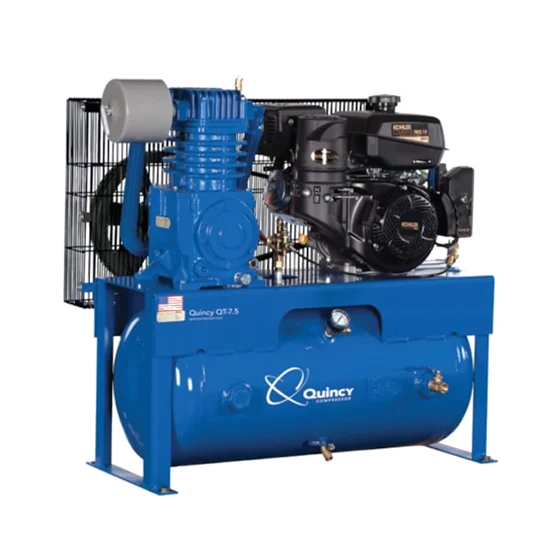

The Quincy G314K30HCE is a truck-mounted compressor built for demanding mobile service, with a 14 HP Kohler Command Pro engine, 12-Volt electric start, a cast-iron QT-7.5 belt-drive pump, and a 30-gallon horizontal receiver rated to 175 PSI. Its biggest distinction is the pump's full pressure lubrication system, which uses a gerotor positive-displacement oil pump to deliver oil directly to the crankshaft, bearings, and connecting rods. Combined with a 100% duty cycle, this makes it suited to service trucks and other applications where the compressor needs to deliver sustained air away from a stationary shop.
The pressure lubrication system actively circulates oil through the pump rather than relying on splash lubrication alone. A spin-on oil filter helps keep that oil clean as it reaches the pump's critical surfaces, supporting the QT-7.5's 50,000+ hour rated life. Heat management is also built into the design: a high-efficiency fin-and-tube intercooler cools the air between compression stages, while the fan-type cast-iron flywheel directs cooling air across the intercooler, cylinders, and heads. The pump also uses stainless-steel reed valves with valve bumpers, along with graphite cylinder and head gaskets, to handle the repeated heat cycles of extended operation.
This compressor is designed for service and utility trucks, roadside service, agricultural work, and contractors who need shop-level compressed air at the jobsite. The 30-gallon receiver provides stored air while the 100% duty rating supports applications that demand continuous operation. The 12-Volt electric start is practical for mobile crews, although the battery and cable are not included and a 12-Volt supply must be provided separately. With its truck-mounted configuration and petrol-powered engine, it is intended for applications where bringing compressed air to the work is more practical than bringing the work back to a stationary compressor.
Read This Before Ordering
Battery and cable are not included. The 12V electric start requires a power source, typically the service vehicle through wiring and an isolator supplied by the buyer or upfitter.
CFM is not published. Our records contain conflicting delivery figures at different pressures, so we will not guess. Tell us your tools and working pressure, and we will confirm the manufacturer's rated delivery before you order.
Will It Fit Your Truck?
The compressor measures 42" L × 21" W × 40" H and weighs 501 lb dry. Confirm your vehicle's payload, axle and GVW limits before mounting.
Allow adequate clearance around the flywheel and intercooler for cooling airflow. Vehicle-specific mounting, fuel supply, exhaust routing and ventilation are the buyer's responsibility. Never operate the gasoline engine in an enclosed space.
Why Pressure Lubrication Matters
The QT-7.5 pump uses a gerotor positive-displacement oil pump to circulate oil through the crankshaft, bearings and connecting rods. A spin-on oil filter helps keep the circulating oil clean.
This system is well suited to mobile equipment where vibration, movement and changing operating angles can make splash lubrication less consistent. Quincy rates the pump for 50,000+ hours of service life.
Engine & Cooling
The 14 HP Kohler Command Pro provides 12V electric start. A fan-type cast-iron flywheel directs cooling air across the cylinders, heads and intercooler.
The fin-and-tube intercooler cools air between compression stages, helping control discharge temperatures. The pump also uses stainless reed valves with bumpers and graphite cylinder and head gaskets for durability through repeated heat cycles.
Perfect For
- Service and utility trucks
- Agricultural and field work
- Tire and roadside service
- Contractors needing mobile compressed air
What's in the Box
Kohler engine, QT-7.5 cast-iron belt-drive pump, gerotor oil pump, spin-on filter, fin-and-tube intercooler, cast-iron flywheel, air filter, pressure gauge and 30-gallon receiver.
Specifications
| Engine & Pump |
|
| Engine |
14 HP Kohler, petrol |
| Starting |
12-Volt button start with recoil backup |
| Pump |
Two-stage cast iron, belt drive |
| Lubrication |
Full pressure, gerotor oil pump |
| Maximum pressure |
175 PSI |
| Duty cycle |
100% |
| Tank & Dimensions |
|
| Receiver |
30 gallon, horizontal |
| Tank outlet |
1/2" |
| Length |
42" |
| Width |
21" |
| Height |
40" |
| Weight |
501 lb |
| Model |
G314K30HCE |
Certification, Stated Plainly
Our records list ASME, UL and CSA certifications for this product. These refer to the receiver and/or components; they do not establish a third-party safety listing for the complete engine-driven assembly.
If your fleet, site or insurer requires certification for the entire machine, contact us before ordering. We will confirm the applicable manufacturer documentation rather than assume the scope of the listed certifications.
Shipping & Delivery
Ships by freight to the lower 48, with the live shipping rate calculated at checkout. At 501 lb, the unit arrives palletized and requires appropriate unloading equipment, such as a forklift, loading dock or terminal pickup.
Residential deliveries may incur an additional fee.
Inspect the shipment before signing. Check the crate, engine shroud and receiver for damage. Record any damage on the bill of lading while the driver is present and take photos.
Warranty
The compressor includes a 1-year factory warranty, extendable to Quincy's 3-Year “No Bull” warranty when the EWK-3 maintenance kit is purchased with the compressor and the unit is registered at quincycompressor.com.
The extended warranty cannot be added after purchase. If you want the extended coverage, include the kit when ordering.
Warranty Details
