The Triumph C7000 is a 7,000-lb two-post lift designed to handle everything from compact cars to light trucks and even small tow trucks. Its standout feature is the adjustable 48"–120" width between posts, giving you much more flexibility when positioning different vehicles in the same garage. With a 69" lifting height and a lowered arm clearance of 4.5", it provides useful under-vehicle access without demanding the ceiling height of taller lift designs. The lift uses 110V power with a 30-amp breaker and a 3 HP motor.

The C7000 uses triple-telescoping arms that extend across multiple lengths, allowing the lifting points to be positioned for vehicles with very different wheelbases and chassis layouts. Rubber lifting pads provide the contact point between the arms and vehicle, while the lift's wheeled design makes it easier to handle when repositioning the unit. The combination of adjustable post spacing and telescoping arms is particularly useful when one lift needs to accommodate several types of vehicles rather than being permanently configured around a single car or truck.

The C7000 is suited to home garages, hobbyists, and small automotive operations that need the flexibility to work on both passenger vehicles and larger light-duty trucks. Its 7,000-lb capacity covers a broad range of vehicles, while the relatively modest 69" lifting height makes it practical where ceiling height limits the use of taller two-post lifts. For garages that regularly switch between compact cars, pickups, and other light-duty vehicles, the adjustable configuration gives you more options for positioning each vehicle on the lift.

Triumph C7000 Lift Specifications

• Capacity: 7,000 lbs
• Lifting Height: 69"
• Overall Height: 95"
• Base Plates: 18" × 15"
• Lowered Arm Clearance: 4.5"
• Width Between Posts: 48"–120" center-to-center
• Arm Extensions: 28.5"–42.5" and 36"–55"
• Power: 3 HP, 110V; 30A breaker
• Unit Weight: 1,200 lbs
• Pallet Size: 98" × 19" × 35"
• Arms: Triple telescoping

Low-Ceiling Features

Quick-Install Design
The lift can be disassembled and stored in under 10 minutes by one operator. Recessed anchors are designed for easy removal.

Adjustable Width
The posts can be installed at widths up to 120" center-to-center, without cable limitations.

Asymmetric Frame
Provides flexible vehicle positioning while maintaining a flush-mounted footprint.

Automatic Locking Ladder System
Welded locking ladders with a chrome finish provide secure height adjustment.

Truck & Vehicle Adapters

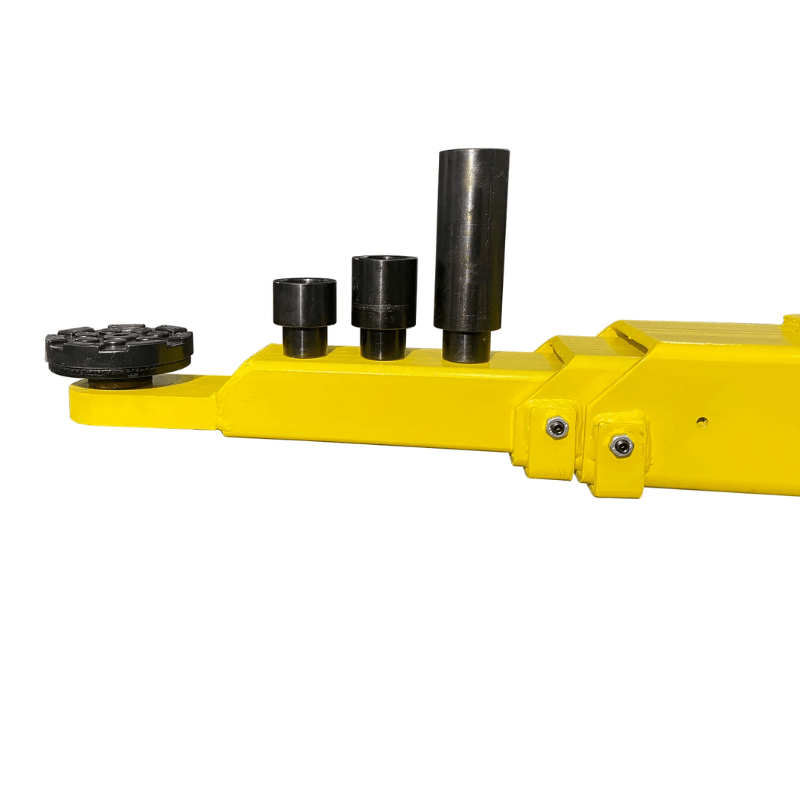

Includes 3" and 6" pad extensions with rubber lifting pads.

Flush Mounting
The base design keeps the floor clear and preserves usable workspace.

Power Unit
The power unit is designed for mobility, but casters/wheels are not included.

Shipping & Warranty

The lift ships separately via small-package freight. Hardware ships separately from the lift from the Texas warehouse due to frequent misplaced hardware packs. This also applies to warehouse pickup orders, except orders picked up in Texas.

Warranty

1-Year parts only.

Designed for professional shops and truck-service applications that need a 7,000-lb two-post lift with adjustable width and a low-clearance installation.
