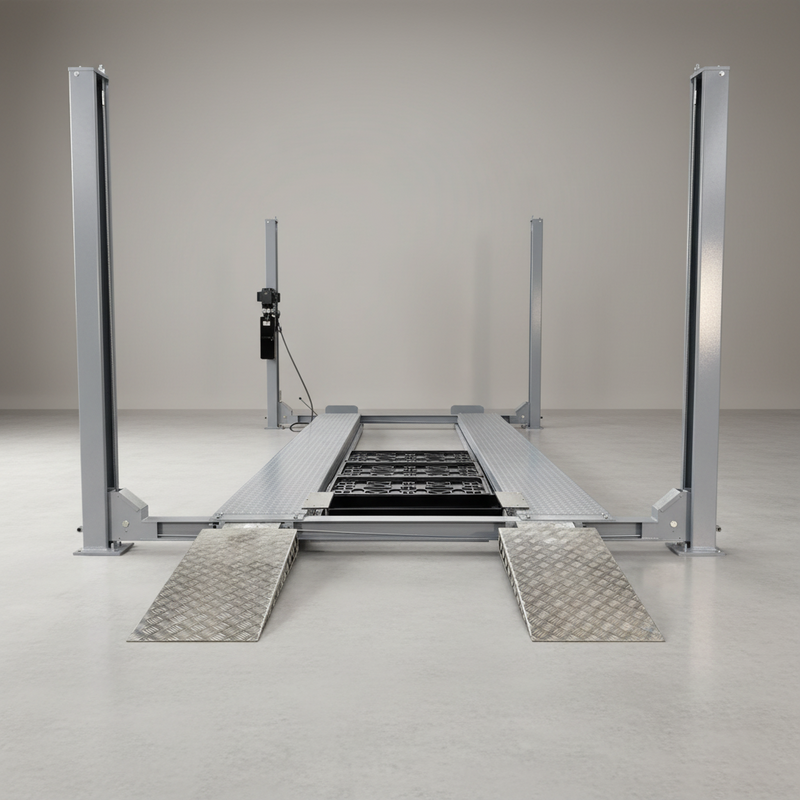

The Triumph NSS-11 is an 11,000 lbs capacity four-post lift designed to handle both vehicle service and stacked storage in professional shops and home garages. With a maximum lifting height of 86.5 inches, 196-inch runways, and 118 inches of drive-through clearance, it easily accommodates a wide variety of cars, trucks, and SUVs while creating generous working space underneath. One of its biggest advantages is that it operates on a standard 110V single-phase outlet, eliminating the need for specialized three-phase electrical service. Note: installation requires concrete rated at a minimum of 3,000 PSI beneath the column base plates.

The NSS-11 is built around a single hydraulic cylinder with a four-cable equalizer system, keeping all four columns synchronized for smooth, stable lifting. As the lift rises, 11 automatic mechanical locking positions engage for added safety, while a single-point lock release allows all four columns to lower together in approximately 40 seconds. This proven design has been in continuous production for more than 20 years, offering a reliable solution for daily vehicle storage and maintenance.

Practical accessories are included to expand the lift's functionality. A caster kit allows one person to reposition the assembled lift around the garage or workshop, making it ideal for flexible layouts. The package also includes a jack tray for supporting a bottle jack or floor jack when wheel service is required, along with six drip trays that help protect the lower vehicle from fluid leaks during stacked storage. Adjustable runway spacing of 39 inches or 44.5 inches further improves compatibility with different vehicle widths.

The NSS-11 is an excellent choice for home garage enthusiasts, restoration shops, dealerships, and commercial service facilities looking for a versatile four-post lift that combines dependable service capability with efficient vehicle storage, all while operating on standard household power.

Features

• 11,000-lb lifting capacity rated for service or stacked storage
• 86.5-inch maximum lift height with 81 inches of working height under the runways
• Automatic 11-position locking engages as the vehicle rises; single-point lock release drops all four columns together
• 40-second lift cycle on 110-volt, 60 Hz, single-phase service — no three-phase required
• Minimum 3,000 PSI concrete required under the column base plates per the owner's manual
• Single-cylinder hydraulic drive with a four-cable equalizer system for synchronized column travel
• Caster kit included for repositioning the lift across the shop floor
• Jack tray included for bottle or floor jack use
• Six drip trays included to prevent fluid transfer between stacked vehicles
• Adjustable runway spacing at 39 inches or 44.5 inches between runways
• 5-inch lowered height with the standard drive-on ramps
• 118-inch drive-thru width with a 130-inch overall width

What's Included

• One Triumph NSS-11 four-post automotive lift, default grey finish
• Caster kit for shop-floor portability
• Jack tray for bottle or floor jack use
• Six drip trays for stacked storage
• Drive-on ramps
• Wheel chocks
• Installation hardware and owner's manual

Specifications

Documents

• Triumph NSS-11 Owner's Manual (PDF) — covers installation, maintenance, parts list, and troubleshooting.

For technical questions or installation help, contact support@carliftsupply.com or call 877-600-5227.
