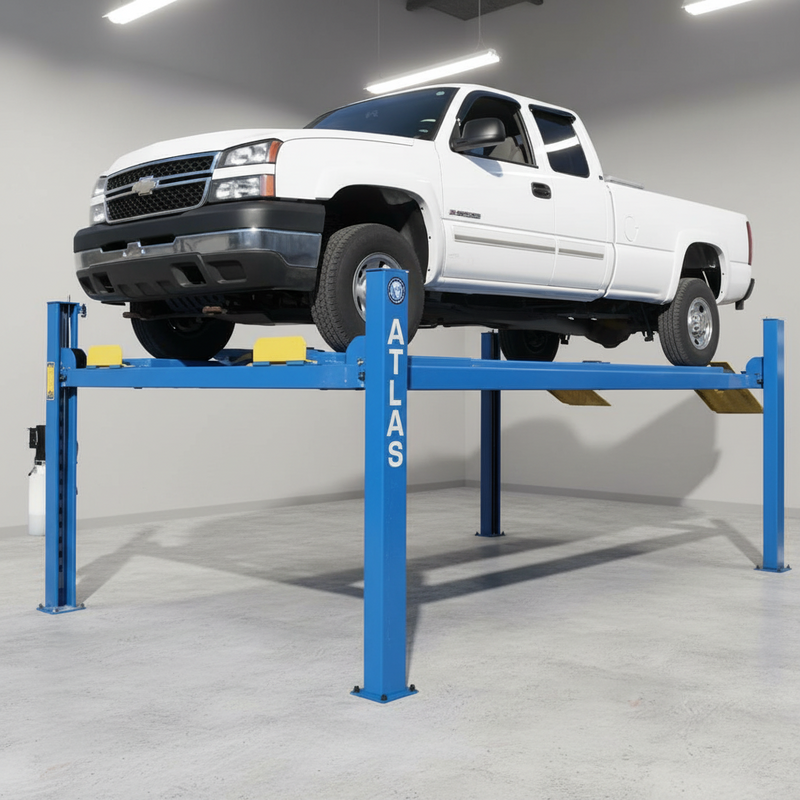

Atlas 412A 12,000 lb 4-Post Alignment Lift

The Atlas 412A 12,000 lb. commercial-grade 4-post alignment lift is built for shops that need a full alignment-capable platform without stepping into high-end dealership pricing. It delivers the same core lifting structure as the 412 series, with a 12,000 lb. capacity four-post frame and a cable-driven system powered by a 220V single-phase unit, while adding built-in alignment functionality. Note: installation requires 220V power with a 30-amp breaker, and delivery access for a 53' truck.

What sets the 412A apart is its integrated alignment package. It includes built-in slip plates and alignment turntables that are engineered to remain level with each other, giving technicians a stable reference point during alignment work. The turntables can be repositioned along the runways to match different wheelbases, making the lift adaptable to a wide range of vehicles. When alignment work isn’t needed, steel cover plates replace the turntables, allowing the lift to function as a standard service or storage platform without compromise. This flexibility is what separates it from basic four-post lifts that require external alignment setups.

Like the rest of the 412 series, the system uses a high-strength cable drive with an under-runway oversized hydraulic cylinder, which helps maintain smooth, level lifting while keeping hydraulic components protected. It also includes air-operated single-point lock release, a double safety lock system, diamond-plated runways, and runway tracks for optional rolling bridge jack compatibility (sold separately), expanding its service capability for tires, brakes, and suspension work.

This model is best suited for alignment shops, general repair facilities, tire centers, and high-volume service operations that want an all-in-one lift capable of handling both precision alignment work and everyday maintenance without needing separate equipment.

Features

• 12,000 lb. lifting capacity designed for heavy-duty, commercial-grade applications.
• Extra-tall, extra-wide, and extra-long construction to accommodate a wide range of vehicles.
• Built-in slip plates and alignment turntables included for precise wheel alignment work.
• Multiple turntable positioning options for added flexibility during alignment procedures.
• Runway covers included when turntables are removed for a clean, safe surface.
• Air-operated single-point lock release system (external air supply required) for convenient operation.
• Lock ladder design combined with a double-lock safety system for enhanced security.
• Durable powder-coated finish for long-lasting resistance to wear and corrosion.
• Steel approach ramps included for easy vehicle access.
• Optional drive-off ramps available separately for additional versatility.
• Optional runway extensions available separately to increase platform length.
• Mounting hardware included for simplified installation.
• Powered by a 220V single-phase electric system (requires a 30-amp breaker).
• Shipping weight: 2,900 lbs.
• Backed by a 5-year structural warranty and a 2-year hydraulic warranty (parts only).
