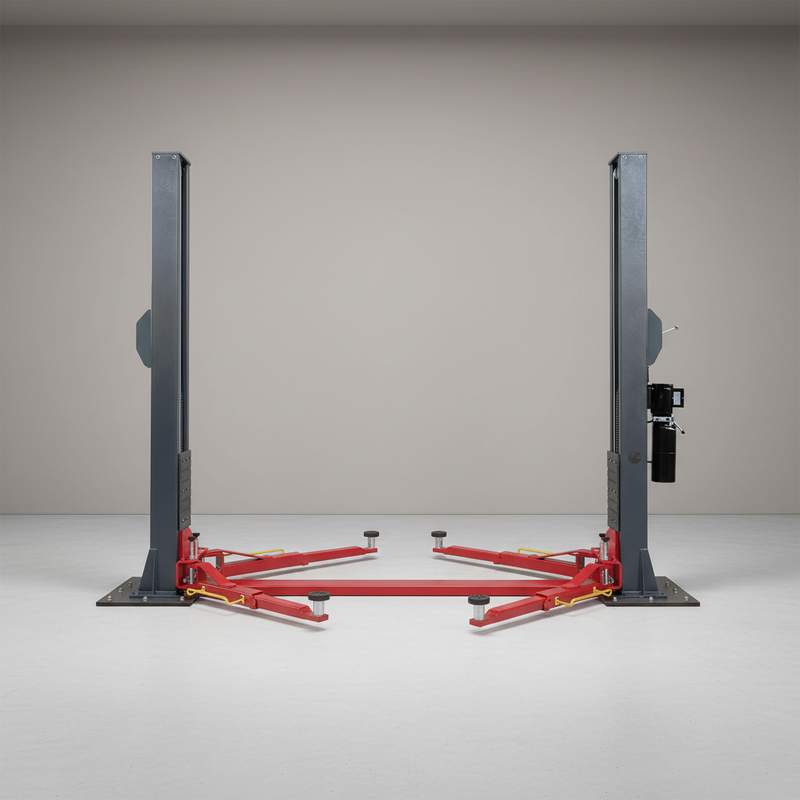

The Katool KT-H120D is a 12,000-lb two-post lift — 2,000 lbs above the standard class — built for shops that regularly handle heavier trucks, full-size SUVs, and vehicles that push the limits of a 10,000-lb lift. The base plate design eliminates the overhead beam for a cleaner installation, and dual hydraulic chain-drive cylinders keep both arms rising in sync for balanced, stable lifts across the full travel range. Requires 220V/60Hz/1PH power. Symmetric arm design centers the vehicle between the columns, suited to shops working a consistent mix of passenger cars and light trucks.

The single-side manual safety release handles all locking positions from one column, keeping the operation straightforward in bays where access to both sides of the lift isn't always practical. Screw-on pads allow the lift points to be set precisely for each vehicle's contact points rather than relying on a fixed pad position, and the +100mm extension support adaptors add reach for vehicles where the standard arm length doesn't land correctly. Rubber pad door opening protection guards vehicle finishes throughout the lift process.

The KT-H120D is a strong fit for independent repair shops that handle a mix of passenger vehicles and heavier trucks where a 10,000-lb lift creates capacity concerns on certain jobs, fleet maintenance operations running full-size trucks and vans that need the extra rated weight, and any shop upgrading from a lower-capacity two-post and looking for a symmetric design that covers their vehicle mix without stepping up to a four-post.

Features

• 12,000 lb Lifting Capacity: A heavy-duty two-post lift built to handle a wide range of vehicles with confidence and reliability.
• Single-Side Manual Safety Release: Provides secure, controlled lifting operations from a conveniently located single-side release point.
• Symmetric Arms with Base Plate Design: Delivers balanced, stable lifting support across a broad range of vehicle sizes, complemented by a low-profile base plate foundation for improved stability and easier installation.
• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth, consistent, and powerful lifting performance with every use.
• Rubber Pad Door Opening Protection: Safeguards vehicle doors and body panels from contact or damage during lifting operations, with screw-on pads and +100mm extension support adaptors included for added versatility.
• High-Quality Hydraulic System: Powered by a top-level hydraulic system operating on 220V/60Hz/1PH for reliable and efficient performance.


Specifications

Item Weight: 120 pounds
Product Dimensions: 112 x 18 x 36 inches

Warranty

Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Vehicle lifts receive an additional three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved claims will receive replacement parts at no cost, including free shipping.

Resources

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
