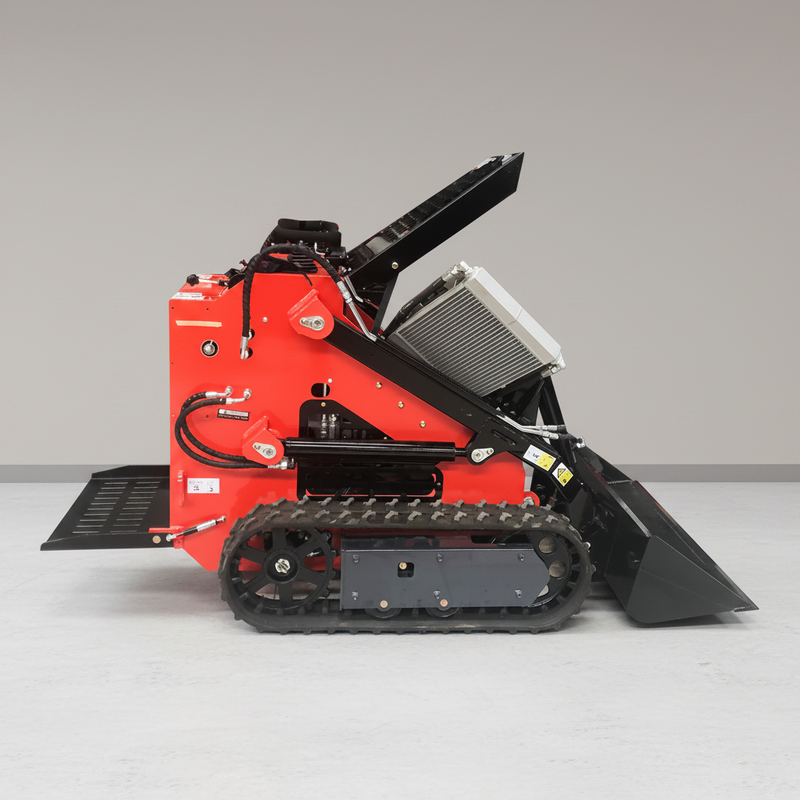

The Katool KT-SK26B is a gasoline-powered mini skid steer track loader with an 837 lb lift capacity and a 23 HP (16.8 kW) engine, built for property owners, landscapers, farm operators, and small contractors who need genuine lifting performance in spaces a full-size machine can't reach. The rubber-track undercarriage is sized to clear standard residential gates and side-yard passages, while spreading the loader's 1,984 lb (900 kg) operating weight across a wide enough contact patch to hold traction on dirt, gravel, and soft ground without tearing up finished landscaping.

The frame is welded from Q235 and Q245 structural steel — the same low-carbon grades used in full-size construction equipment — over a 50 L / 180 bar hydraulic circuit that drives four-wheel traction through the tracks at speeds up to 6 km/h (3.7 mph). A hydraulic closed brake holds the loader on inclines when the operator releases the levers. One notable construction detail: galvanized rigid steel hydraulic lines replace rubber hoses through the high-flex sections of the circuit, eliminating the chafing and corrosion failures that take rubber lines out of service first. Attachment changes are tool-free through quick-disconnect auxiliary hydraulic couplers, compatible with buckets, breakers, augers, and pallet forks. Hinged service panels on both sides of the engine bay expose the sprocket, drive motor, hydraulic lines, and battery for field inspection without removing body panels. The operator station runs on a twin-lever control layout with a full instrument panel: fuel gauge, oil-temperature gauge, hour meter, 12V outlet, choke, throttle, ignition lock, and lamp and horn switches.

The KT-SK26B fits residential property owners who need a compact loader for seasonal landscaping and material handling, small farm and rural operators moving feed, gravel, and equipment across uneven ground, and light contractors working in tight access conditions where a standard skid steer is simply too wide to maneuver.

Features

• 23 HP gasoline engine drives a hydraulic four-wheel-drive system through a 50 L / 180 bar hydraulic circuit, with travel speeds from 0–6 km/h and a hydraulic closed brake that holds position when the operator releases the levers
• Twin-lever operator station controls forward, reverse, and steering from a single-operator design; the instrument panel includes a 12V outlet, choke, fuel gauge, oil-temperature gauge, hour meter, lamp and horn switches, ignition lock, and throttle
• Galvanized rigid hydraulic piping replaces rubber hoses through high-flex sections of the circuit, reducing corrosion and chafing failures for longer service life
• Compact rubber-track undercarriage distributes the 900 kg operating weight evenly across uneven terrain, maintaining traction on soft ground and gravel; the compact track frame is sized to fit through standard residential gates and narrow side-yard passages
• Service-friendly hinged access panels open on either side of the engine bay, exposing the sprocket, drive motor, hydraulic lines, and battery for routine inspection without removing body panels — ideal for field servicing
• Quick-disconnect auxiliary hydraulics allow tool-free attachment swaps between bucket, breaker, auger, and pallet fork at the front of the machine

Specifications
