The Katool KT-T800 and KT-B750 Combo pairs a wheel-clamp tire changer with a precision wheel balancer in a single purchase — everything a repair shop or tire operation needs to mount and balance tires without sourcing machines separately. Both units are built on heavy-duty steel frames and designed for daily professional use.

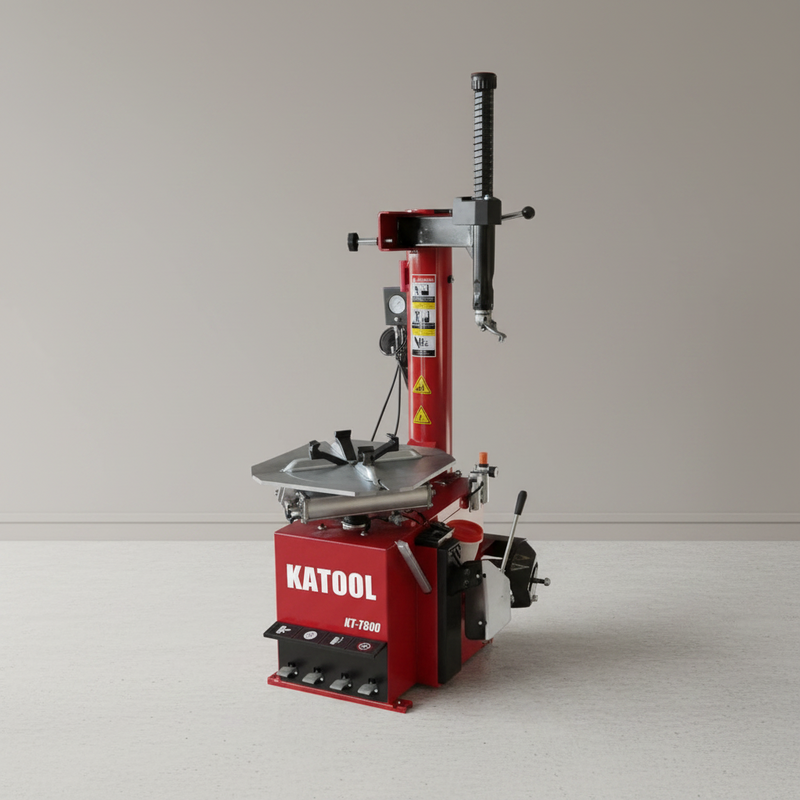

The KT-T800 tire changer runs on a 2.0 HP pure copper winding motor with carburization-treated alloy steel jaws — a hardening process that extends jaw life under repeated clamping cycles. The stainless steel mounting head is fitted with a rim-protecting plastic cover so the head contacts the wheel finish rather than bare steel. Pedal-controlled inflation keeps both hands free during the inflation step, and the closed-body design shields internal components from the shop grit that shortens the life of open-frame machines.

The KT-B750 balancer handles the back half of the workflow. The automatic measurement ruler reads A and D values without manual input, cutting setup time on every wheel. A 3mm steel frame minimizes vibration at the sensor level, and the moisture-proof, dust-proof control board holds up in shop environments where standard electronics degrade faster. Multiple balance modes cover different rim styles, and built-in self-calibration with fault diagnosis keeps the machine dialed in without technician-managed calibration routines.

The combo is a strong fit for independent tire shops and repair operations equipping a new bay or replacing aging equipment, dealership service departments that handle tire service in-house, and serious home garage builds where both a changer and balancer are part of the long-term plan and buying as a package makes financial sense.

Features:

Katool KT-T800 Wheel Clamp Tire Changer

• Durable Alloy Steel Jaw: Carburization-treated for enhanced hardness and superior long-term strength under demanding use.
• Stainless Steel Mounting Head: Corrosion-resistant construction paired with a rim-protecting plastic cover to prevent wheel surface damage during operation.
• Pedal-Controlled Inflation Gauge: Hands-free inflation control for added convenience and a smoother, more efficient workflow.
• Powerful Motor: 2.0HP pure copper winding motor delivers maximum efficiency and reliable performance throughout daily use.
• Pull-Type Pedal Control System: Designed for smooth, precise tire changing with minimal operator effort.
• Closed-Body Design: Fully enclosed housing shields internal components from dust, debris, and wear for improved long-term durability and reduced maintenance.

Katool KT-B750 Wheel Balancer

• Automatic Measurement Ruler: Auto-input for A and D values.
• 3mm-Thick Heavy-Duty Steel Body: Reduces vibration for stability.
• Advanced Sensor System: Ensures precise wheel balancing.
• Moisture-Proof & Dust-Proof Control Board: Designed for longevity.
• Multiple Balance Modes: Adjusts to different rim styles.
• Built-in Fault Diagnosis & Self-Calibration: Increases reliability.

Specifications:

Katool KT-T800 Wheel Clamp Tire Changer

• Max Wheel Diameter: 41" (1040mm)
• Max Wheel Width: 15" (380mm)
• Outside Clamp: 12"-20"
• Inside Clamp: 14"-24"
• Power Supply: 110V 1PH
• Motor Power: 2.0HP (1.5KW)
• Rotation Speed: 6.8 RPM
• Air Pressure: 0.8-1.0 Mpa (116-145 PSI)
• Net Weight: 186 KG (410 lbs)

Katool KT-B750 Wheel Balancer

• Rim Diameter: <30"
• Wheel Width: 15"
• Max Wheel Diameter: <880mm
• Balancing Speed: 180 RPM
• Power Supply: 120V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Diameter: <135mm
• Max Wheel Weight: <65 KG
• Balancing Accuracy: ±1g
• Measuring Time: 7 seconds

Manuals & Resources

Download the user manuals for both machines:

• Katool KT-T800 Tire Changer Manual

Warranty & Support

Katool offers a limited 1-year (12-month) warranty covering parts, electronics, and power units. An extended 2-year warranty is available for added protection.

Warranty Includes:

• Power units, motors, displays, electronics, and cylinders.
• Vehicle lifts include an additional 3-year structural warranty.

Warranty Conditions:

• Claims must be submitted within the warranty period.
• Warranty is non-transferable and requires proof of purchase.
• Replacement parts and shipping are covered at no cost.
• Labor is not included.
