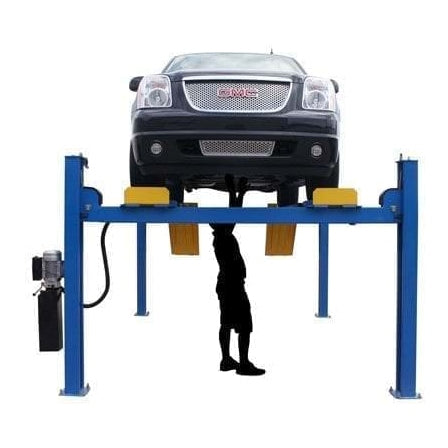

Atlas 414A 14,000 lb 4-Post Alignment Lift

The Atlas 414A is a 14,000 lb four-post alignment lift built to commercial grade with built-in slip plates and alignment turntables included — the turntables adjust to multiple positions along the runway to accommodate different wheelbases, and metal cover plates replace them when the lift is used for standard service work rather than alignment, making the 414A a dual-purpose lift rather than a dedicated alignment-only rack. It runs on 220V single-phase power with a 30-amp breaker, uses an air-operated single-point lock release requiring an external air supply, and ships at approximately 3,200 lbs — delivery requires access for a 53-foot truck. Backed by a 5-year structural and 2-year hydraulic parts warranty.

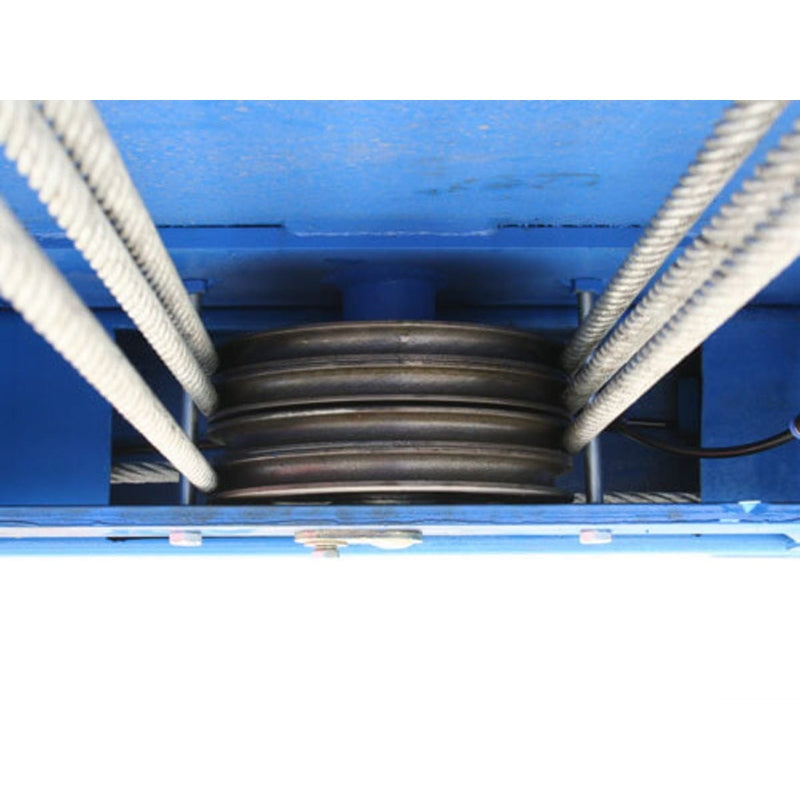

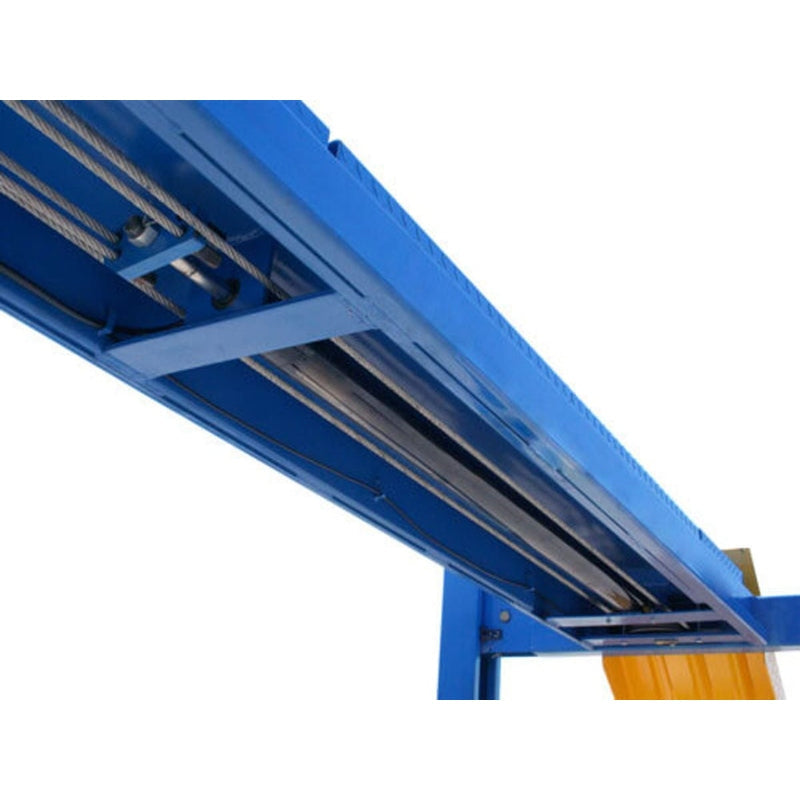

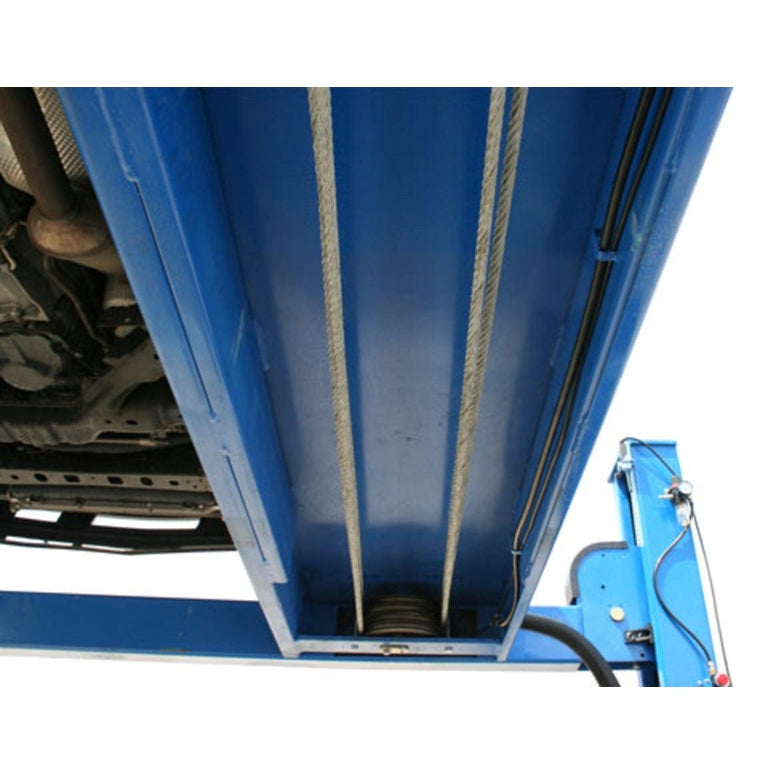

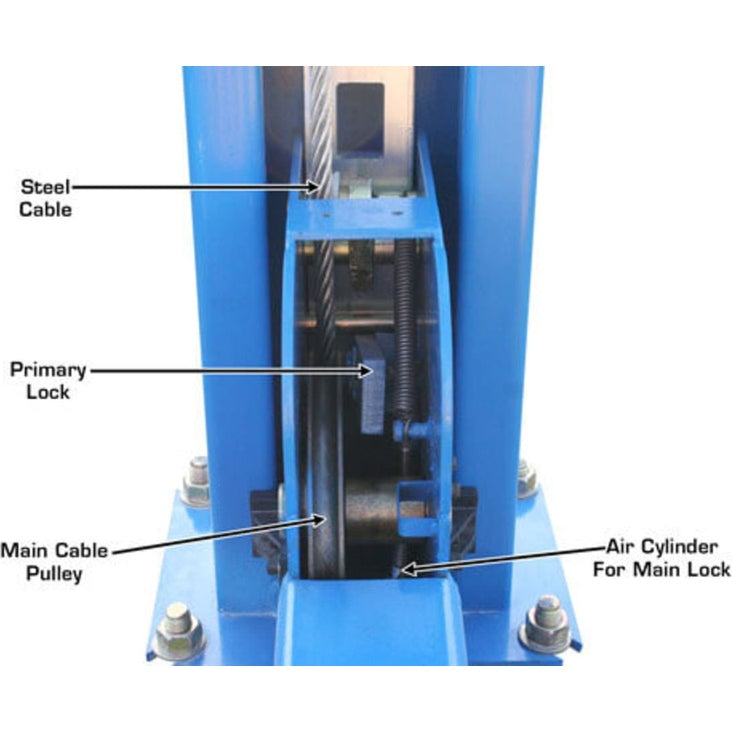

The lifting system uses a high-strength cable with an under-runway oversized hydraulic cylinder — a meaningful construction difference from the chain-and-exposed-cylinder systems used by many competitors. Exposed hydraulic cylinders positioned between the runways are a known source of door damage during loading and unloading; the under-runway cylinder eliminates that contact point entirely. The lock ladder design with a double lock safety system holds the lift at working height with redundant engagement, and tracks between the runways accept a rolling bridge jack (Atlas RJ8000BK, sold separately) for suspension unloading and axle work without moving the vehicle off the rack. Steel approach ramps are included; additional drive-off ramps and runway extensions are available separately.

The 414A is built for alignment shops and full-service repair facilities that need a four-post lift capable of daily alignment work and general service use on the same platform, dealership service departments handling a wide wheelbase range from compact cars through light trucks and vans, and high-volume shops that want commercial-grade construction and a 5-year structural warranty behind the investment.

Features

• 14,000 lb lifting capacity
• Heavy-duty, commercial-grade construction

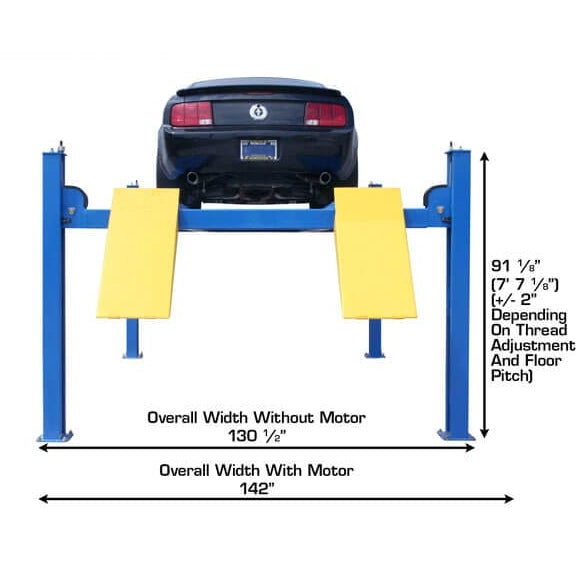

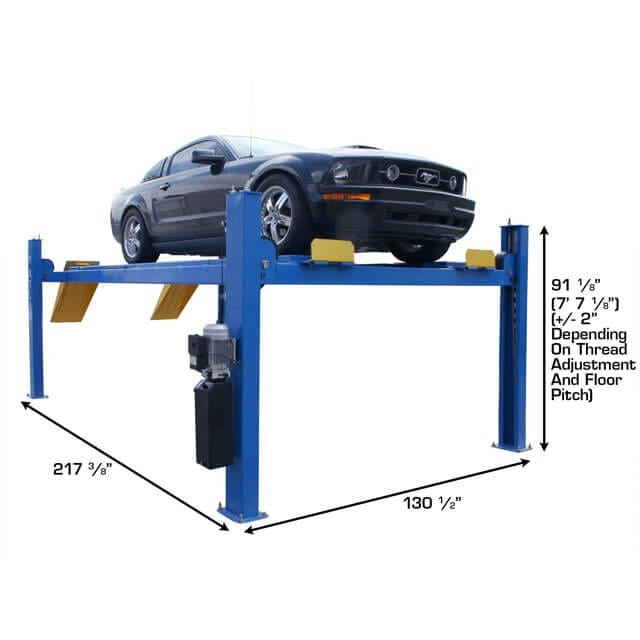

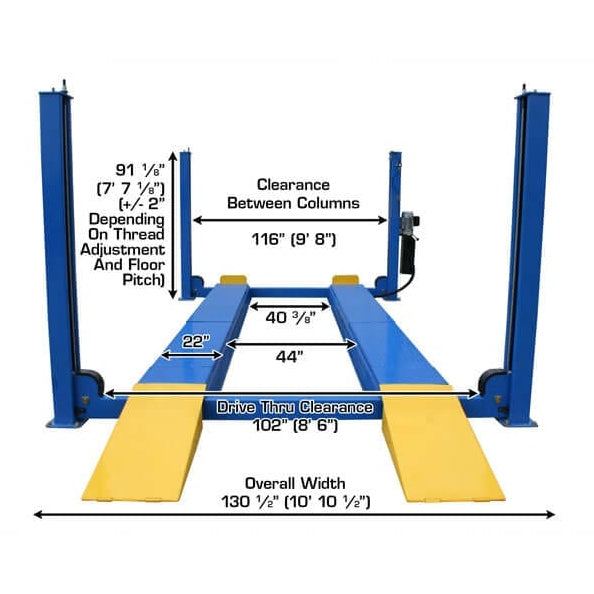

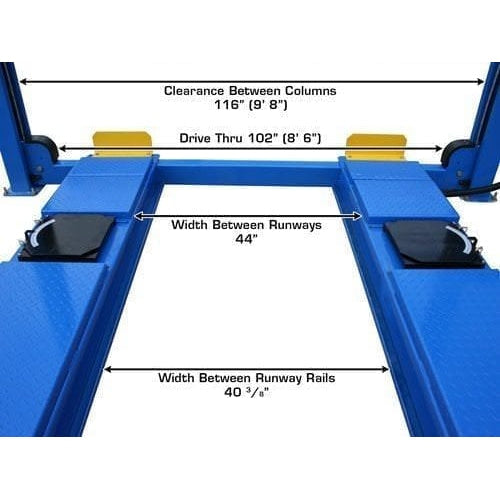

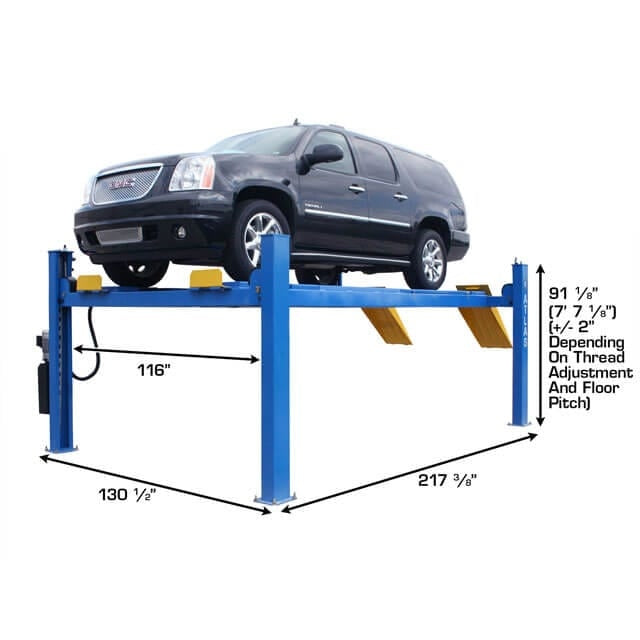

• Extra tall, extra wide, and extra long platform for maximum versatility

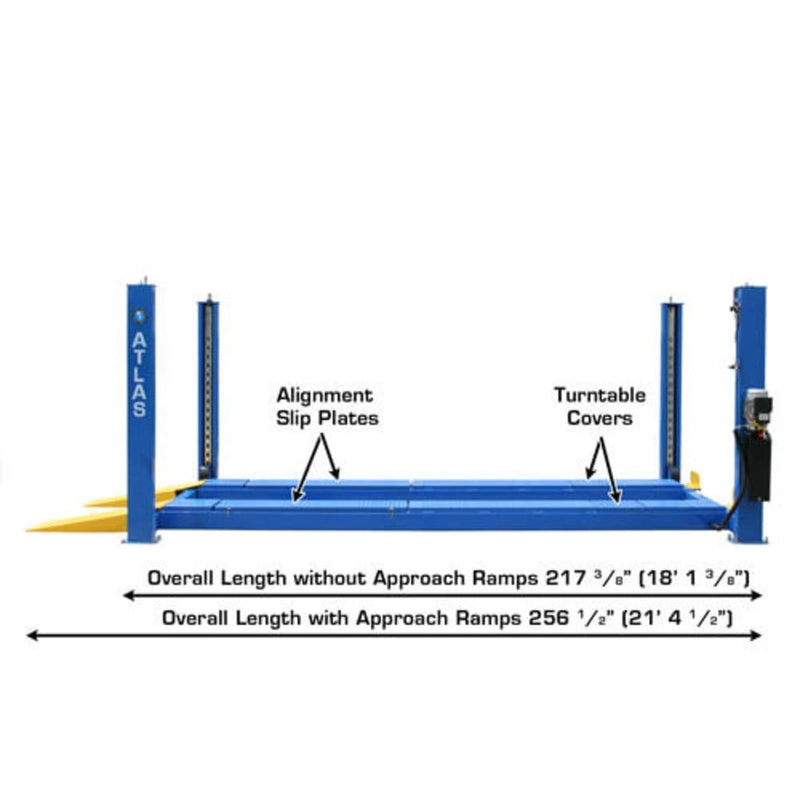

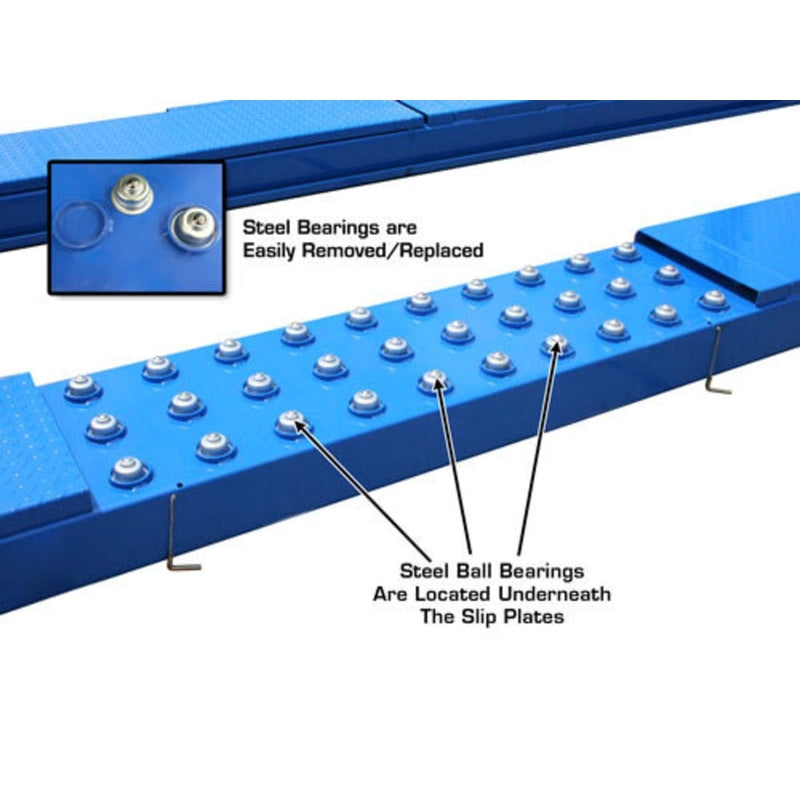

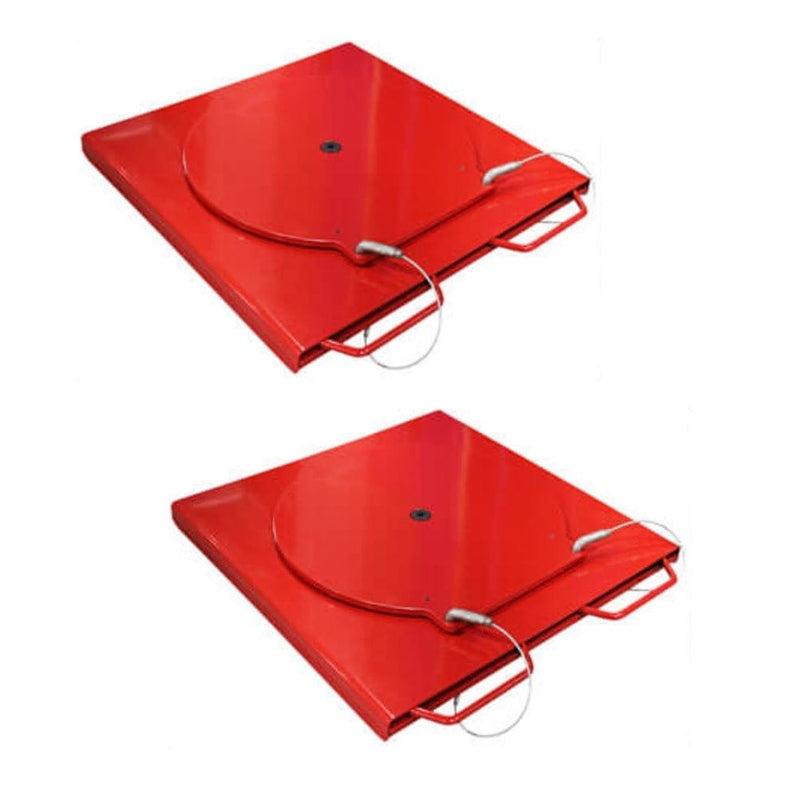

• Built-in slip plates and alignment turntables included

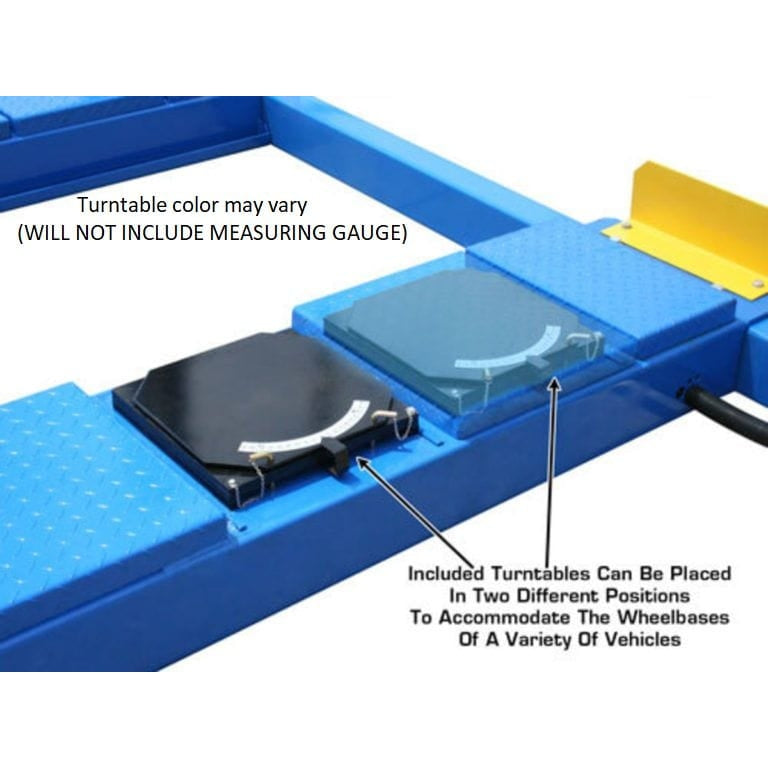

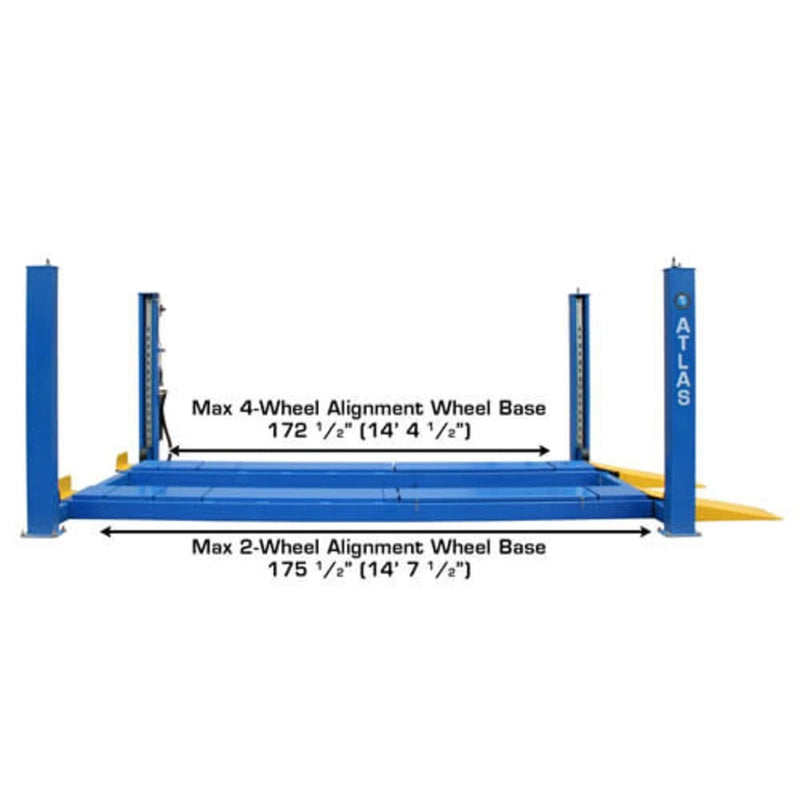

• Multiple turntable placement positions for flexible alignment setups

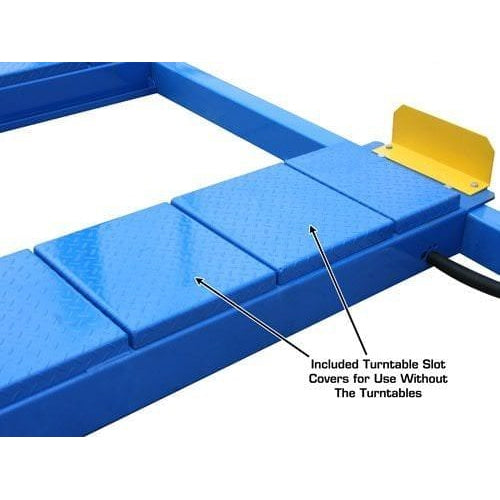

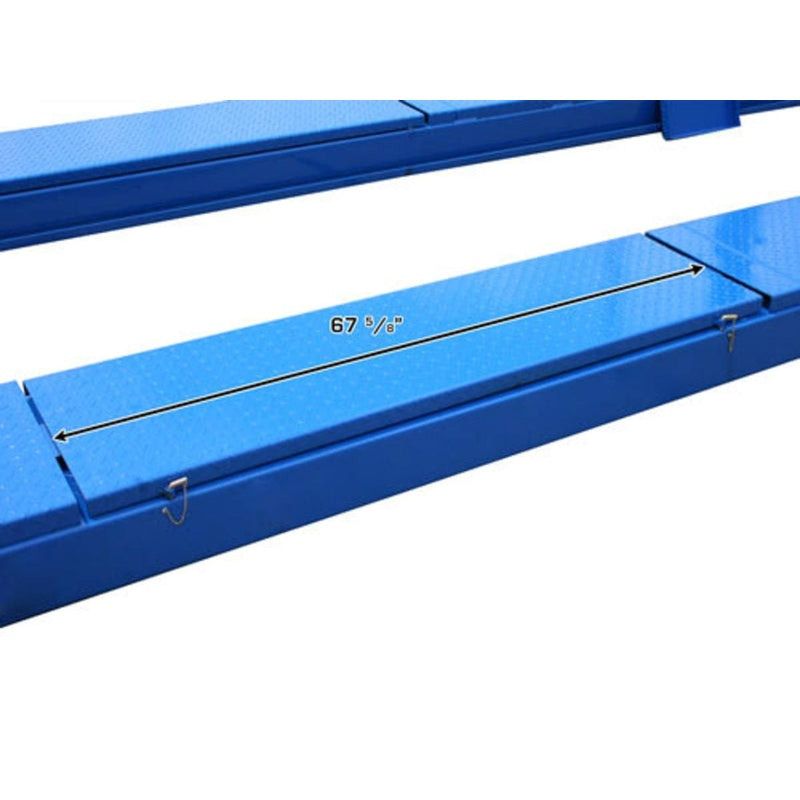

• Runway covers included for use when turntables are removed

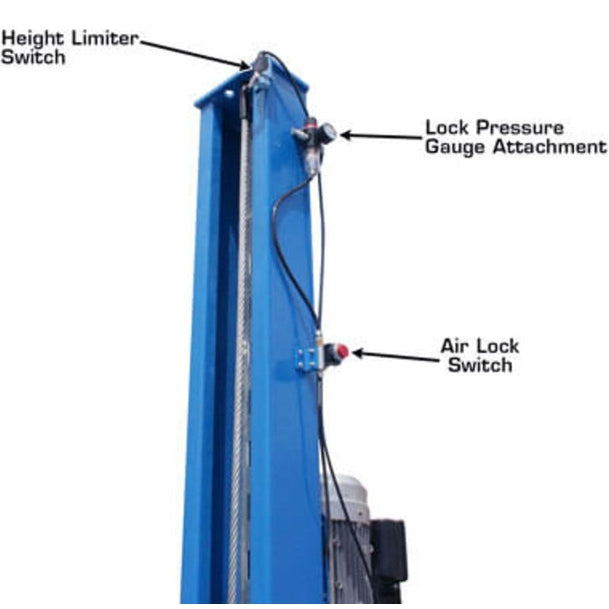

• Air-operated single-point lock release (external air supply required)

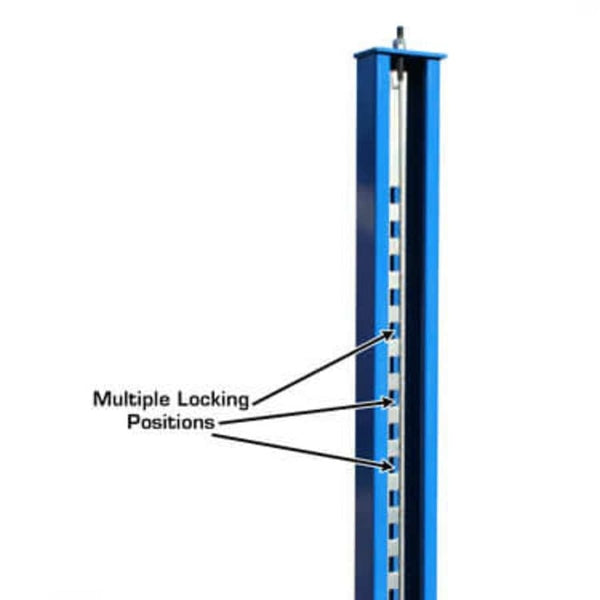

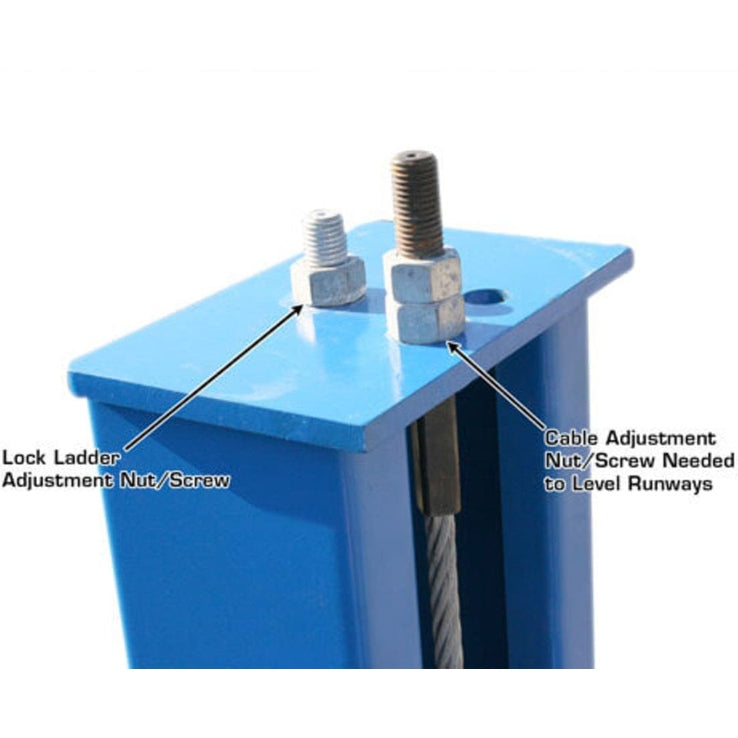

• Lock ladder design with double lock safety system for secure holds
• Durable powder-coat finish

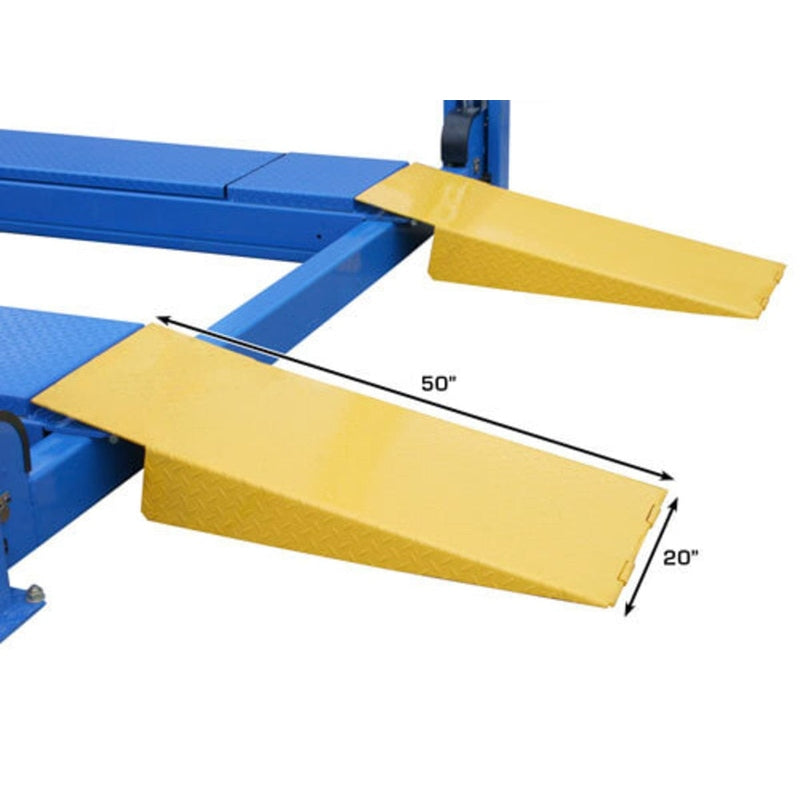

• Steel approach ramps included
• Additional drive-off ramps available (sold separately)
• Runway extensions available (sold separately)

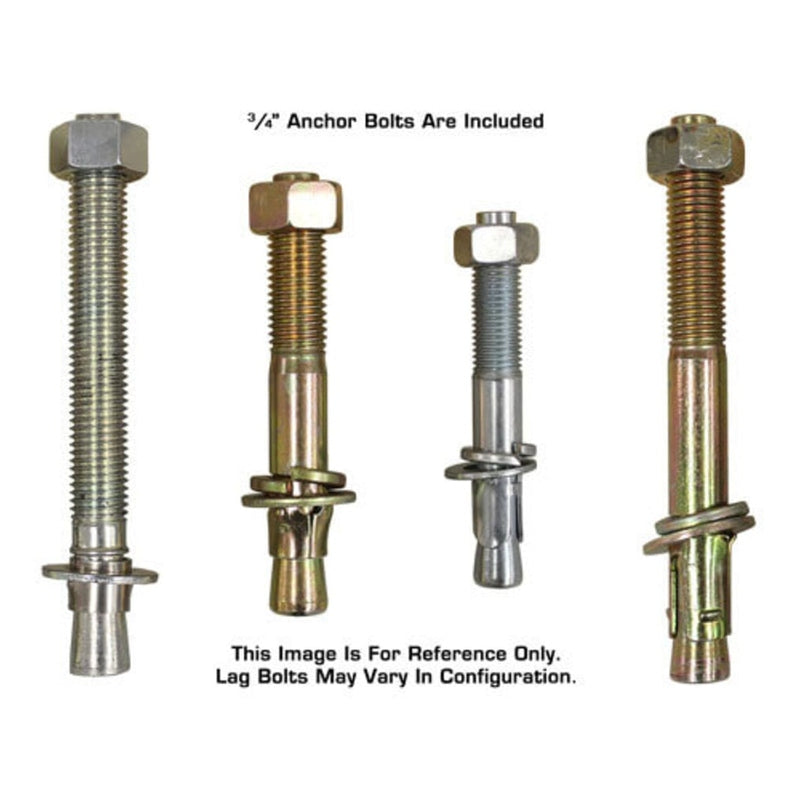

• Mounting hardware included

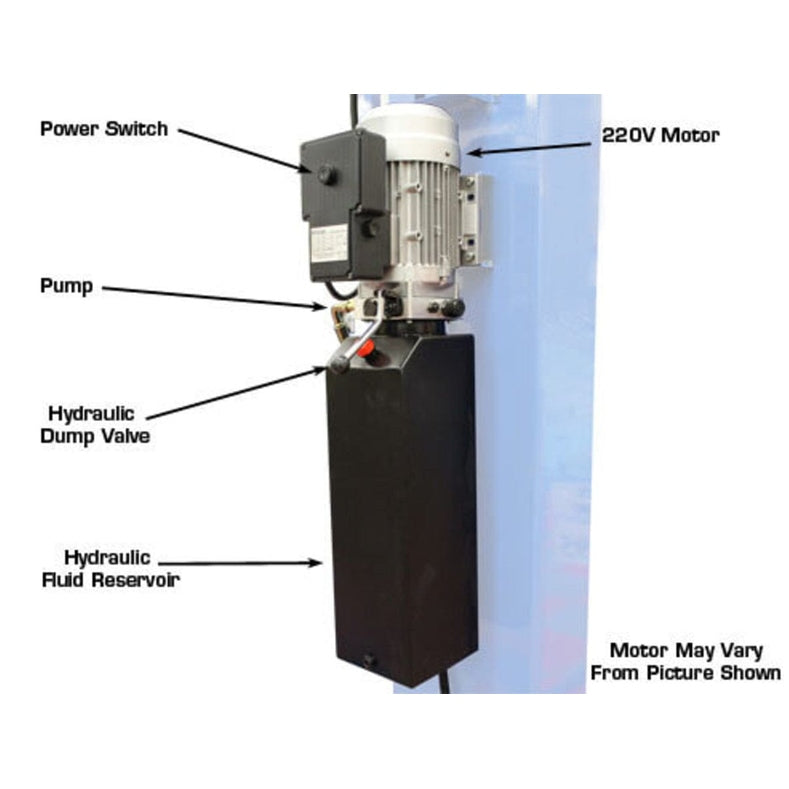

• 220V / 1-phase electric operation (requires a 30-amp breaker)

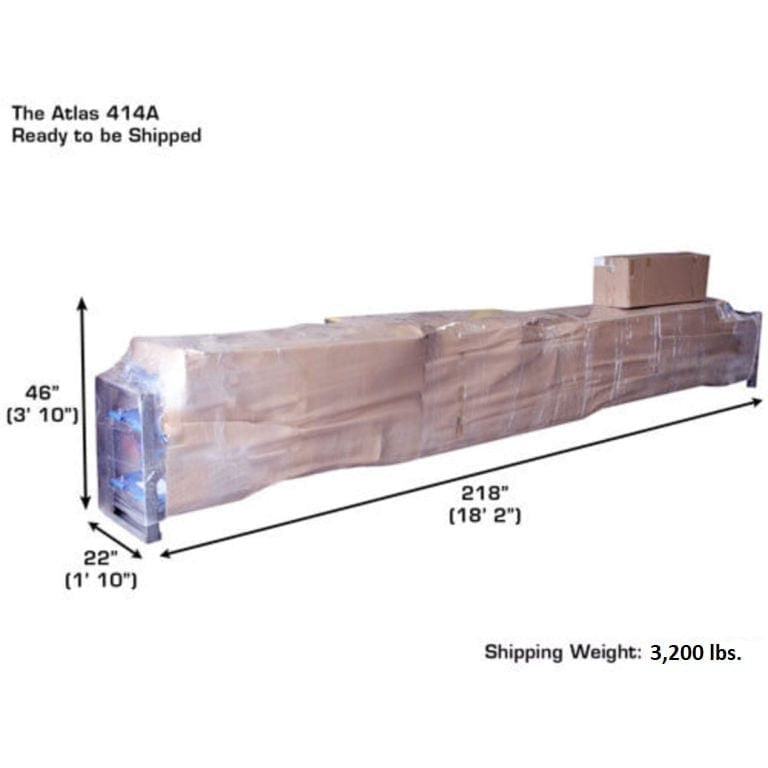

• Shipping weight: 3,200 lbs
• 5-year structural / 2-year hydraulic parts-only warranty
