Atlas 6MR 6,000 lb Portable Mid-Rise Lift

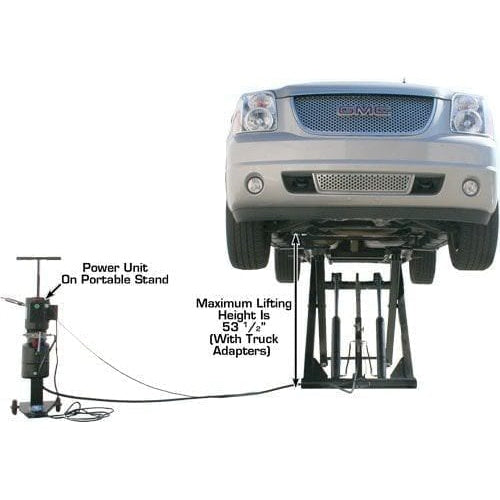

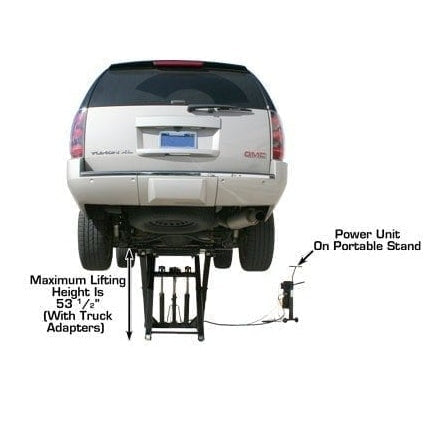

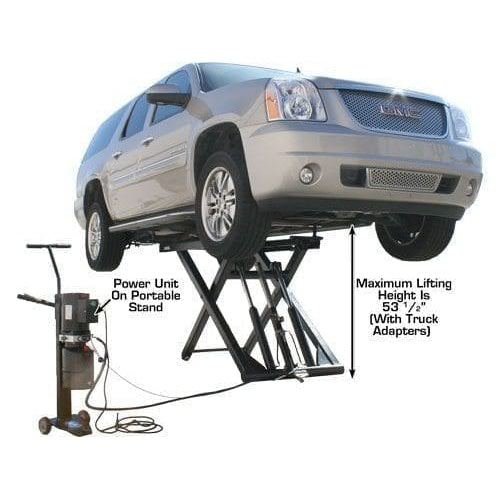

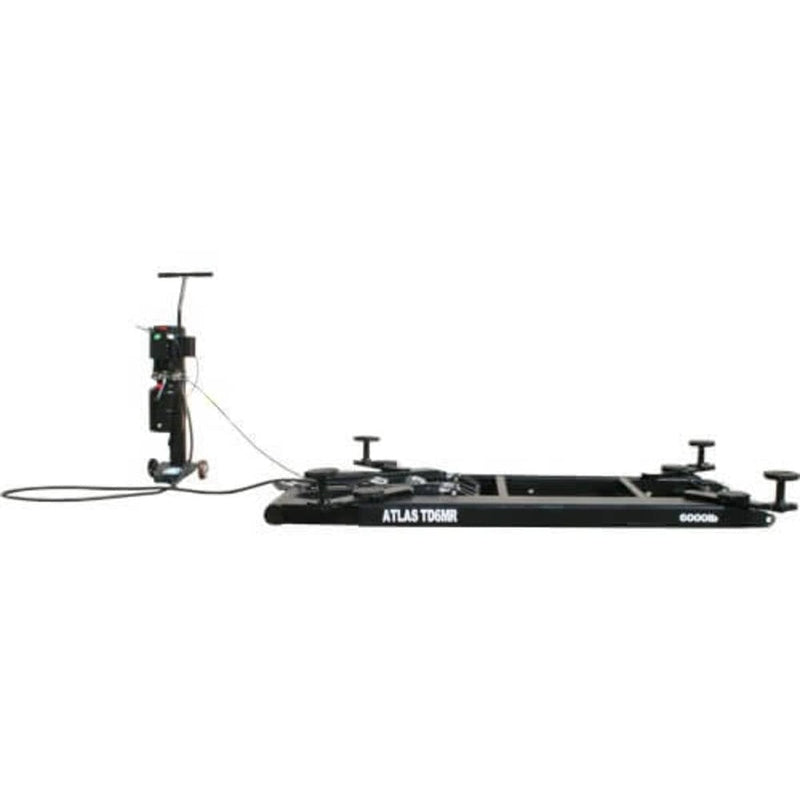

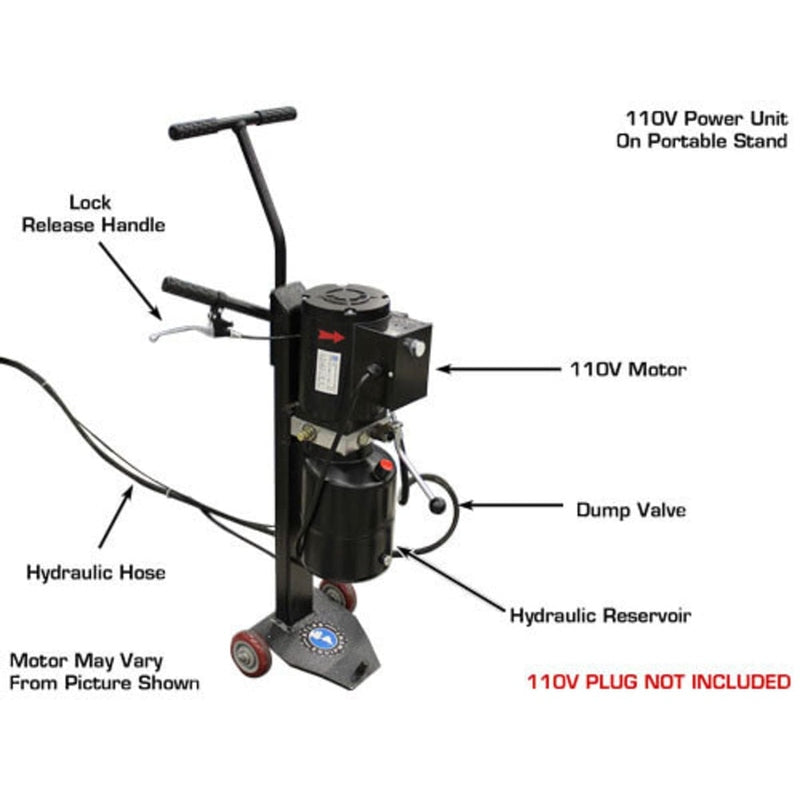

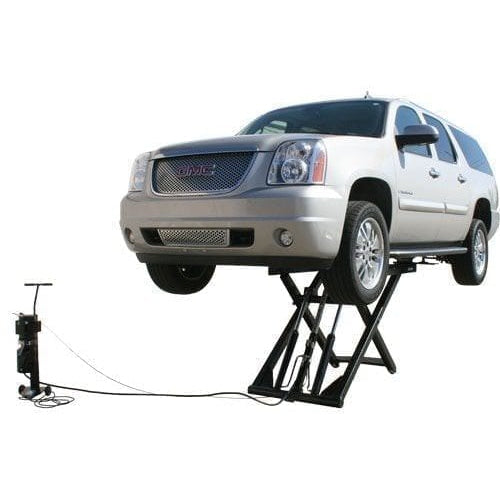

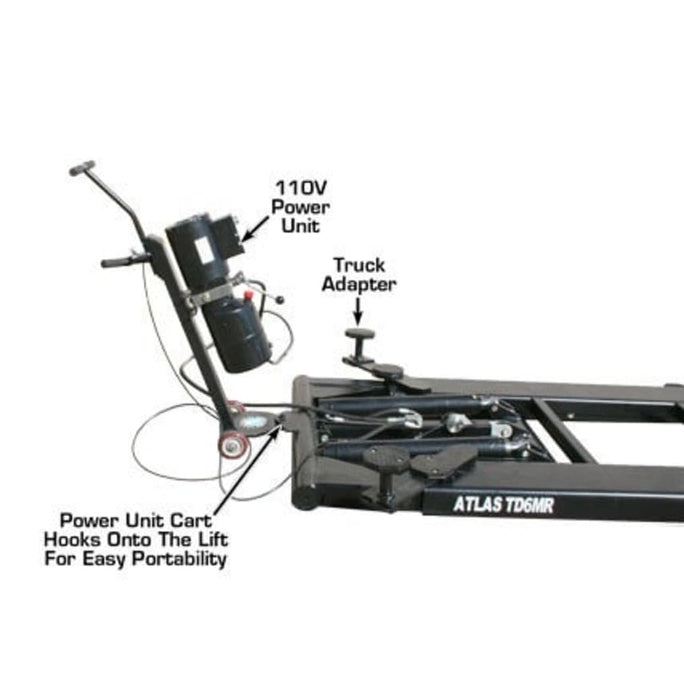

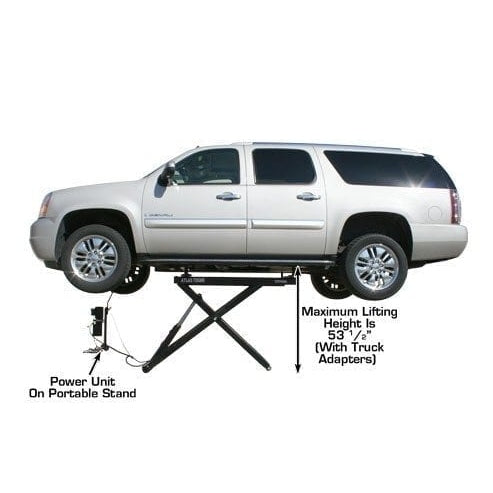

The Atlas 6MR is a 6,000 lb freestanding portable mid-rise scissor lift running on a 110V power unit mounted on a separate mobile cart — the cart repositions around the lift for operator access and doubles as the handle for rolling the unit between bays or from an indoor bay to an outdoor concrete apron. At over 53 inches of lifting height across 7 locking positions, it gives body shops and wheel service specialists the working clearance that standard low-profile mid-rise lifts don't reach. Note: due to the horizontal cylinder configuration, allow 2–6 inches of clearance between the lift surface and the vehicle's lifting points during setup. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 2-year hydraulic parts warranty.

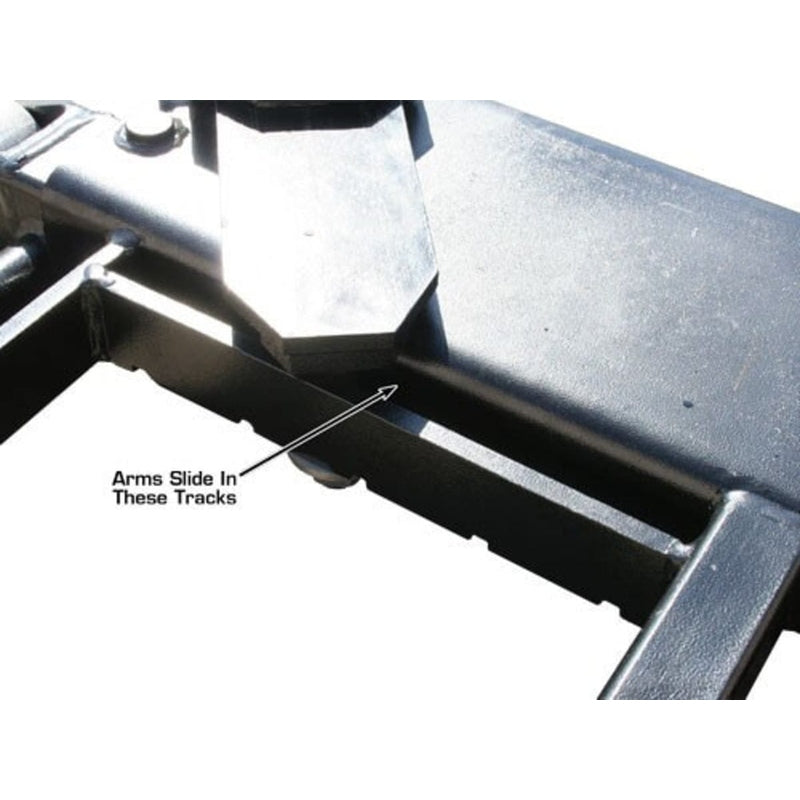

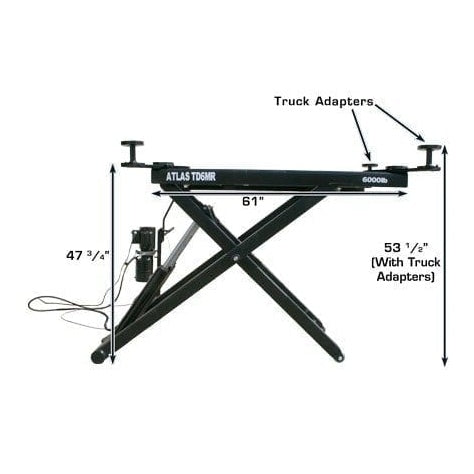

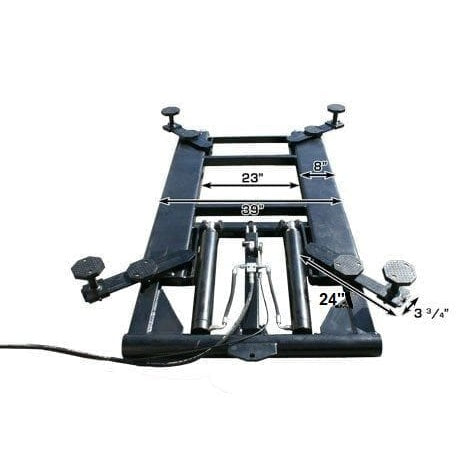

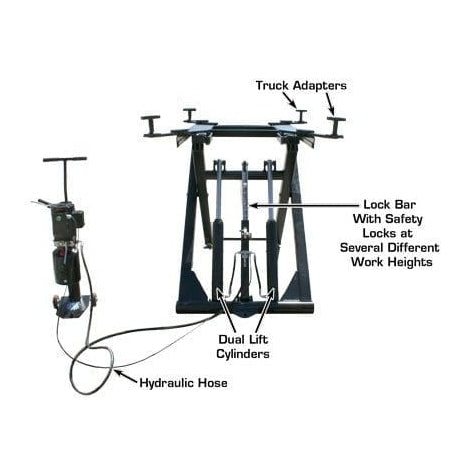

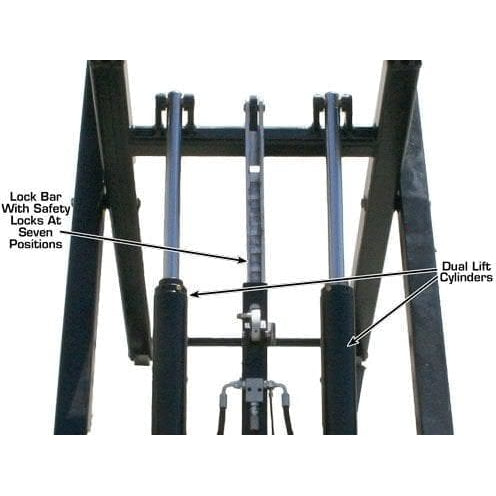

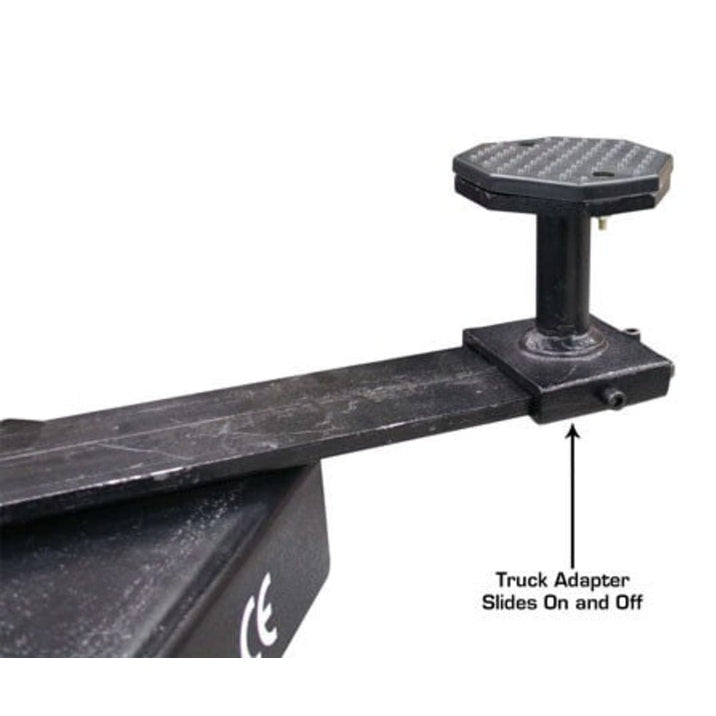

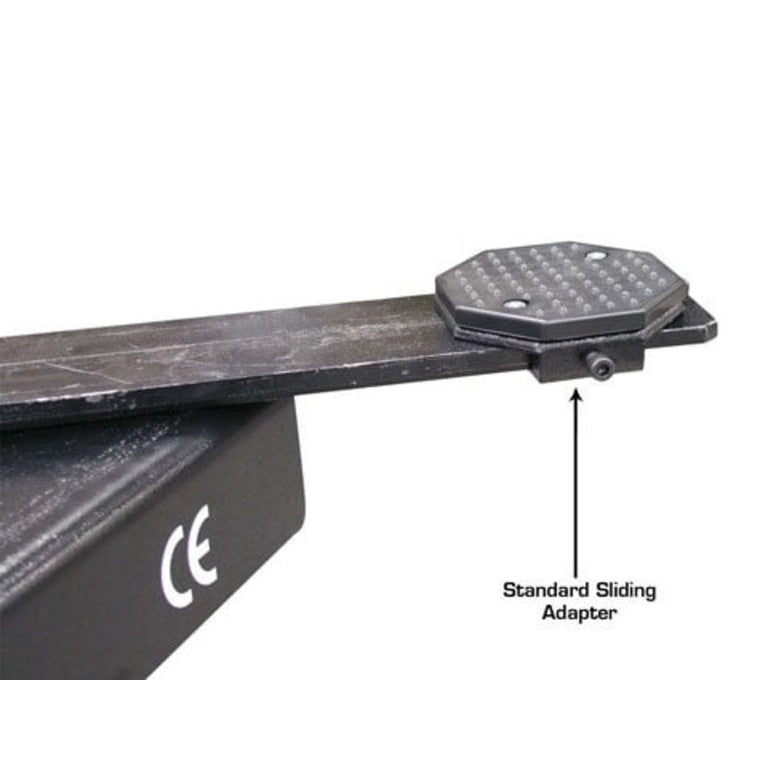

Dual hydraulic cylinders drive the platform, and a solid safety lock bar engages at any of the 7 positions — the combination of two cylinders and a positive mechanical lock is what keeps a 6,000 lb vehicle stable at height without platform flex. The 24-inch arms (recently extended from the previous length) adjust to an infinite number of positions along their travel, accommodating the non-standard lifting points found on certain vehicles where fixed-position adapters don't align cleanly. The platform includes both truck adapters and sliding car adapters in the box, covering the range from passenger cars through light trucks without a separate purchase.

The 6MR is a strong fit for body shops that need portable lifting height for panel, bumper, and rocker work, wheel and tire specialists that want a mid-rise with enough clearance for brake and suspension access, and general repair shops looking for a supplemental lift that moves where the work is rather than staying anchored to one bay.

Features

• 6,000 lb lifting capacity
• Commercial-grade construction with durable powder-coat finish
• Single-point manual lock release
• Free-standing, portable design for flexible shop placement
• Dual hydraulic cylinders for balanced, stable lifting
• 7 locking positions
• Extended 24" arms (each) for improved vehicle reach
• Truck adapters included
• Separate motor stand included

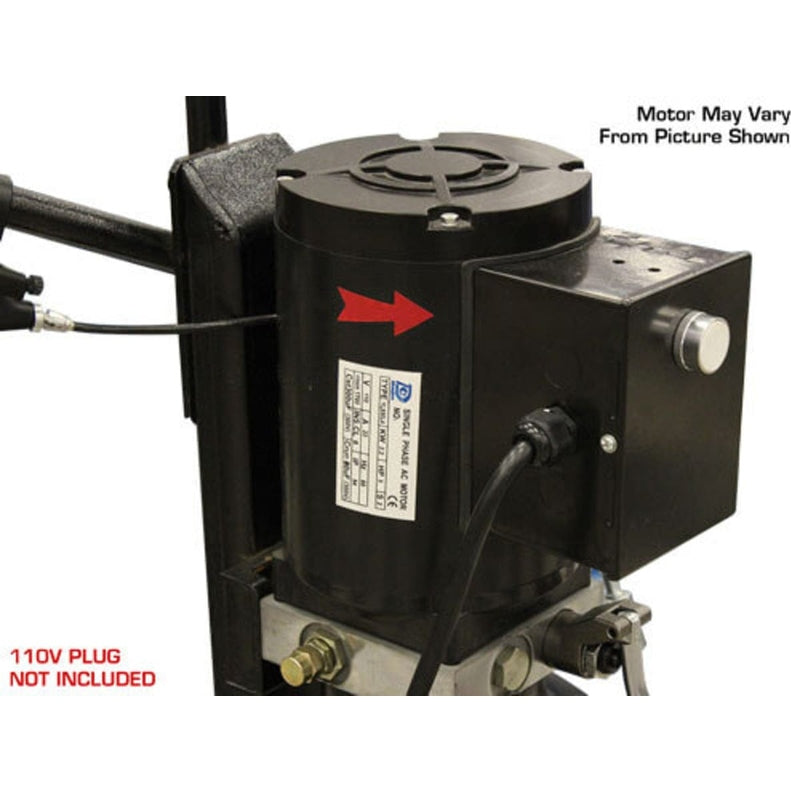

• 110V electric operation (plug not included)

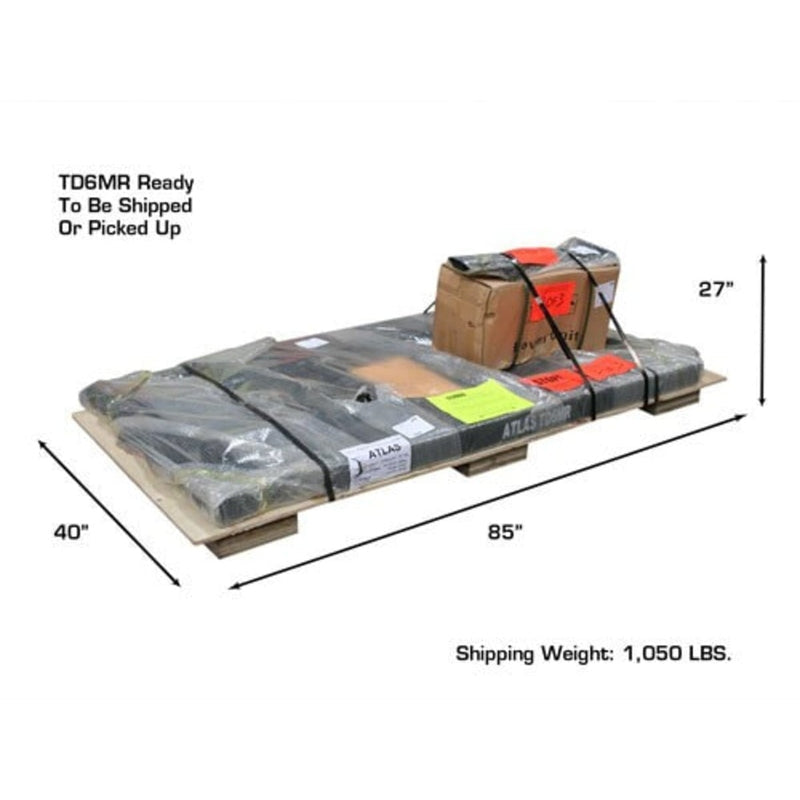

• Shipping weight: 1,050 lbs
• 2-year structural / 2-year hydraulic parts-only warranty

Specifications

Documents

Atlas TD6MR Manual
