Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift

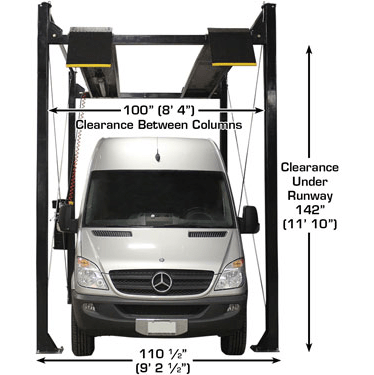

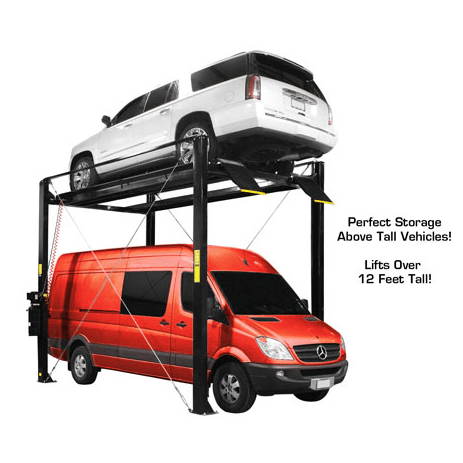

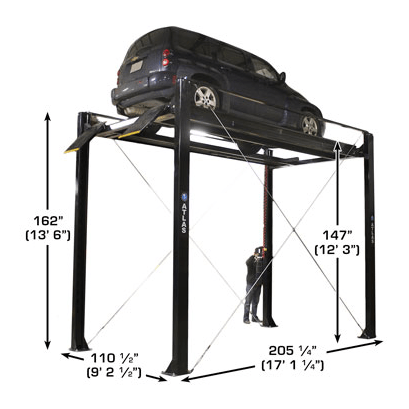

The Atlas Garage PRO7000ST is a 7,000 lb four-post storage lift with a 144-inch (12-foot) clear height under the runway — built specifically for garages with extra-tall ceilings where the goal is storing a standard-height vehicle on top while parking a full-size truck, van, or lifted SUV underneath. Where most four-post storage lifts max out at 6–7 feet of under-runway clearance, the PRO7000ST's 12-foot clearance is what makes a tall vehicle below a practical reality rather than a tight squeeze. It runs on 220V single-phase power with a 30-amp breaker and requires an external compressed air supply for the pneumatic single-point lock release. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

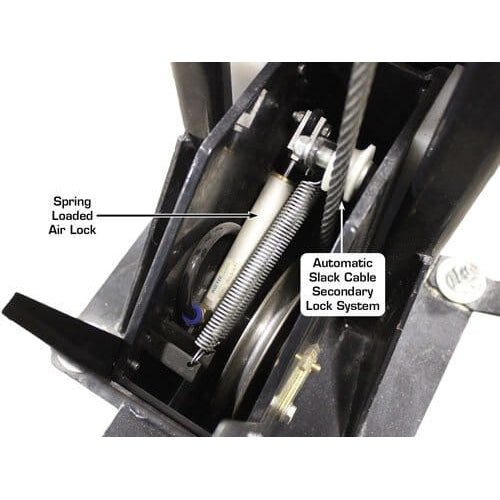

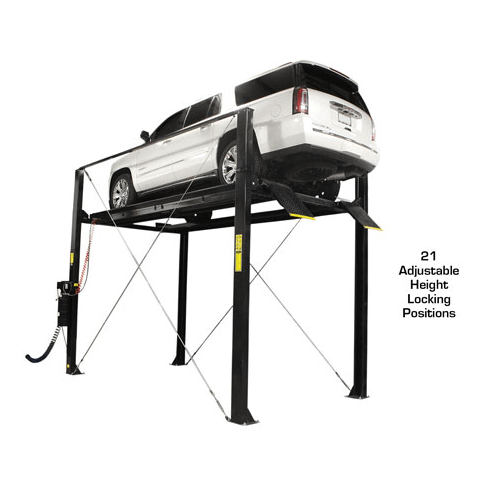

The 21-position lock ladder — adjustable during installation for an effectively infinite range of locking heights — holds the platform anywhere in its travel, and the pneumatic single-point release disengages all four spring-loaded locks simultaneously from a single toggle next to the power unit. An emergency slack-cable secondary lock system stands by automatically and engages if the cables are compromised or go slack, independent of the primary lock. Diamond-plated runways with welded tracks accept a rolling bridge jack (Atlas RJ6BK and similar, sold separately) for wheel unloading during tire and brake work on vehicles stored at height.

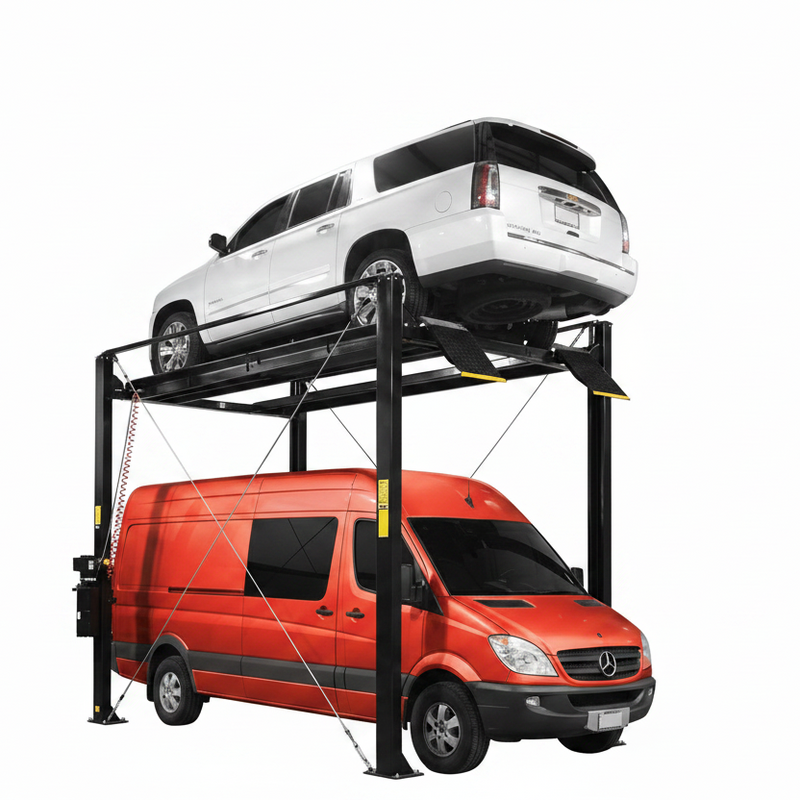

The PRO7000ST is purpose-built for home garage owners and car collectors with ceiling heights of 14 feet or more who want to stack vehicles without sacrificing the ability to park a truck or SUV in the lower position, and for restoration shops that need overhead storage for project vehicles while keeping full-size working vehicles accessible on the floor below.

Features

• 7,000 lb lifting capacity
• Heavy-duty construction

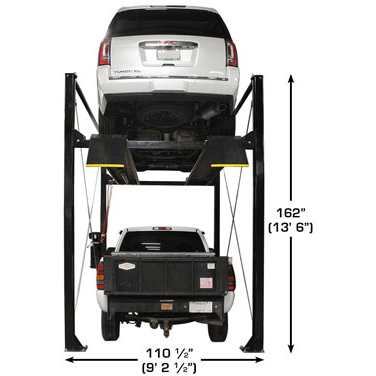

• "Super Tall" lifting height for maximum overhead clearance
• Extra wide and extra long platform for versatile vehicle accommodation

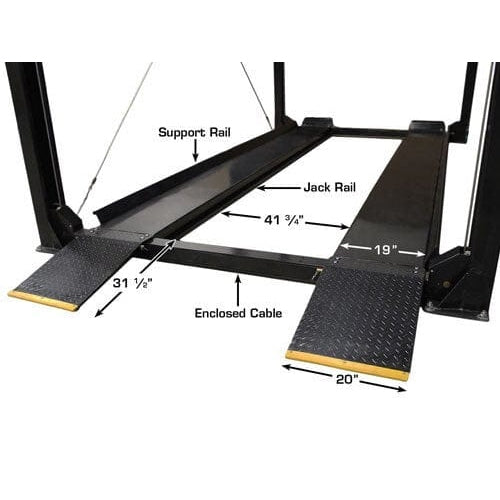

• Diamond plate runways for durability and traction

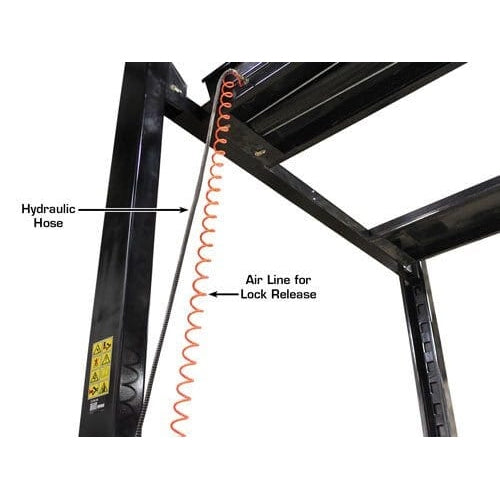

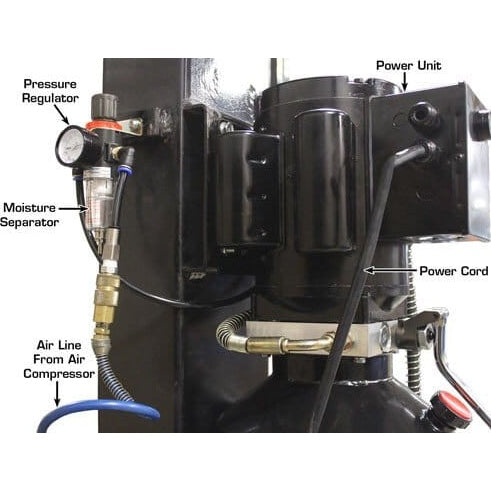

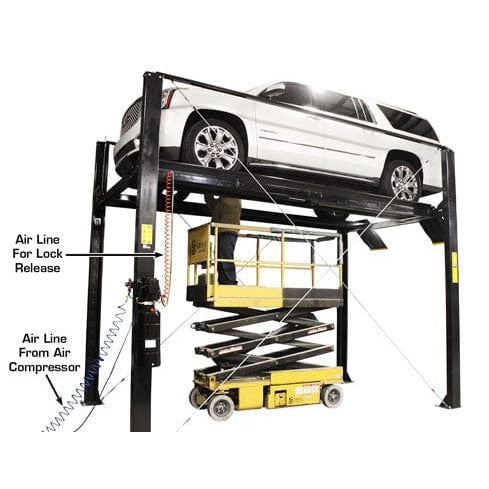

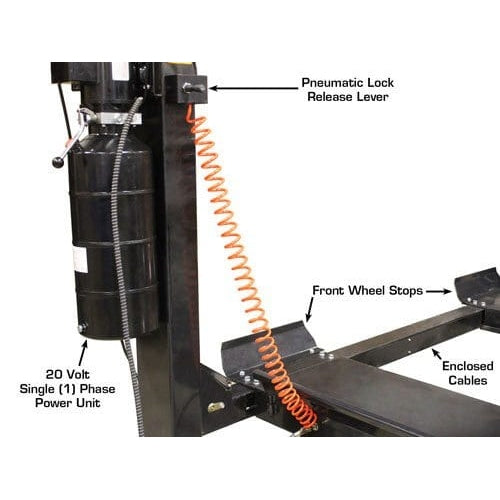

• Single-point pneumatic lock release with lock ladder design and double lock safety system (external air supply required)
• Steel approach ramps included

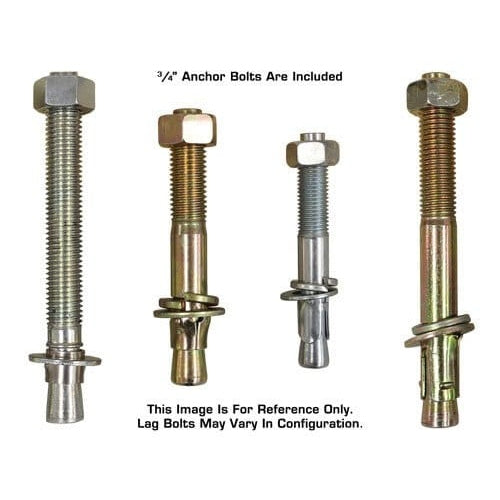

• Mounting hardware included
• Ideal for both vehicle storage and active service work
• 220V / 1-phase electric operation (requires a 30-amp breaker)

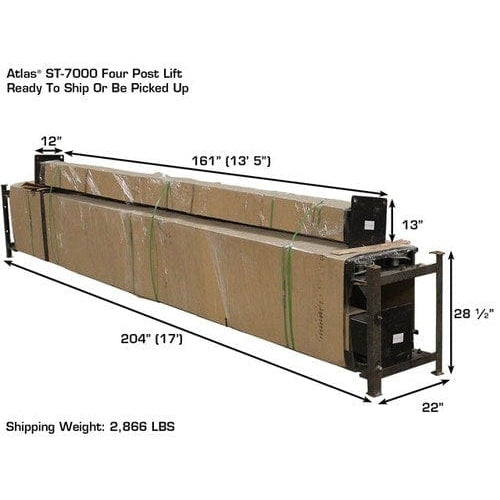

• Shipping weight: 2,866 lbs
• 2-year structural / 1-year hydraulic parts-only warranty

Specifications

Documents

Atlas® PRO7000ST Manual

Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
