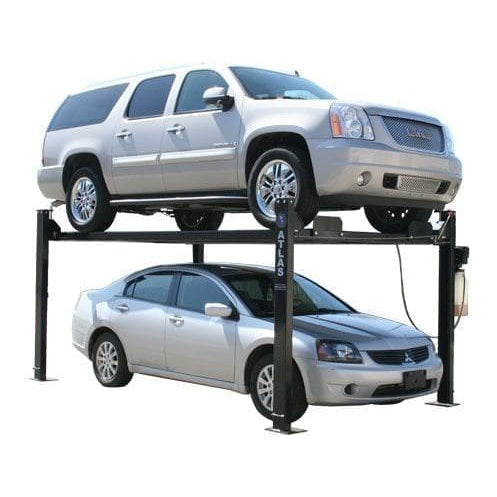

The Atlas Garage PRO8000 is an 8,000 lb four-post storage and service lift and the most popular hobbyist four-post in the Atlas lineup — built for home garage owners and restoration shops that need to stack vehicles and reclaim floor space without a permanent installation. Note: the PRO8000 is designed for homeowner and restoration shop use — not intended for commercial repair shops raising and lowering the lift multiple times per day. It runs on 110V power with a 30-amp breaker, ships at approximately 1,800 lbs, and delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

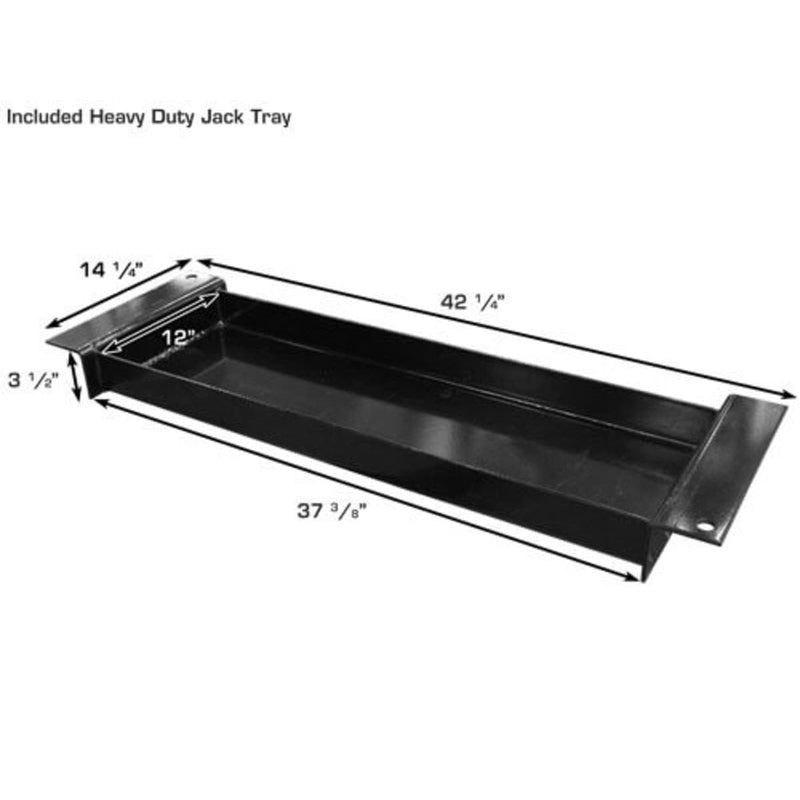

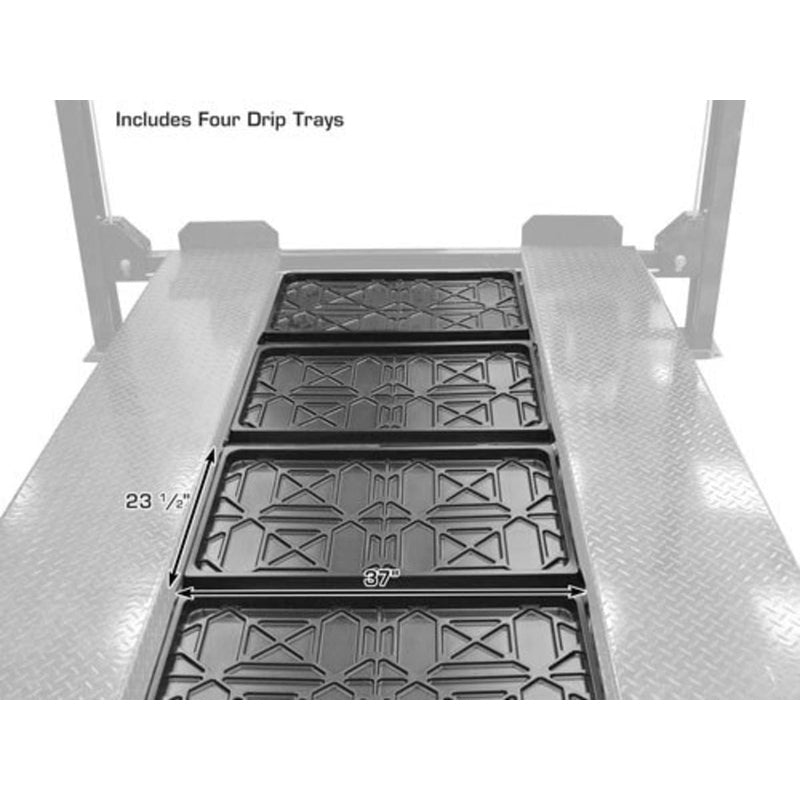

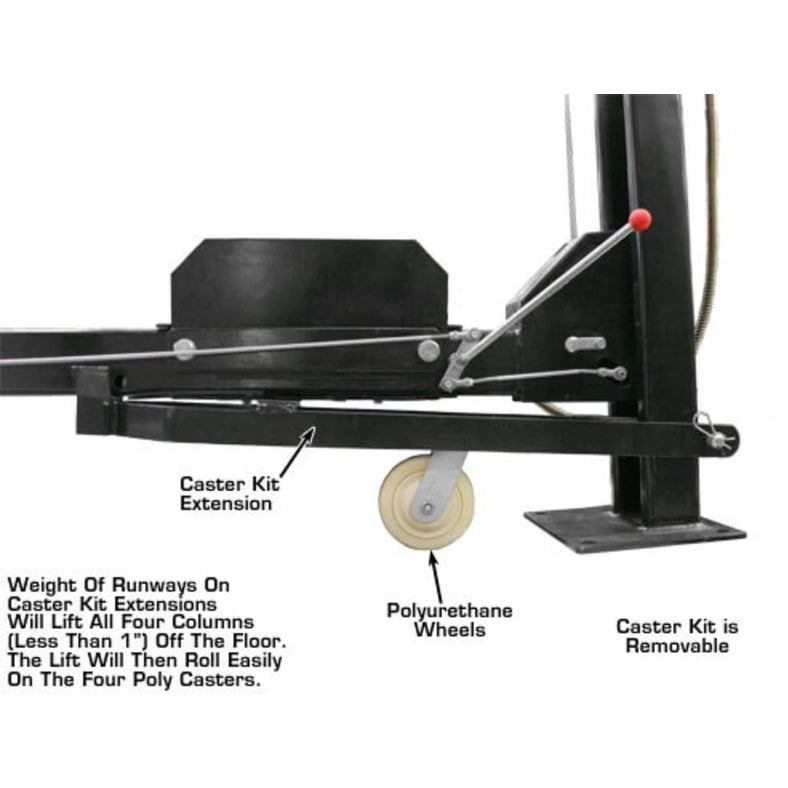

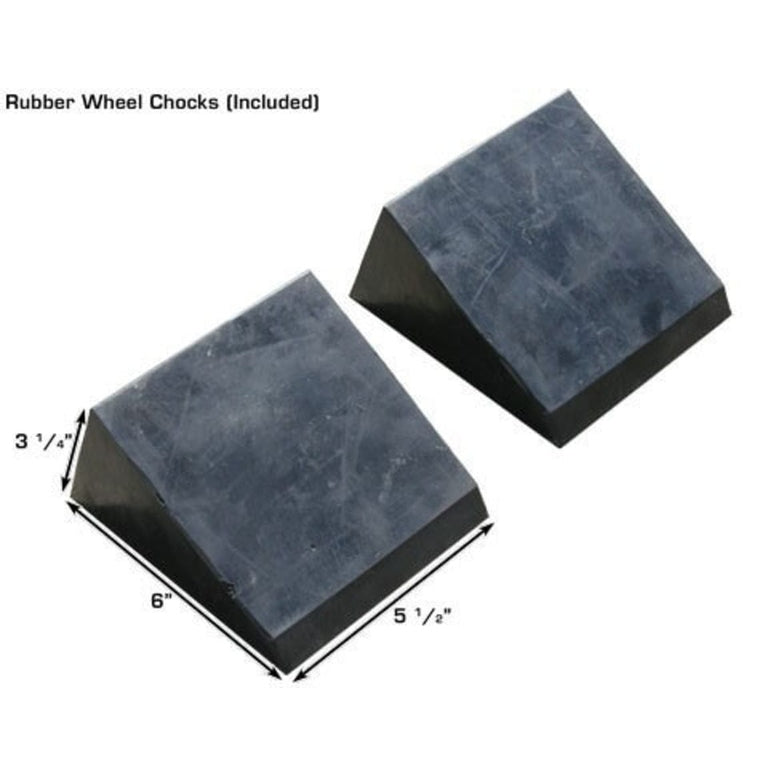

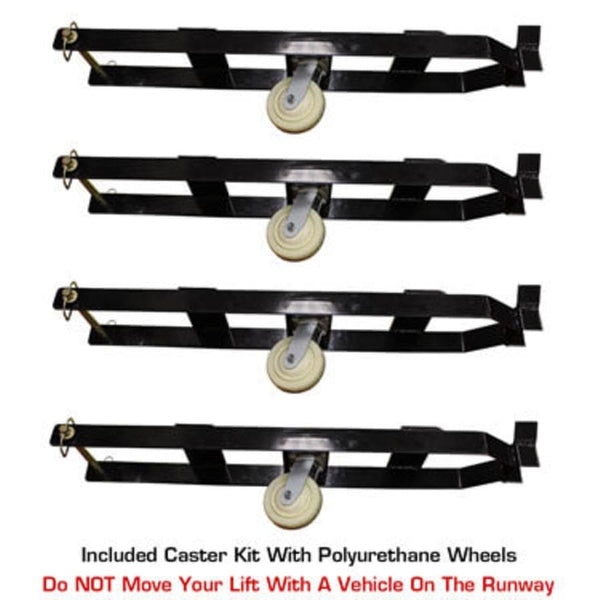

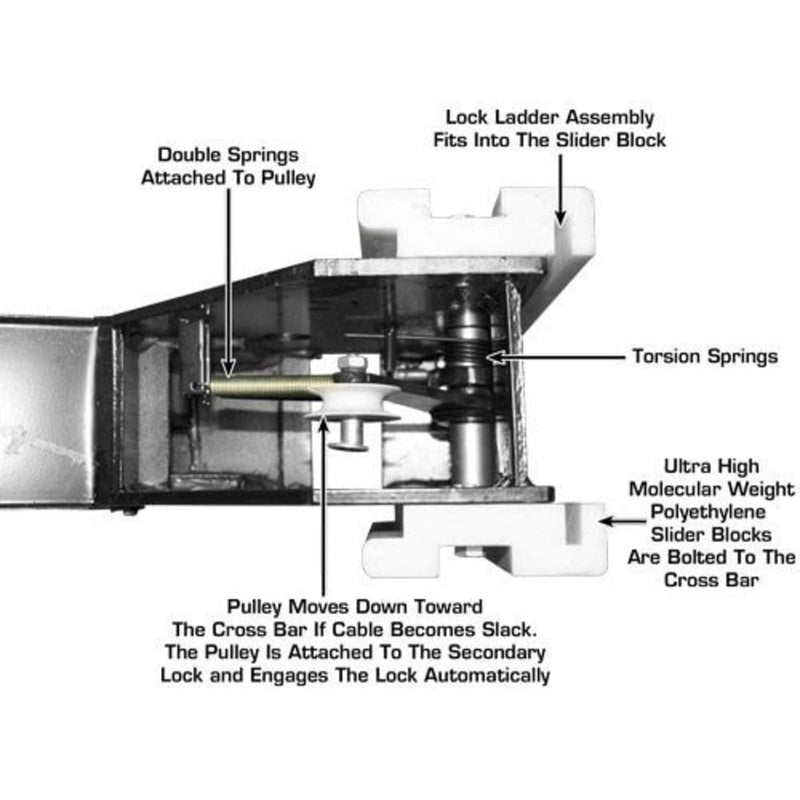

Diamond-plated runways provide traction during loading, and the included caster kit with polyurethane wheels installs or removes in minutes — the feature that makes the PRO8000 portable between bays or to an outdoor surface without permanent anchoring. Single-point lock release, lock ladder design, and a double lock safety system provide redundant hold at working height for both storage and service use. Included accessories cover the practical details that competing lifts often charge extra for: steel approach ramps, steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks — all in the box. For shops that want to do tire, brake, or suspension work on vehicles raised on the PRO8000, the Atlas RJ35 sliding bridge jack (sold separately) is a popular add-on that rides the runways for wheel-off service.
The PRO8000 is built for home garage owners who need to store a second or third vehicle vertically without adding square footage, and for restoration shops that want a portable, well-equipped four-post platform for project vehicle storage and occasional service work.
Features
- 7,000 lb lifting capacity
- Heavy-duty construction
- "Super Tall" lifting height for maximum overhead clearance
- Extra wide and extra long platform for versatile vehicle accommodation
- Diamond plate runways for durability and traction

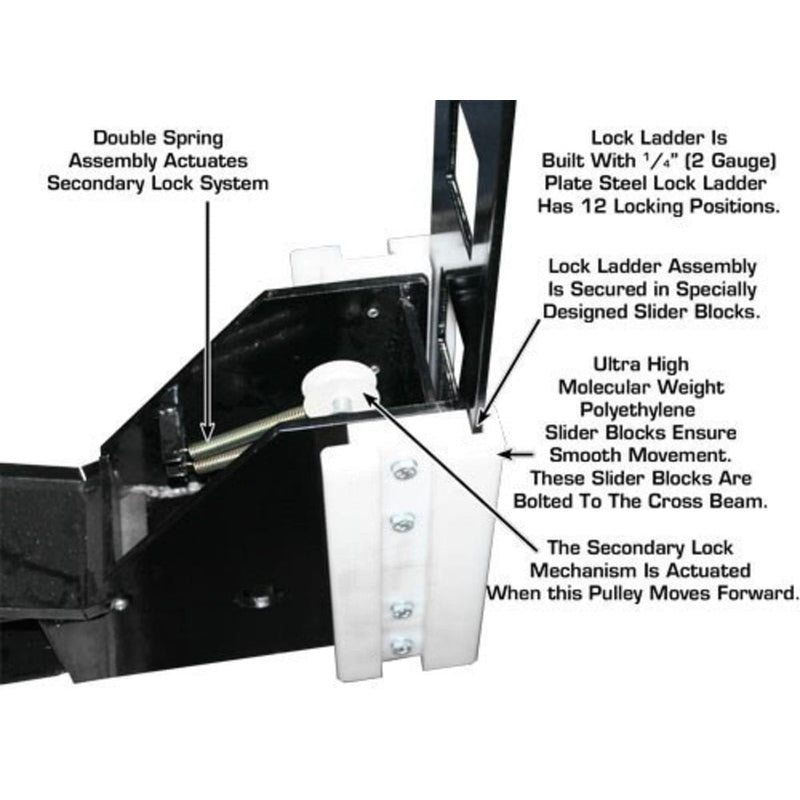

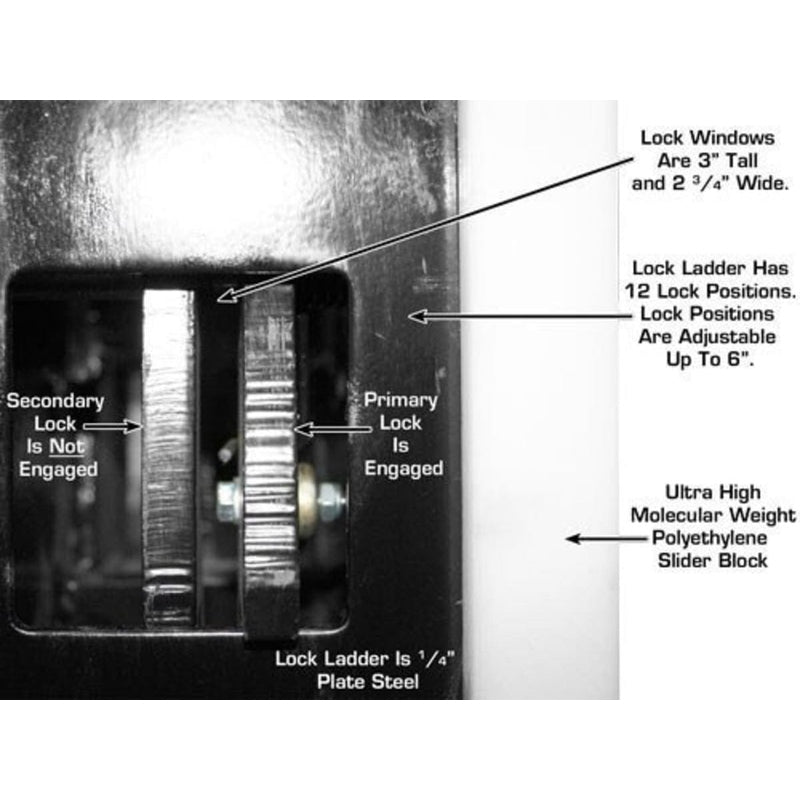

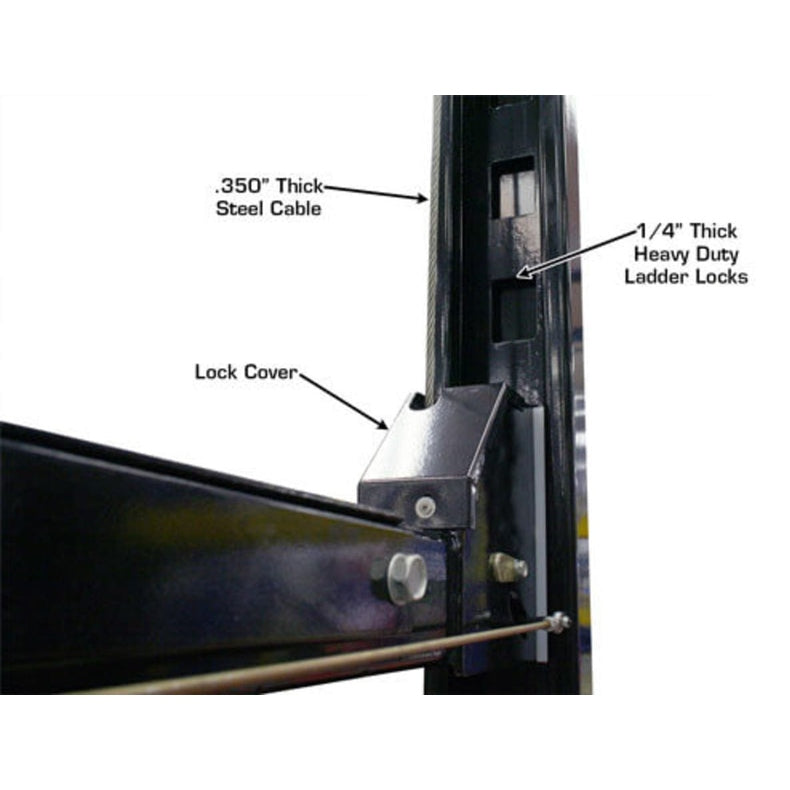

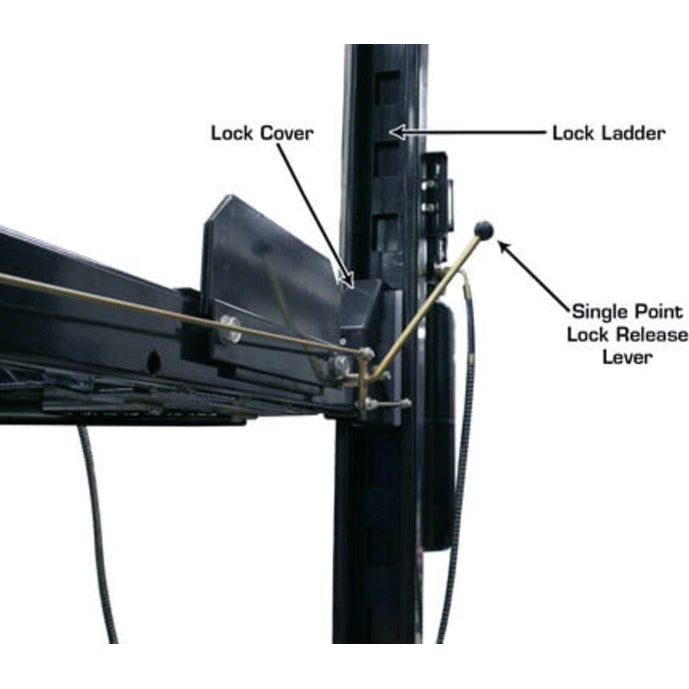

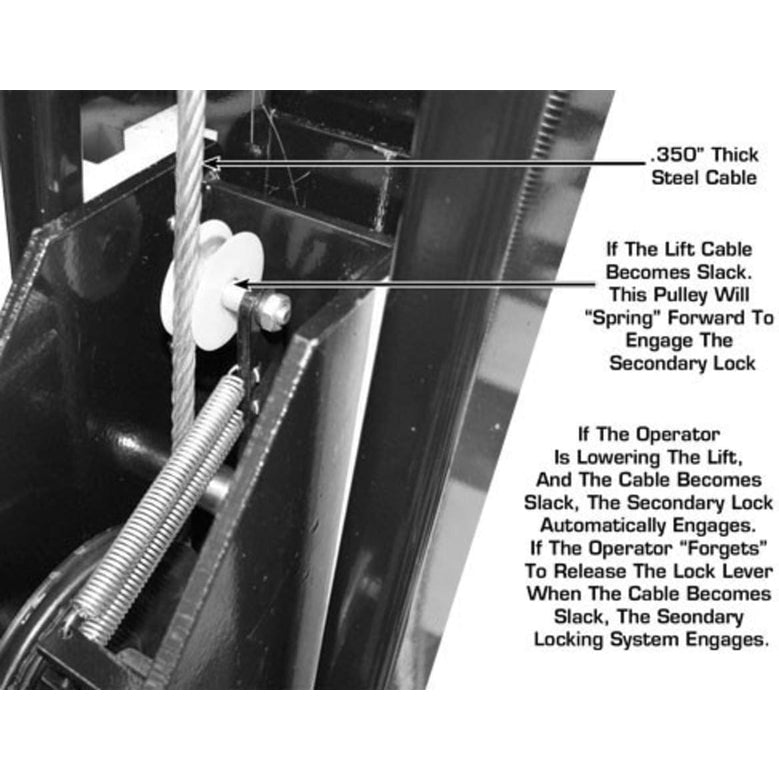

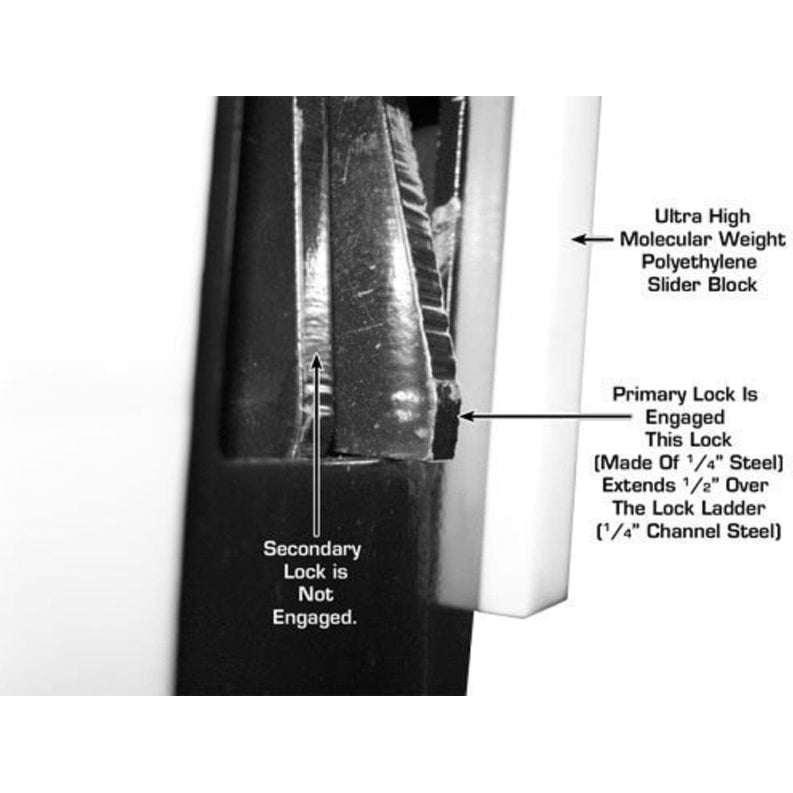

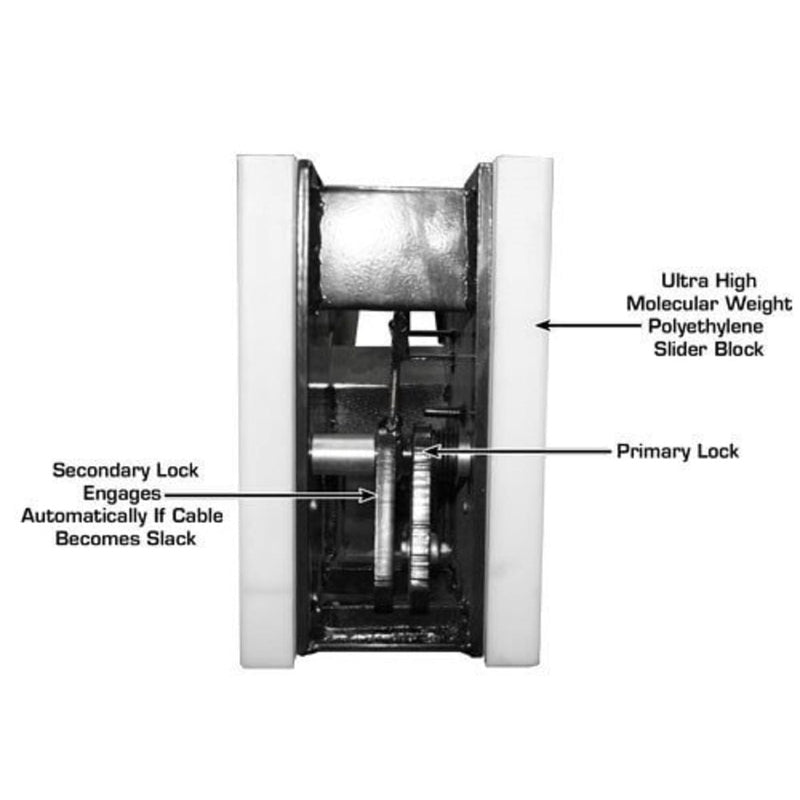

- Single-point pneumatic lock release with lock ladder design and double lock safety system (external air supply required)

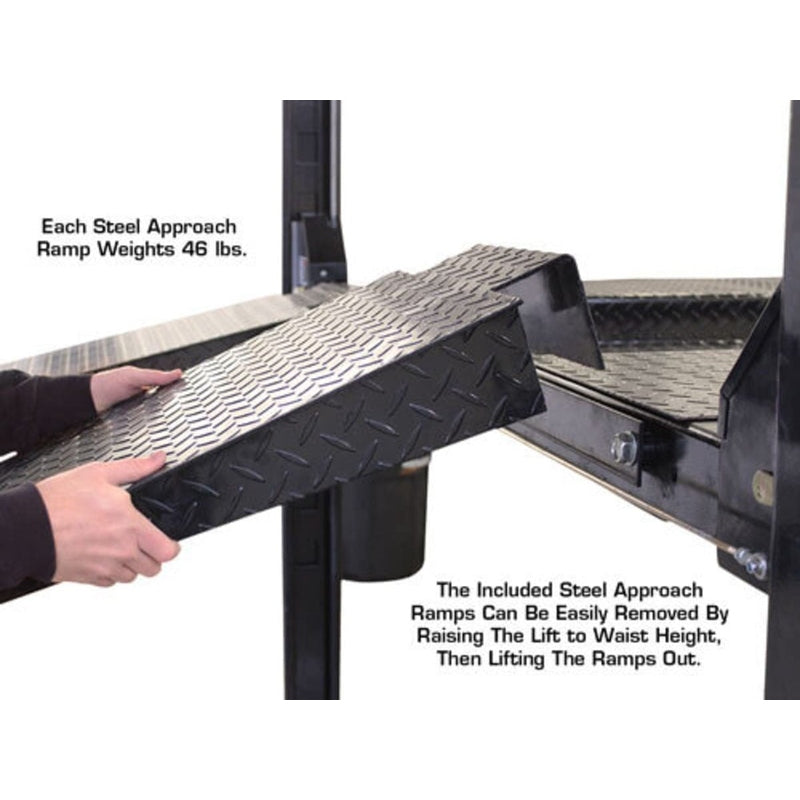

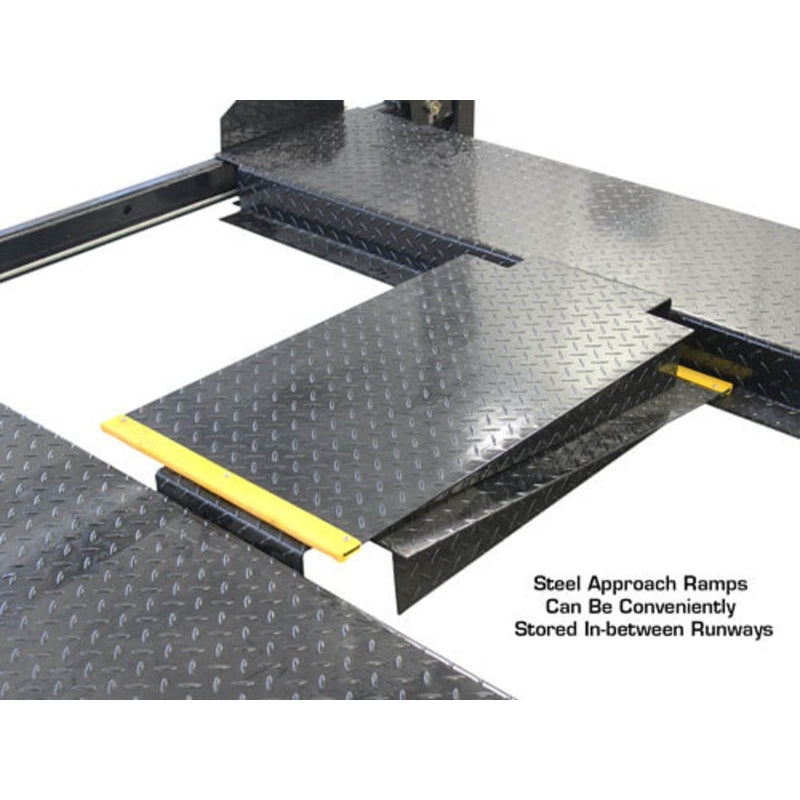

- Steel approach ramps included
- Mounting hardware included
- Ideal for both vehicle storage and active service work
- 220V / 1-phase electric operation (requires a 30-amp breaker)
- Shipping weight: 2,866 lbs
- 2-year structural / 1-year hydraulic parts-only warranty
Specifications
| Atlas® Garage PRO8000 Specifications |
| Capacity |
8,000 lb. |

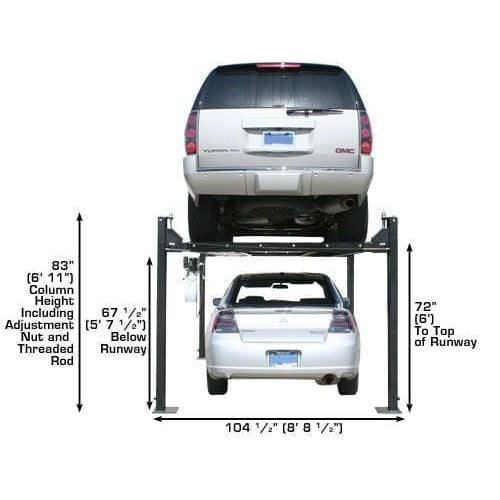

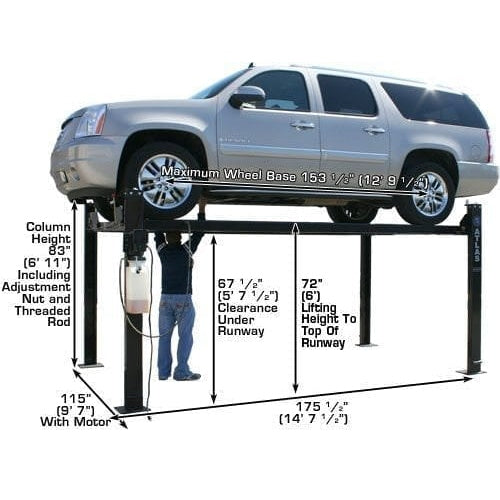

| Lifting Height To Top Of Runway |
72" (6') |
| Clearance Under Runways |
67 (5' 7") |

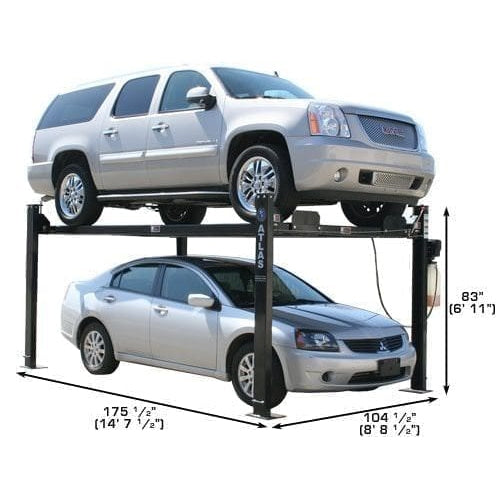

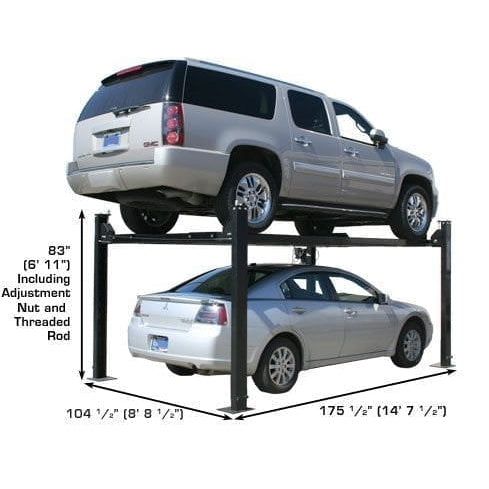

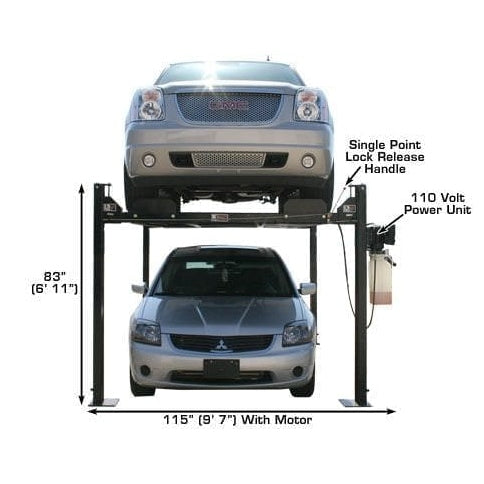

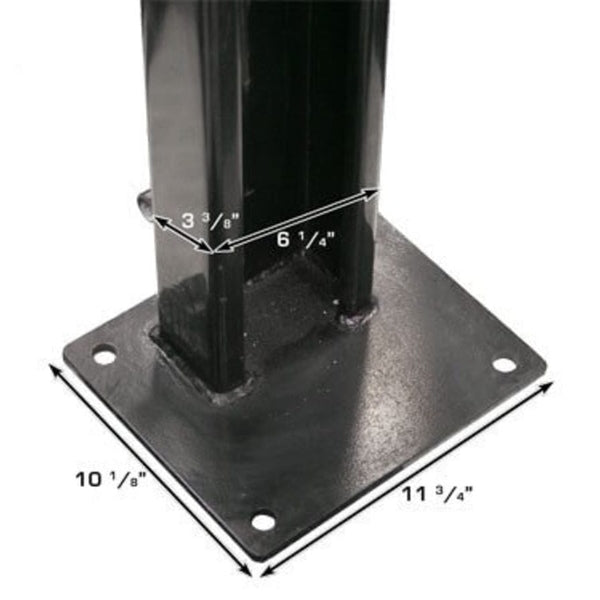

| Height Of Columns |
83" (6' 11") |
| Overall Width (Without Motor) |
104 1/2" (8' 8 1/2") |

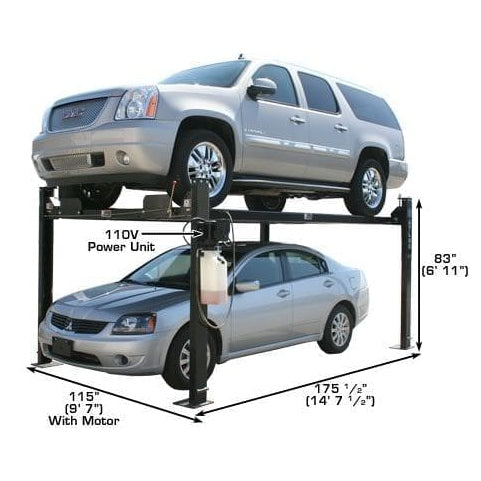

| Overall Width (With Motor) |
115" (9' 7") |

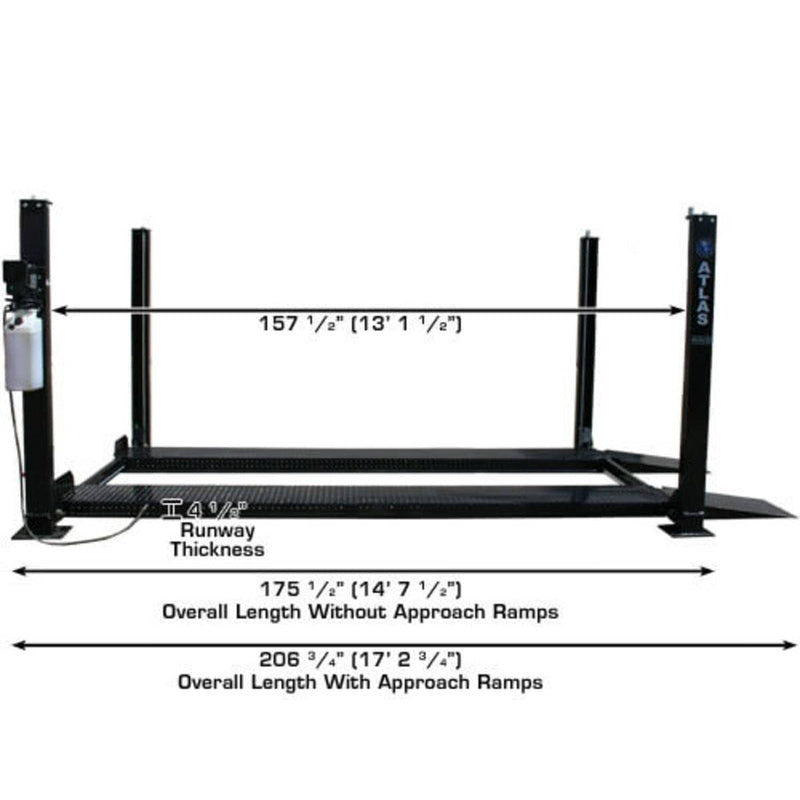

| Overall Length With Approach Ramp |
206 3/4" (17' 2 3/4") |

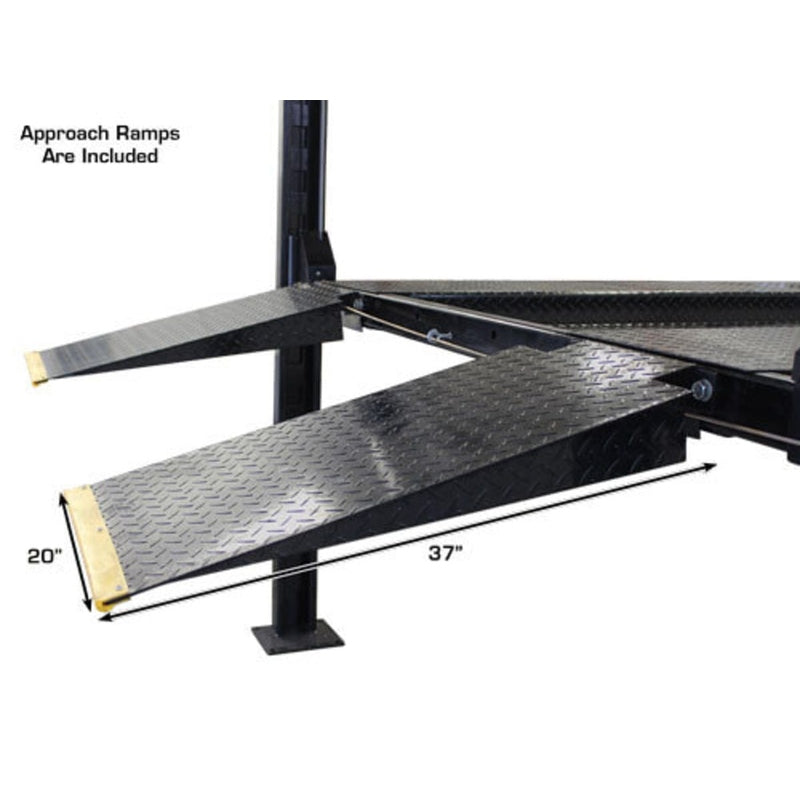

| Approach Ramp |
37" (3' 1") |
| Runway Width |
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length |
165 3/4" (13' 9 3/4") |
| Runway Thickness |
4 1/2" |

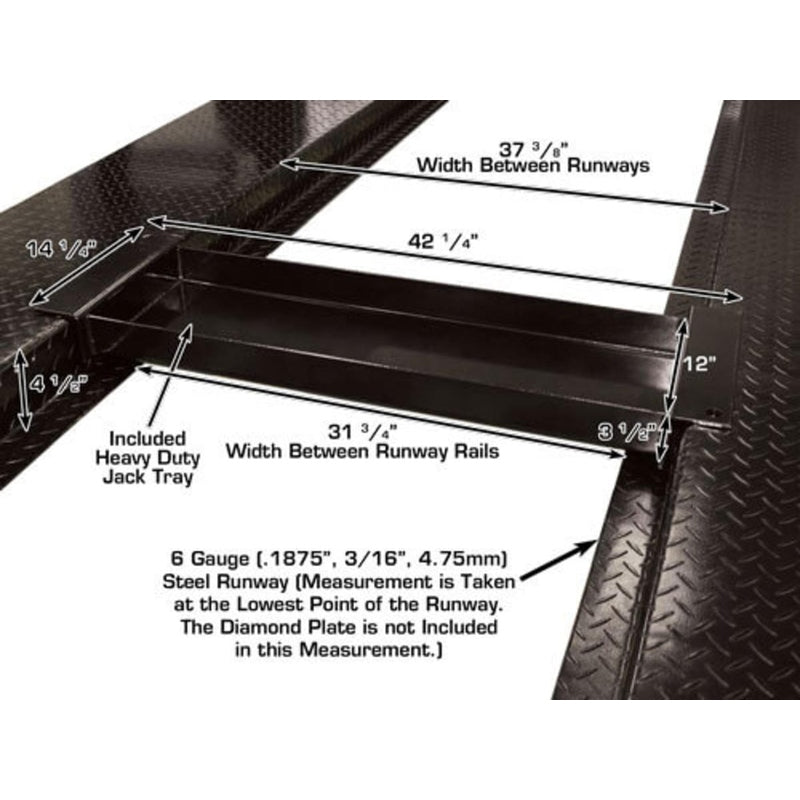

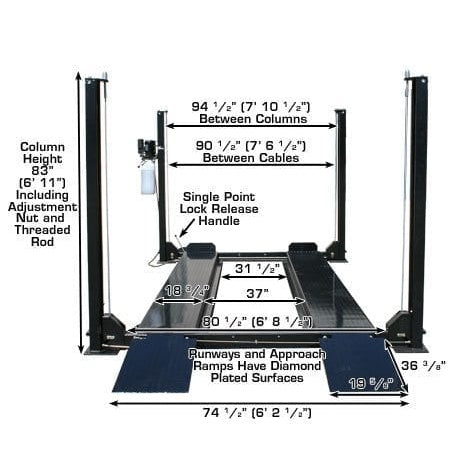

| Width Between Runways |
37" (3' 1") |
| Width Between Runway Rails |
31 1/2" (2' 7 1/2") |
| Outside Runway To Outside Runway |
74 5/8" (6' 2 5/8") |
| Clearance Between Columns |
94 1/2" (7' 10 1/2") |
| Length Between Columns |
157 1/2" (13' 1 1/2") |
| Maximum Wheel Base |
153 1/2" (12' 9 1/2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) |
80 1/2" (6' 8 1/2") |

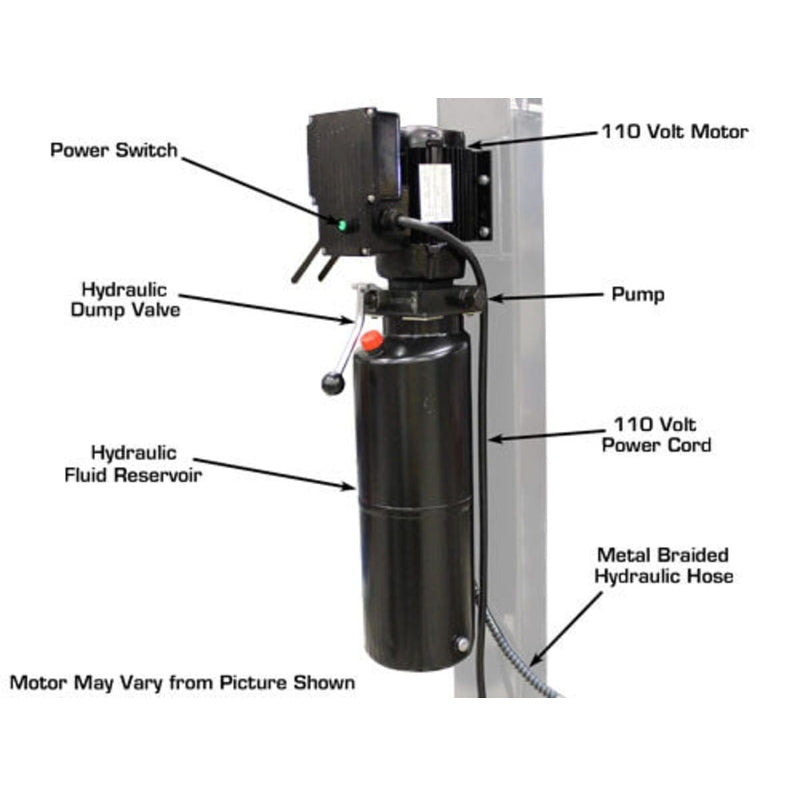

| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |

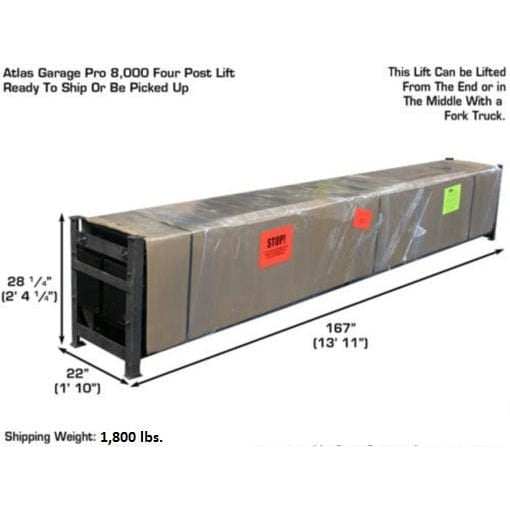

| Shipping Weight |
1,800 lb. |
Documents
Atlas® Garage PRO8000 Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
