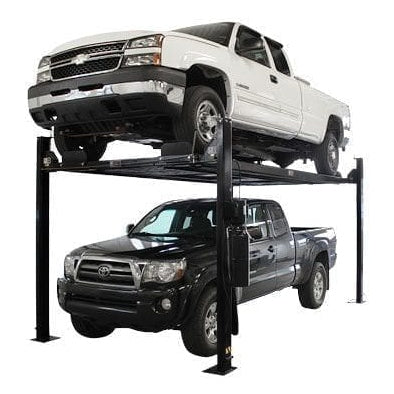

The Atlas Garage PRO8000EXT-L is an 8,000 lb. capacity portable 4-post lift designed for homeowners, collectors, and restoration enthusiasts who need extra space for larger vehicles. Compared to the standard PRO8000, this model is 20 inches longer, 3 inches wider, and 14 inches taller, making it a better fit for longer-wheelbase pickup trucks and larger vehicles that won’t comfortably fit on a standard hobbyist lift. Its free-standing design also means it can be positioned without permanent anchoring. Note: requires 110V power on a dedicated 30-amp breaker, and delivery access must accommodate a 53' truck.
What makes the PRO8000EXT-L especially practical is its combination of increased dimensions and true portability. The included caster kit with polyurethane wheels allows the lift to be moved between bays or repositioned within the garage in just minutes. The longer runways provide additional flexibility when parking trucks, SUVs, and classic vehicles, while the extra lifting height creates more room underneath for storage or maintenance. Whether you're creating a multi-car storage solution or performing occasional service work, the larger platform offers more vehicle compatibility than the standard PRO8000.
The lift comes ready to use with several valuable accessories included at no extra cost, including a steel jack tray, four plastic drip trays, four wheel stops, two rubber wheel chocks, and a caster kit. The single-point lock release, lock ladder design, and double-lock safety system provide straightforward operation, while the diamond-plated runways offer durable traction for daily use.
This lift is an excellent choice for home garages, vehicle collectors, restoration shops, and hobbyists who need additional length and height for larger vehicles while still wanting the flexibility of a portable 4-post lift. It is ideal for vehicle storage and occasional maintenance, but not intended for the constant daily cycling typical of commercial repair shops.
Features
- 8,000 lb. lifting capacity for vehicle storage and service applications
- Free-standing, portable design for flexible placement and easy relocation
- Extra-tall, extra-long configuration accommodates a wide range of vehicles
- Diamond-plated runways provide enhanced traction and stability

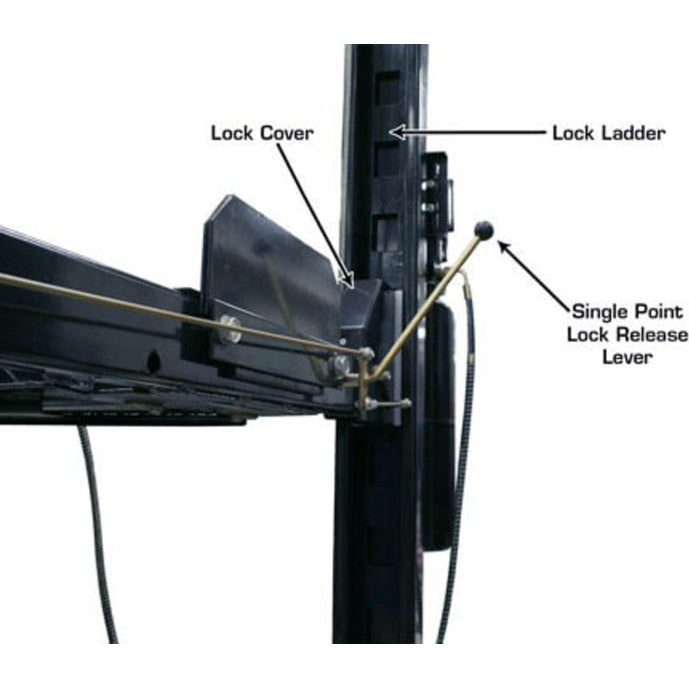

- Single-point lock release system for convenient operation

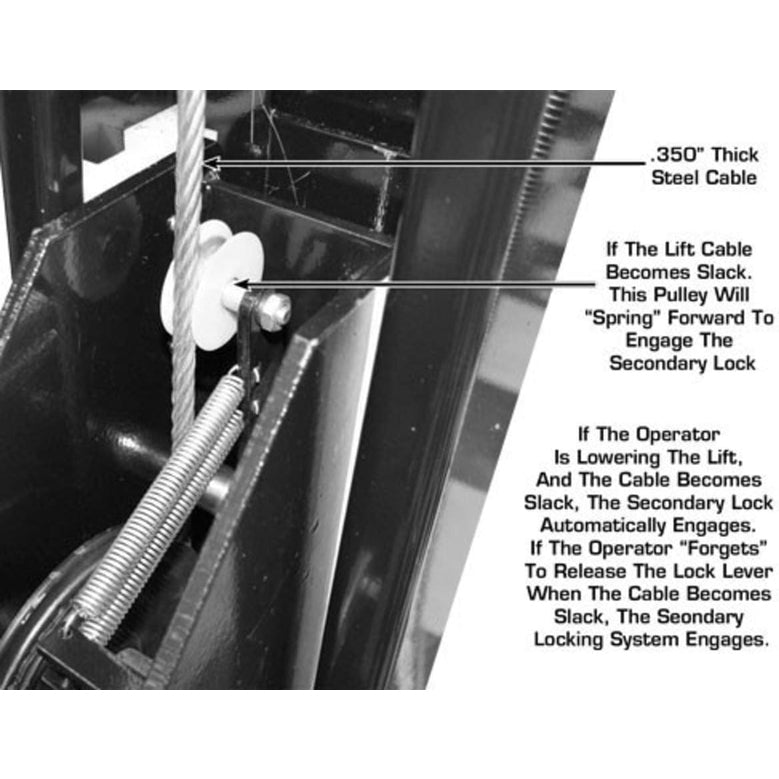

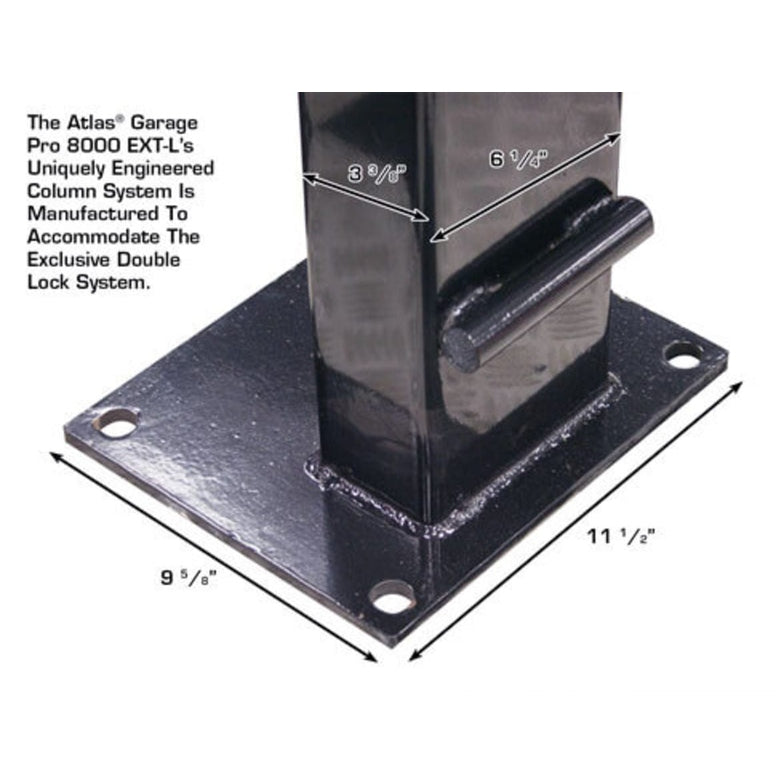

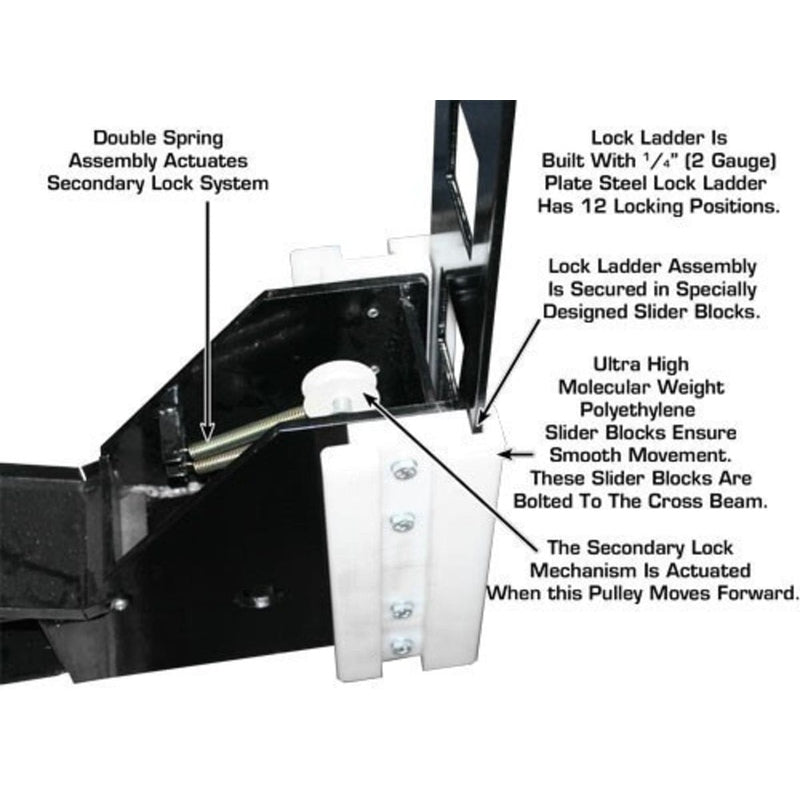

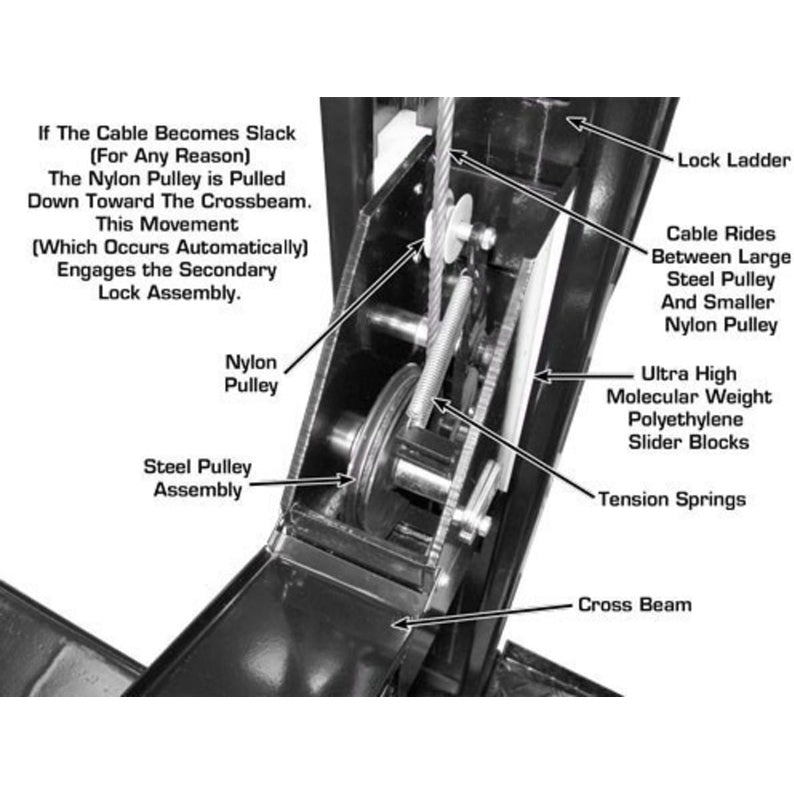

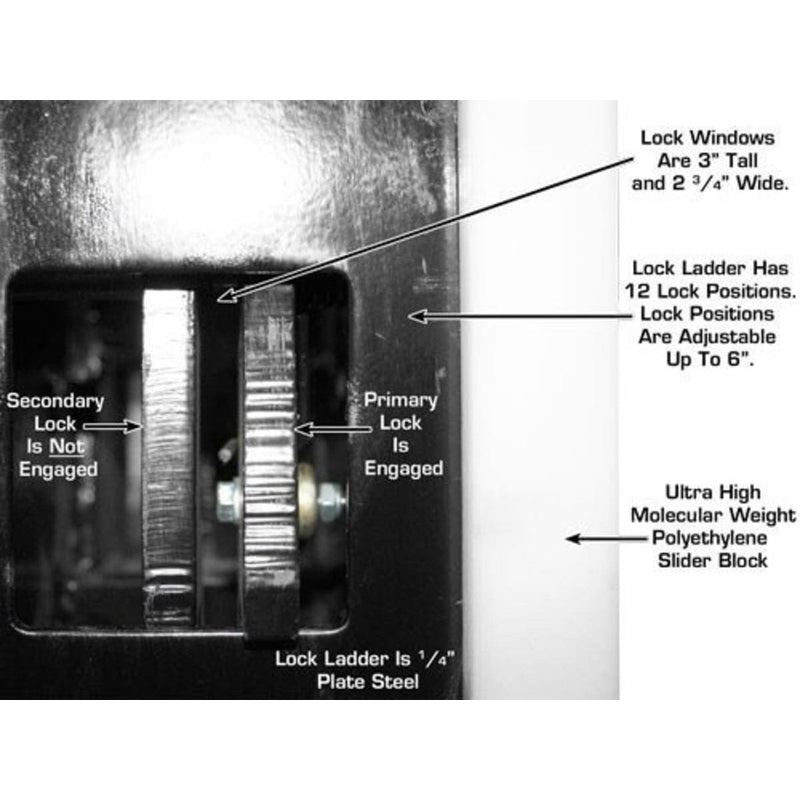

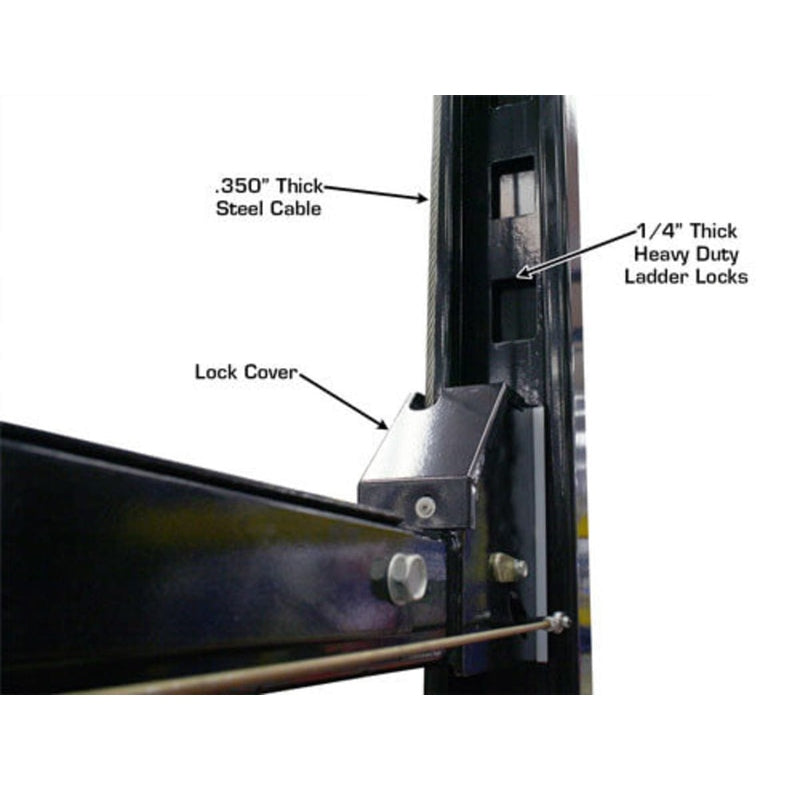

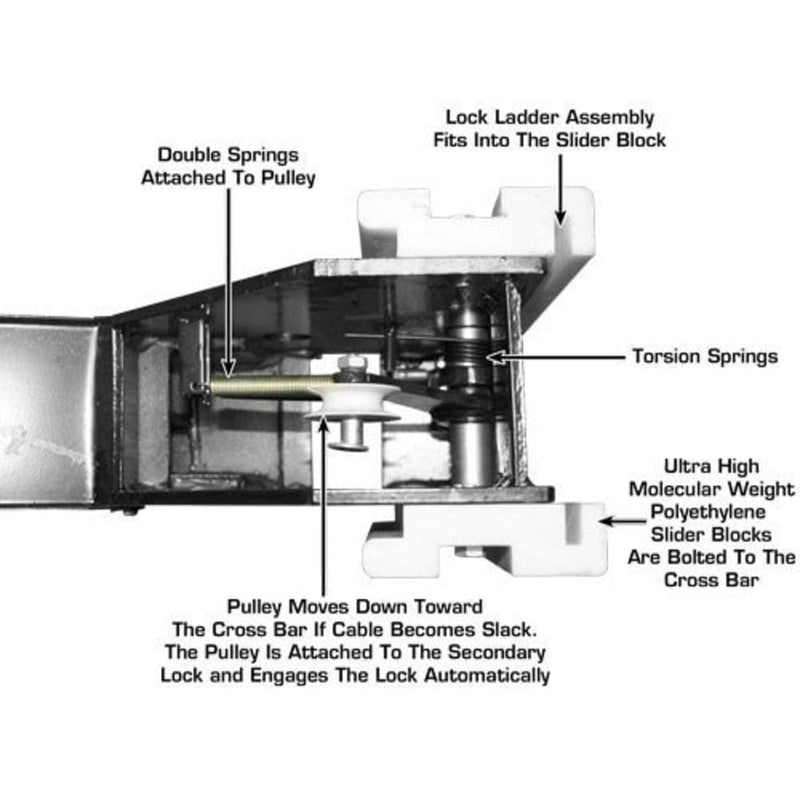

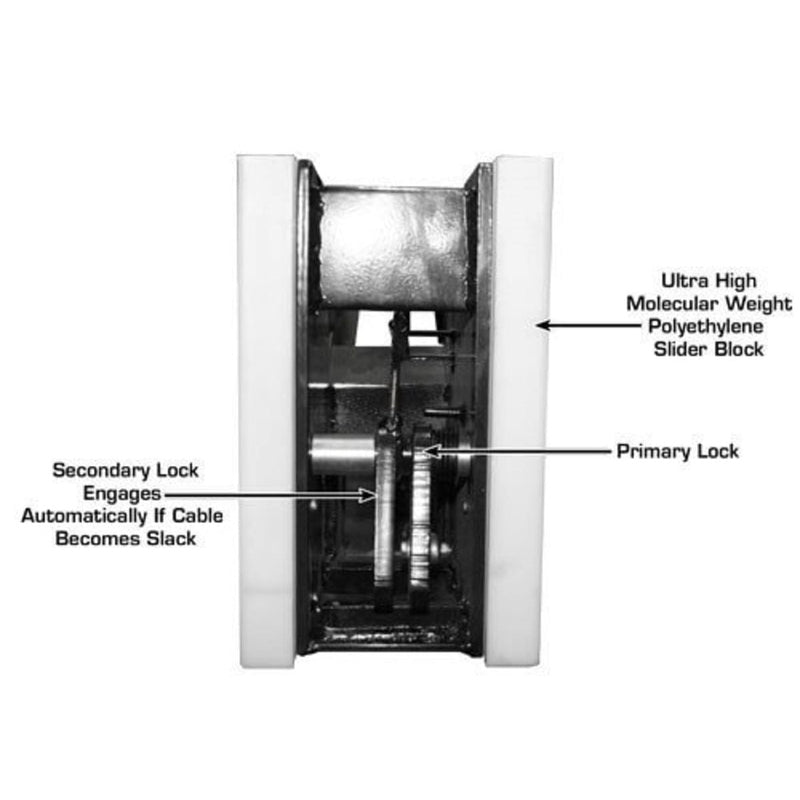

- Lock ladder design with a double-lock safety system for added security

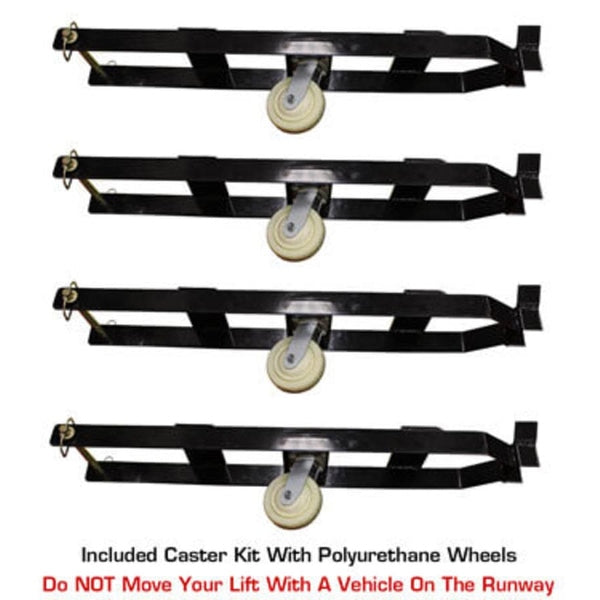

- Includes caster kit with polyurethane wheels for easy mobility

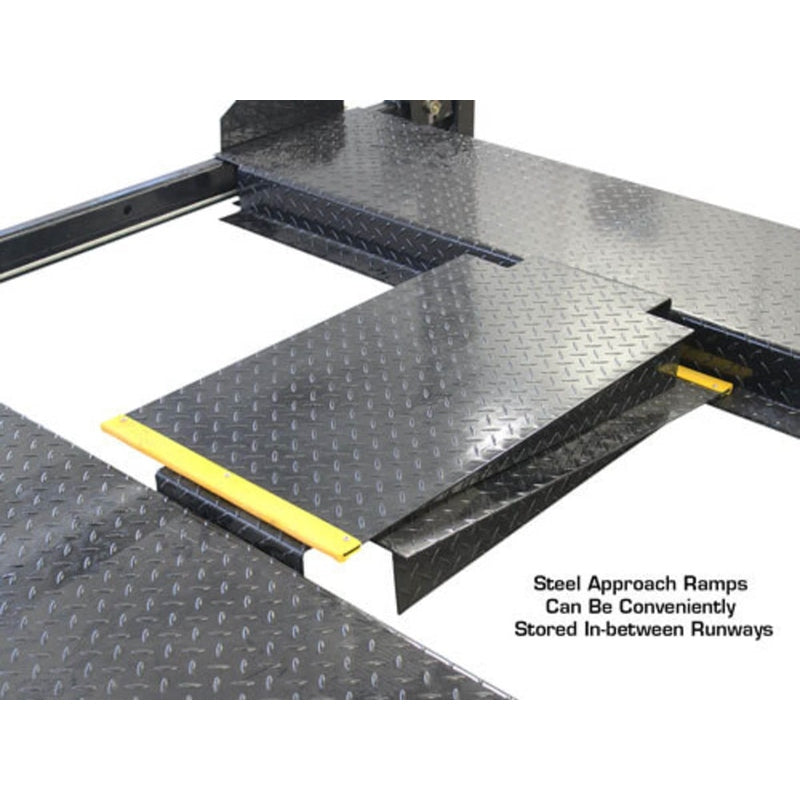

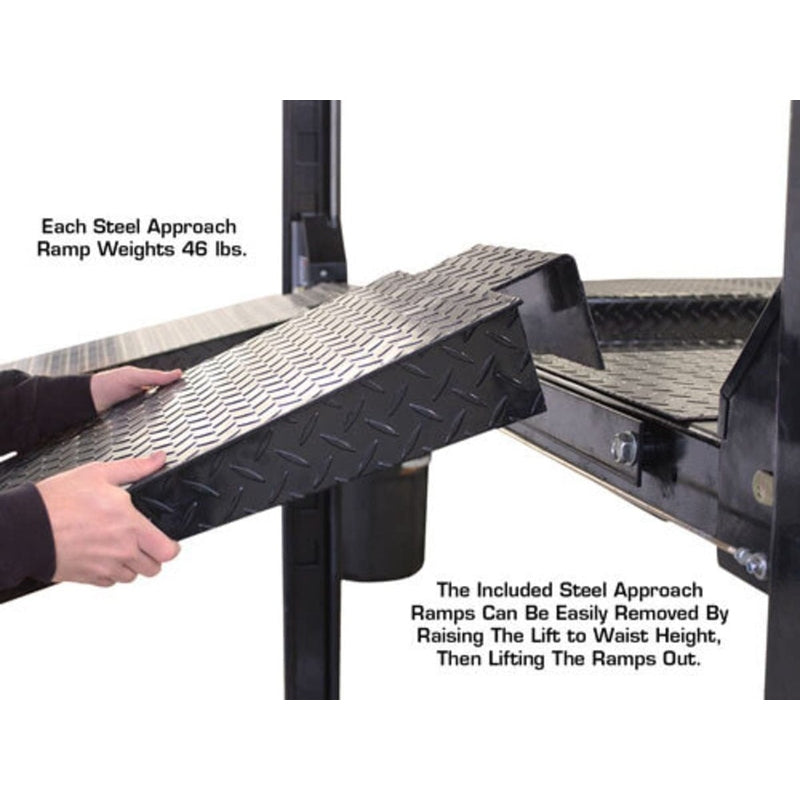

- Steel approach ramps included for smooth vehicle loading

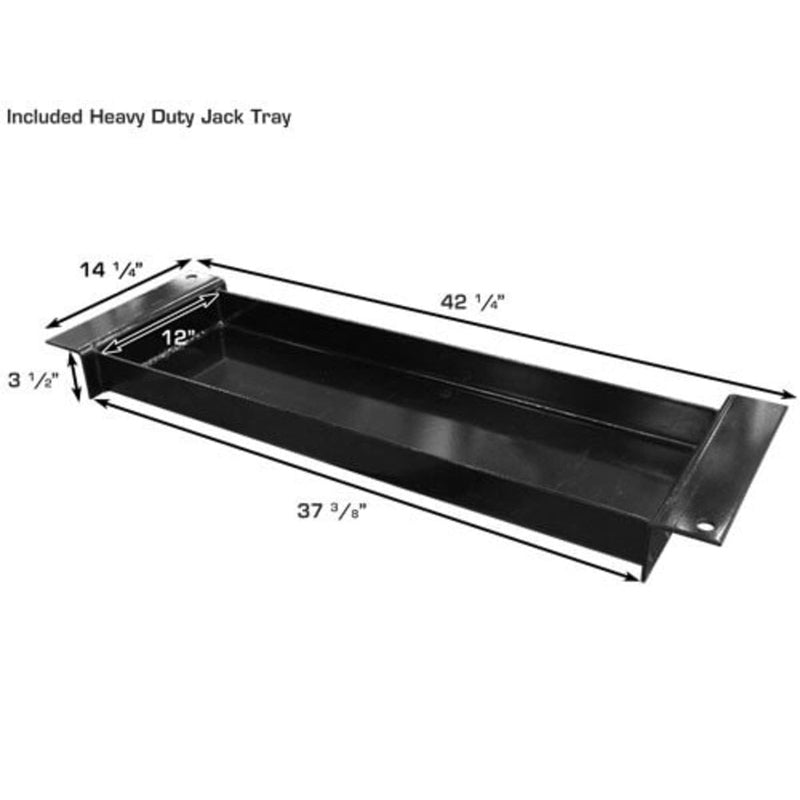

- Steel jack tray included for increased service versatility

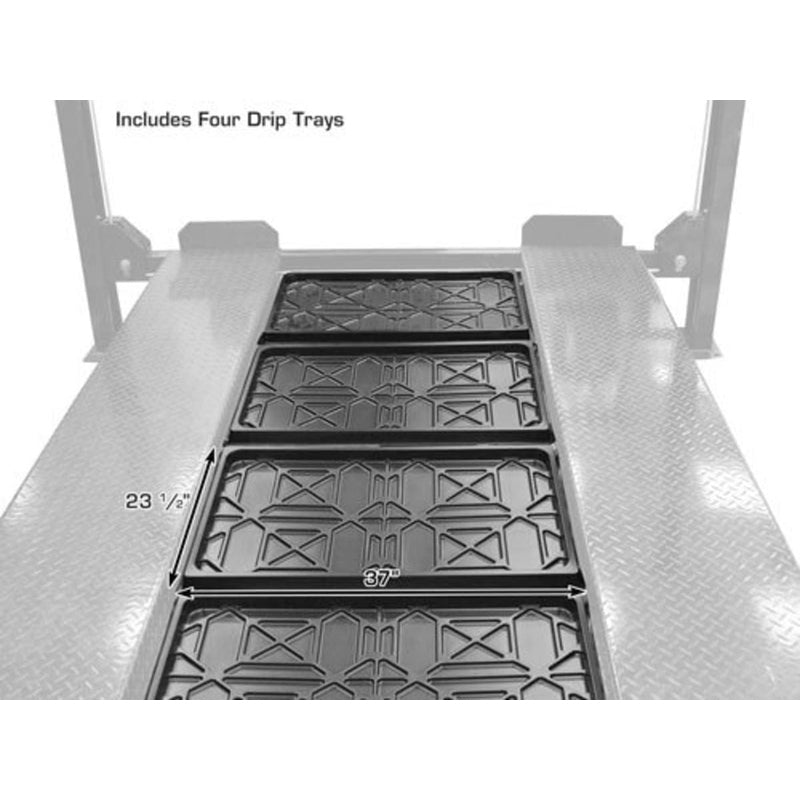

- Includes four plastic drip trays to help keep the workspace clean
- Includes four wheel stops for secure vehicle positioning

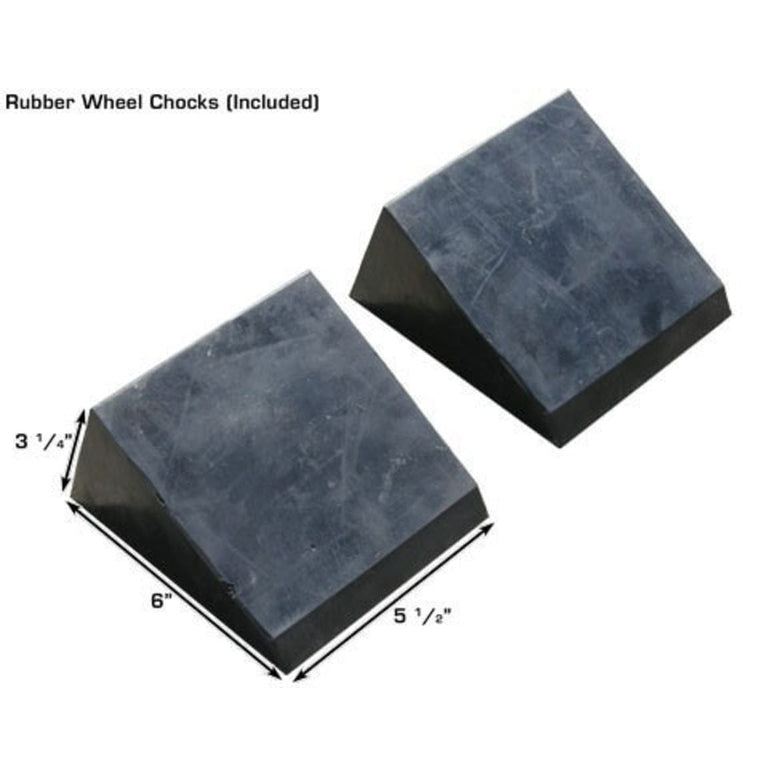

- Includes two rubber wheel chocks for additional safety
- Ideal for both vehicle storage and maintenance applications
- Powered by a 110V electric system (30-amp breaker required)

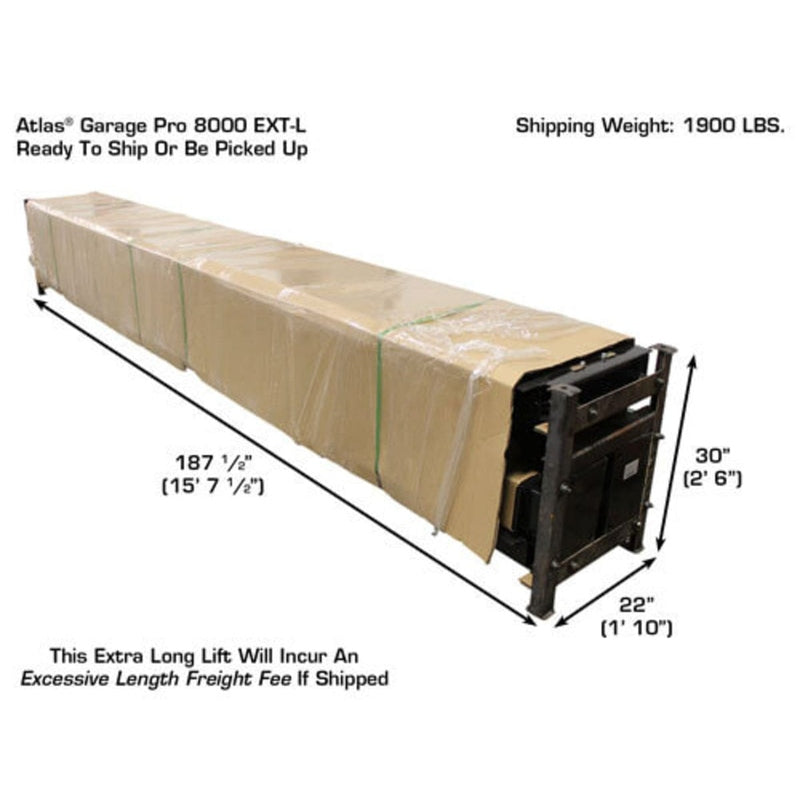

- Shipping weight: 1,900 lbs.
- Backed by a 2-year structural warranty and a 1-year hydraulic warranty (parts only)
Important: Delivery locations must be accessible to a 53-foot truck when ordering Atlas equipment.
Specifications
| Atlas® Garage PRO8000EXT-L Specifications |
| Capacity |
8,000 Lb. |

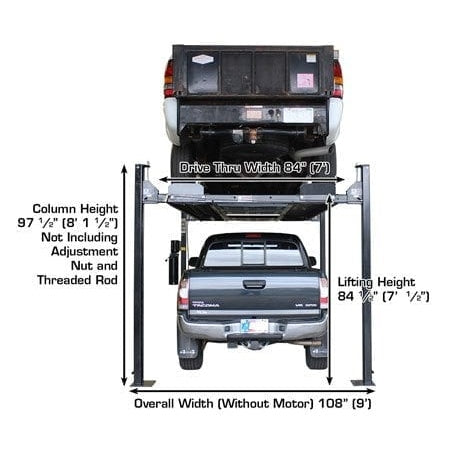

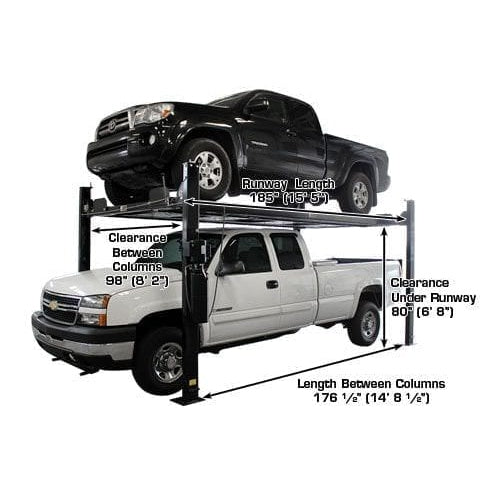

| Lifting Height To Top Of Runway |
84" (7') |

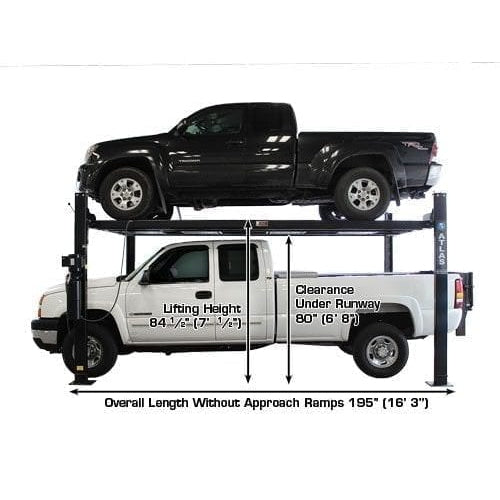

| Clearance Under Runways |
78 1/2" (6' 6 1/2") |

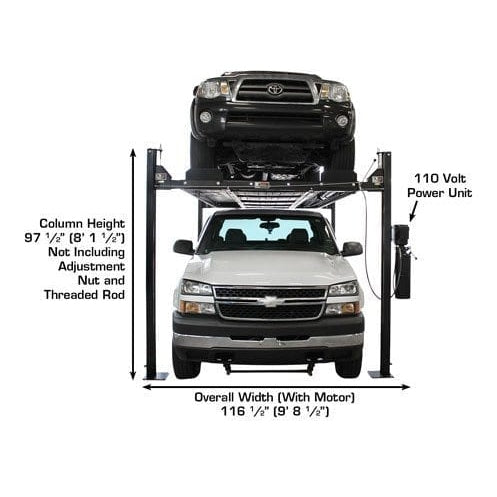

| Height Of Columns |
98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) |
108" (9’) |
| Overall Width (With Motor) |
116 1/2" (9' 8 1/2") |
| Overall Length With Approach Ramp |
222" (18’ 6”) |

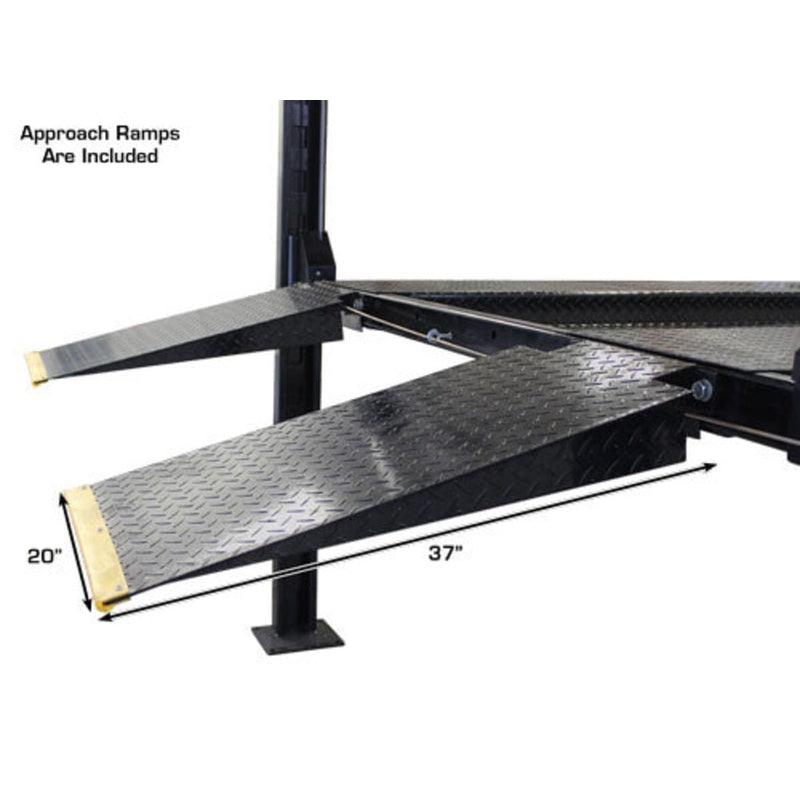

| Approach Ramp |
37" (3' 1") |

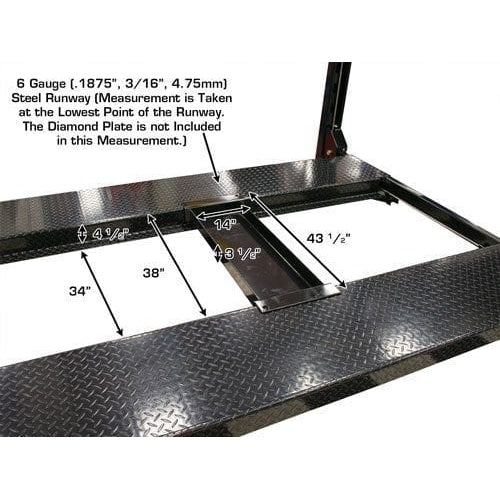

| Runway Width |
22" (w/ Rails) or 18 3/4" (Driving Surface) |

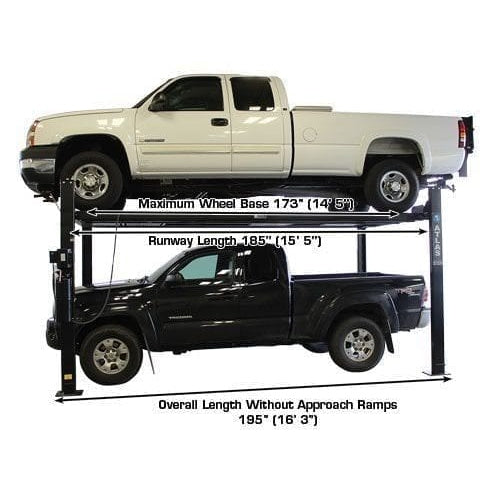

| Runway Length |
185" (15’ 5”) |
| Runway Thickness |
4 1/2" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
34" (2’ 10") |
| Outside Runway To Outside Runway |
77 3/4" (6' 5 3/4") |

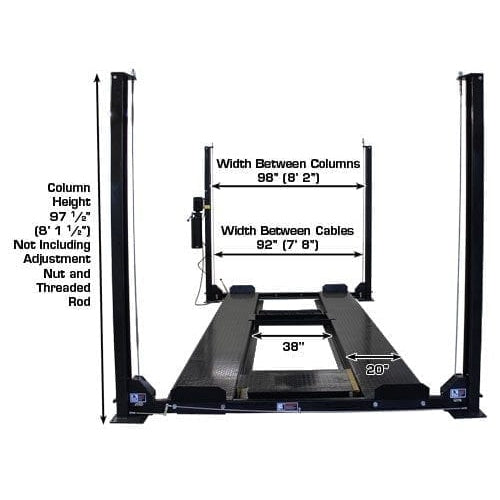

| Clearance Between Columns |
98" (8’ 2") |

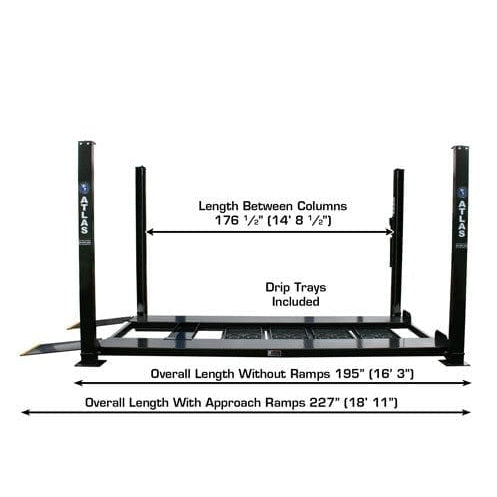

| Length Between Columns |
176 1/2" (14’ 8 1/2") |
| Maximum Wheel Base |
173" (14' 5") |
| Drive Thru (Outside Of Tire To Outside Of Tire) |
84" (7’) |

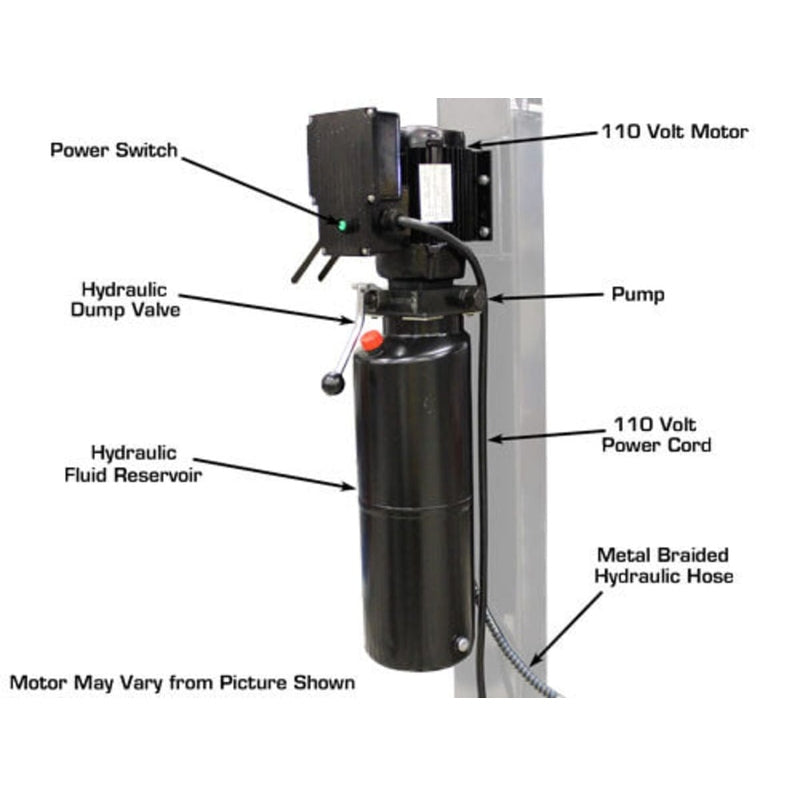

| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight |
1,900 lb. |
Documents
Atlas® Garage PRO8000EXT-L Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
