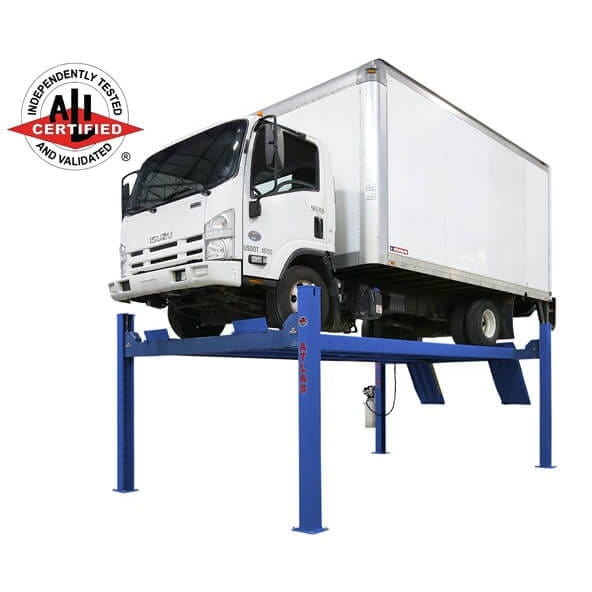

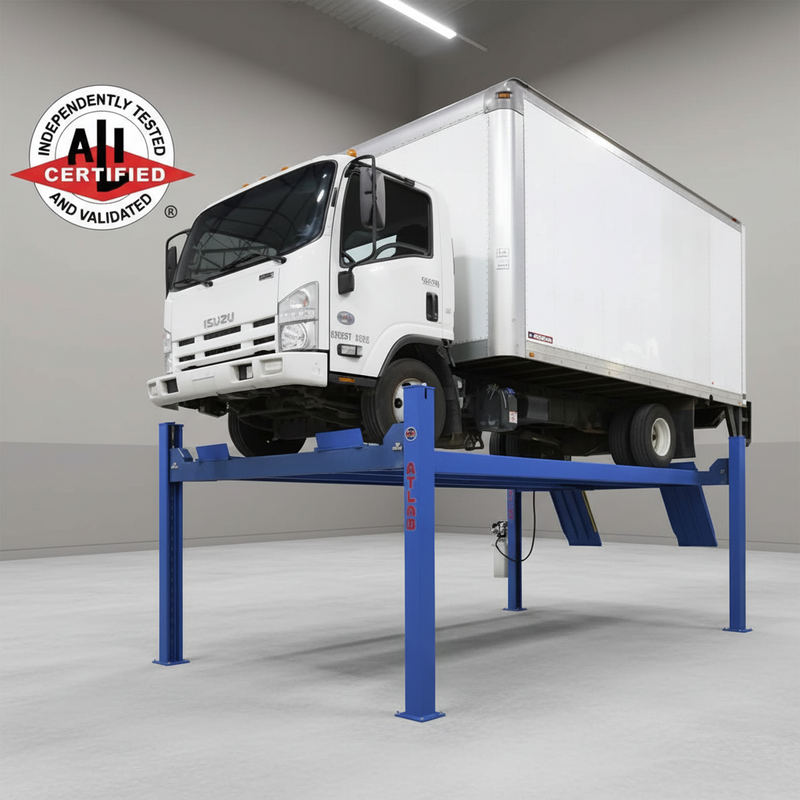

The Atlas® Platinum PVL14 is a 14,000 lb. capacity ALI Certified four-post lift built for professional shops that need maximum stability, long runway support, and the flexibility to handle everything from passenger cars to light and medium-duty commercial vehicles. Its extended runway design provides extra length, width, and height clearance, making it suitable for larger vans, service trucks, and heavier fleet equipment without feeling cramped or limited in positioning.

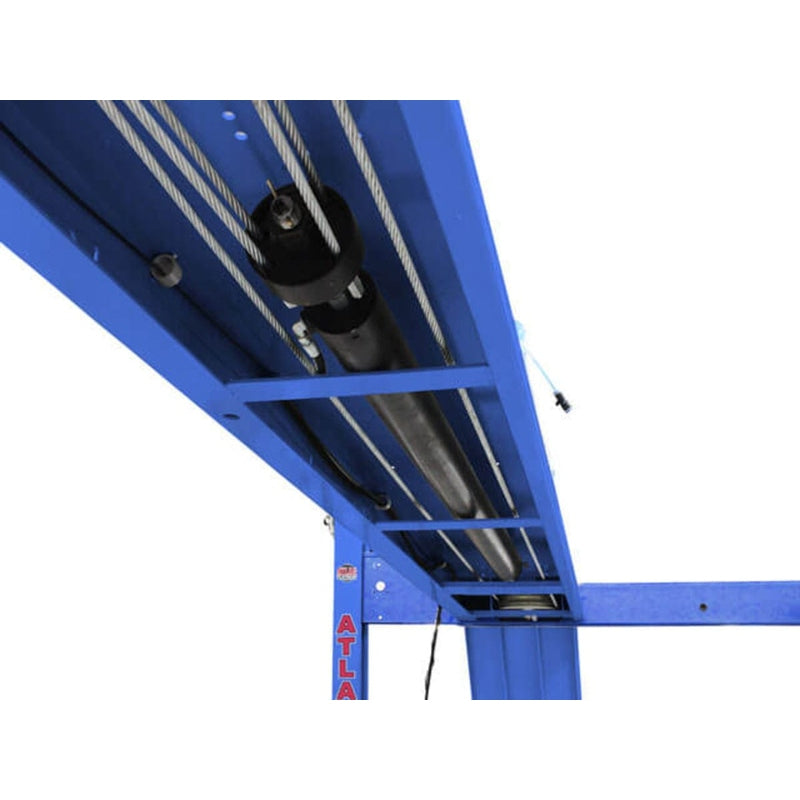

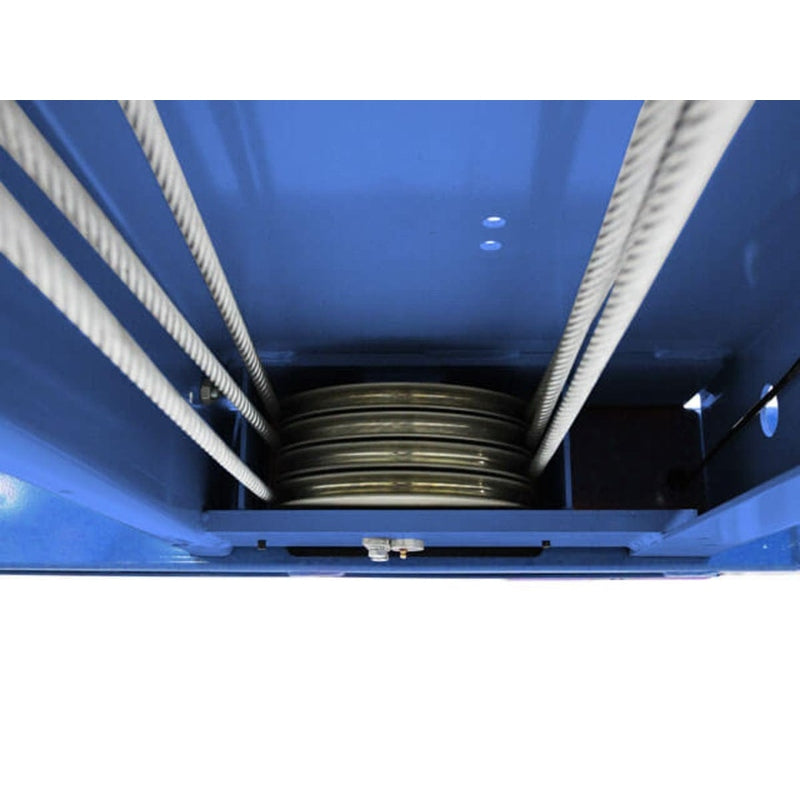

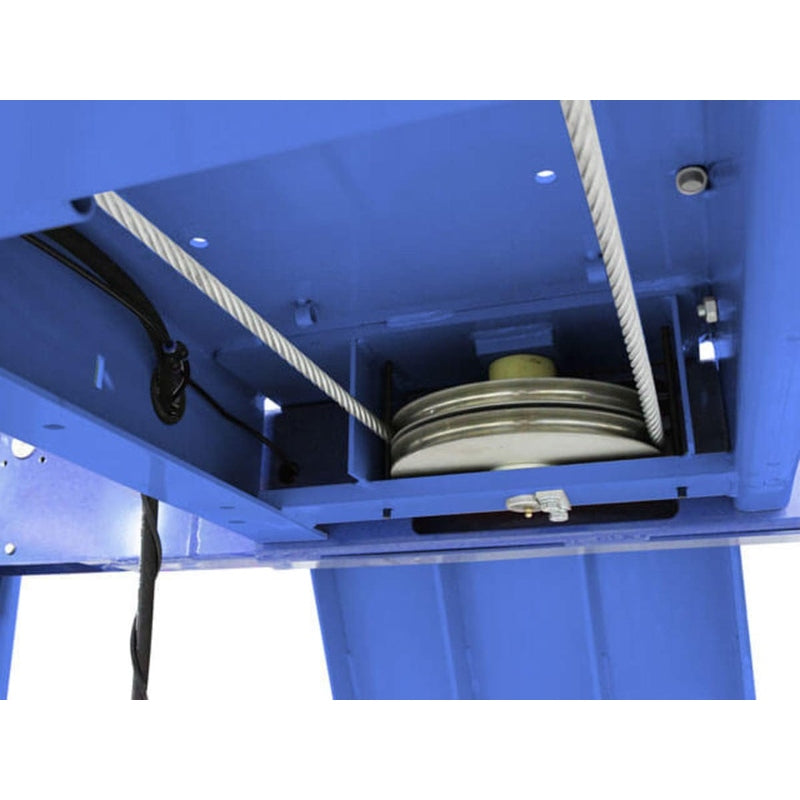

At its core, the PVL14 uses a high-strength cable lifting system paired with an oversized under-runway hydraulic cylinder, powered by a 220V single-phase ALLY Hydraulic AL2650 power unit. This setup delivers smooth, controlled lifting while reducing common issues found in older chain-style systems, such as leveling difficulty and exposed cylinders that can increase wear or cause vehicle contact. The enclosed cable design also helps maintain consistent alignment across repeated use in a busy shop environment.
A key advantage of the PVL14 is its integrated runway track system, which allows the use of a rolling bridge jack (such as the Atlas RJ7000, sold separately). This turns the lift into a full service platform for tire, brake, and suspension work without needing a separate lift bay. Combined with the double-lock safety system and lock ladder design, the setup supports secure operation even under frequent daily cycling.
This lift is best suited for dealership service departments, commercial repair facilities, and fleet maintenance shops that need one platform capable of handling a wide mix of vehicle sizes. The ALI certification, reinforced structural design, and premium ALLY power unit make it a long-term shop solution rather than a light-use or hobby system.
Features
- ALI certified heavy-duty commercial-grade automotive lift
- 14,000 lb. lifting capacity for large vehicles and demanding shop use
- Extra-tall, extra-wide, and extra-long design for maximum vehicle compatibility

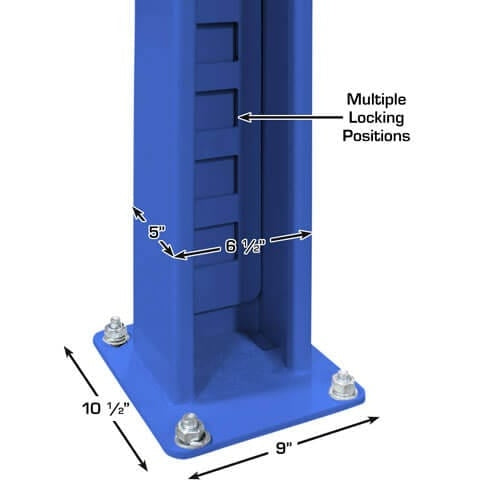

- Adjustable lock ladder design for flexible lifting positions
- Higher-quality powder-coated finish for improved durability and corrosion resistance

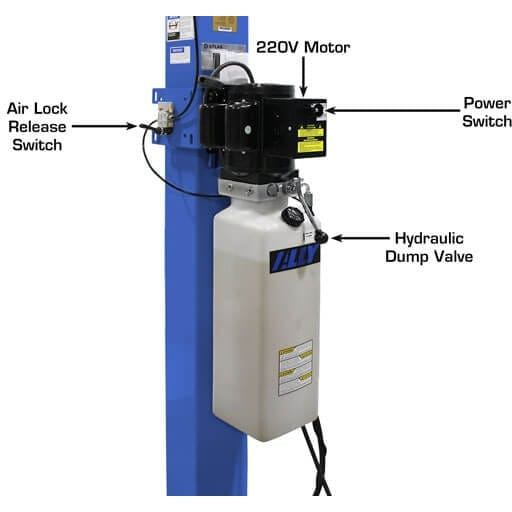

- Air-operated single-point lock release system (external air supply required)
- Lock ladder design with double-lock safety system for enhanced security
- Steel approach ramps included for easier vehicle loading

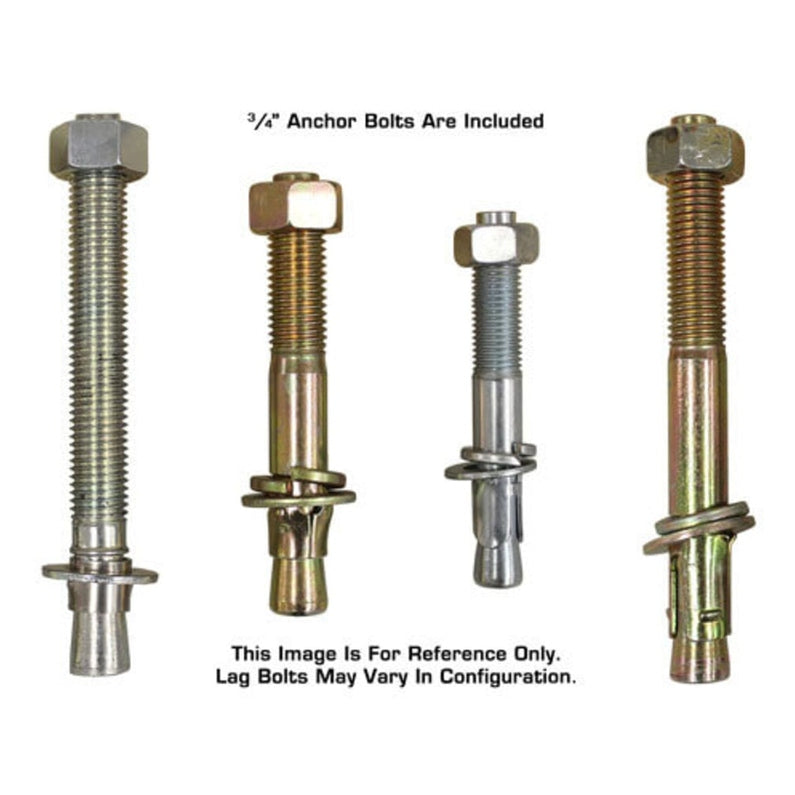

- Mounting hardware included for installation

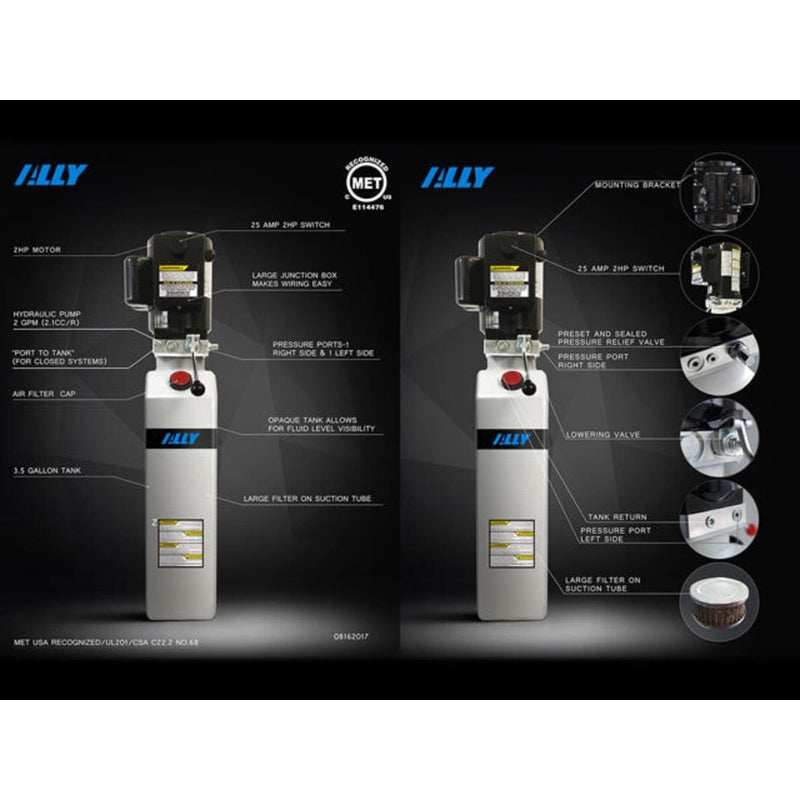

- Powered by premium ALLY power unit
- Operates on 220V single-phase power (requires a 30-amp breaker)

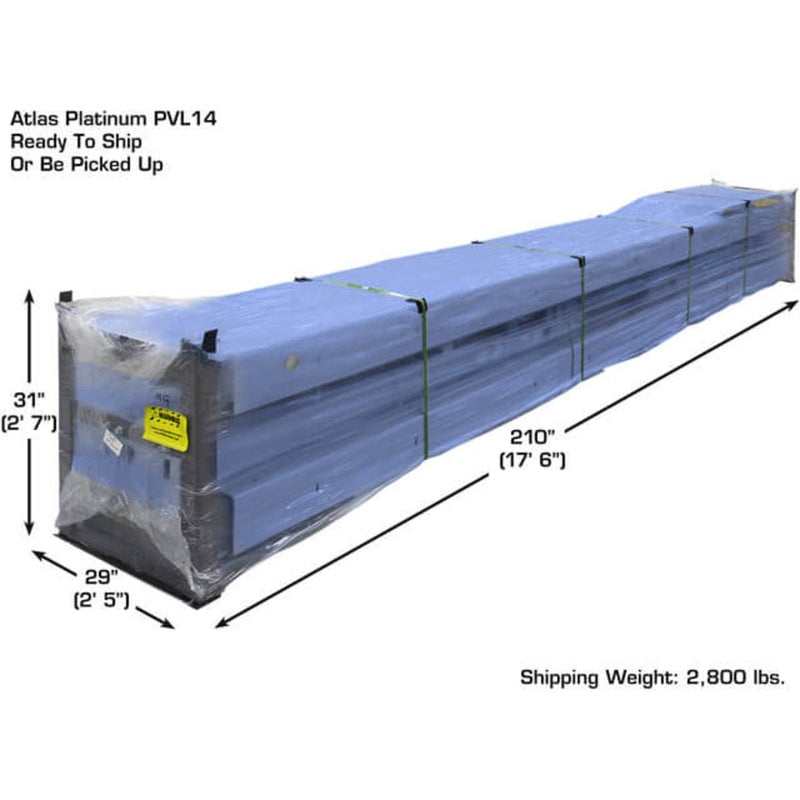

- Shipping weight: 2,800 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

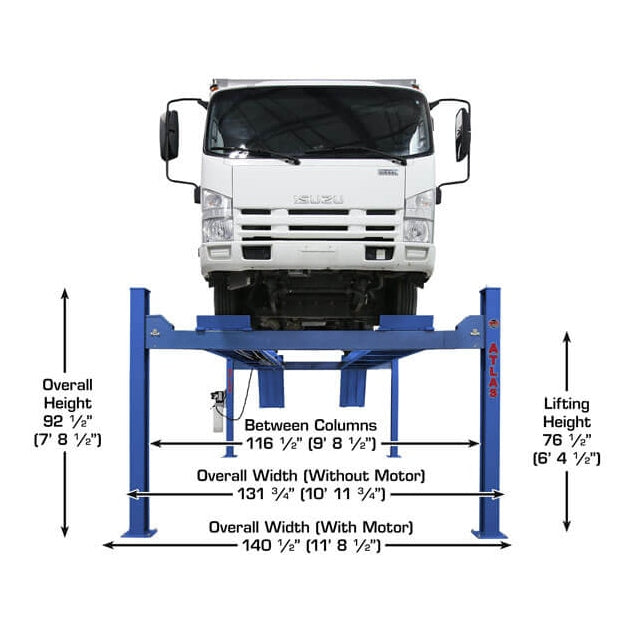

Specifications
| Atlas® Platinum PVL14 Specifications |
| Capacity |
14,000 lb. |

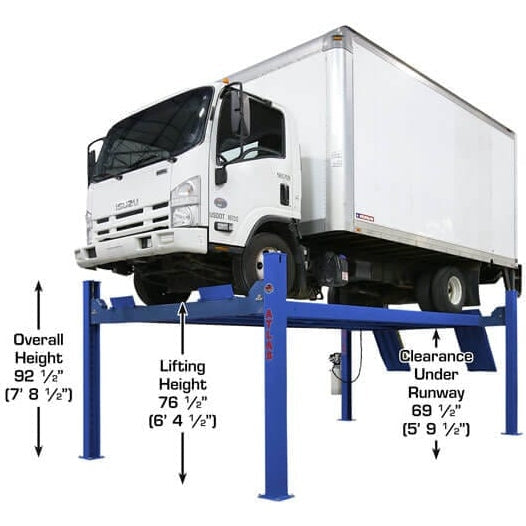

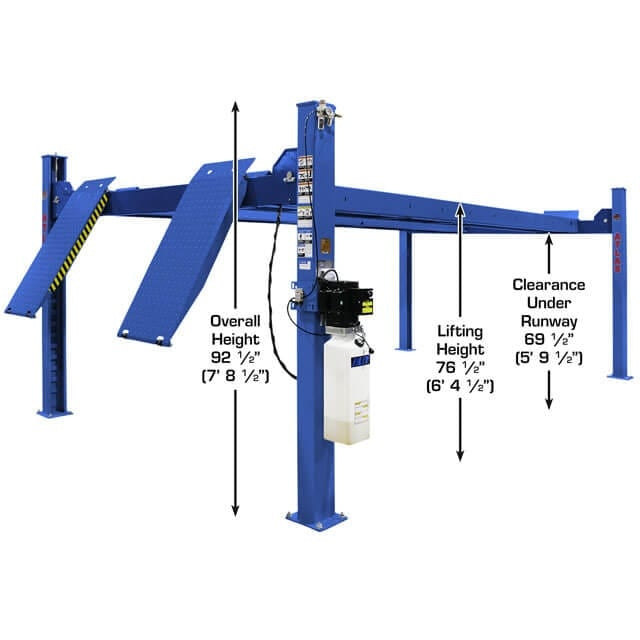

| Lifting Height |
76 1/2" (6' 4 1/2") |

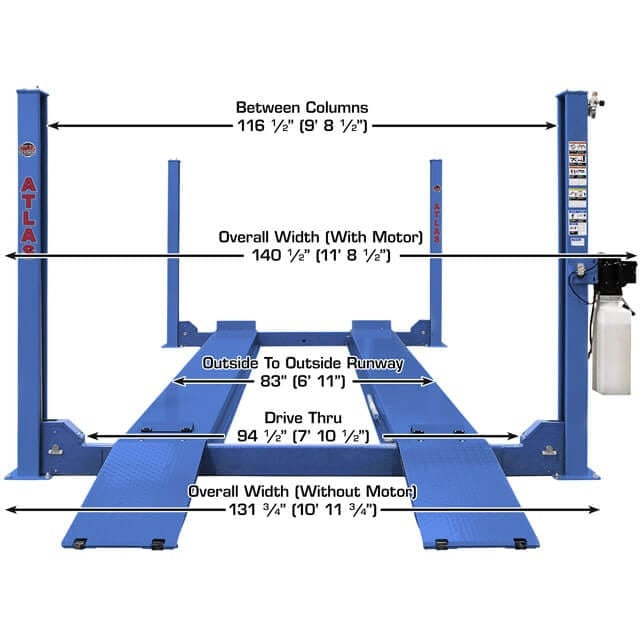

| Overall Width Of Columns (Without Motor) |
131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) |
140 1/2" (11' 8 1/2") |

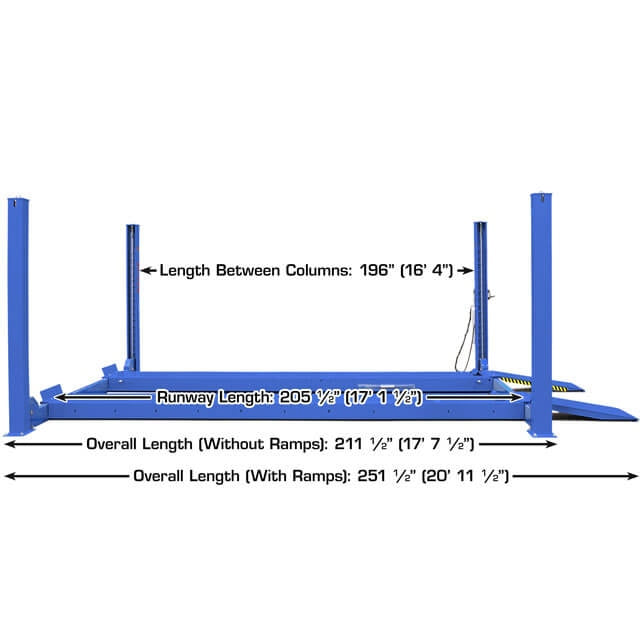

| Overall Length With Approach Ramp |
251 1/2" (20' 11 1/2") |
| Length Between Columns |
196" (16' 4") |

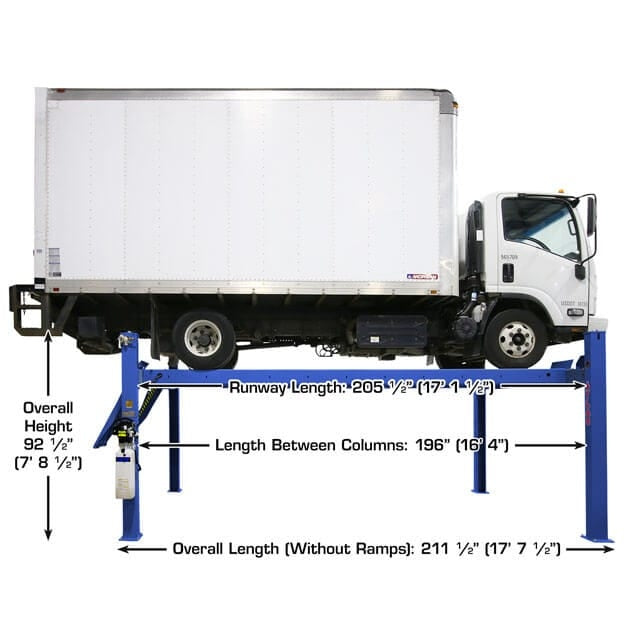

| Runway Length |
205 1/2" (17' 1 1/2") |

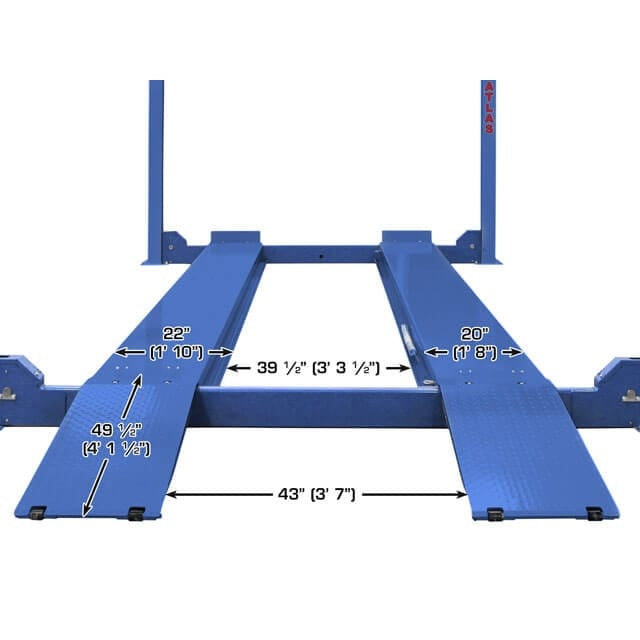

| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |
| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |
| Height Of Columns |
92 1/2" (7' 8 1/2") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
Documents
Atlas® Platinum PVL14 Manual
ALLY AL2650 Power Unit Specs And Parts Breakdown
