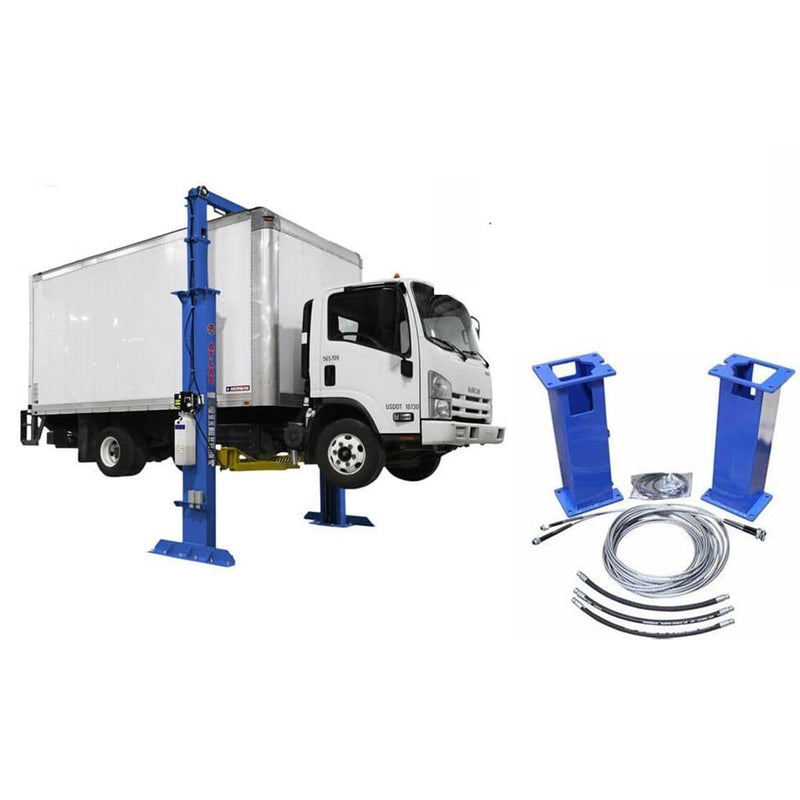

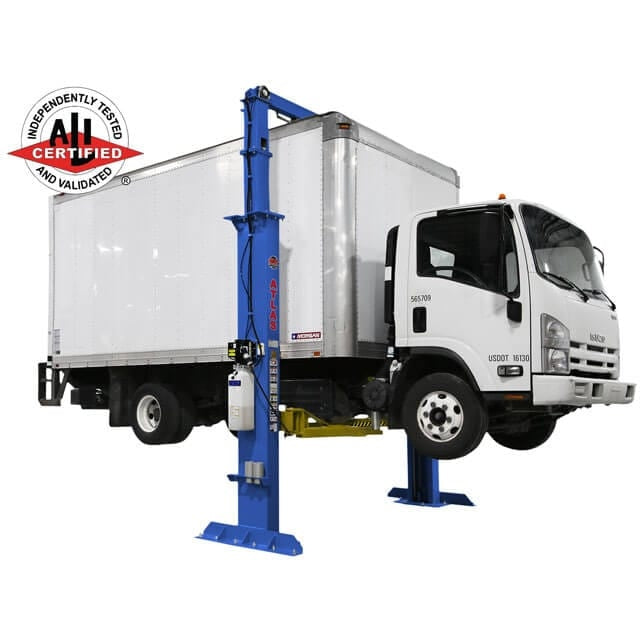

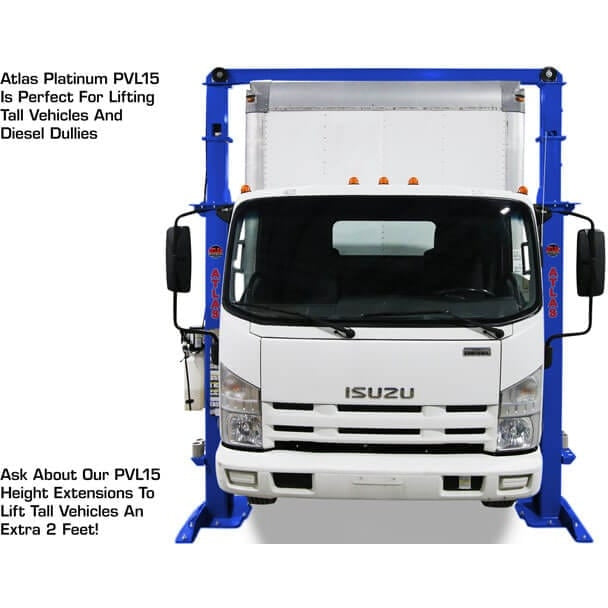

The Atlas® Platinum PVL15 is a 15,000 lb. capacity ALI Certified two-post overhead lift built for professional shops that regularly service long-wheelbase trucks, service bodies, and heavier-duty vehicles. With an overall height of 14'6½" (174½"), it provides the clearance needed for taller vans and work trucks, and it can be extended an additional 2 feet with a height extension kit when ceiling space allows. That flexibility makes it suitable for a wide range of bay layouts without changing the core lift structure.

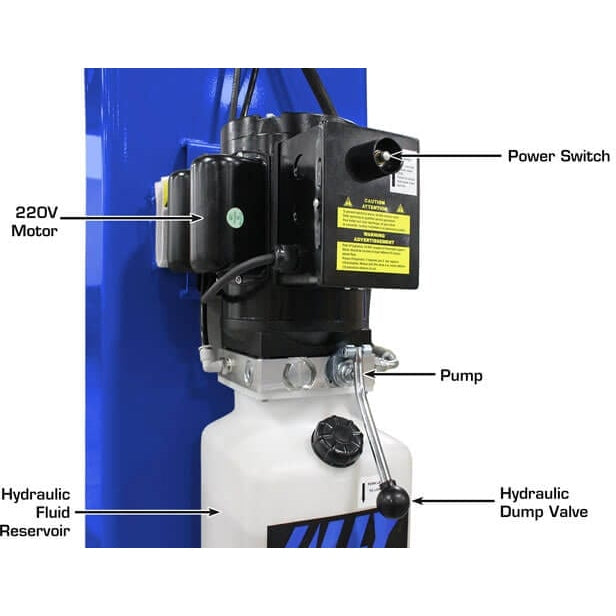

At its core, the PVL15 uses dual direct-drive hydraulic cylinders paired with heavy-duty 3/8" equalization cables, delivering stable, synchronized lifting across both columns. The system is powered by the ALLY Hydraulic AL2300 power unit, MET-certified for electrical compliance in the U.S. and Canada. It’s engineered with reinforced windings and higher-grade internal conductors to reduce heat buildup and maintain steady torque during repeated lift cycles, which is especially important in high-throughput service environments.
The PVL15 is designed around symmetric arms and a professional-grade arm lock restraint system, giving technicians predictable positioning across a wide range of vehicle wheelbases. The padded carriages and included frame adapters help protect vehicle contact points while improving flexibility for different chassis types. With its 15,000 lb. capacity, it sits in the upper tier of two-post lifts, making it suitable for heavier pickups and fleet vehicles that push beyond standard 10K–12K systems.
This lift is best suited for commercial repair shops, fleet maintenance facilities, and dealership service departments that need maximum two-post capacity without moving into specialty heavy-duty truck lift systems. It’s built for daily use, consistent cycling, and mixed-vehicle service work where strength and reliability matter more than compact footprint.
Features
- ALI certified heavy-duty commercial-grade automotive lift
- 15,000 lb. lifting capacity for extremely heavy vehicles and commercial applications
- Extra-tall and extra-wide design for maximum vehicle compatibility
- Overall height: 174 1/2" (14' 6 1/2")
- Padded carriages for improved vehicle protection during lifting

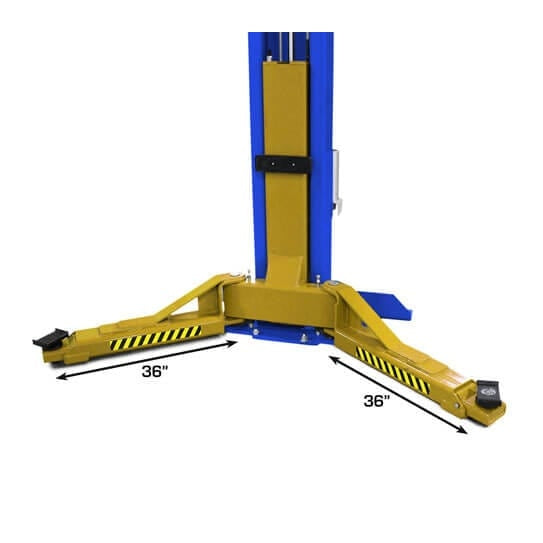

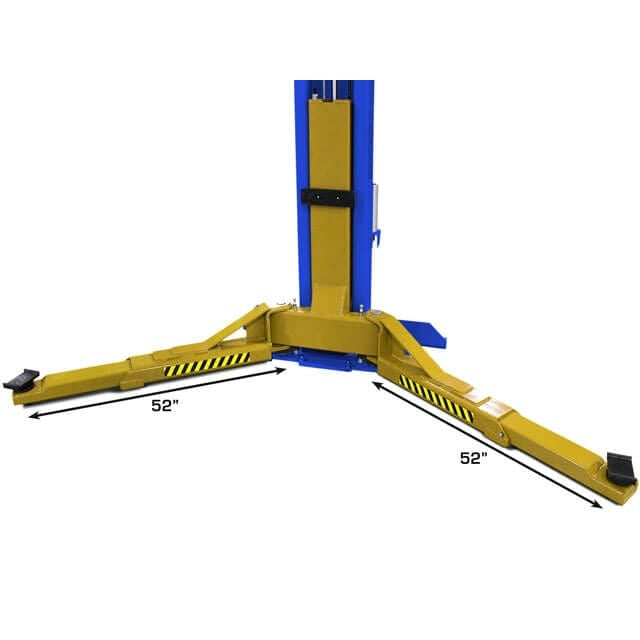

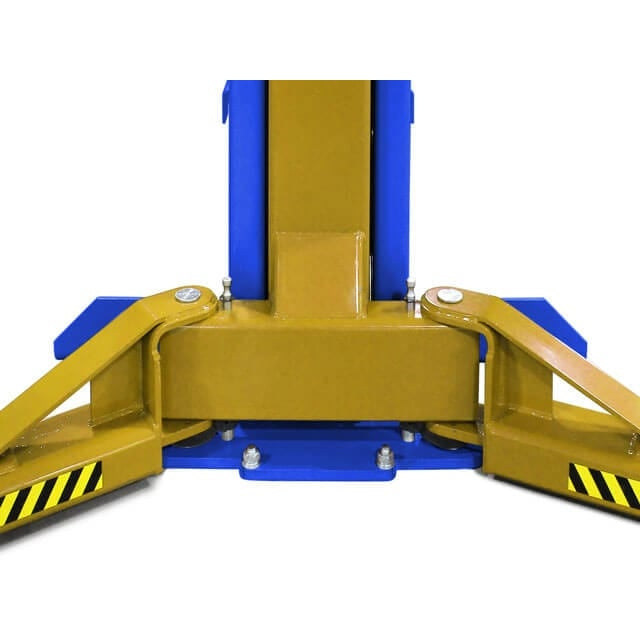

- Symmetric arms for balanced lifting performance
- Professional-grade arm lock restraint system for enhanced safety

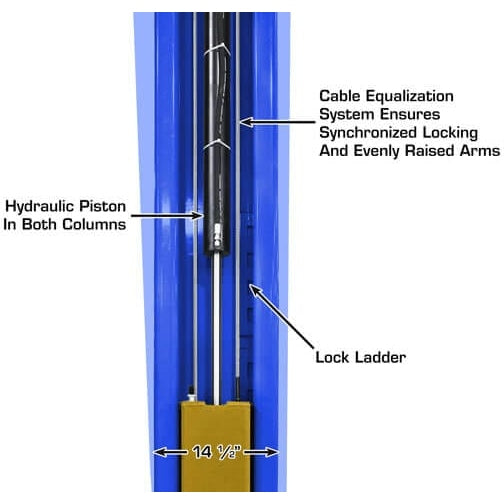

- Dual direct-drive hydraulic cylinders for strong, smooth lifting operation
- Heavy-duty 3/8" equalization cables for stability and synchronization

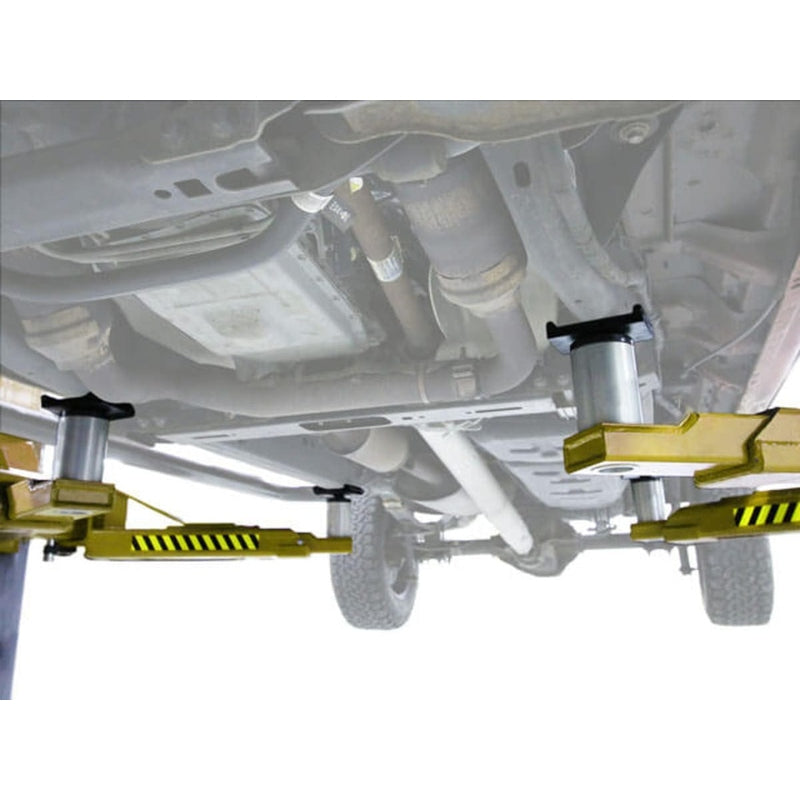

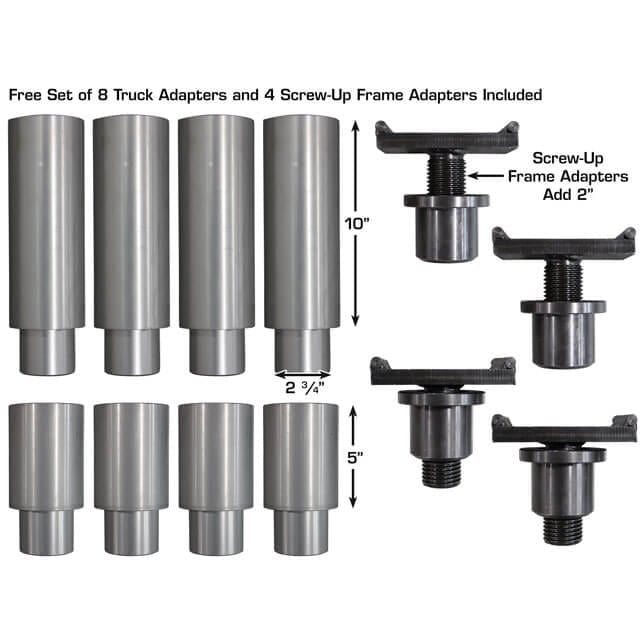

- Includes free 8-piece truck adapter set and 4 screw-up frame adapters
- Mounting hardware included for installation
- Equipped with premium ALLY power unit

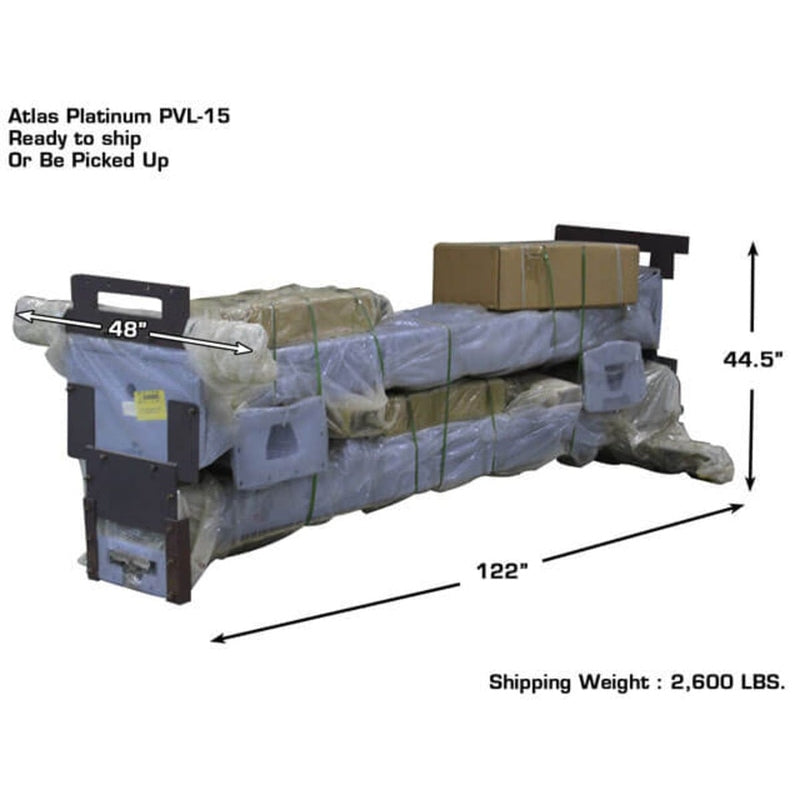

- Shipping weight: 2,600 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage
Specifications
| Atlas® Platinum PVL15 Specifications |
| Capacity |
15,000 LB. |
| Overall Height |
174 1/2" (14’ 6 1/2”) |

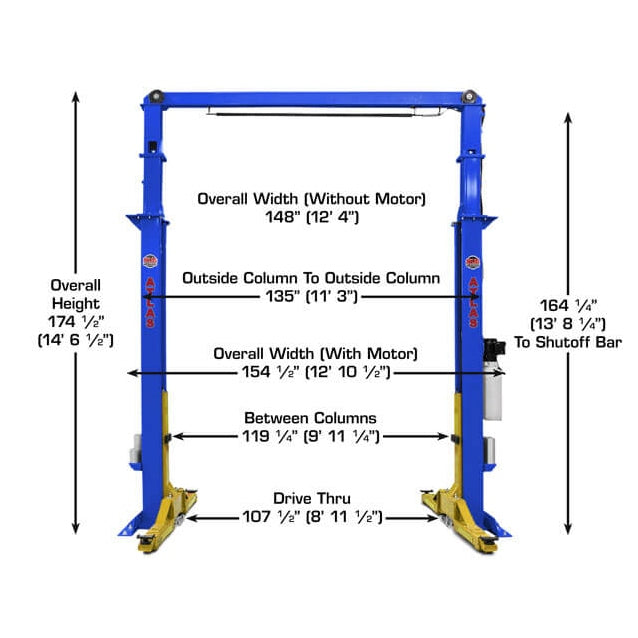

| Overall Floor Width |
148" (12’ 4”) |
| Outside Column to Outside Column |
135" (11’ 3") |

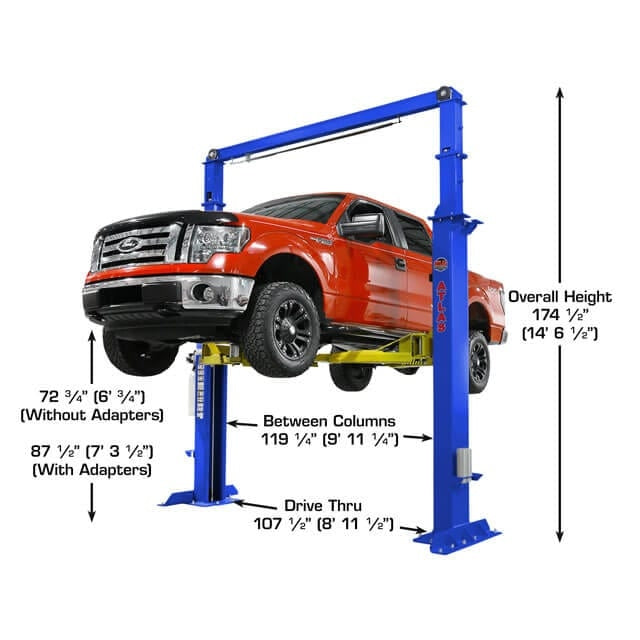

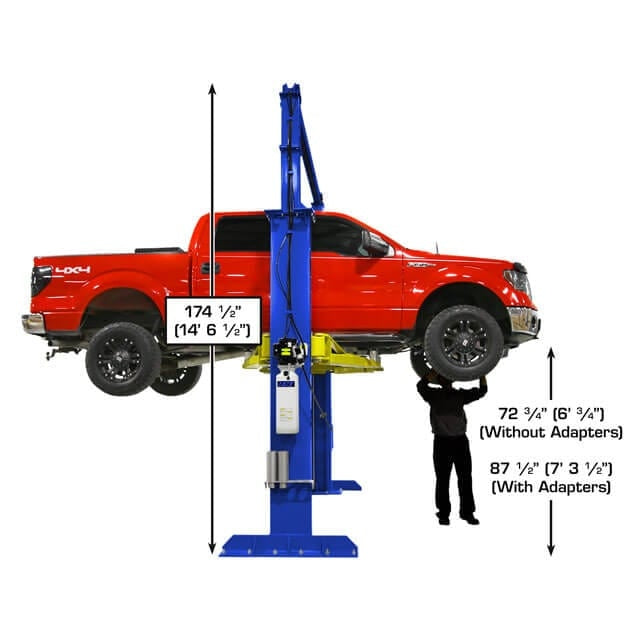

| Maximum Lift Height (Without Adapters) |
72 3/4" |
| Maximum Lift Height (With Adapters) |
87 1/2" |
| Minimum Arm Height |
6" |
| Inside Column |
119 1/4” (9’ 11 1/4”) |
| Drive Thru |
107 1/2” (8’ 11 1/2”) |
| Column Size |
8" x 14 1/2" |
| Column Thickness of Steel |
8mm |
|

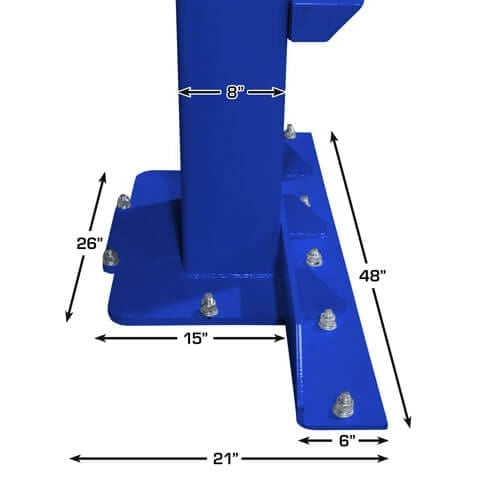

| Base Of Lift |
21" x 48" |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,600 LBS. |

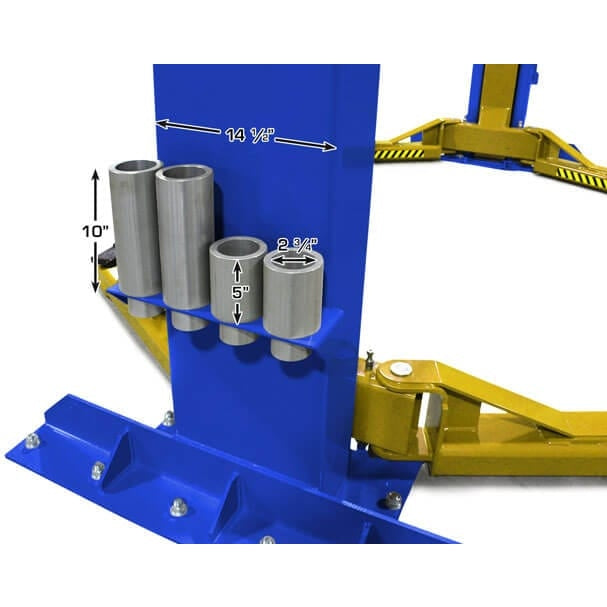

| Adapter Heights |
4 Each 5”, 10” |
| Arm Hole/Adapter Peg Size |
2.75” |
| |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
Documents
Atlas® Platinum PVL15 Manual
ALLY AL2300 Power Unit Specs and Parts List
Authorized Dealer - Full Warranty Included
