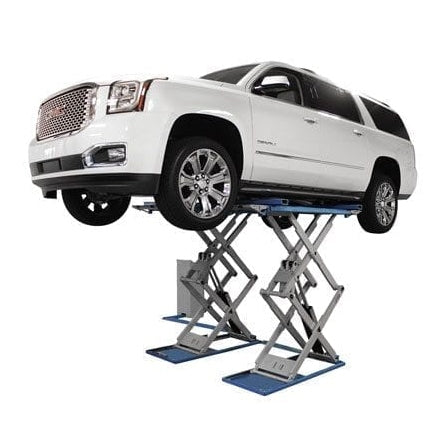

The Atlas® SLP9K full-rise scissor lift is a 9,000 lb capacity above-ground lift designed for shops and garages that need full lifting height without committing to bulky two-post or four-post columns. It combines a low-profile entry height with a 78-inch full rise, making it capable of lifting passenger cars, SUVs, and many pickup trucks while still maintaining a clean, open work area.
One of its biggest advantages is its space-saving scissor design, which keeps the entire lifting system contained within the floor footprint. This makes it especially useful in bays where ceiling height or layout limits traditional lifts, or where a clutter-free workspace is preferred. It can also be flush-mounted into the floor, allowing vehicles to drive over it from any direction and position easily on the platforms—ideal for fast workflow and flexible shop layouts.

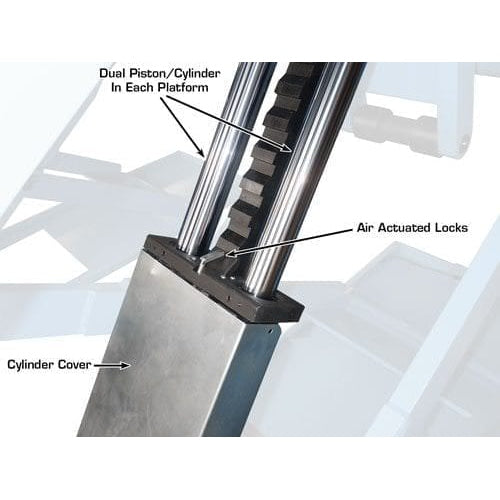

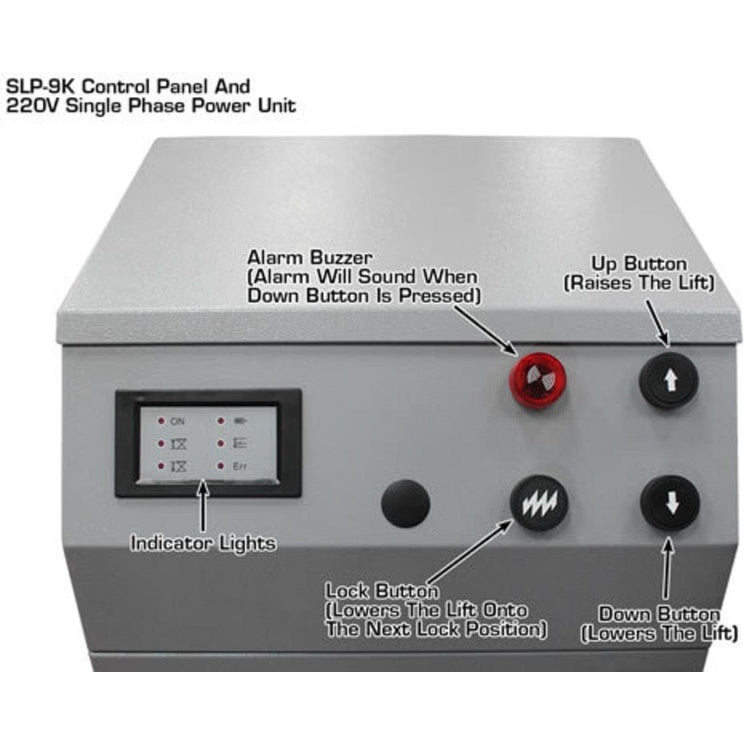

The SLP9K uses a hydraulic/electric system powered by a 220V single-phase unit housed in a separate control cabinet. Operation is managed through simple push-button controls, while an automatic 10-position air-actuated locking system engages as the lift rises and releases during lowering. A built-in safety feature pauses descent at approximately 10.5 inches from the ground, requiring a second command to fully lower—adding an extra layer of control during use.

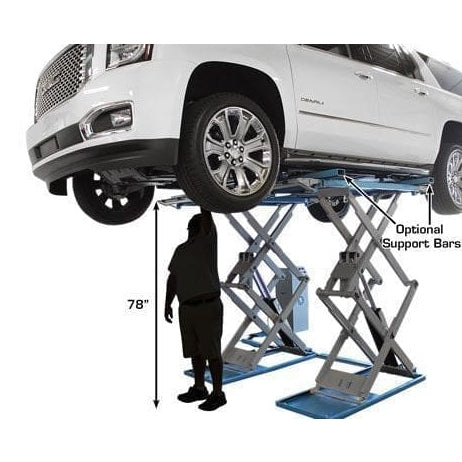

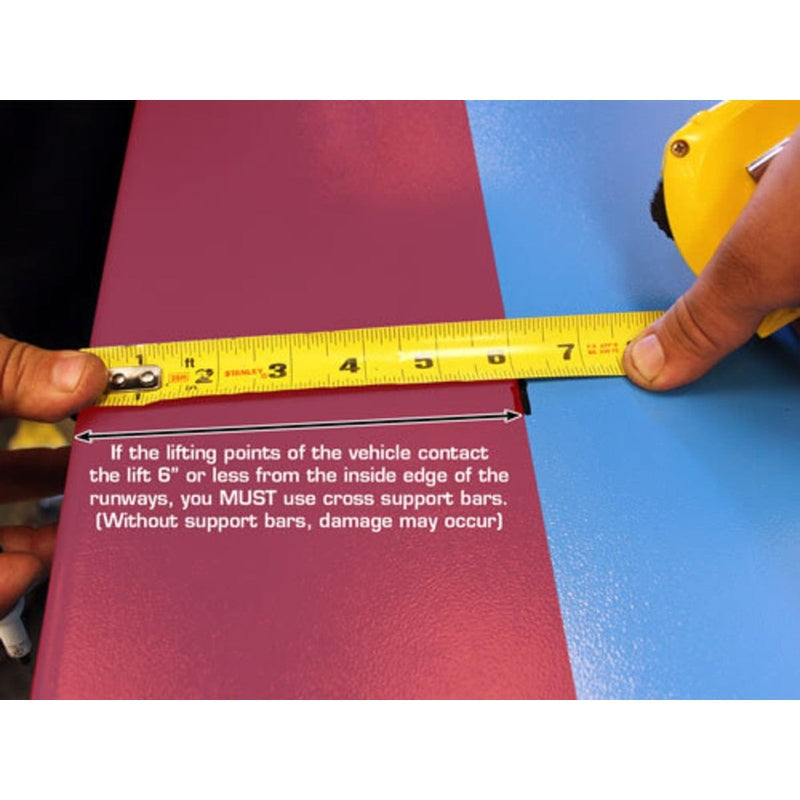

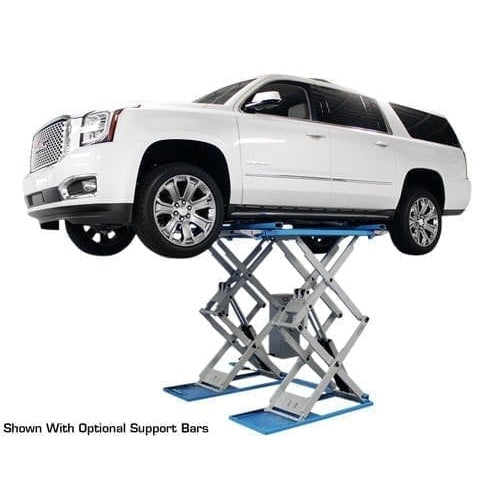

Platform spacing is adjustable up to 31 inches, allowing it to accommodate unibody cars, SUVs, and light trucks. However, for heavier trucks with narrow frames, Atlas recommends using the optional support bar kit to better distribute weight across the platforms.
This lift is best suited for professional service shops, detailing and inspection facilities, or advanced home garages that want full-rise capability with a compact footprint and flexible installation options. It carries a 1-year structural and 1-year hydraulic warranty (parts only) and requires delivery access for a 53' truck.
Features
- 9,000 lb. lifting capacity for commercial-grade vehicle service
- Full rise lift design for complete vehicle elevation
- Open center design for improved access to under-vehicle areas
- Adjustable width for flexible vehicle positioning
- Air-operated single-point lock release (external air supply required)
- 10 locking positions for secure and controlled lifting
- Locking approach ramps for safe vehicle loading
- Grease zerk fittings at each hinge point for easier maintenance

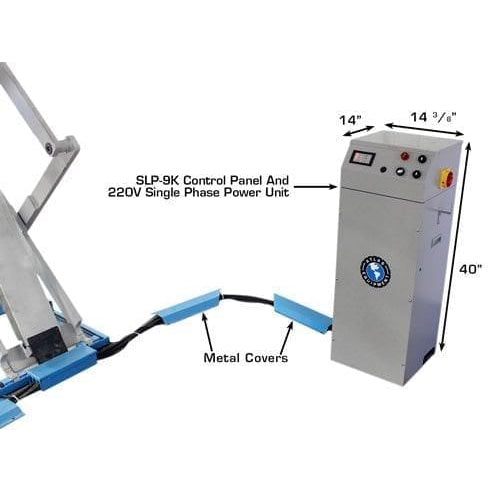

- Separate self-contained control panel for independent operation
- CE certified for safety and compliance standards

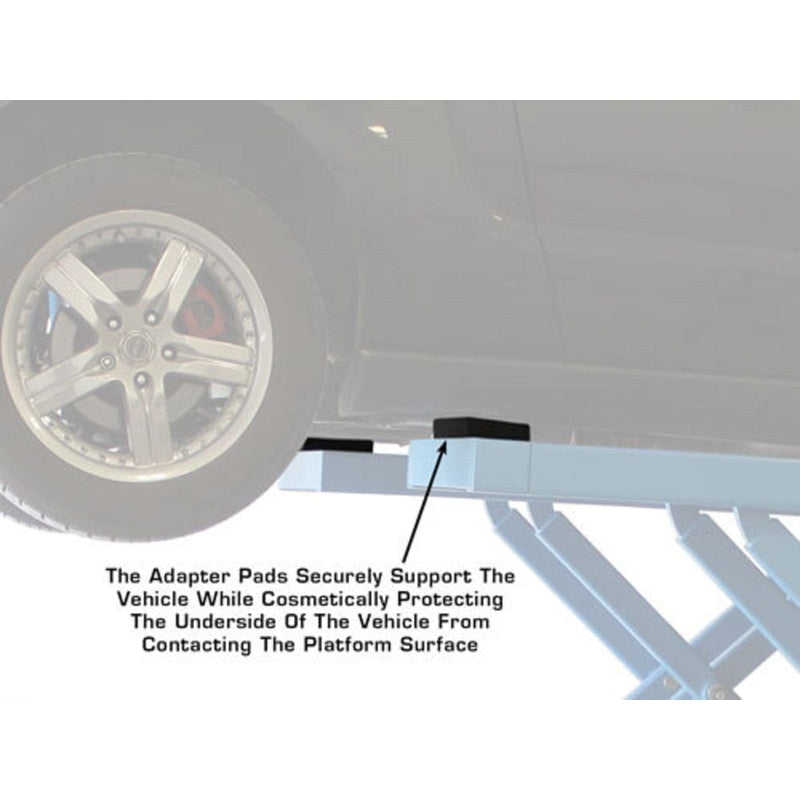

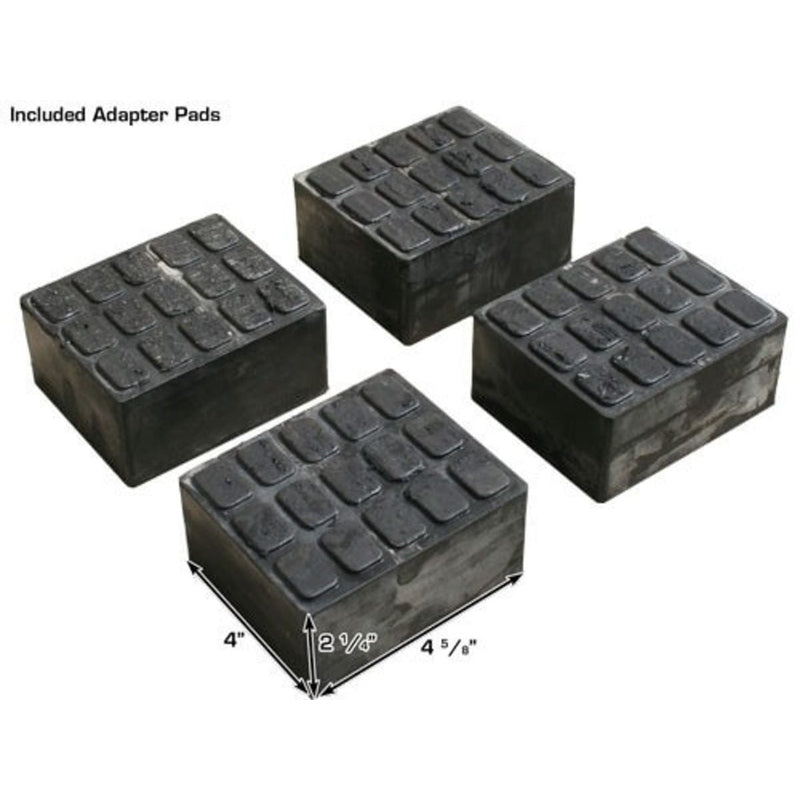

- Heavy-duty rubber lifting blocks included for added protection
- Mounting hardware included for installation
- 220V single-phase electric operation (requires 30 AMP breaker)
- Shipping weight: 2,400 lbs
- Backed by a 1-year structural warranty and 1-year hydraulic warranty (parts only)
Specifications
Atlas® SLP9K Specifications
| Lifting Capacity |
9,000 lbs. |

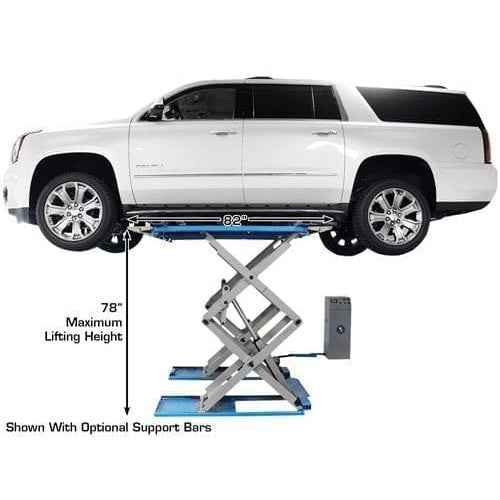

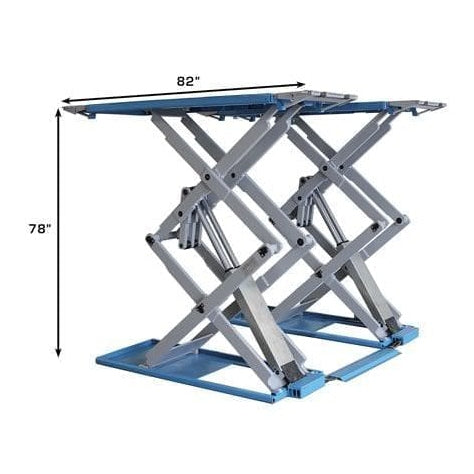

| Max Lifting Height |
78" (6' 6") |
| Overall Length |
82" (6' 10") |
| Max Overall Width |
82" (6' 10") |

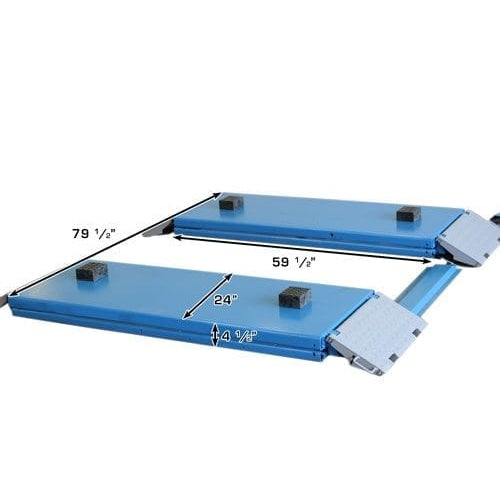

| Lift Platform |
59" x 24" |
| Lowered Height |
4" |

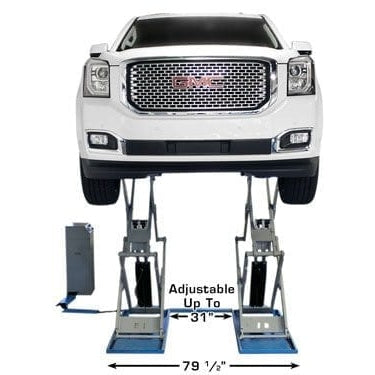

| Width Between Platforms |
Adjustable up to 31" |
| Approach Ramps |
11" x 24" |
| Air Requirement |
90-120 PSI |
| Power Unit |
220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32 or AW46 (NOT INCLUDED) |

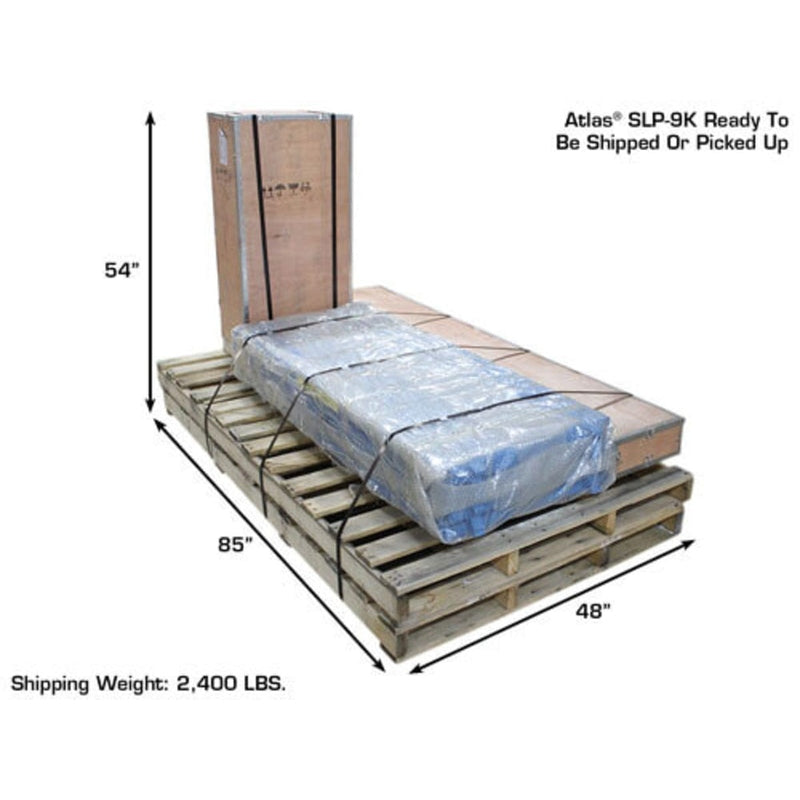

| Shipping Weight |
2,400 lbs. |
Documents
Atlas® SLP9K Manual
Atlas® SLP-9K Parts Breakdown
