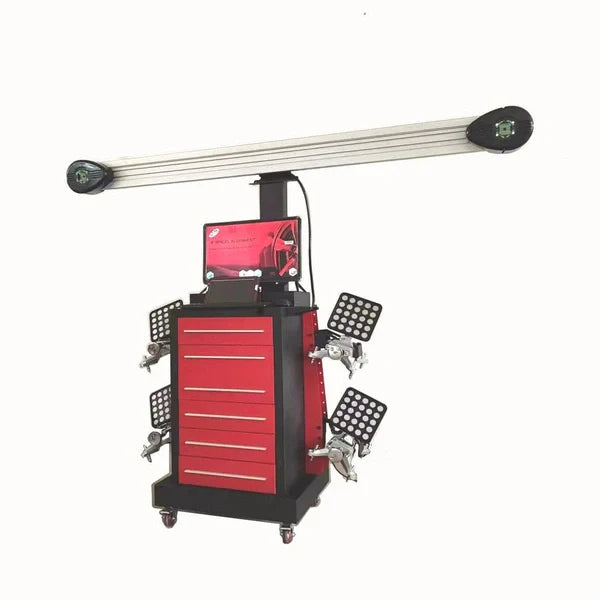

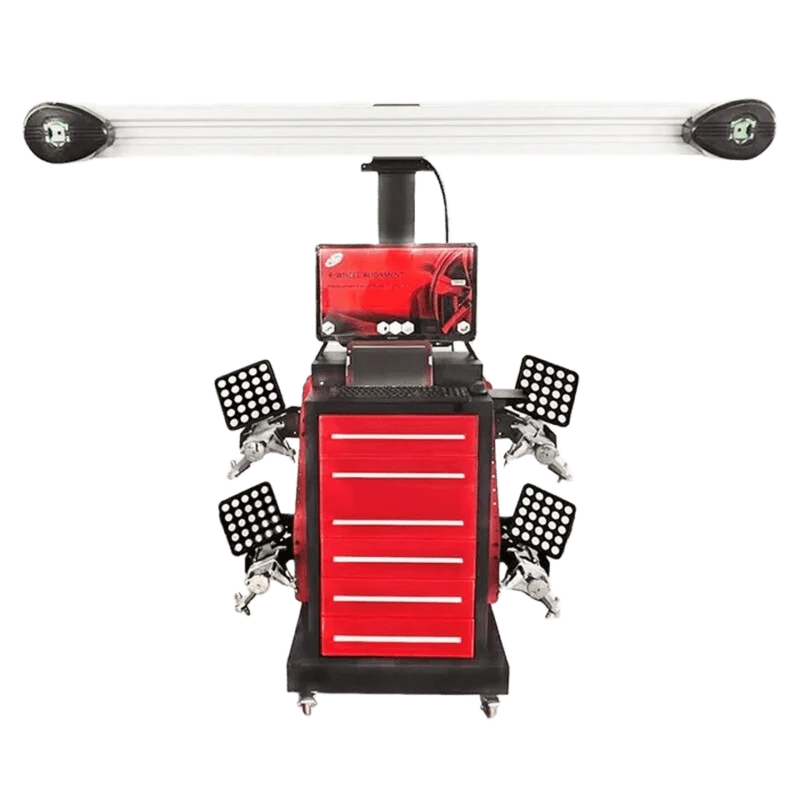

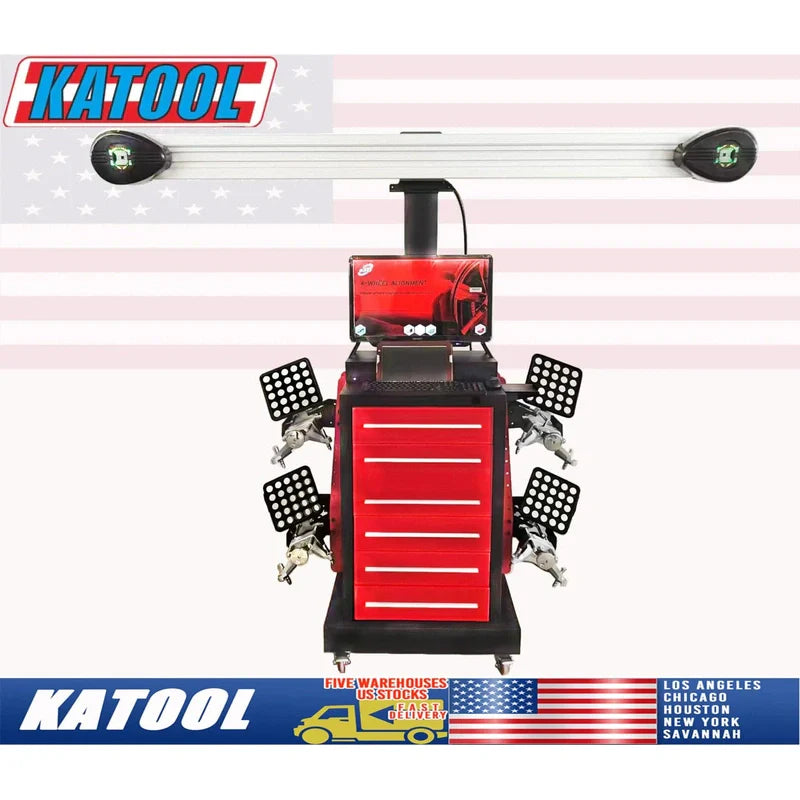

The Katool KT-AV651 is a mobile 3D wheel alignment machine designed for 2-post and scissor lifts, bringing alignment capability to shops that already have lift infrastructure rather than requiring a separate rack. Installation is straightforward — no calibration required out of the box — and the package ships complete with a 30" display, tablet, mouse, keypad, printer, WiFi adapter, and USB drive. Software runs on both Android and iOS, keeping the maintenance footprint light. Annual database updates are included and cover current US, European, and Asian vehicle models, with unlimited memory for vehicle specs so storage is never a constraint.
The post adjusts manually, which keeps the mechanical setup simple and eliminates the dependency on a remote or wireless controller during operation. Synchronous display on smartphones and tablets lets the customer follow the alignment readings in real time on their own device — a useful transparency feature during the service. Technicians can also monitor data changes on a smartphone while making rear wheel adjustments, avoiding repeated trips back to the main screen during the correction process.
The KT-AV651 is a practical fit for repair shops with existing 2-post or scissor lifts that want to add alignment service without a dedicated rack, independent shops looking for a complete, ready-to-run system at a straightforward price point, and tire service centers that want client-facing transparency built into the service experience. Compared to the KT-AV6, the manual post adjustment makes this a slightly simpler setup — a reasonable trade for shops that don't need remote height tracking as part of their workflow.
Features
- Mobile 3D wheel aligner designed specifically for lift applications, offering flexible and convenient use in any shop environment.
- Unlimited vehicle specification memory ensures no data limitations, regardless of fleet size or vehicle variety.
- No calibration required during installation, saving setup time and getting you operational right away.

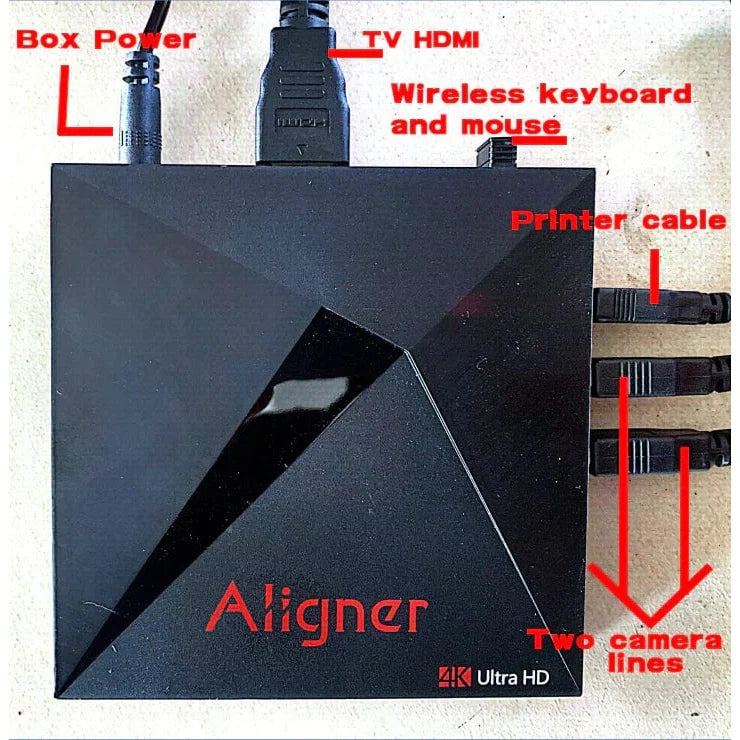

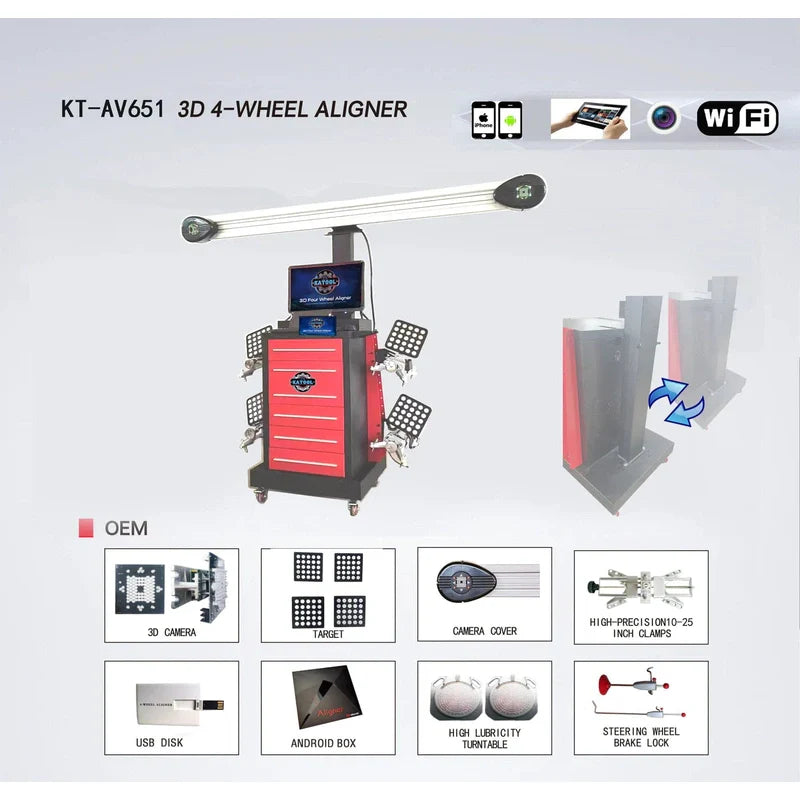

- Comes complete with a tablet, 30-inch display screen, mouse, keyboard, and a printer for a fully equipped workstation out of the box.
- Includes a complimentary Wi-Fi device and USB drive for seamless connectivity and data management.
- Runs on both Android and iOS platforms, minimizing the need for ongoing software and system maintenance.

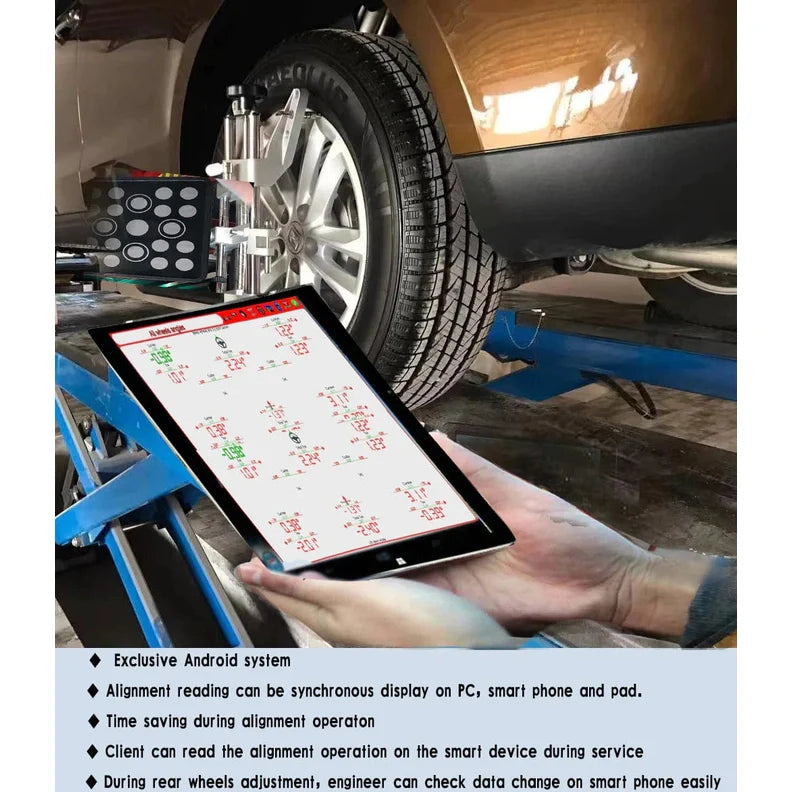

- Synchronous display across smartphones and tablets allows real-time alignment data to be viewed on any paired smart device.
- Clients can follow along with the alignment process on a smart device during the service for full transparency.
- During rear wheel adjustments, the technician can conveniently monitor data changes directly from a smartphone without leaving their position.
- Manual post adjustment allows for straightforward, hands-on control over post height and positioning.
- Free annual database upgrades ensure your system stays current without additional cost.
- Database continuously updated to include the latest car models from all major US, European, and Asian manufacturers.
Specifications
|
Power Supply
|
100-240V,50/60 HZ,1 Ph
|
|
Working Temperature
|
41F104 F(+5?+40?)
|
|

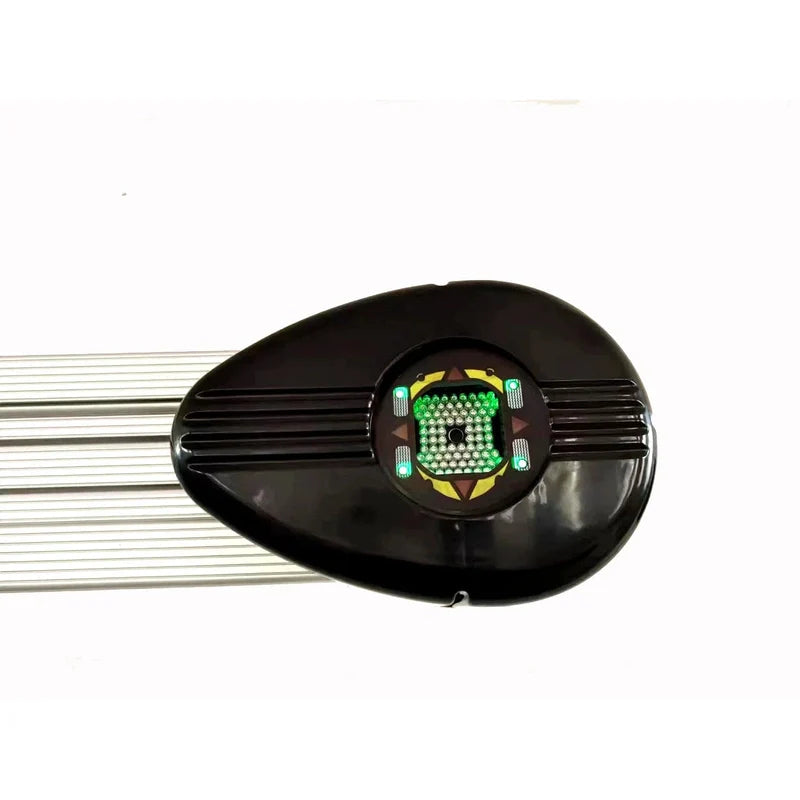

Cameras (Total)
|
2
|
|
Tire Diameter
|
9 27/32-31 1/2 in(250-800 mm)
|
|
Wheellbase
|
62 63/64 -82 43/64 in(1.6-2.1m)
|
|
Track Width
|
70 55/64-177 11/64 in(1.8 -4.5 m)
|
|
Warranty
|
1-Year Limited
|
|
Product Weight
|
440.92 Ibs(200 kg)
|
|
Shipping Weight
|
529.11 Ibs(240 kg)
|
|
Shipping Dimensions
|
29.92x48.03x47.24 in(760x1220x1200mm)
110.24x12.6x15.75 in(2800x320x400mm)
|
Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered:
- Cylinders, power units, motors, displays, and electronics.
- Vehicle lifts receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
Resources
For more detailed information and guidance, you can download the following:
