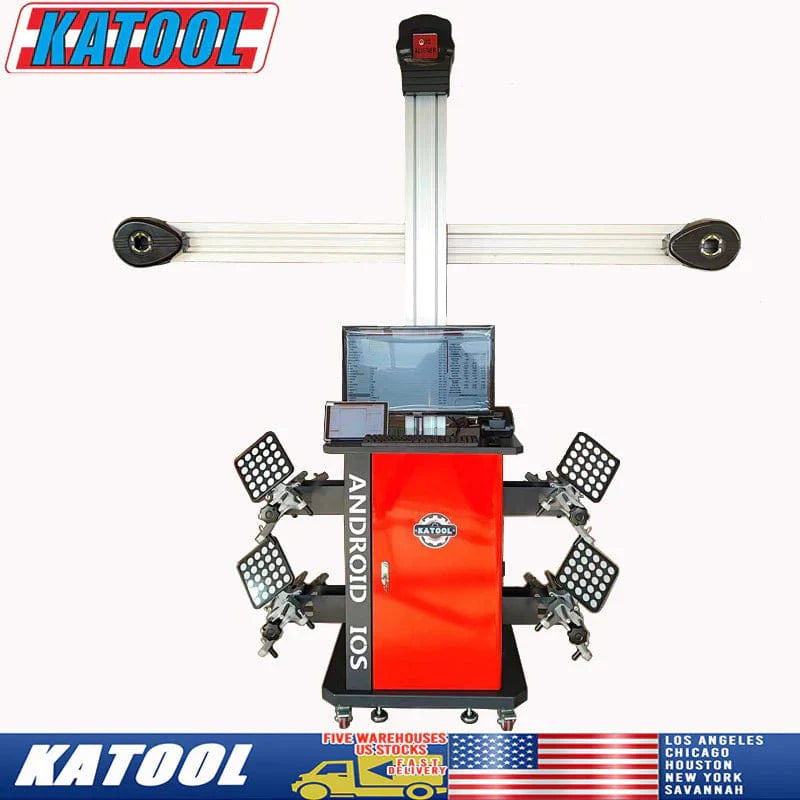

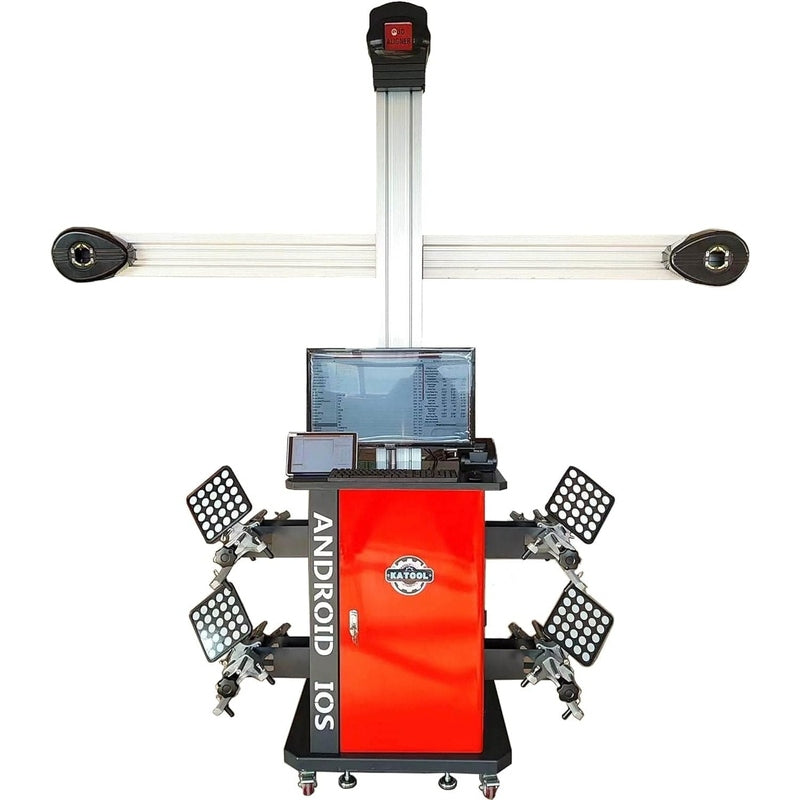

The Katool KT-AV9 is a full-automatic mobile 3D wheel alignment machine built for use on 2-post and scissor lifts. Like the rest of the KT-AV series, it requires no calibration at installation, ships with a 30" display, tablet, mouse, keypad, printer, WiFi adapter, and USB drive, and runs on Android and iOS software. Free annual database updates cover current US, European, and Asian models, and unlimited memory handles vehicle spec storage without management overhead.
The remote-controlled post is the operationally significant feature here ā height adjustment happens from wherever the technician is standing rather than requiring manual repositioning at the column. Combined with real-time data sync to smartphones and tablets, the technician can monitor readings and make adjustments during rear wheel corrections without returning to the main screen, while the customer follows the same data on their own device during the service.
The KT-AV9 suits repair shops and alignment bays running 2-post or scissor lifts that want a fully equipped, automated alignment system with remote post control, service centers where customer transparency during the alignment process is a priority, and shops comparing options within the KT-AV lineup who want the remote post functionality alongside the full-automatic designation.
Features
- Mobile 3D wheel aligner designed specifically for lift applications, offering flexible and convenient use in any shop environment.
- Unlimited vehicle specification memory ensures no data limitations, regardless of fleet size or vehicle variety.
- No calibration required during installation, saving setup time and getting you operational right away.

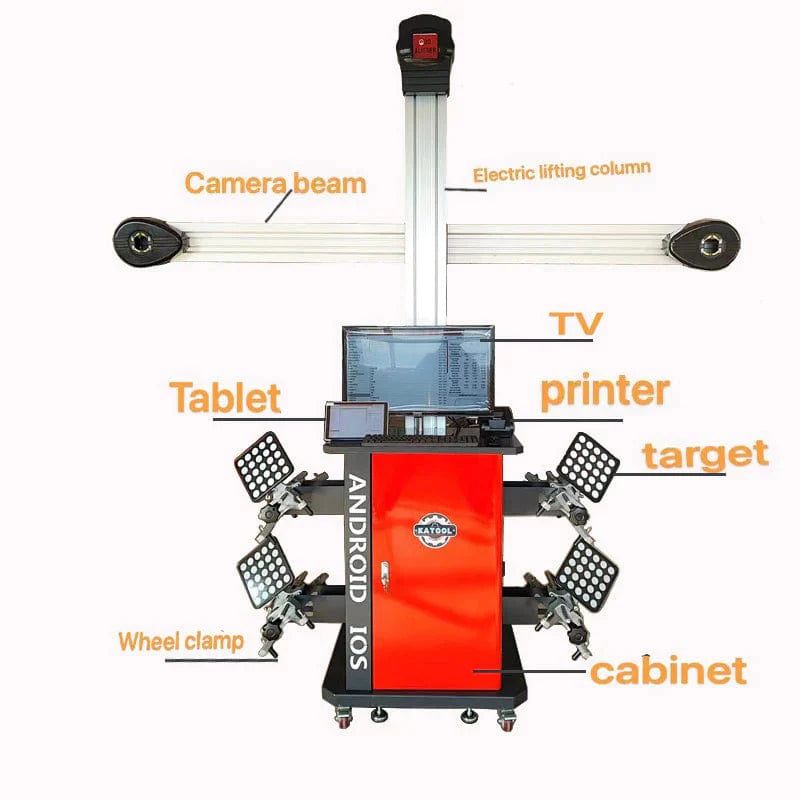

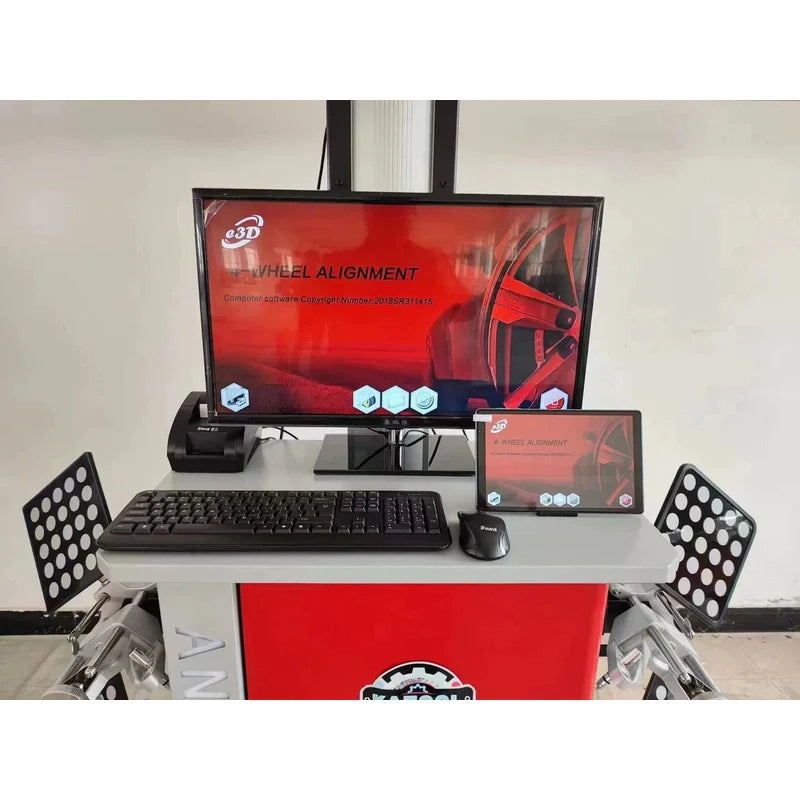

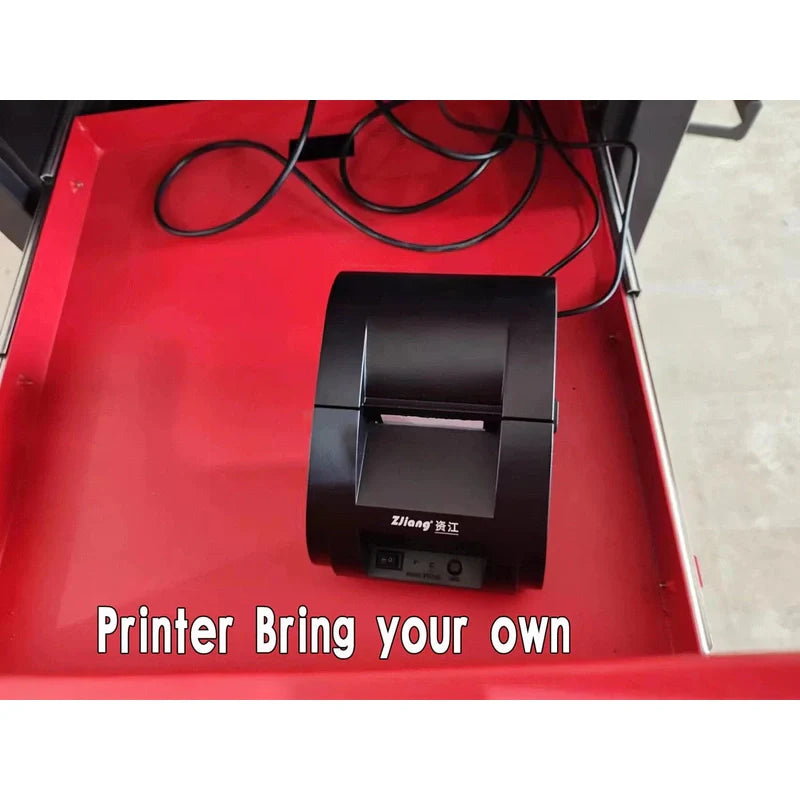

- Comes complete with a tablet, 30-inch display screen, mouse, keyboard, and a printer for a fully equipped workstation out of the box.

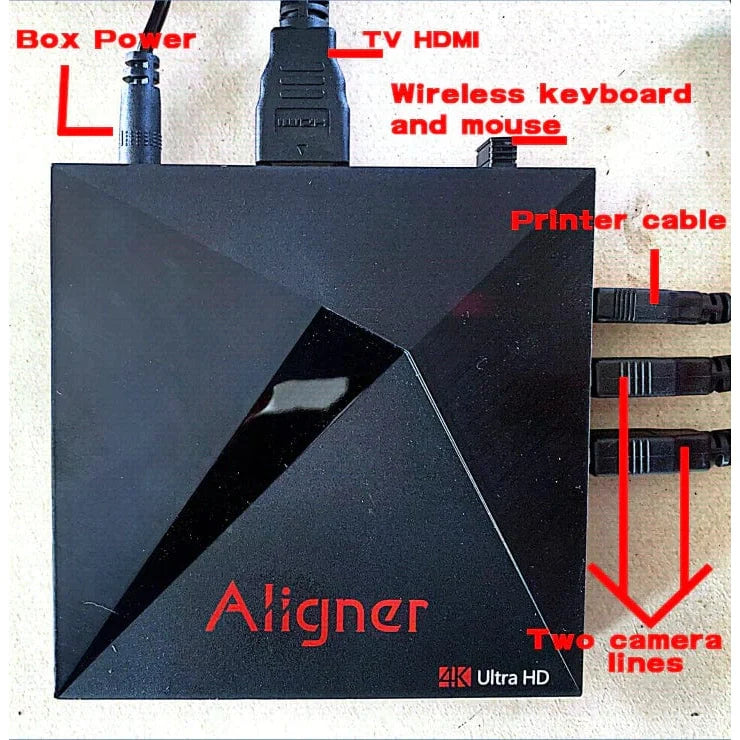

- Includes a complimentary Wi-Fi device and USB drive for seamless connectivity and data management.

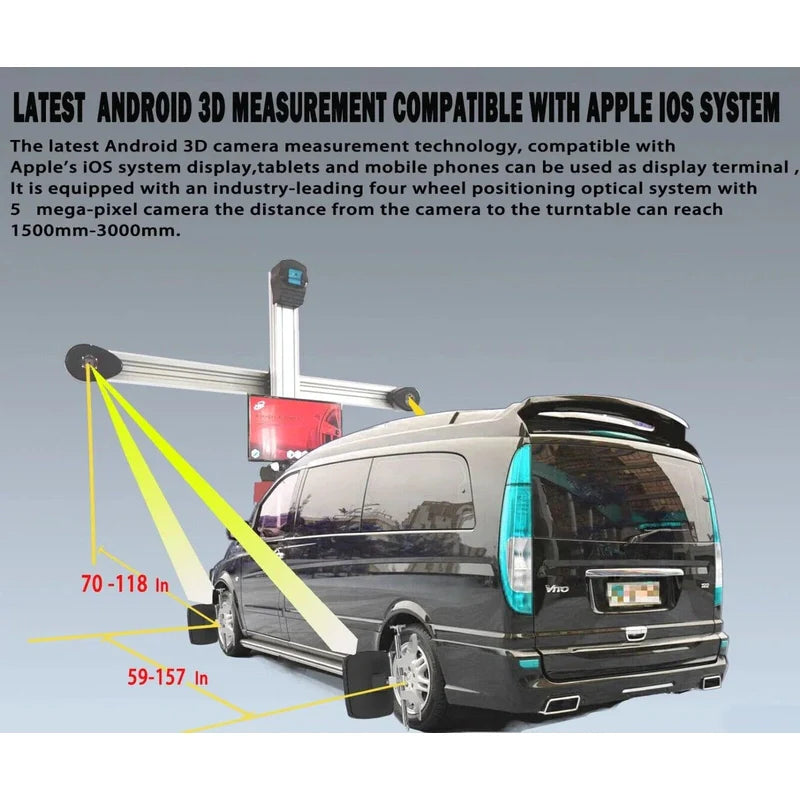

- Runs on both Android and iOS platforms, minimizing the need for ongoing software and system maintenance.

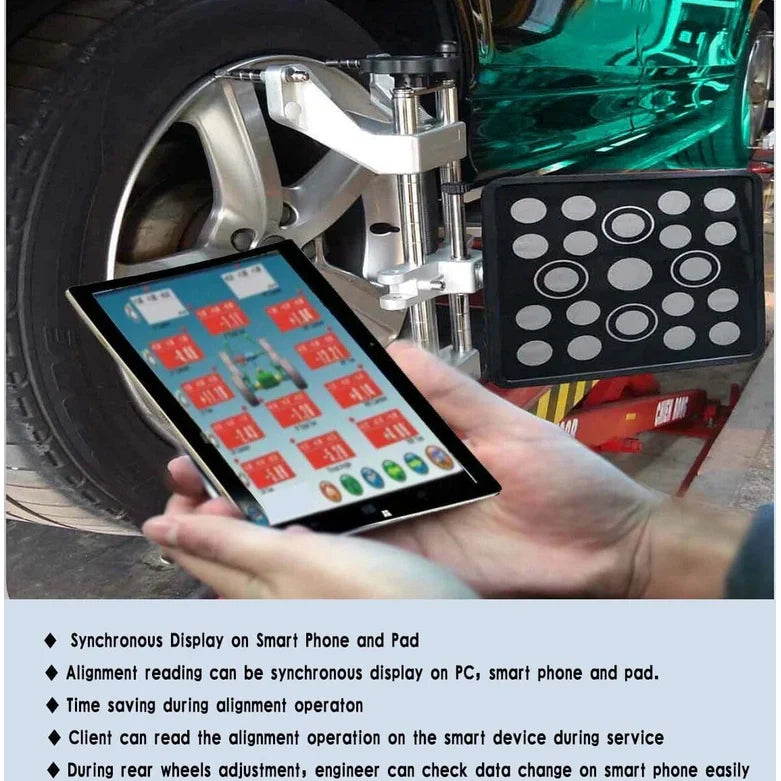

- Synchronous display across smartphones and tablets allows real-time alignment data to be viewed on any paired smart device.
- Clients can follow along with the alignment process on a smart device during the service for full transparency.
- During rear wheel adjustments, the technician can conveniently monitor data changes directly from a smartphone without leaving their position.

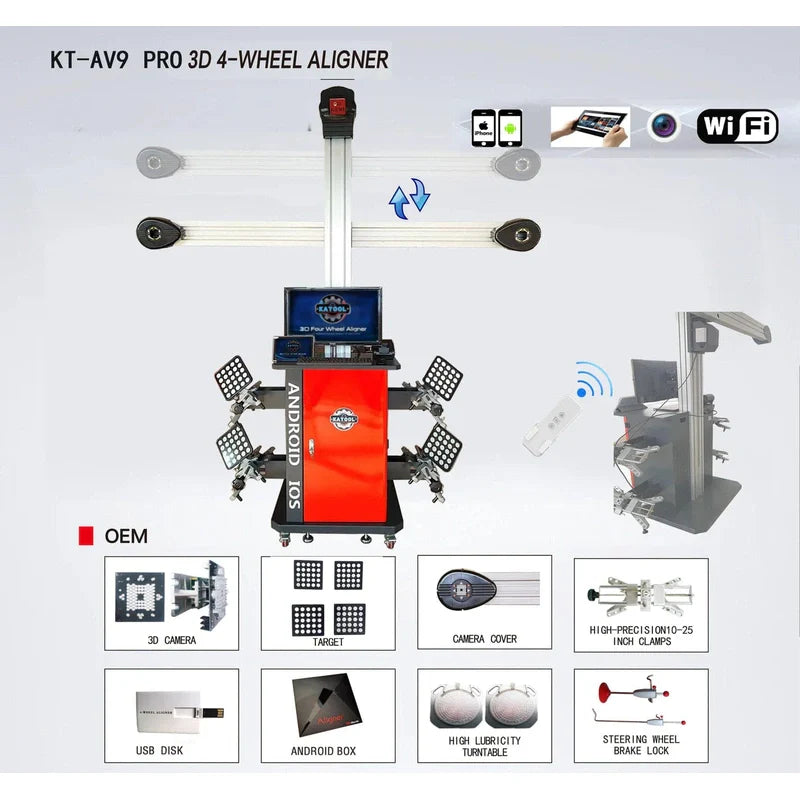

- Remote-controlled post movement makes it easy to precisely track and adjust to the height of any vehicle with minimal effort.
- Free annual database upgrades ensure your system stays current without any additional cost.
- Database continuously updated to include the latest car models from all major US, European, and Asian manufacturers.
Specifications
|
Power Supply
|
100-240V,50/60 HZ,1 Ph
|
|
Working Temperature
|
41F104 F(+5?+40?)
|
|

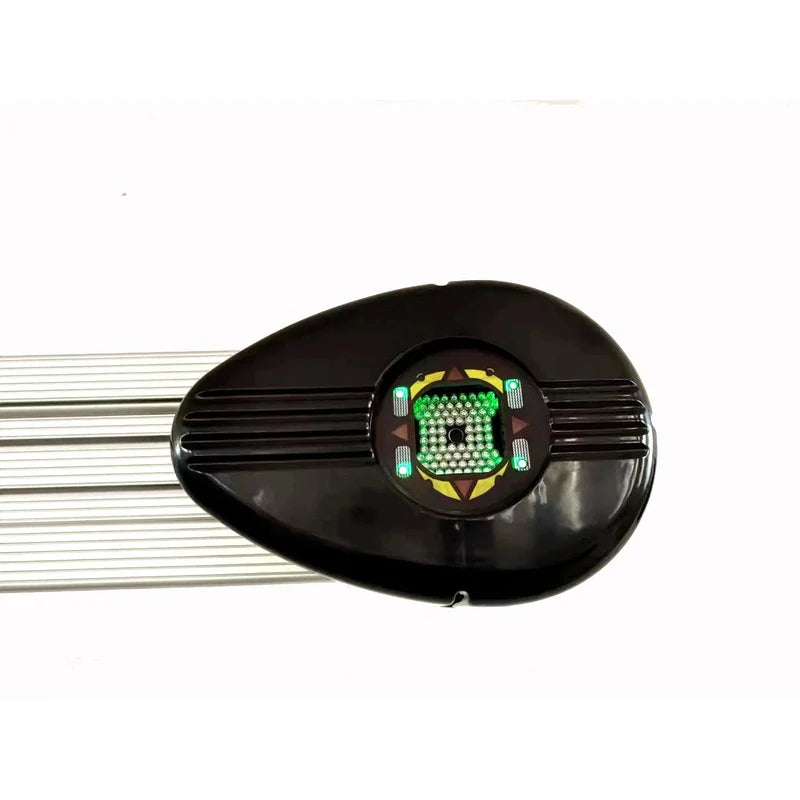

Cameras (Total)
|
2
|
|
Tire Diameter
|
9 27/32-31 1/2 in(250-800 mm)
|
|
Wheellbase
|
62 63/64 -82 43/64 in(1.6-2.1m)
|
|
Track Width
|
70 55/64-177 11/64 in(1.8 -4.5 m)
|
|
Warranty
|
1-Year Limited
|
|
Product Weight
|
440.92 Ibs(200 kg)
|
|
Shipping Weight
|
529.11 Ibs(240 kg)
|
|
Shipping Dimensions
|
39.76x36.61x48.47 in(1010x930x1230mm)
110.24x15.75x15.75in(2800x400x400mm)
|
Ā
Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered:
- Cylinders, power units, motors, displays, and electronics.
- Vehicle lifts receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered ā the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
Resources
For more detailed information and guidance, you can download the following:
