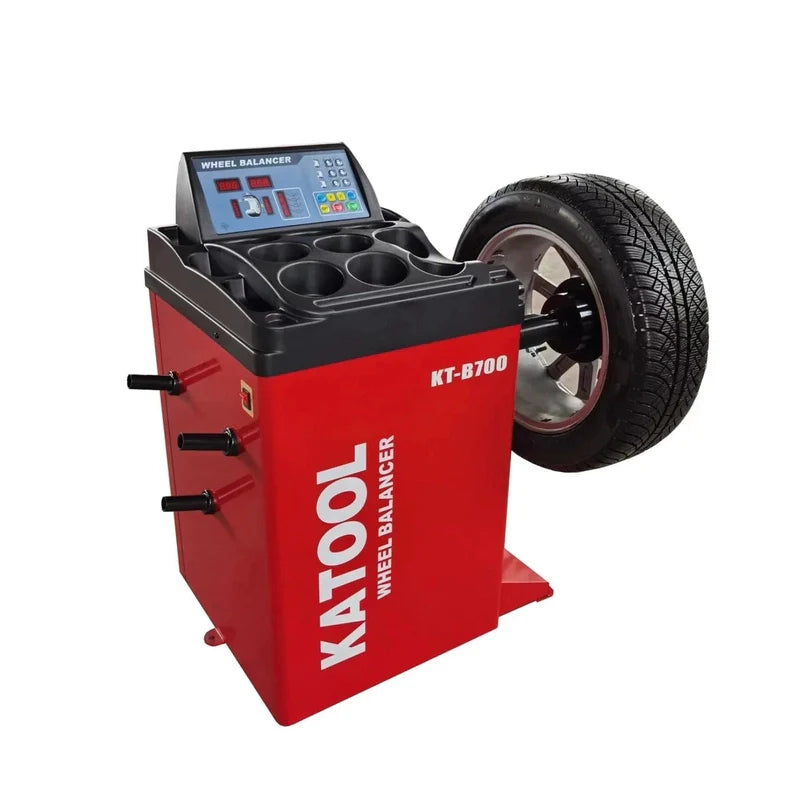

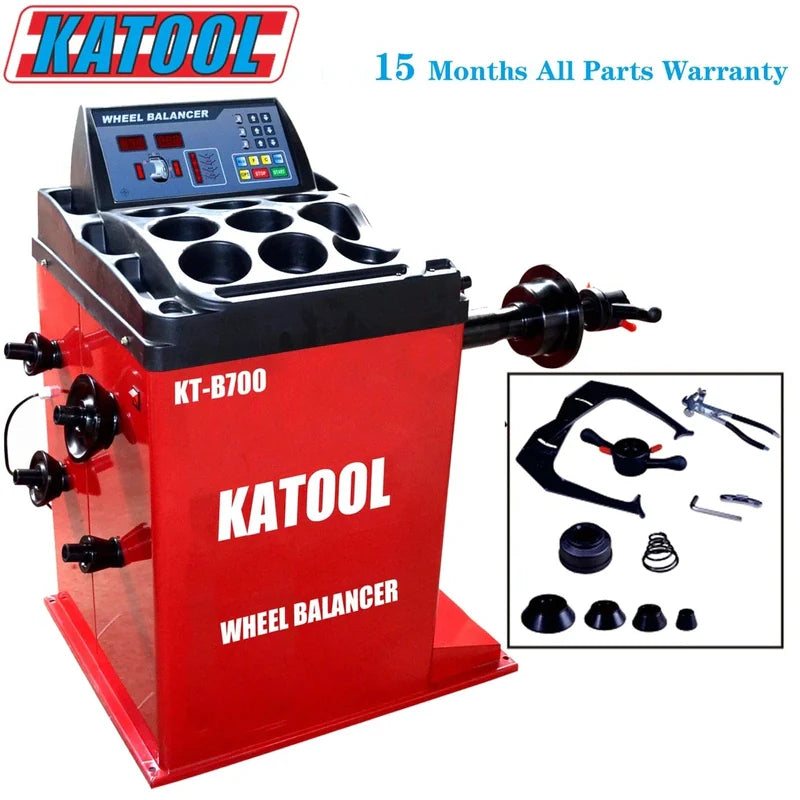

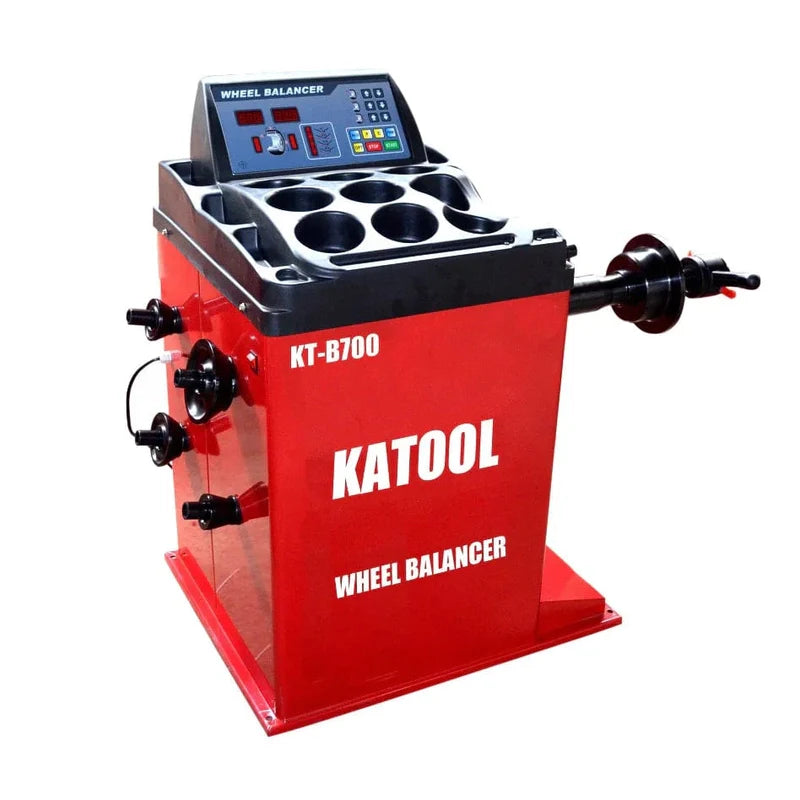

The Katool KT-B700 is a wheel balancer built around construction details that directly affect long-term accuracy and reliability. The frame is 3mm high-strength steel with solid welding to minimize vibration during operation — vibration in the base is one of the primary causes of inconsistent readings on lesser machines. The all-in-one pressure sensor support uses 8mm-thick bottom and side boards, a heavier spec than standard, which keeps the sensor stable and maintains measurement precision over time.
The motor uses pure copper winding, which dissipates heat faster and maintains output more consistently than aluminum-wound alternatives — translating to a lower failure rate and a longer service life under daily shop use. The 36mm shaft thread undergoes quenching treatment for hardness and wear resistance, which matters on a component that takes the load of every wheel mounted on the machine. The computer board is moisture-proof, dust-proof, and antistatic, practical protection in a shop environment where a standard board would degrade faster. Multiple balance modes cover different rim types without requiring manual workarounds, and the built-in self-calibration program with double-side calibration eliminates preset parameters — the machine calibrates itself rather than relying on technician-entered values that drift over time. Ounce/Gram and MM/Inch unit switching covers both domestic and import vehicle workflows. An optional wheel guard is available, and the extended shaft accommodates wider wheels without an adapter.
The KT-B700 suits tire shops and service centers that balance wheels daily and need a machine that holds calibration without constant adjustment, independent repair shops adding balancing capability and wanting a unit built to outlast entry-level options, and dealership service departments where consistent accuracy across a high volume of vehicles is a baseline requirement.
Features

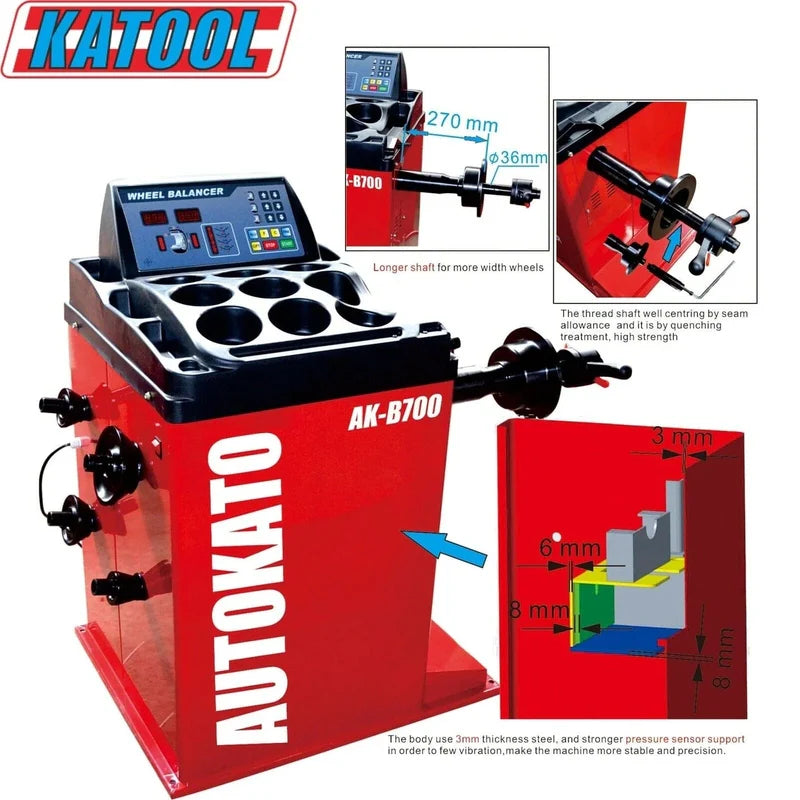

- Heavy-duty 3mm-thick steel body construction with solid, high-strength welding for minimal vibration and long-lasting durability.
- All-in-one pressure sensor support design with 8mm-thick bottom and side boards, ensuring stable sensor performance and consistently high measurement precision.
- Premium motor with pure copper winding delivers greater power output, faster heat dissipation, a lower defect rate, and an extended service life.

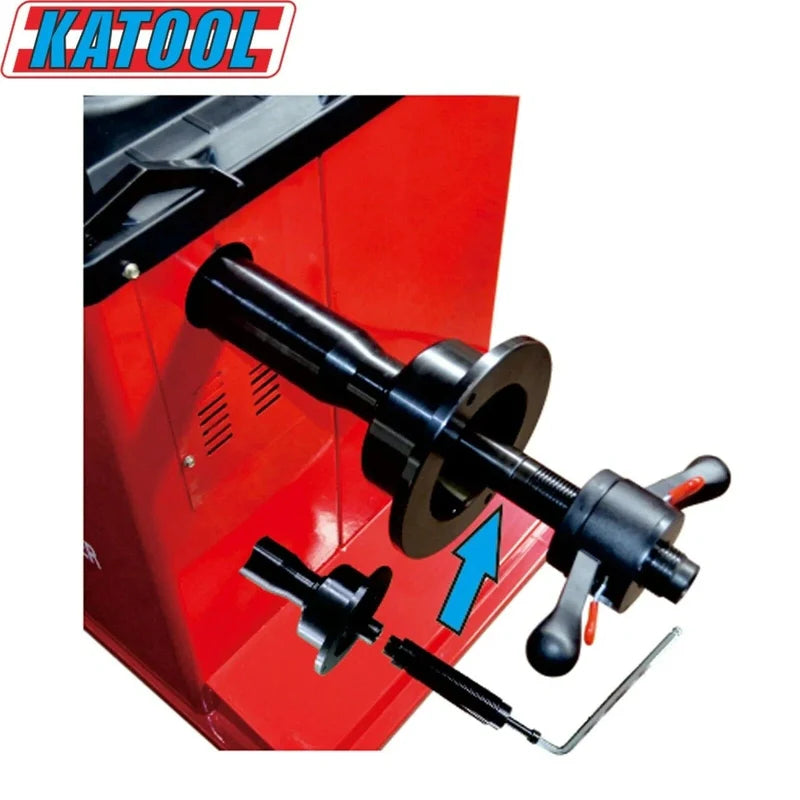

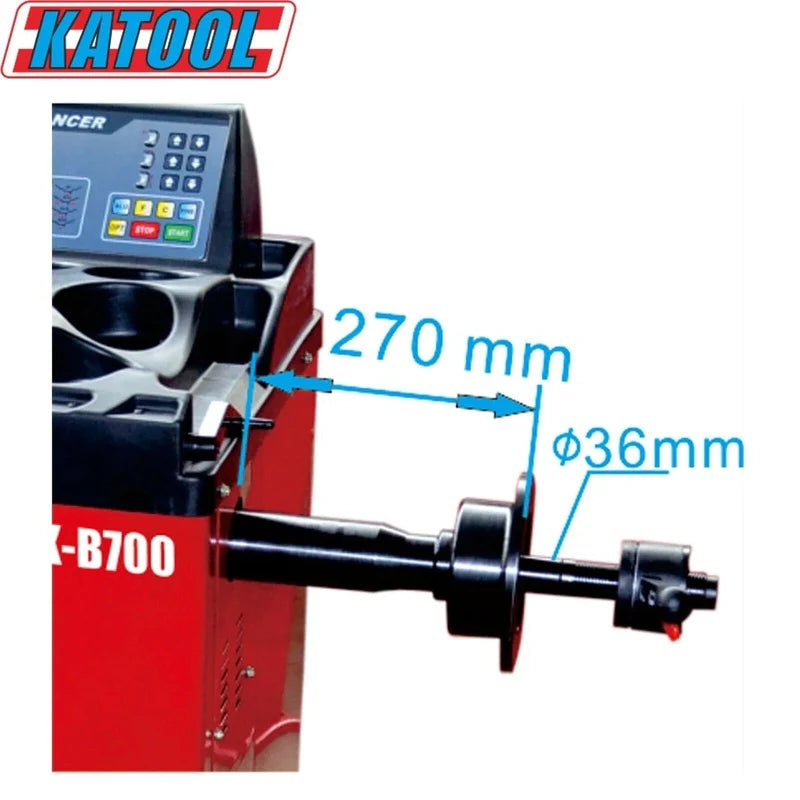

- 36mm shaft thread undergoes quenching treatment for superior strength and reliable long-term performance under heavy use.
- Advanced welding technology on the computer board provides effective moisture, dust, and antistatic protection for dependable operation in shop environments.
- Multiple balance modes accommodate different rim types, ensuring greater accuracy across a wide variety of wheel configurations.
- Built-in fault diagnosis and self-calibration program with dual-side calibration capability — no preset parameters required, making it straightforward and intuitive to operate.
- Flexible unit selection supports both Ounce/Gram and MM/Inch measurements to suit different user preferences and regional standards.
- High-quality integrated power board ensures stable, consistent, and reliable operation throughout daily use.
- Optional wheel guard available for added protection during balancing operations.

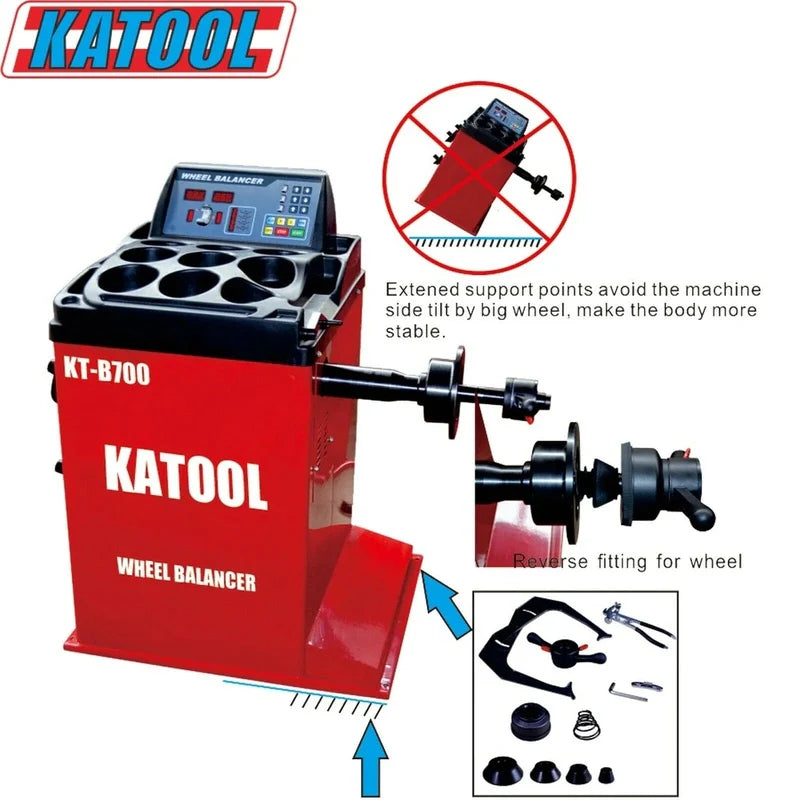

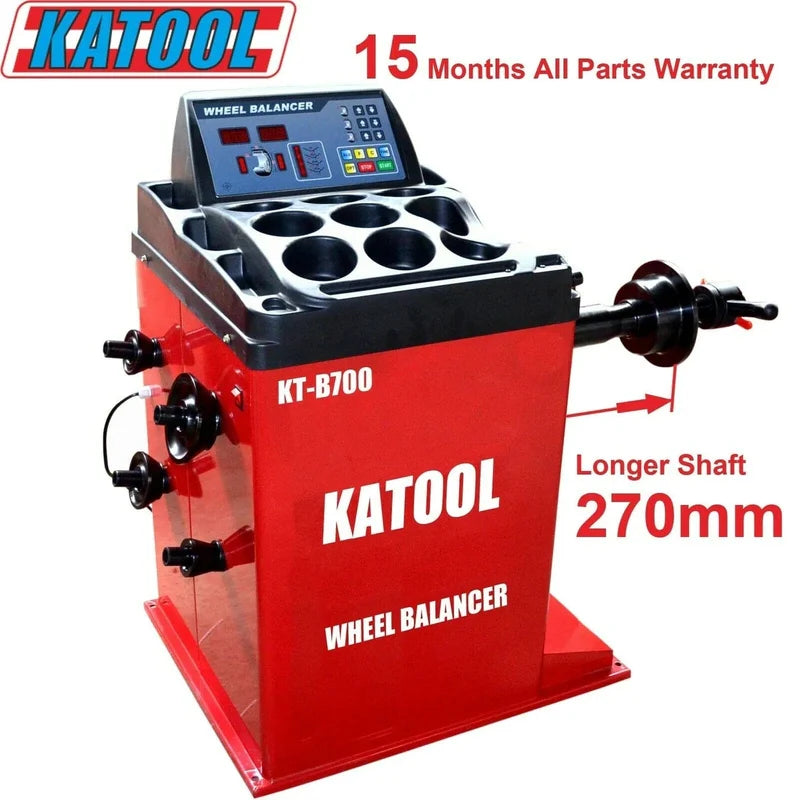

- Extended shaft design offers compatibility with wider wheels for greater versatility across vehicle types.
Specifications
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |

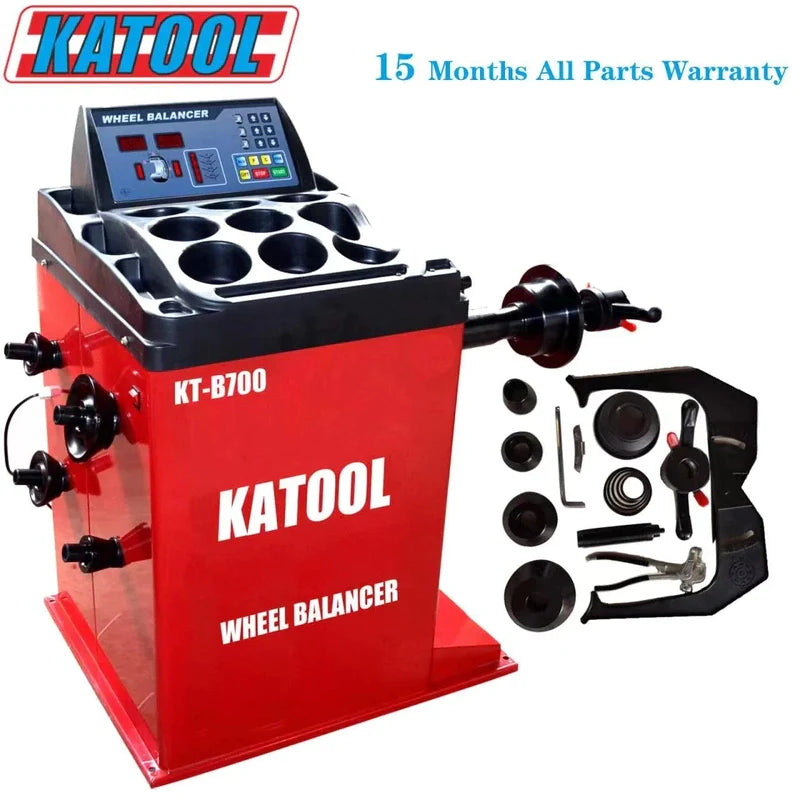

Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered:
- Cylinders, power units, motors, displays, and electronics.
- Vehicle lifts receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
