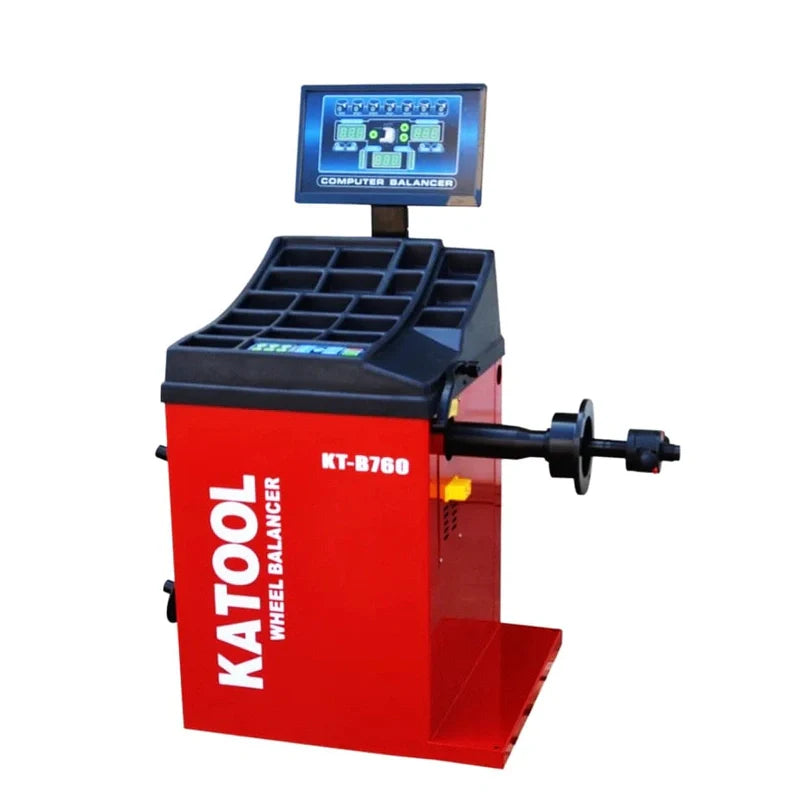

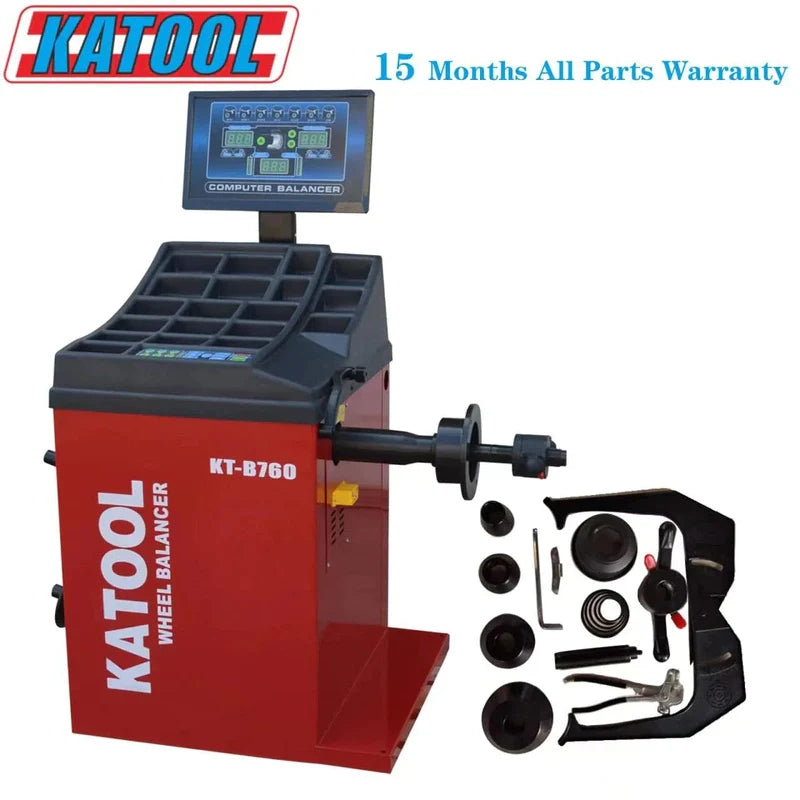

The Katool KT-B760 is a wheel balancer built on the same proven platform as the rest of the KT-B series: 3mm high-strength steel frame, 8mm pressure sensor support boards on both the bottom and sides, pure copper motor winding for faster heat dissipation and longer service life, and a 36mm quench-treated shaft for lasting strength under daily use. The computer board is moisture-proof, dust-proof, and antistatic — practical protection in a working shop environment.
The automatic measurement ruler captures A and D values without manual input, so wheel distance and rim diameter are read automatically on every balance rather than entered by hand. That eliminates a step and removes a common source of input error in high-volume balancing work. Multiple balance modes cover different rim types for accurate results across a mixed vehicle workflow, and the built-in self-calibration with double-side calibration and no preset parameters keeps the machine dialed in without technician-managed calibration routines. Ounce/Gram and MM/Inch unit selection handles both domestic and import vehicles. The longer shaft accommodates wider wheels, and an optional wheel guard is available for shops that require one.
The KT-B760 is a strong fit for tire shops and service centers that need reliable automatic measurement on a daily balancing workload, independent repair shops that want a well-built balancer without a top-tier price tag, and any operation running a mix of standard and wider-profile wheels that needs shaft compatibility built in.
Features
- Automatic measurement ruler enables auto-input of A and D values, streamlining setup and reducing manual entry errors.
- Heavy-duty 3mm-thick steel body construction with solid, high-strength welding for minimal vibration and lasting durability.
- All-in-one pressure sensor support design with 8mm-thick bottom and side boards, ensuring stable sensor performance and consistently high measurement precision.
- Premium motor with pure copper winding delivers greater power output, faster heat dissipation, a lower defect rate, and an extended service life.
- 36mm shaft thread undergoes quenching treatment for superior strength and reliable long-term performance under heavy use.
- Advanced welding technology on the computer board provides effective moisture, dust, and antistatic protection for dependable operation in shop environments.
- Multiple balance modes can be matched to different rim types, ensuring greater accuracy and a more precise balance result across a wide variety of wheel configurations.
- Built-in fault diagnosis and self-calibration program with dual-side calibration capability — no preset parameters required, making operation straightforward and intuitive.
- Flexible unit selection supports both Ounce/Gram and MM/Inch measurements to suit different user preferences and regional standards.
- High-quality integrated power board ensures stable, consistent, and reliable performance throughout daily use.
- Optional wheel guard available for added protection during balancing operations.
- Extended shaft design offers compatibility with wider wheels for greater versatility across vehicle types.
Specifications
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
110V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered:
- Cylinders, power units, motors, displays, and electronics.
- Vehicle lifts receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
Resources
For more detailed information and guidance, you can download the following:
