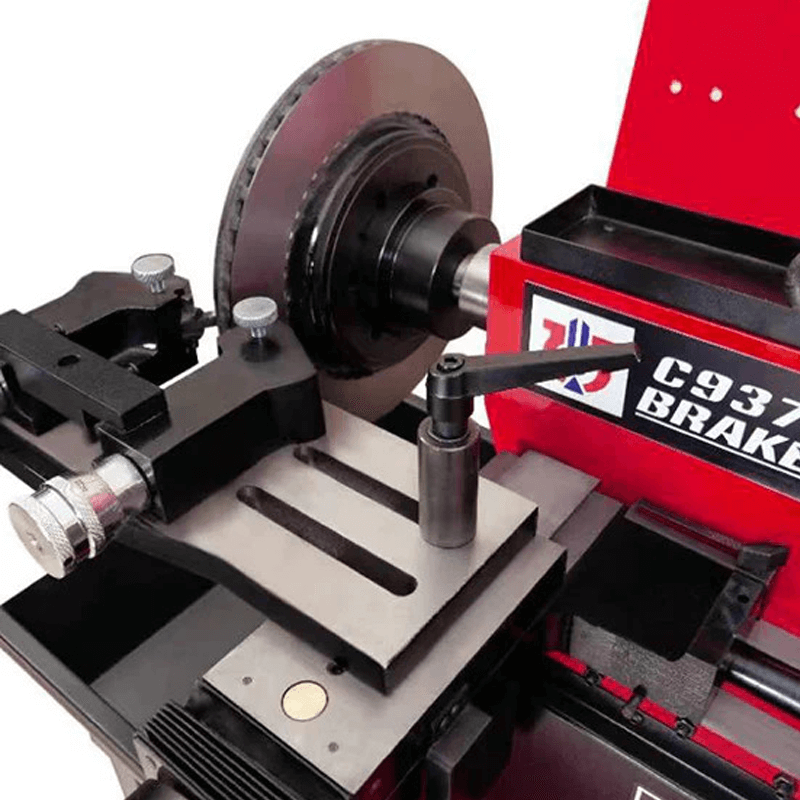

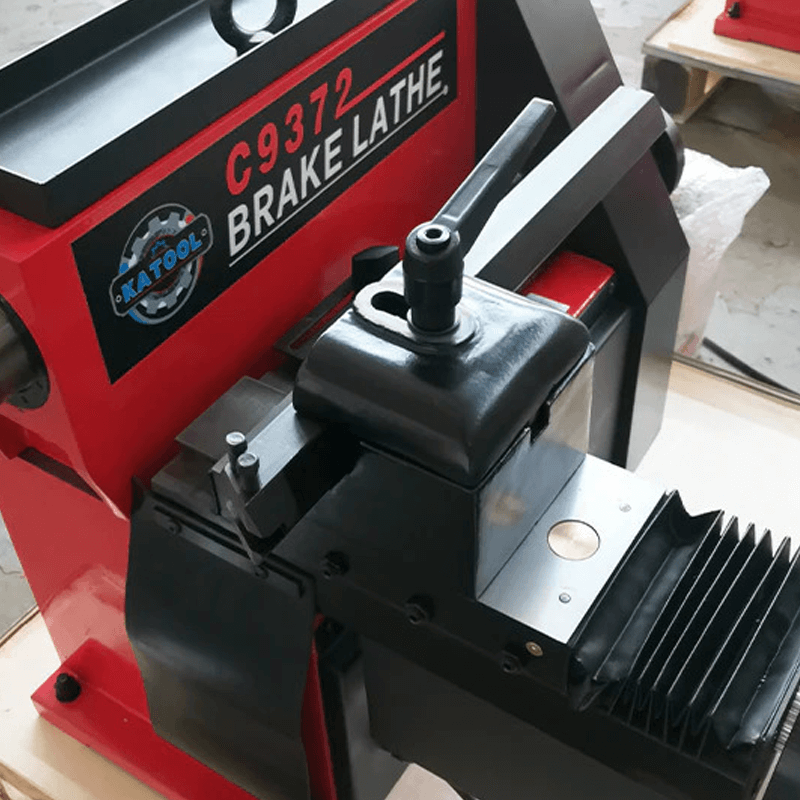

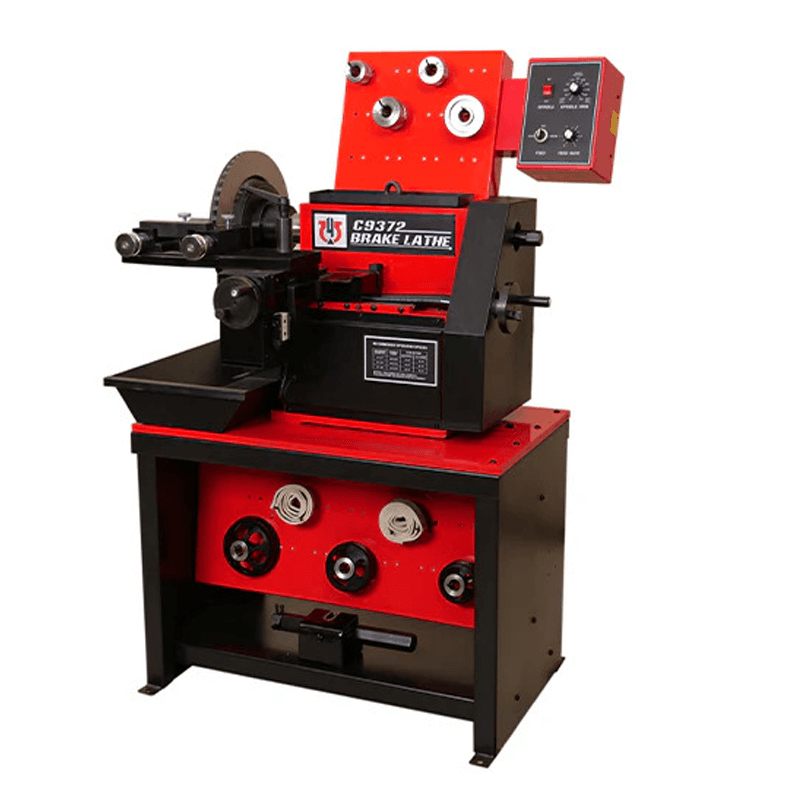

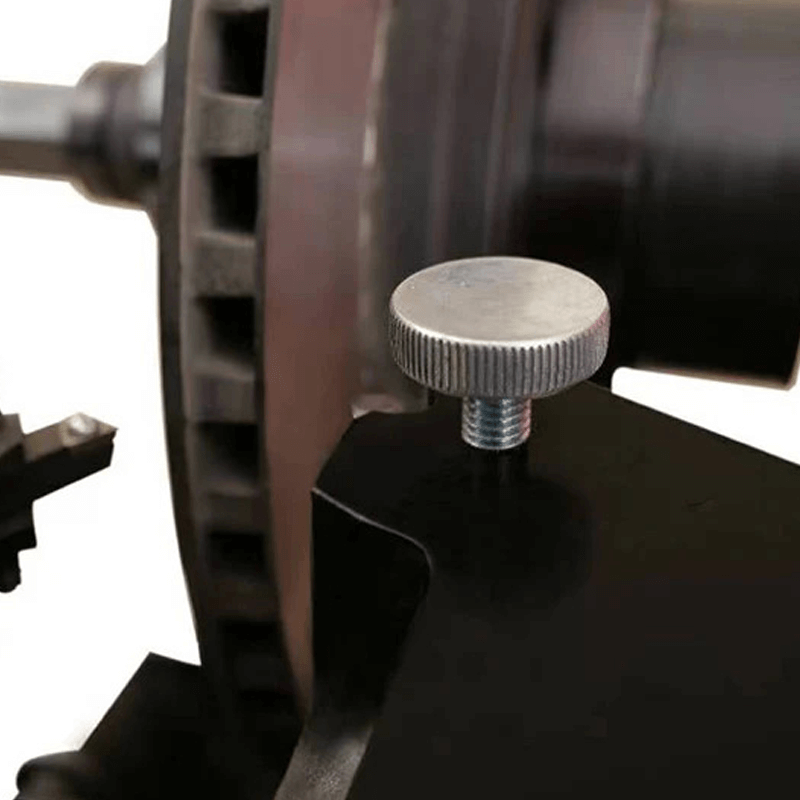

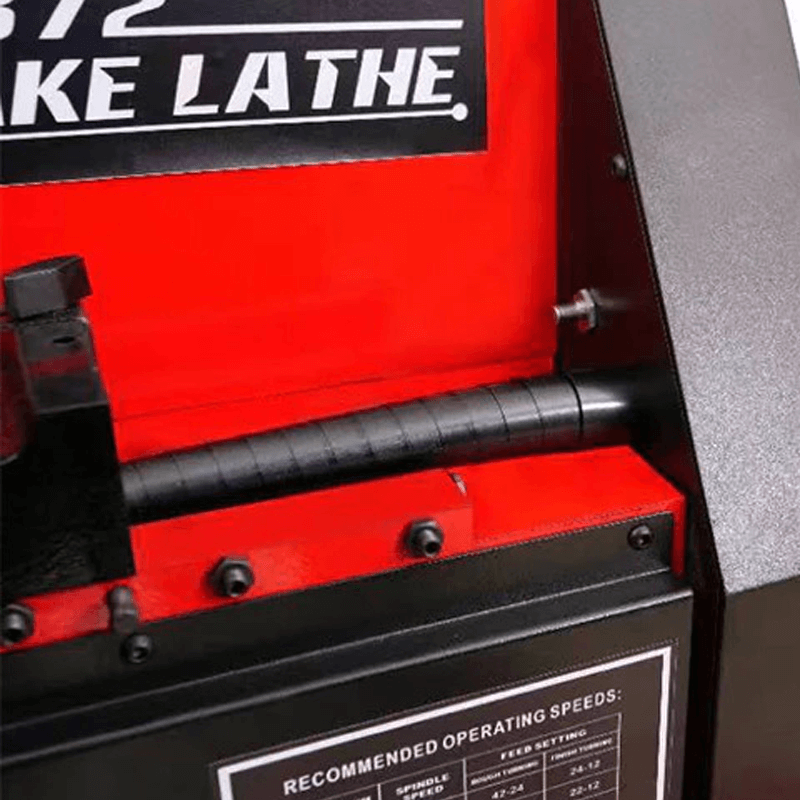

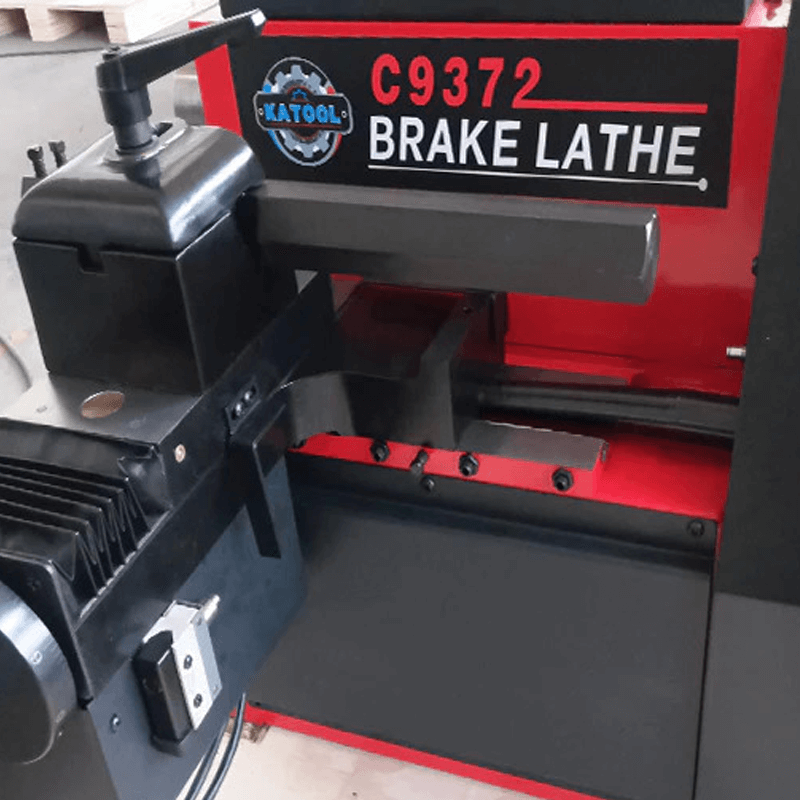

Katool KT-C9372 Brake Lathe Machine

The Katool C9372 is a combination disc and drum brake lathe that handles both rotor and drum machining on a single machine — covering rotor diameters from 4" to 20" (102–508mm) and drum diameters from 6" to 19.5" (152–500mm). That range accommodates the majority of passenger cars, light trucks, and SUVs without adapter swaps for different vehicle sizes. A quick-changeover design lets you transition between disc and drum work without a lengthy teardown between jobs.

The infinitely adjustable feed rates — not stepped presets — give the operator direct control over cutting speed throughout the job. That matters when moving between a rough cut to clean up a heavily worn rotor and a finish pass that determines surface quality. The difference between a stepped and infinite feed adjustment shows up in the final result, particularly on rotors where surface finish affects brake pad seating and noise. An automatic stop function halts the machine at the end of the cut rather than requiring the operator to monitor and intervene, which reduces the chance of overcutting and keeps the workflow consistent. A comprehensive adapter package ships with the machine to cover a broad range of brake components without sourcing additional tooling separately.

The C9372 is a practical fit for auto repair shops that handle brake service regularly and want to resurface rather than replace where the rotor or drum still has material to work with, brake and alignment specialists who need a reliable lathe that covers both disc and drum in a single footprint, and dealership service departments processing a variety of makes and models where rotor and drum size varies significantly across the vehicle mix.

Features

• Versatile Machining Capabilities: Handles rotor diameters from 4"–20" (102–508mm) and drum diameters from 6"–19.5" (152–500mm), covering a broad range of brake service applications.

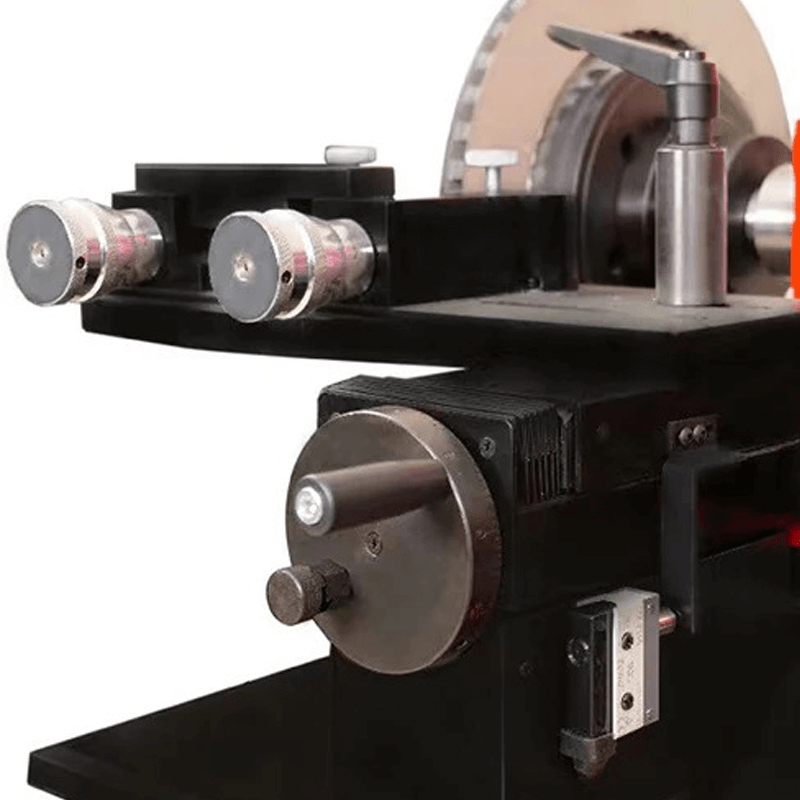

• Adjustable Feed Rates: Infinitely variable feed rate control allows for precise cutting speed adjustments, delivering optimal finish quality for both rough cuts and fine finishing work.
• Quick Changeover Design: Engineered for fast, convenient transitions between rotor and drum machining, minimizing downtime and keeping workflow running efficiently.
• Automatic Stop Function: Automatically stops at the end of each cut cycle, enhancing operator safety and streamlining the overall machining process.

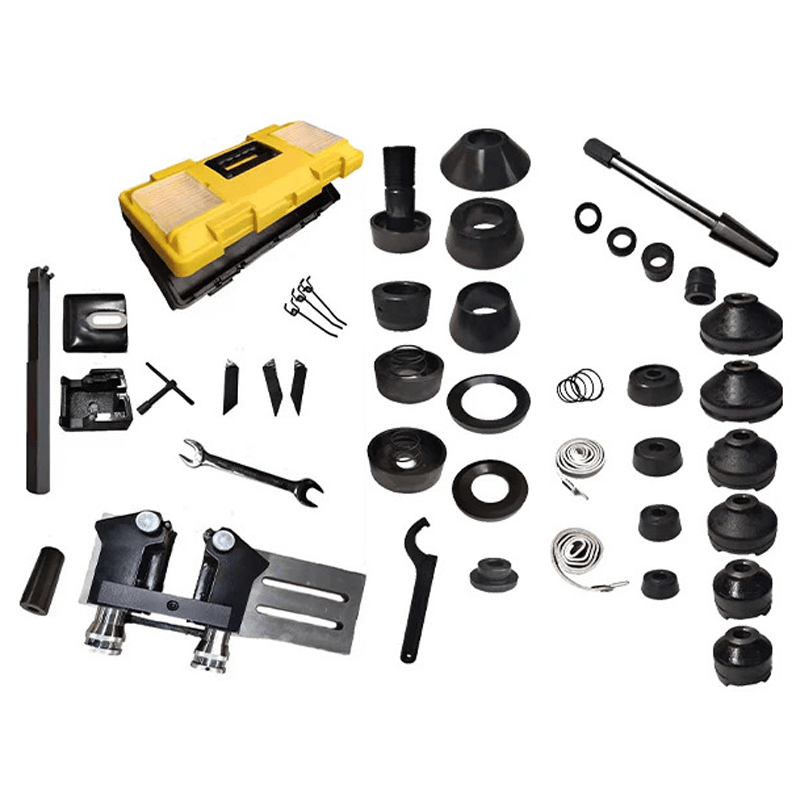

• Comprehensive Adapter Package: Comes fully equipped with a complete adapter package to accommodate a wide variety of brake components, expanding the machine's service capabilities right out of the box.

Specifications

• Rotor Diameter: 4”-20” (102-508mm)
• Maximum Rotor Thickness: 2.85” (73mm)
• Drum Diameter: 6”-19.5” (152-500mm)
• Drum Depth: 6.5” (165mm)
• Flywheel Diameter: 6”-24” (152-610mm)
• Spindle Weight Capacity (Standard 1” Arbor): 150 lbs (68 Kg)
• Spindle Speed: 70-320 RPM
• Feed rates - Rotor and Drum: 0”-0.026” (0mm-0.66mm)
• Feed Rates Per Minute: 2.54” (64.5mm)
• Shipping Weight: 661.3 lbs / 300 KG
• Motor: 110V/220V 50/60HZ
• Dimensions: 43.3 x 28.7 x 28.3 inches / 1100 x 730 x 720mm

Warranty

Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Vehicle lifts receive an additional three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved claims will receive replacement parts at no cost, including free shipping.

Important Notes:

• All claims are subject to review and approval by Katool's warranty and service department.
• Photos and/or videos of the defect may be required to process a claim.
• Do not disassemble any equipment before the issue has been assessed and a determination has been made.
• Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
• Labor is not covered under this warranty.

Resources

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
