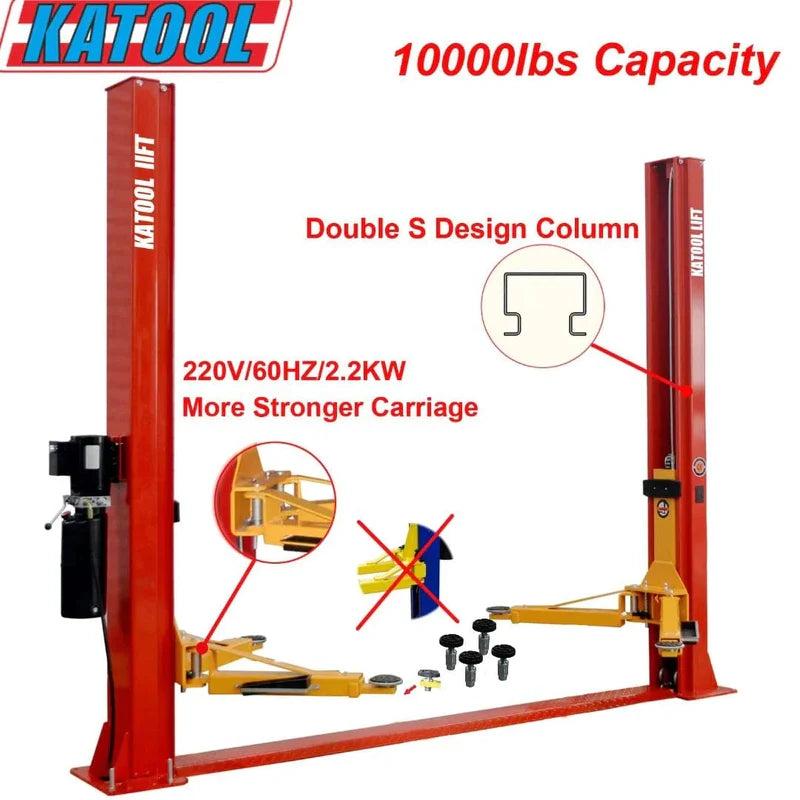

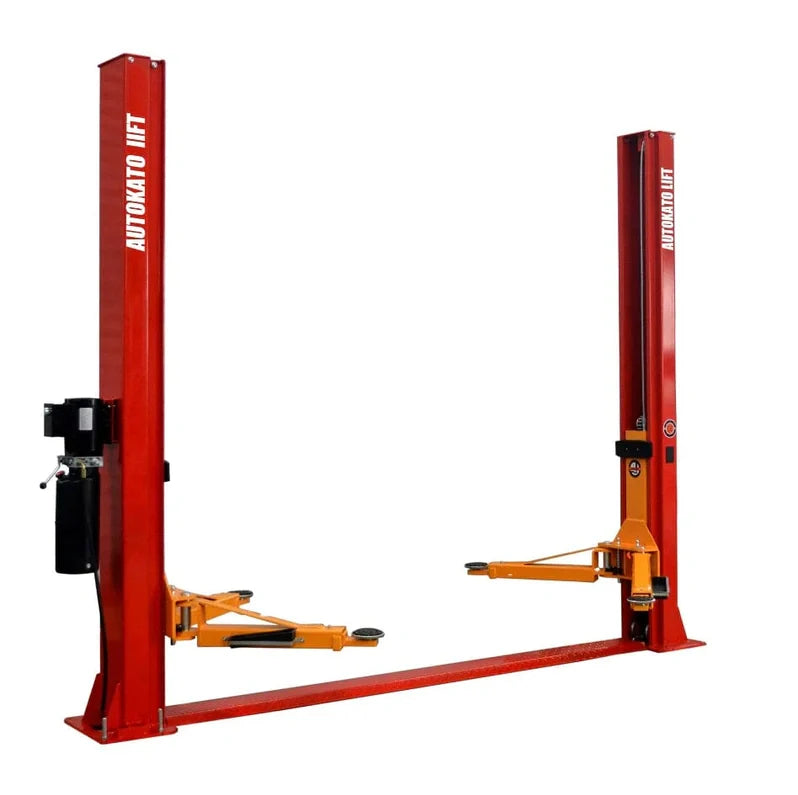

Katool KT-H100 Two Post Vehicle Lift 10,000lbs

The Katool KT-H100 is a 10,000-lb two-post lift with a base plate design that eliminates the overhead beam, simplifying installation and making delivery day more manageable. It's CE approved and load-tested to 115% dynamic and 150% static capacity. Power is available in either 220V or 110V/60Hz/1PH, so it fits most existing shop electrical setups without an upgrade. Dual hydraulic chain-drive cylinders — one per column — keep both arms rising in sync for smooth, balanced lifts throughout the full range of travel.

The symmetric arm design centers the vehicle between the columns, which works well for shops handling primarily passenger cars and lighter trucks. A dual-side manual safety release lets the operator trigger the lock from either column — useful in tighter bays where one side of the lift may be harder to reach. Rubber pad door opening protection guards vehicle finishes, and the included extension support adaptor sets at +30mm and +120mm cover vehicles where standard arm reach doesn't land on the correct lift points. Feet-protection safety guardrails with an integrated toolbox keep the base area clear and organized during operation.

The KT-H100 suits home garages and independent shops that want a CE-certified two-post without stepping up in capacity or cost, general repair operations working primarily with passenger cars and light trucks where symmetric arm positioning handles the full vehicle mix, and any shop that wants voltage flexibility to avoid electrical work before the lift goes in.

Features

• 10,000 lb Lifting Capacity: Built to handle a wide range of vehicles with confidence and reliability.
• CE Approved and Certified: Meets rigorous 115% dynamic and 150% static load capacity standards for verified safety and compliance.

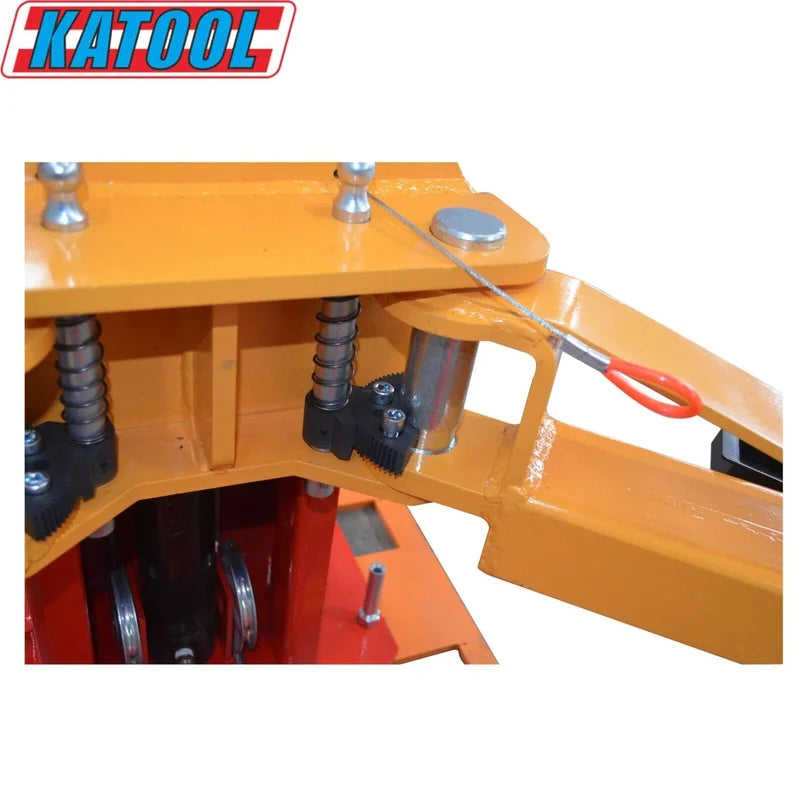

• Dual-Side Manual Safety Release: Provides secure, controlled lifting operations with the convenience of manual release access from either side.

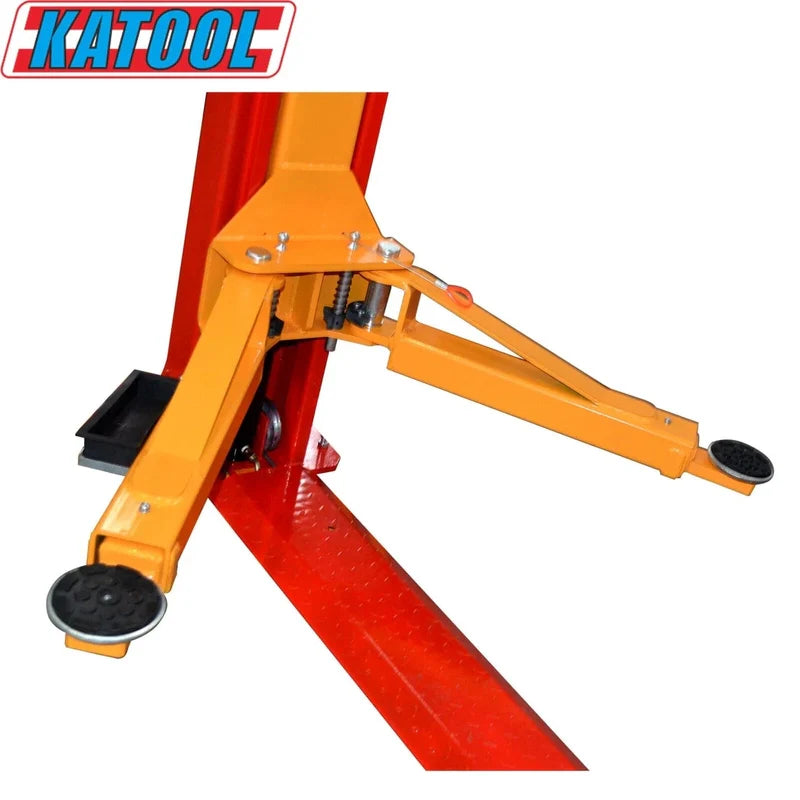

• Symmetric Arms: Delivers balanced, versatile lifting support suitable for a broad range of vehicle sizes and configurations.
• Base Plate Design: Provides a stable, low-profile foundation that simplifies installation and improves overall lift stability.
• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth, consistent, and powerful lifting performance with every use.
• Rubber Pad Door Opening Protection: Safeguards vehicle doors and body panels from contact or damage during lifting operations.
• Adjustable Extension Support Adaptor Sets: Includes +30mm and +120mm adaptor sets to accommodate a wider range of vehicle lift points and configurations.
• Feet-Protection Safety Guardrails: Shields the operator's feet during use, with an integrated toolbox included for added on-the-spot convenience.
• High-Quality Hydraulic System: Available in 220V/60Hz/1PH as standard, with an optional 110V/60Hz/1PH configuration for flexible installation and reliable performance.


Specifications

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Vehicle lifts receive an additional three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved claims will receive replacement parts at no cost, including free shipping.

Resources

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
