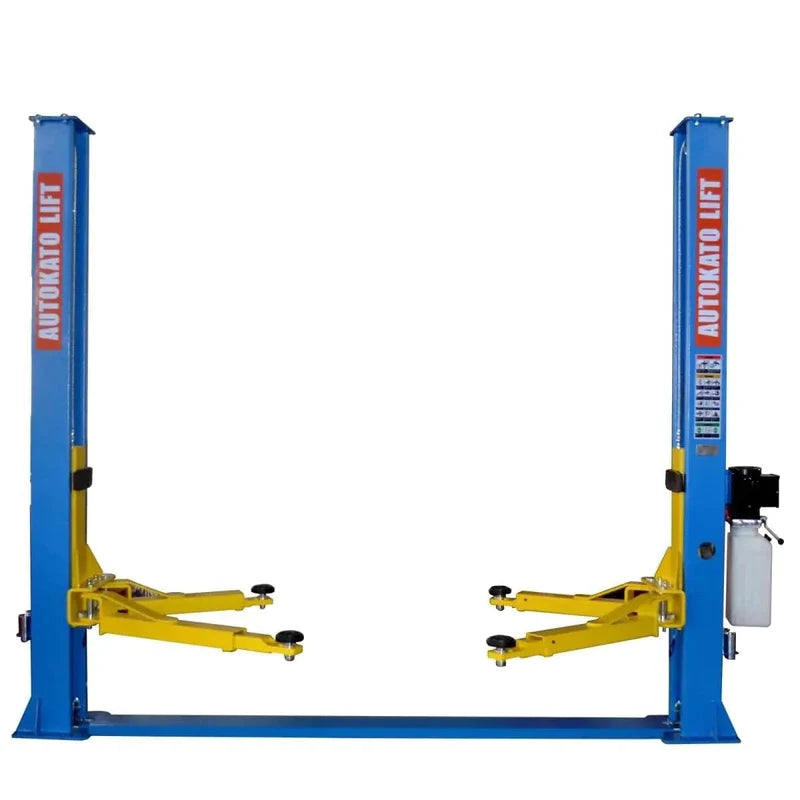

The Katool KT-H105 delivers 10,000 lbs of lifting capacity through a base plate two-post design — no overhead beam, faster installation, and a simpler delivery day. What separates it from every other lift at this price point is the power unit: the KT-H105 runs on a Bucher Hydraulics system, a Swiss-engineered, ISO 9001 certified hydraulic unit found in commercial and industrial equipment worldwide. No other lift in this class ships with Bucher Hydraulics standard.
Dual hydraulic chain-drive cylinders keep both arms rising at exactly the same rate — no lag, no uneven loading. The dual-side manual safety lock release gives you multi-position locking at any height, so you're working underneath with the arms mechanically secured rather than relying on hydraulic pressure alone.

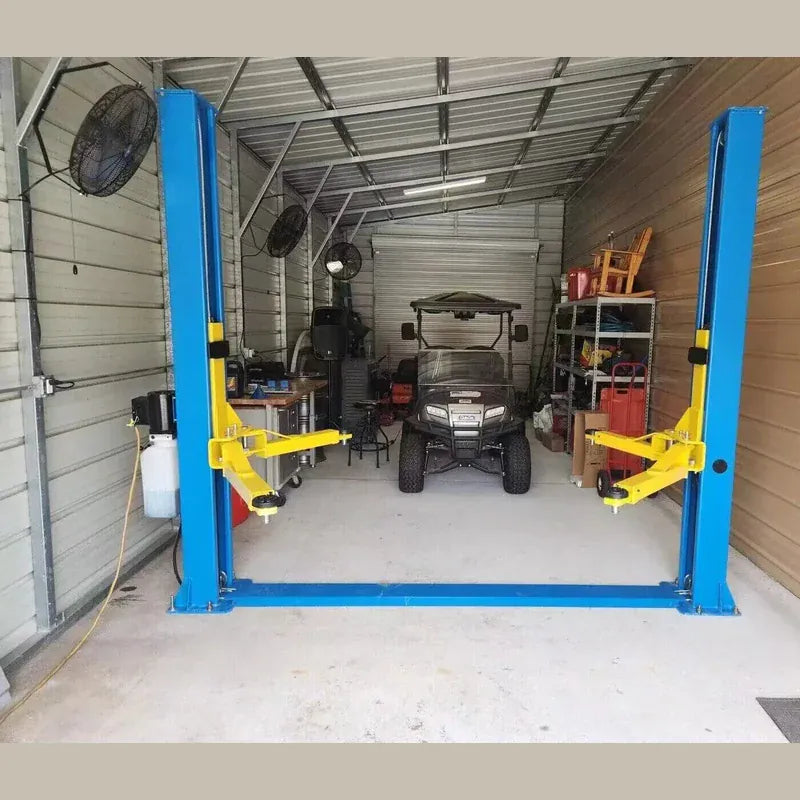

The KT-H105 is the right call for home garage builds that want commercial-grade hydraulics without a commercial price, professional repair shops that run lifts hard daily and want a power unit that was built for that, and fleet maintenance operations where hydraulic reliability directly affects uptime.
Will It Fit Your Garage?
Before you buy any two-post lift, check your ceiling and floor. The KT-H105 requires:
-
Ceiling Height: 11 ft minimum (110.9" overall height)
-
Floor Width: 12 ft minimum (140.4" overall width)
-
Drive-Through Clearance: 98.4" (fits full-size trucks and SUVs)
-
Concrete Thickness: 5.9" (150mm) minimum with a 3,000 PSI rating

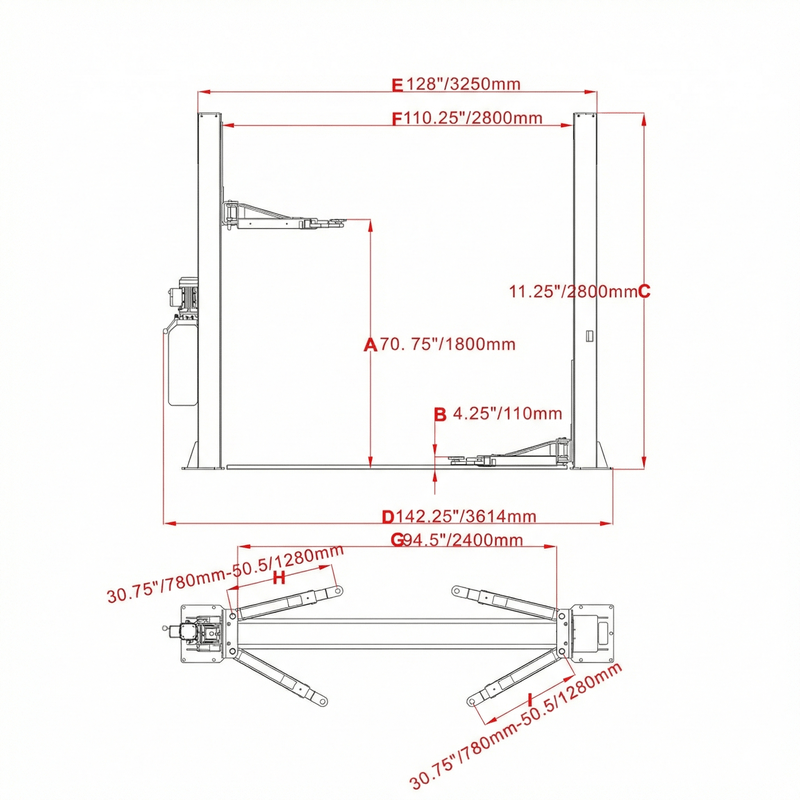

Specifications

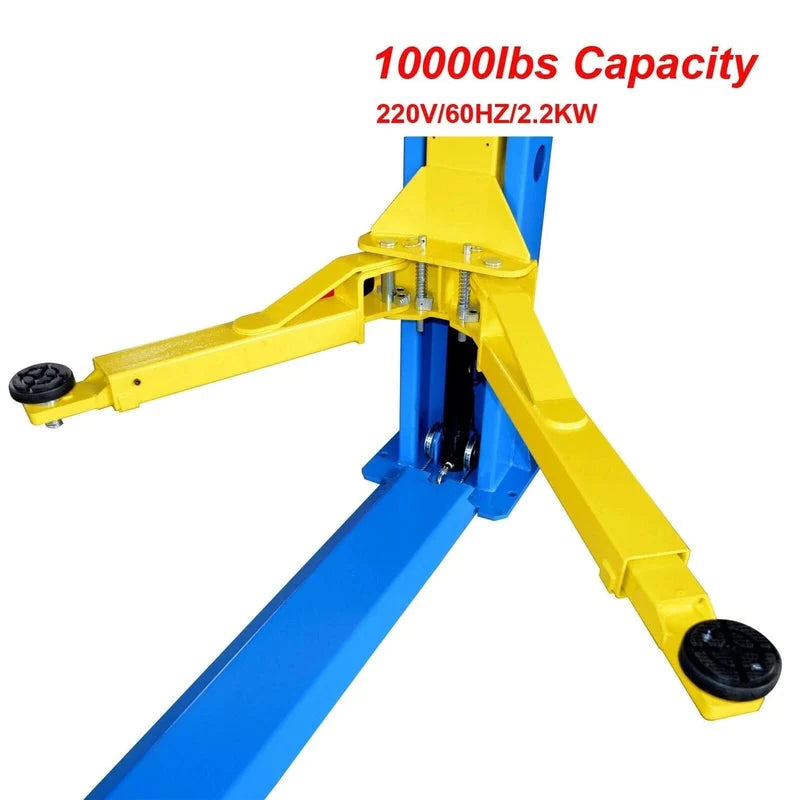

| Lifting Capacity |
10,000 lbs (4,500 kg) |
| Max Lifting Height |
70.8" (1,800mm) |
| Minimum Height |
3.9" (100mm) |
| Overall Height |
110.9" (2,818mm) |
| Overall Width |
140.4" (3,565mm) |
| Outside Column Width |
124.8" (3,170mm) |
| Inside Column Width |
110.2" (2,800mm) |
| Drive-Through Clearance |
98.4" (2,500mm) |
| Front Arm Reach |
29.5" – 46" (2-stage adjustable) |
| Rear Arm Reach |
35.4" – 58.2" (2-stage adjustable) |
| Motor |
220VAC / 60Hz / 1-Phase / 2.2KW |
| Net Weight |
1,256 lbs (570 kg) |
| Design |
Base Plate (no overhead beam) |
| Safety Lock Release |
Manual (dual-side) |
| Hydraulic System |
Bucher Hydraulics — dual chain-drive cylinders |

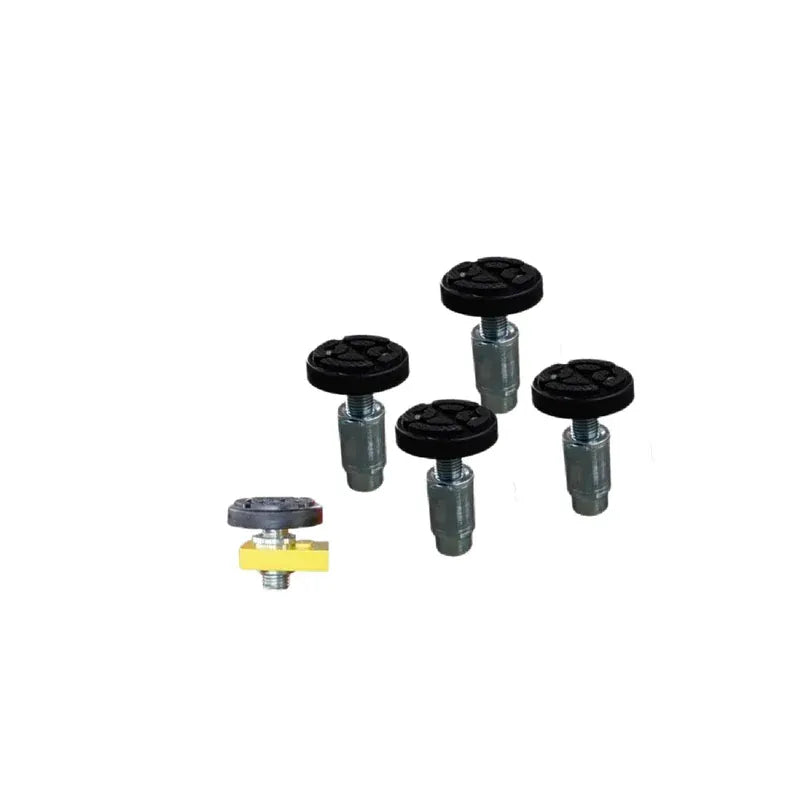

| Extension Adaptors |
Screw-on pads with +100mm adaptors (included) |
| Rubber Door Guards |
Included |
| Certification |
CE Approved (115% dynamic / 150% static tested) |
| Concrete Requirement |
5.9" (150mm) minimum, 3,000 PSI |
Warranty
-
1-Year Full Parts Warranty: Covers cylinders, power unit, motor, and all electronics, with free replacement parts and shipping.
-
3-Year Structural Warranty: Protects columns, arms, and base plates against structural defects.
-
Optional 2-Year Extended Warranty: Available for purchase for added long-term protection.
All approved warranty claims include free replacement parts and free shipping. Labor costs remain the responsibility of the installer or owner. Claims are handled by Katool's service team and may require photos or video documentation of the defect. Equipment must not be disassembled before the issue has been reviewed, as doing so may void the warranty.
Resources
For detailed installation instructions and operating guidelines:
