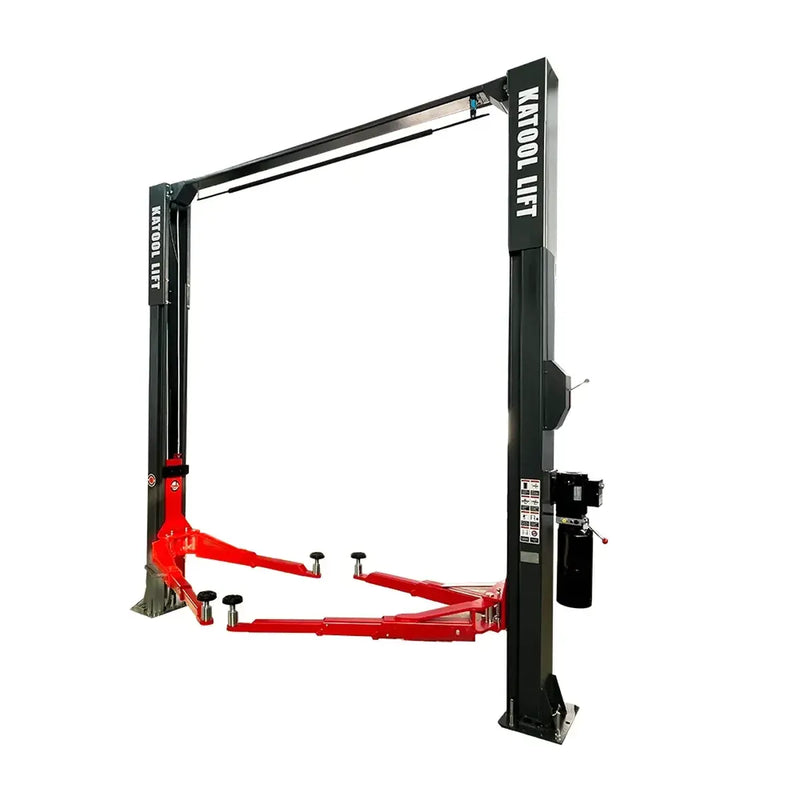

Katool KT-M140XD 14,000 lb 2-Post Overhead Clear-Floor Car Lift
Original price
$3,699.00
-
Original price
$3,699.00
Original price
$3,699.00
$3,699.00
-
$3,699.00
Current price
$3,699.00
| /
The Katool KT-M140XD is a 14,000-lb clear-floor two-post lift built specifically for full-size pickups, work vans, and light commercial vehicles. The overhead clear-floor design routes the equalizer cables above rather than underfoot, leaving the bay floor completely open for floor jacks, fluid carts, and rolling tool storage. Two features set it apart from standard two-post lifts at this capacity: double S-shaped columns that distribute load stress more evenly than rectangular tube and resist inward flex under heavy loads, and a direct-drive cylinder system that eliminates the chain entirely. Note: requires 220V single-phase, 60 Hz power.
Without a chain in the system, the direct-drive setup reduces moving parts, brings noise down to under 75 dB(A), and cuts the routine maintenance that chain-driven lifts require over time. The single-point lock release disengages both columns simultaneously for a synchronized, level descent ā both posts release together rather than independently, which reduces the risk of uneven drop during lowering. Rise time runs under 50 seconds; lowering takes 20 to 50 seconds depending on load. The 4 HP power unit handles the 14,000-lb rating without laboring under heavy commercial vehicles.

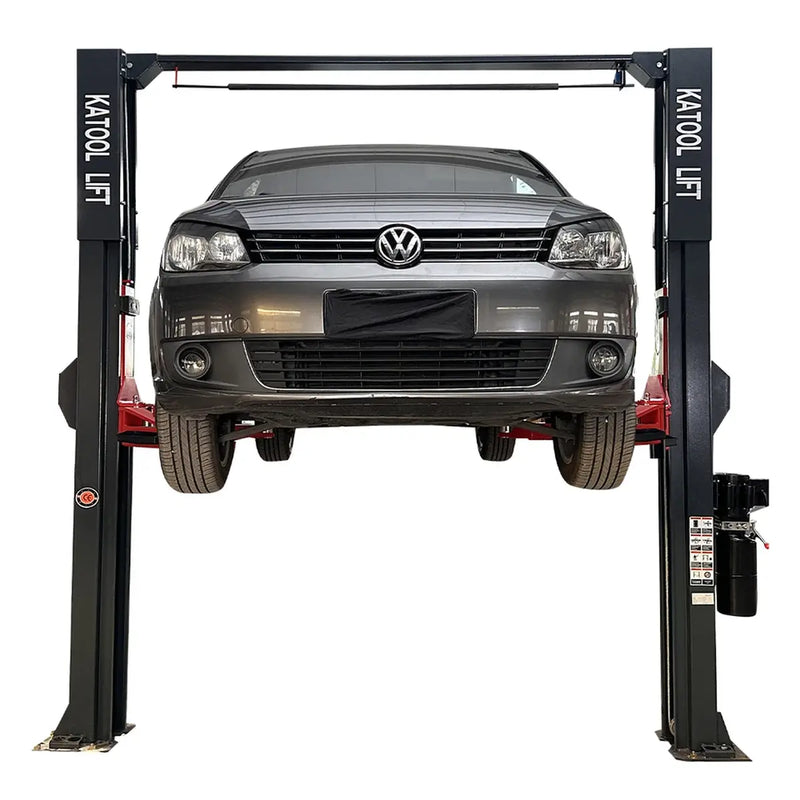

At 133.46 inches of drive-through clearance and a 72.83-inch maximum lift height, the KT-M140XD fits full-size trucks and vans with room for undercarriage, exhaust, and drivetrain access. Symmetric arms adjust to common lift points across trucks, SUVs, and vans, and the 4.33-inch minimum pad height handles lower-profile vehicles without adapter stacking.
The KT-M140XD suits fleet service operations running full-size pickups and work vans, commercial repair shops that need two-post capacity beyond the standard 10,000ā12,000 lb class, and high-volume professional bays where direct-drive reliability and reduced maintenance matter across a full day of lifting cycles.
Double S column profile resists inward flex under load.Direct-drive cylinder eliminates the chain drive used on lower-tier 2-post lifts.72.83-inch maximum lifting height clears most full-size trucks and vans.Single-point lock release synchronizes both columns for level descent.
Features
14,000 lb Lifting Capacity: Sized and rated for full-size pickups, work vans, and light commercial vehicles.

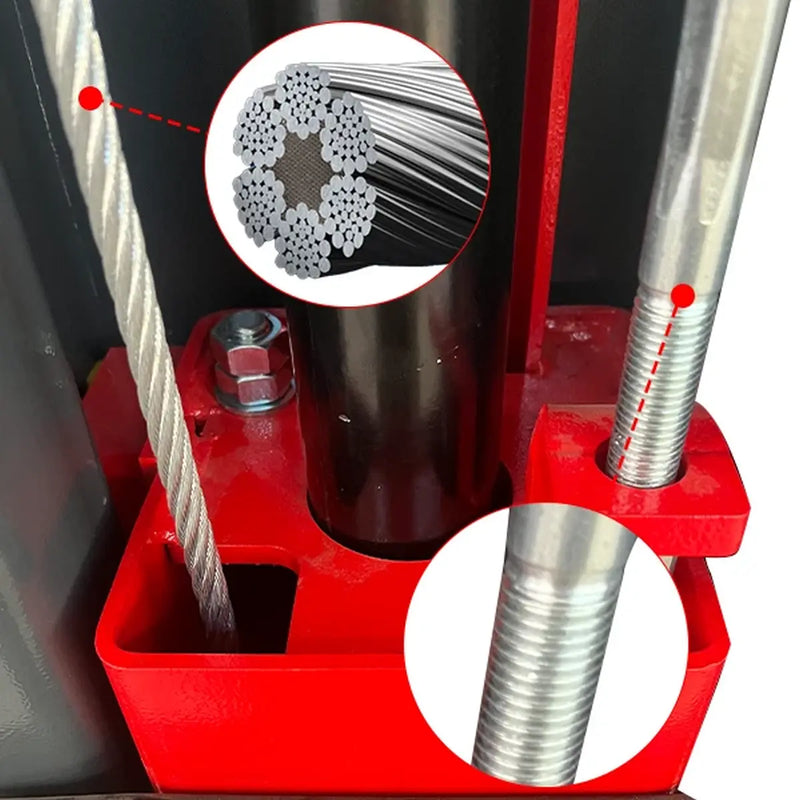

Overhead Clear-Floor Design: Equalizer cables routed overhead keep the floor completely clear for jacks, fluid carts, and rolling tool storage.
Direct-Drive Cylinder ā No Chain: Fewer moving parts result in quieter operation under 75 dB(A) and reduced long-term maintenance compared to traditional chain-driven two-post lifts.

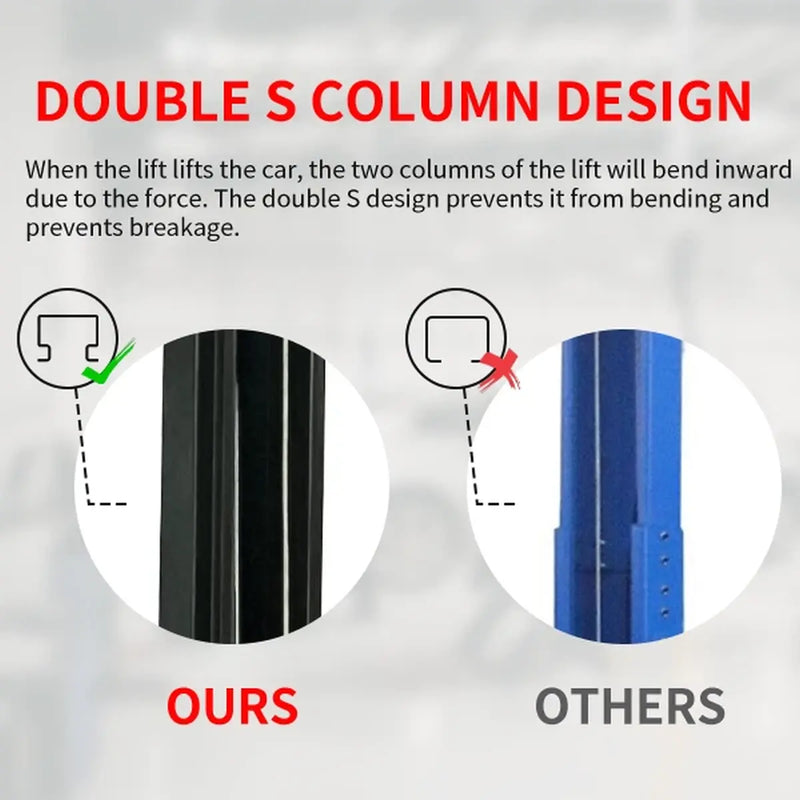

Double S-Shaped Columns: Engineered column profile effectively distributes load stress and resists inward flex throughout every lifting cycle.
Single-Point Lock Release: Both columns disengage simultaneously from a single control point for smooth, synchronized descent.

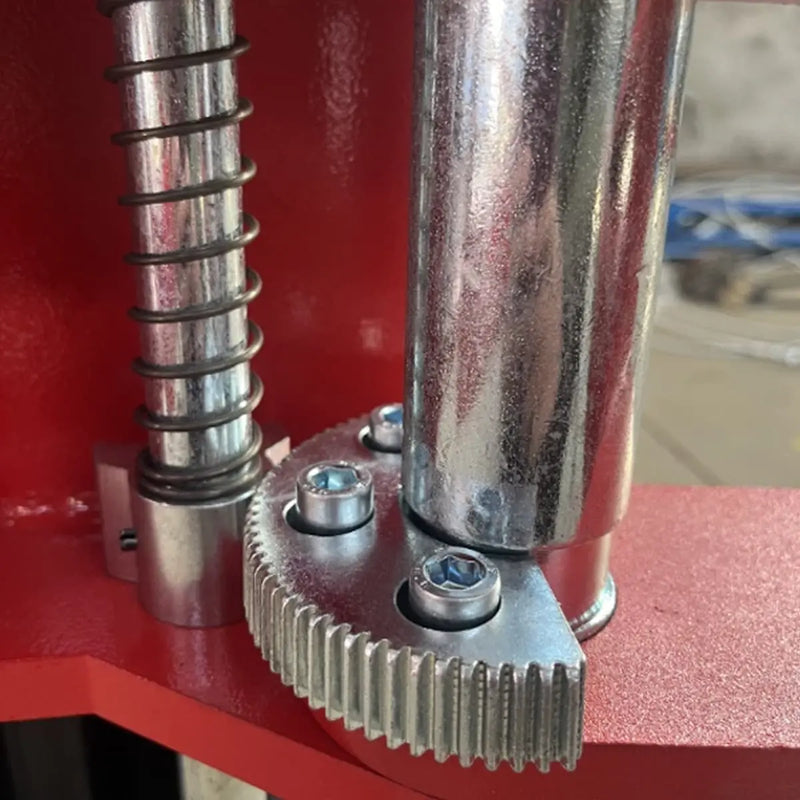

Symmetric Lifting Arms: Fully adjustable arms reach common lifting points on a wide range of trucks, SUVs, and vans.
Industrial Alloy-Steel Construction: Precision-welded columns with reinforced load-bearing points deliver the structural integrity needed for demanding daily use.
Wide Drive-Through Clearance: 133.46 inches of clearance between columns ensures easy access and comfortable positioning for full-size vehicles.
