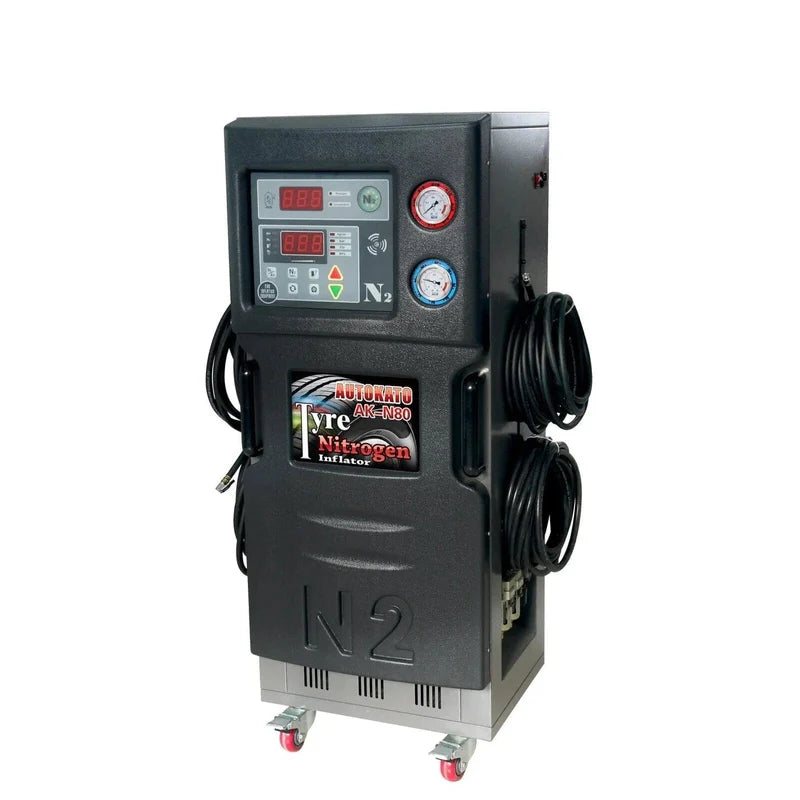

The Katool KT-N80 is a dedicated tire nitrogen generator built for shops that want fast, consistent, and high-purity nitrogen inflation across all vehicle types. What sets it apart at this price point is its dedicated chip control paired with a precision pressure sensor, which together automate the entire inflation cycle — from target-pressure setting to cutoff — without manual intervention. Nitrogen purity is adjustable, so operators can dial in the output to match different service requirements.
The automation goes further than simple inflation. When connected to a tire, the KT-N80 pre-sets and holds the target pressure, filling automatically once the hose is attached. For tires coming in completely flat, it runs a dedicated 0-pressure mode that first vacuumizes the tire before inflating — a critical step for achieving true nitrogen purity rather than just topping off what's already inside. An energy efficiency management system also monitors and reduces power draw during operation, which adds up in a busy shop running the unit throughout the day.
The KT-N80 is a strong fit for independent repair shops, tire service centers, and dealership service bays that want to offer nitrogen inflation without relying on pre-filled tanks or manual pressure checks. It's also a smart pick for fleet maintenance operations where consistent tire pressure across a large number of vehicles directly impacts fuel economy and tire wear.
Features
- Fully hydraulic power system compatible with all vehicle wheel types
- Sleek design with high-efficiency, high-purity nitrogen generation
- Intelligent energy management system for optimized power consumption
- Adjustable nitrogen purity settings to suit a wide range of user requirements
- Automatically inflates tires to a pre-set pressure upon hose connection — safe, precise, and effortless
- First-time tire inflation includes an automatic vacuum and refill cycle to ensure maximum nitrogen purity

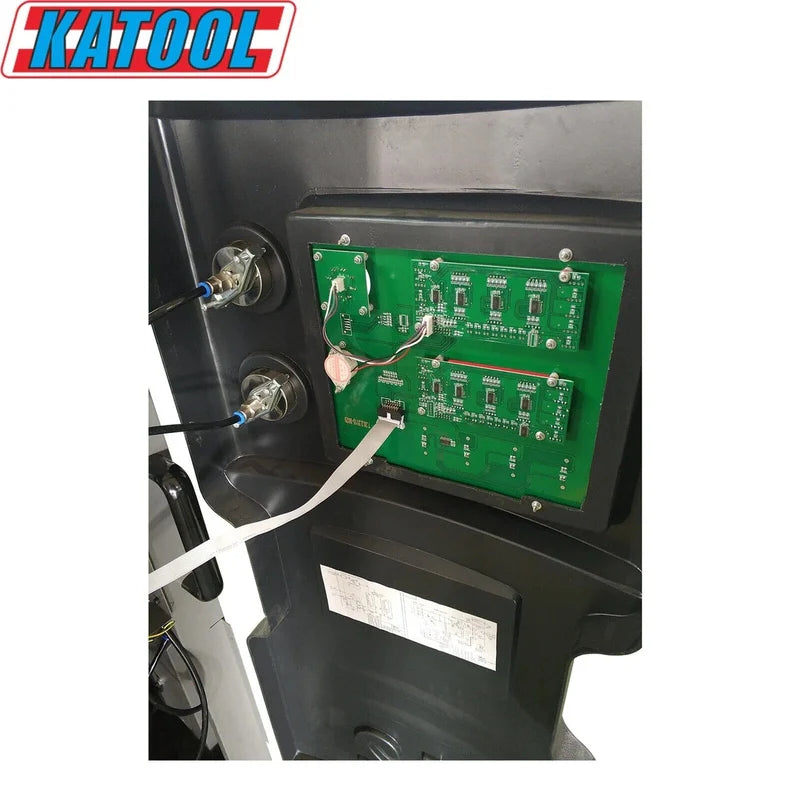

- Dedicated microchip control paired with a high-accuracy pressure sensor for reliable, consistent performance
- Special handling mode designed for zero-pressure (flat) tires
Specifications
|
Vehicle applicable:
|
Car & Van
|
|
Power supply:
|
AC110V 60HZ
|
|
Power consumption:
|
30W |
|
Power supply:
|
220V / 1PH / 60HZ |
|
Nitrogen purity :
|
95%-99.5%
|
|
Input pressure :
|
?10 Bar/1 MPa
|
|
Output pressure:
|
<8 Bar / 0.8 MPa |
|
Working temperature :
|
20?~+70? |
|
Measurement range :
|
5~145psi /0.3~10Bar |
| Precision : |
1 Psi /0.07 Bar |
| Display mode: |

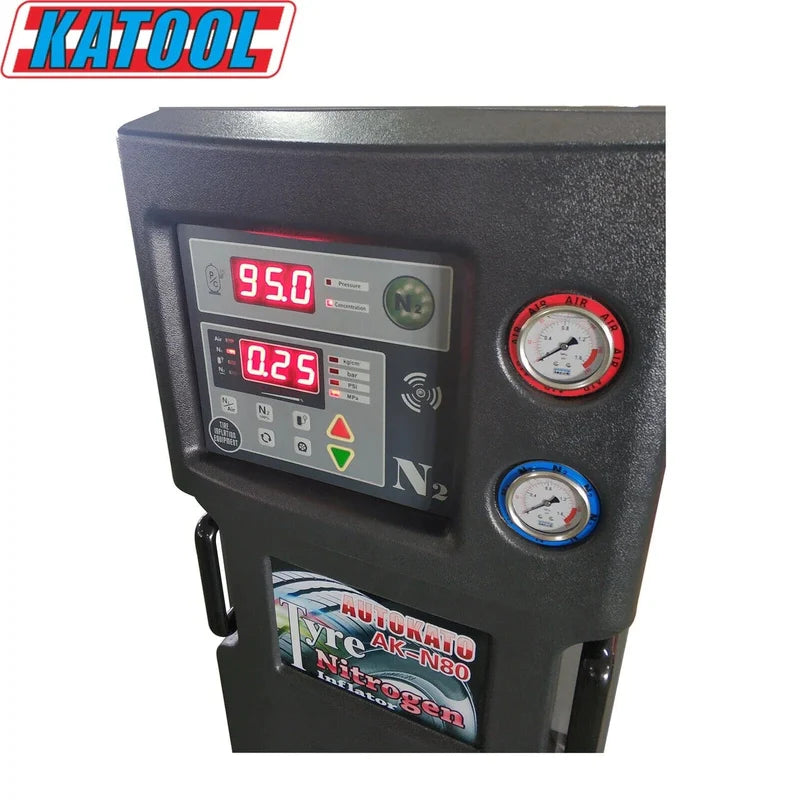

LED display |
| Tank size |

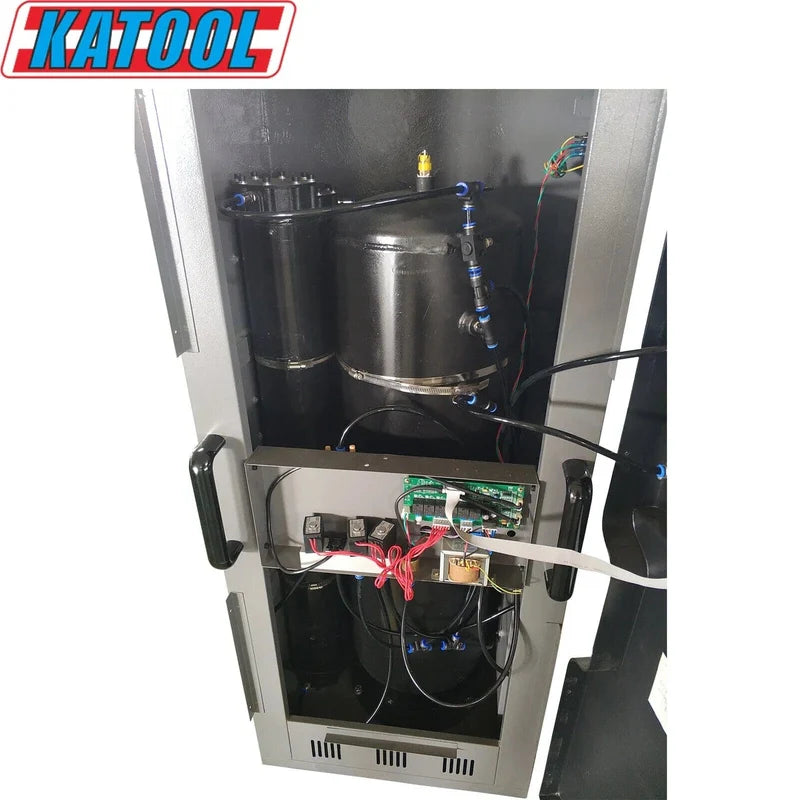

70L |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
Claims must be submitted within the active warranty period
Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
Approved replacement parts are provided at no cost, with free shipping included
