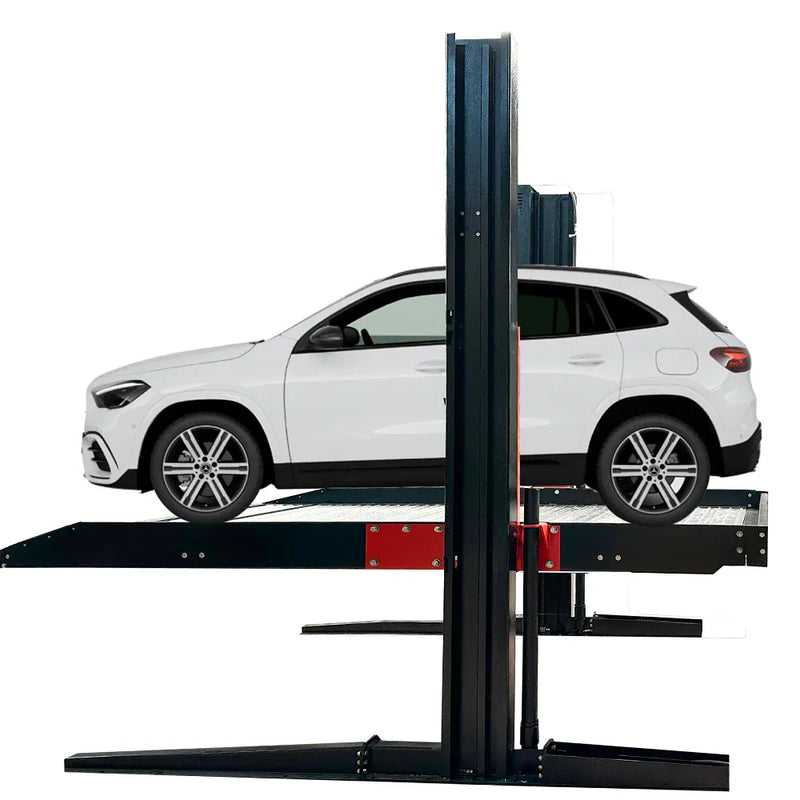

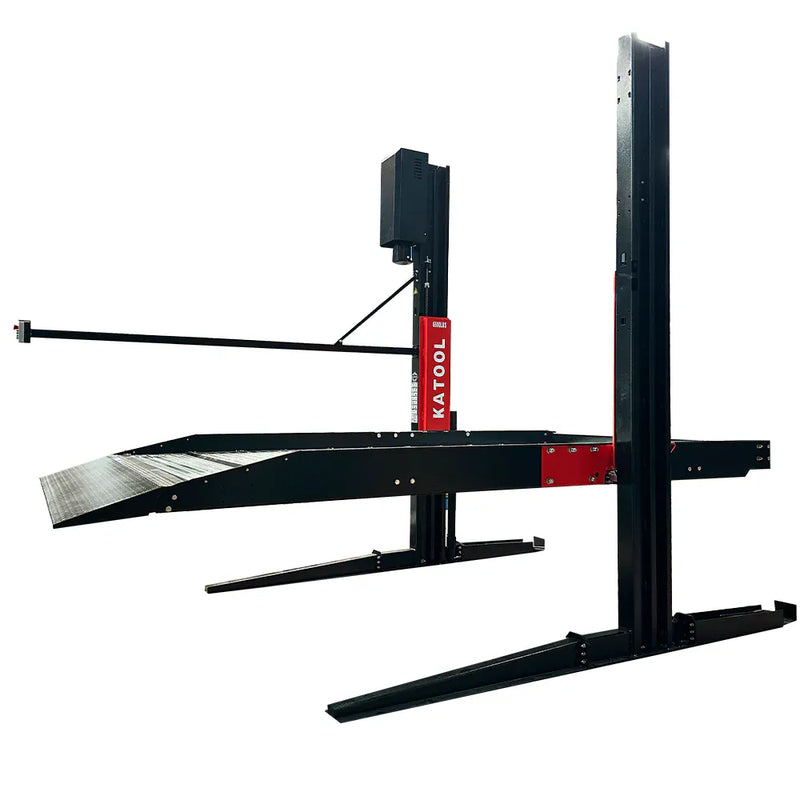

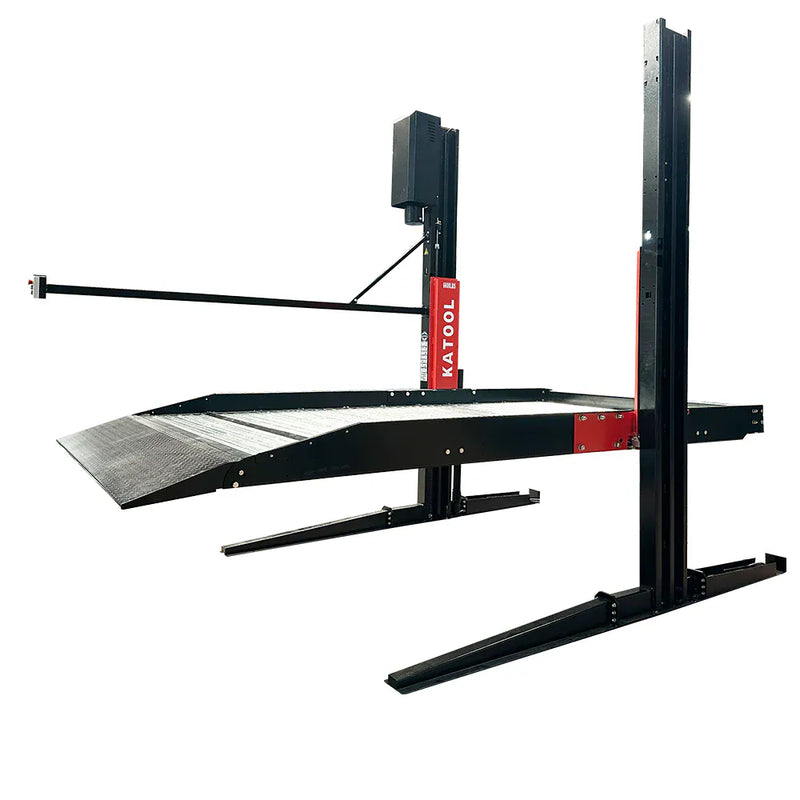

Katool KT-P2700 6,600 lb Two-Post Parking Lift

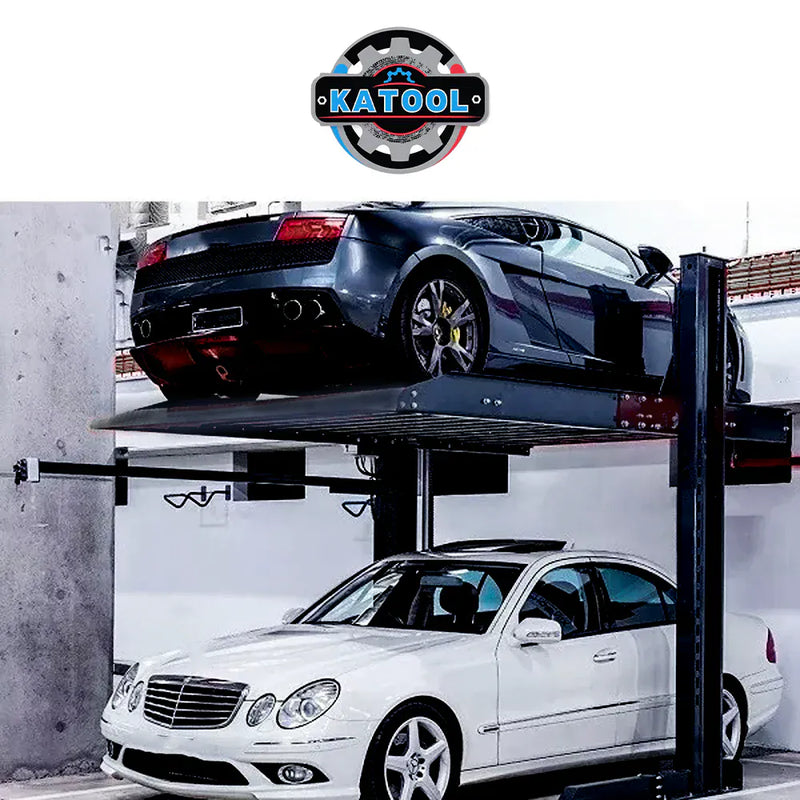

The Katool KT-P2700 is a two-post hydraulic parking lift rated to 6,600 lb, built to stack one vehicle above another and effectively double the usable floor space in a garage or shop bay. It accommodates sedans, sport coupes, light SUVs, and most half-ton pickups, raises to a maximum height of 82.68 in (2,100 mm), and drops to a ground clearance of just 3.94 in — low enough to drive on without ramps in most cases. The dual-voltage motor runs on either 110V or 220V single-phase service at 50/60 Hz, so it can be wired into a standard residential circuit or a commercial bay without swapping the power unit.

Operation is handled through a 24V low-voltage push-button panel with a key-switch and emergency stop. A full lift cycle takes 60–80 seconds; lowering takes 40–60 seconds. Safety is built into the structure: a mechanical multi-grade locking bar holds parked vehicles at height, and a photo-sensor on the platform detects obstructions during descent and stops the movement before contact. An angle-adjusted drive-on ramp eases loading for vehicles with a low front approach angle.

The KT-P2700 is purpose-built for anyone working with limited square footage — home garage owners who want to store a second car without adding a new structure, dealerships and valet operations that need to maximize lot density, and storage facilities running multiple units side by side. A multi-unit linkage option lets stations be lined up in rows, making it scalable for commercial use.

Features

• Supports up to 6,600 lbs, accommodating sedans, light SUVs, and most half-ton pickups
• Two-post hydraulic design powered by a single drive cylinder with equalizing chain
•  Dual-voltage motor (110V / 220V, 50/60 Hz) compatible with residential and commercial single-phase power
•  Mechanical multi-grade locking bar ensures secure holding while the vehicle is parked at height
•  24V low-voltage push-button controls with integrated key-switch and emergency stop for safe operation
•  Photo sensor detects obstructions on the platform during descent, preventing accidental contact
•  Angle-adjusted drive-on ramp accommodates vehicles with a low front approach angle
•  Minimum platform height of 3.94 in (100 mm) for easy loading of low-clearance vehicles
•  Maximum lift height of 82.68 in (2,100 mm), clearing most standard overhead garage doors
•  Multi-unit linkage capability allows side-by-side configuration for valet, dealership, and vehicle storage applications.

Specifications

Documents

• KT-P2700 Operations Manual
