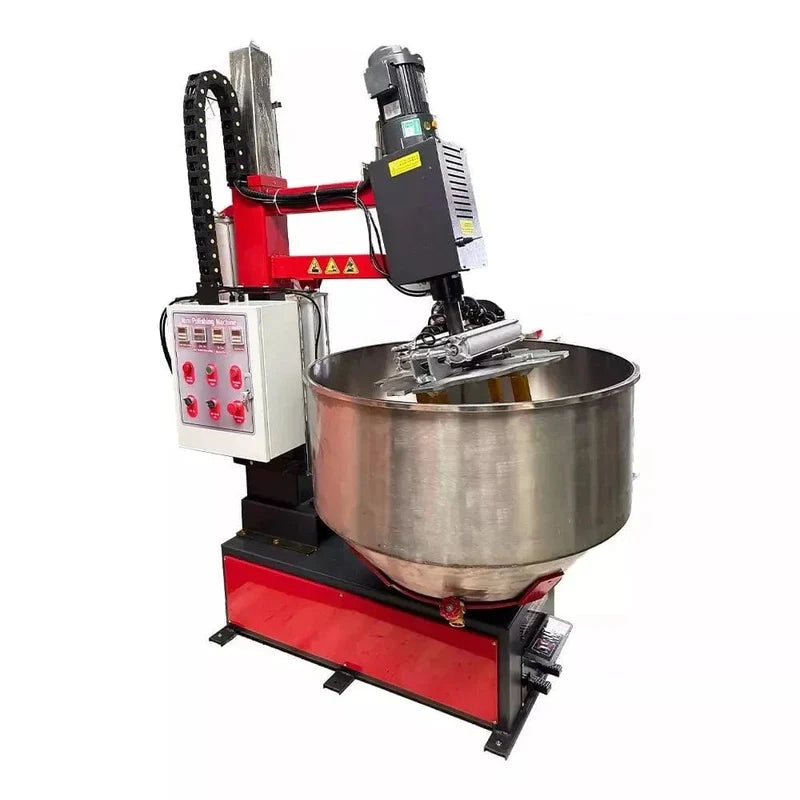

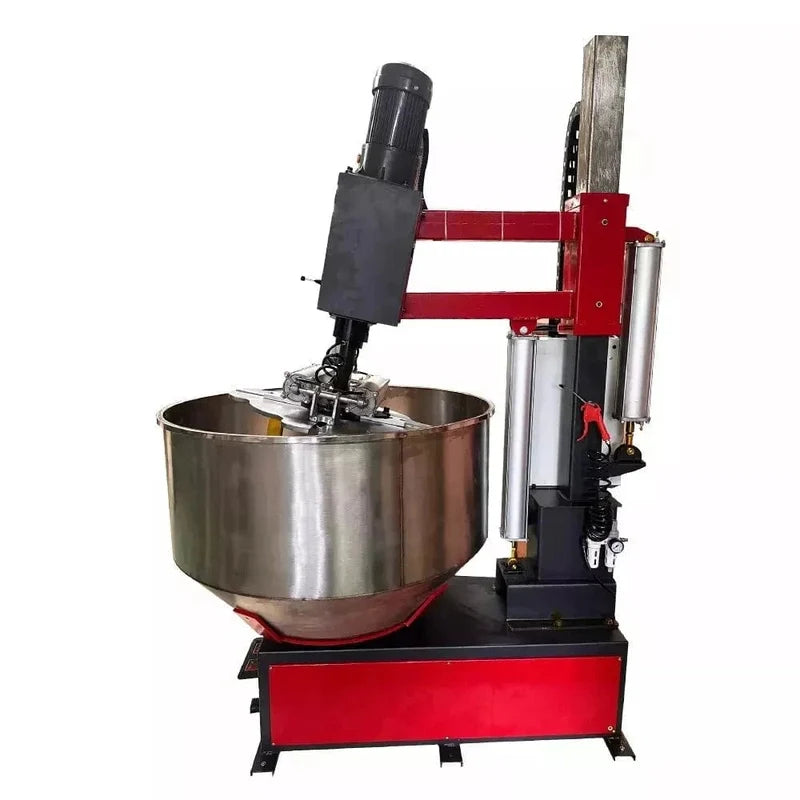

The Katool RPM-80 is a professional-grade rim polishing machine built for cleaning, grinding, derusting, and restoring wheels to a like-new finish in a single 6-minute cycle. It handles rims up to 24 inches in diameter and runs on a dual-motor system ā a 1.5 kW spindle motor driving rotation and a 1.1 kW bucket motor managing media feed ā delivering 8 MPa of working pressure for consistent cutting and polishing force across the full wheel surface. At a 380 kg (838 lb) media bucket capacity, it's built for continuous production runs, not occasional single-wheel touch-ups.

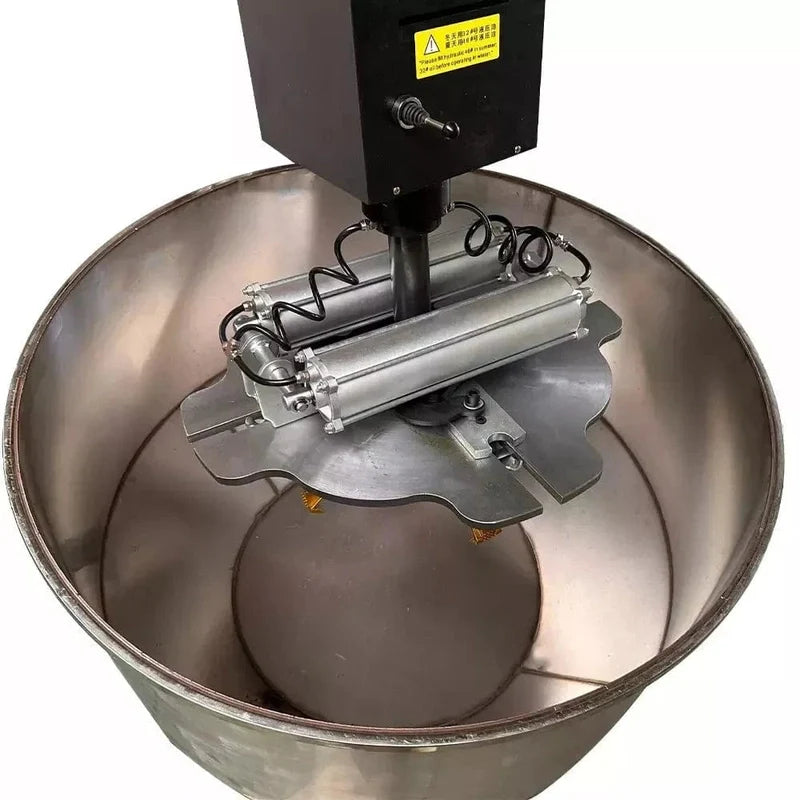

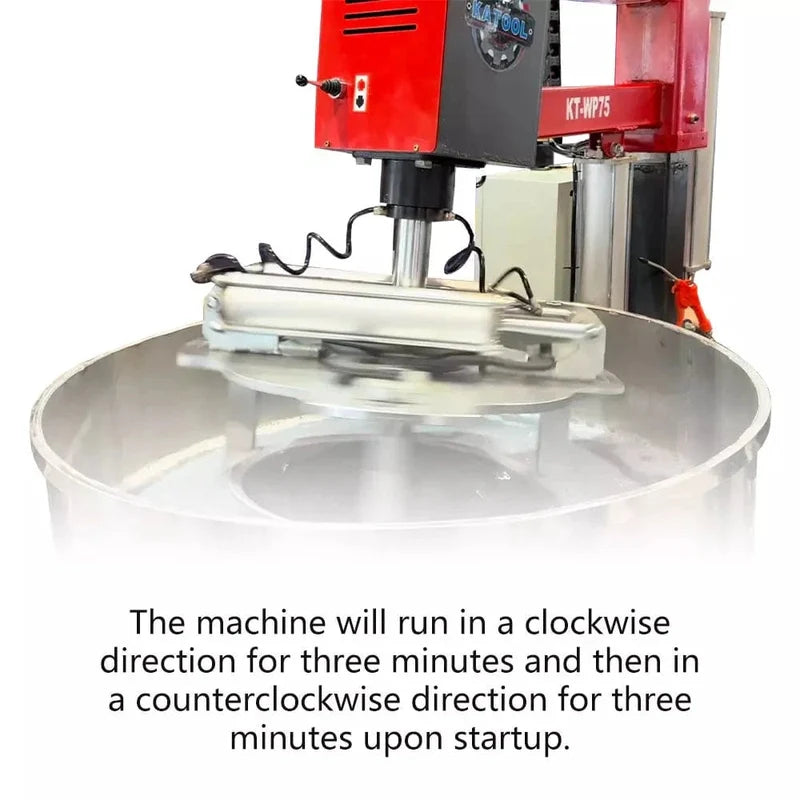

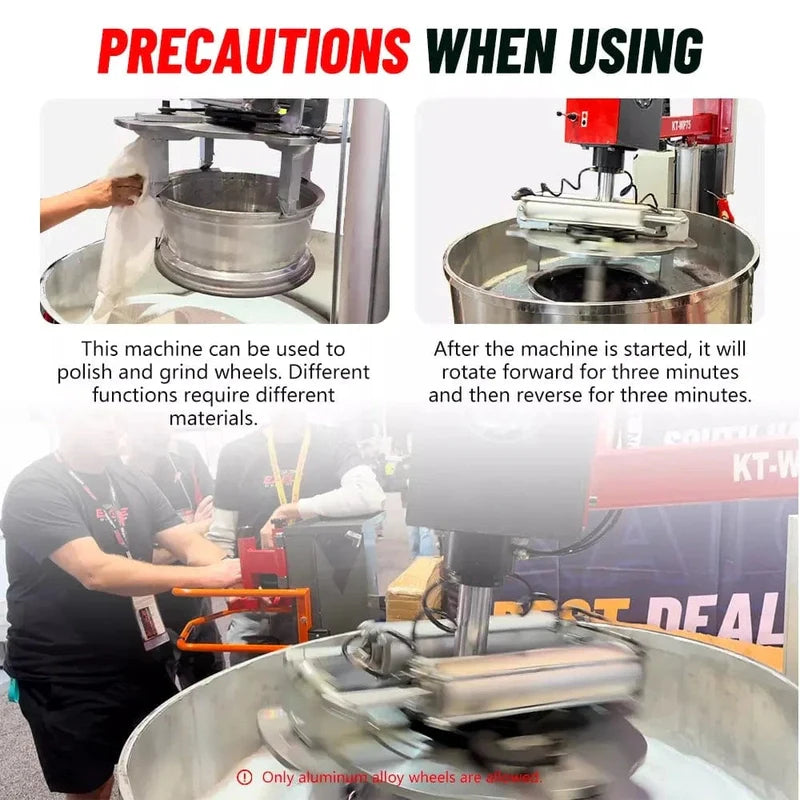

What separates the RPM-80 from simpler polishing setups is its automatic bidirectional rotation ā the spindle alternates between clockwise and counterclockwise passes, which ensures even coverage across the wheel face and eliminates the directional swirl marks that single-direction machines leave behind. Combined with the high working pressure, this means a shop can take a corroded, curb-damaged, or heavily oxidized wheel and bring it back to finish-ready condition in one cycle without hand-finishing to clean up uneven polish.
The RPM-80 is built for automotive shops, wheel repair specialists, and detailing businesses that process enough wheels to justify a dedicated machine. A 6-minute cycle time means a technician can run 10 wheels per hour, making it a practical fit for any operation where wheel refurbishment is a recurring service line rather than an occasional job.
Features
- Professional-grade rim cleaning, polishing, and restoration with precision results
- 838 lb (380 kg) feeding bucket capacity for high-volume, multi-wheel efficiency
- Accommodates rim diameters up to 24", covering a wide range of wheel sizes
- Dual-motor system with a 1.5 kW spindle motor and 1.1 kW bucket motor for smooth, consistent operation

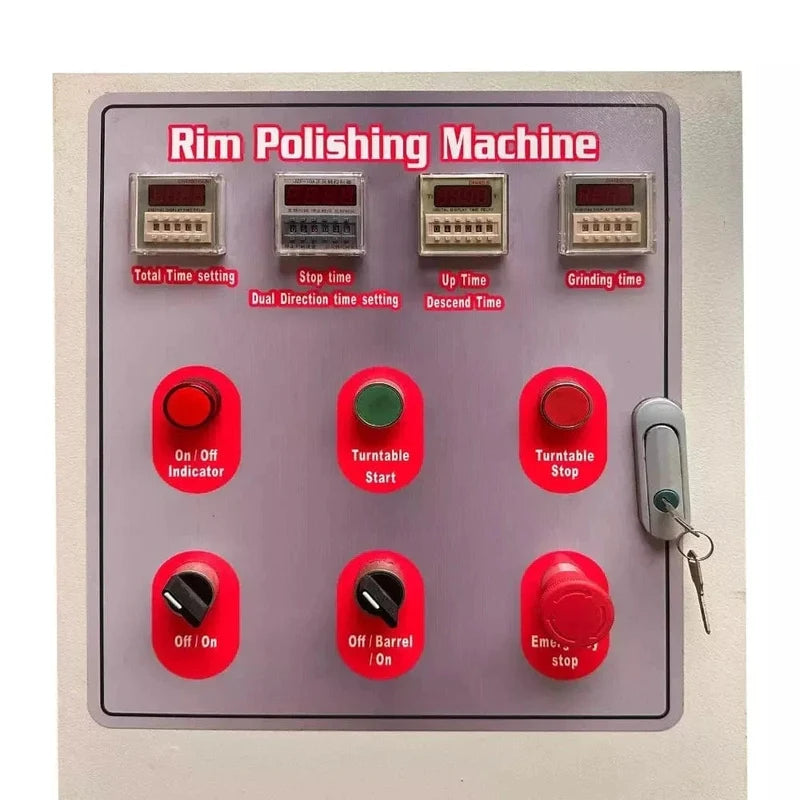

- Automatic bidirectional polishing with clockwise and counterclockwise rotation for even, thorough coverage
- High working pressure of 8 MPa delivers strong grinding force for optimal polishing results
- Fast 6-minute polishing cycle for efficient, high-throughput performance
- Heavy-duty steel frame construction built for long-term durability in demanding shop environments
Specifications
| Specification |
Value |
| Feeding Bucket Capacity |
838 lbs (380 kg) |
| Feeding Bucket Diameter |
38 inches |
| Maximum Rim Diameter |
24 inches |
| Spindle Motor Power |
1.5 kW |
| Bucket Motor Power |
1.1 kW |
| Maximum Working Pressure |
8 MPa |
| Net Weight |
772 lbs (350 kg) |
| Machine Dimensions |
44ā Ć 63ā Ć 79ā |
Ā
Warranty & Support
Katool provides a 1-year limited warranty covering parts and product defects, with an optional 2-year extended warranty available for additional coverage.
What's Covered

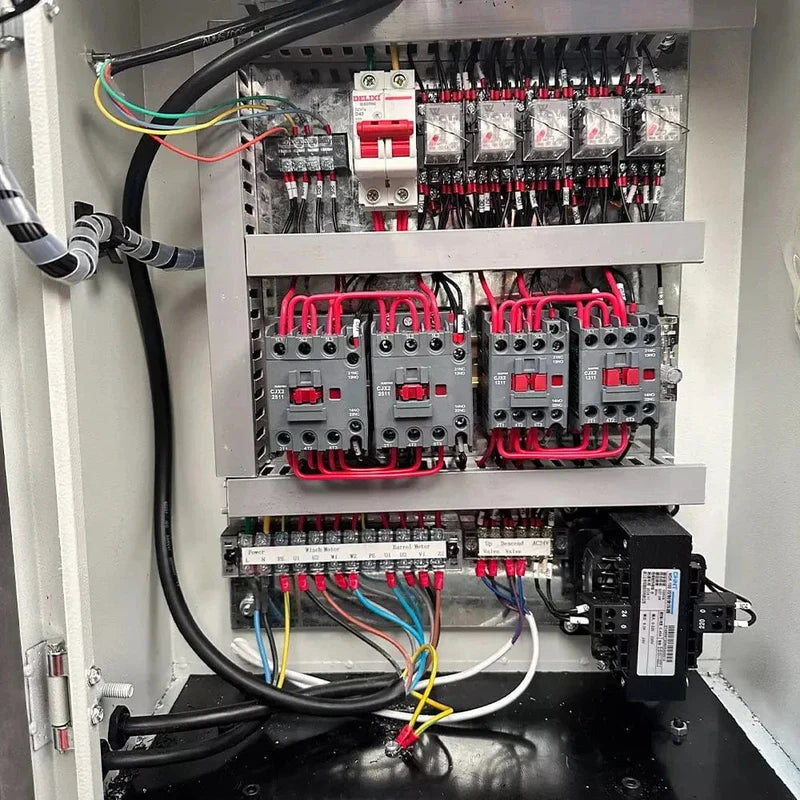

- Spindle motors, hydraulic components, and control panels
- Structural frame and electrical systems
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires proof of purchase
- Approved replacement parts and shipping are covered at no cost
- Labor costs are not included
- Do not disassemble equipment prior to warranty approval and assessment
