The Katool KT-SPL700 is a 7,000 lb (3,175 kg) portable single-post lift designed for shops, home garages, and mobile technicians who need full undercarriage access without the permanent floor commitment of a two-post or four-post installation. The single-column design leaves all four wheels and the entire undercarriage exposed at once — the access geometry that makes it practical for tire, brake, suspension, and exhaust work, not just oil changes. It runs on 110V single-phase, 30-amp service, so it drops into most existing home garage and small-shop electrical setups without a panel upgrade. Note: hydraulic operation requires 3–5 gallons of AW32 or AW46 fluid, sold separately, and initial offloading from the freight truck requires a forklift — the unit ships at approximately 1,900 lbs.
The low-profile drive-on platform with diamond-plate decking accommodates low-clearance vehicles, and the adjustable lifting pad reach covers the width range from compact sedans through full-size light trucks. Maximum lifting height is 71⅔ inches, with 68 inches of clearance under the pads at full height. Eight stackable truck adapters are included — four at 2.75" and four at 6" — for setting pad height on trucks and vans without sourcing additional hardware. An automatic safety lock engages at every lift position, so the vehicle is held mechanically at whatever height you're working at, not just at preset stops.
Mobility is built into the design: caster wheels and an integrated pump handle let a single technician roll the unit between bays without assistance. That portability makes the KT-SPL700 a practical fit for home garage owners who can't dedicate floor space to a fixed lift, mobile technicians who need a lift they can load and transport, and multi-bay shops that want a supplemental lift they can position where the work is rather than where the anchor bolts are.
Features

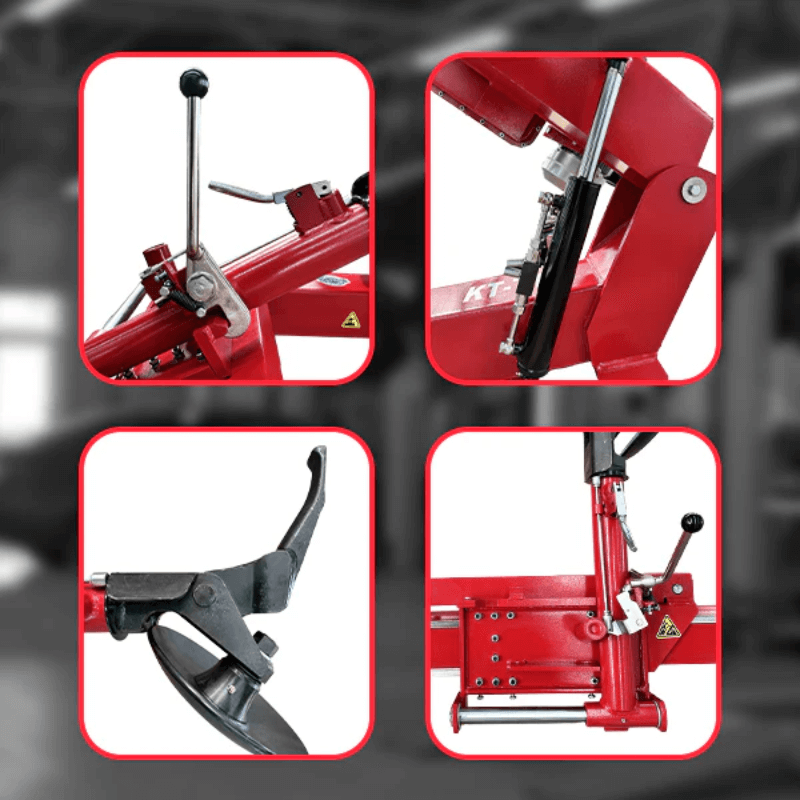

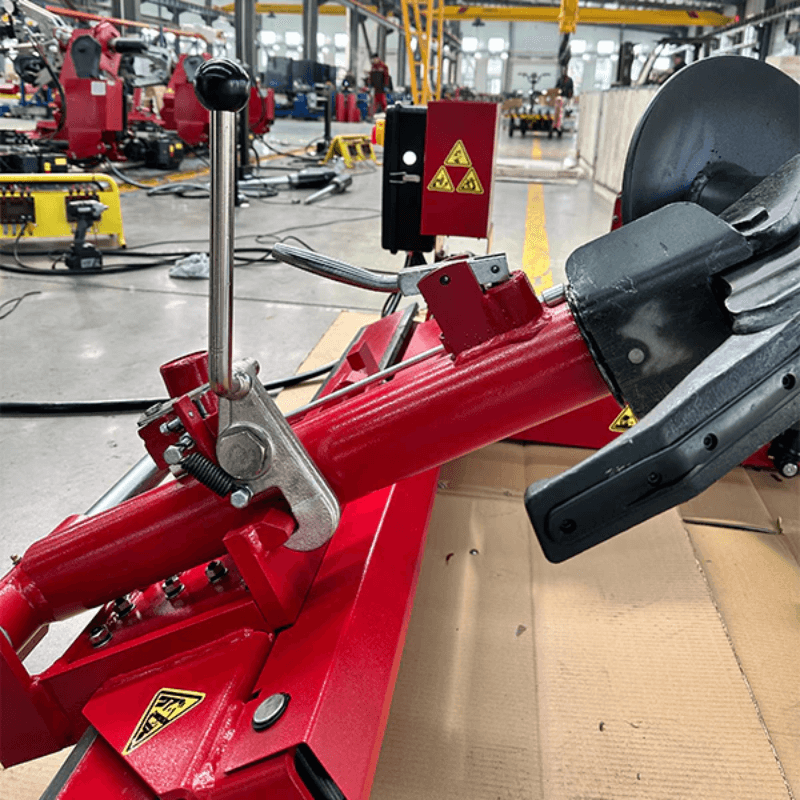

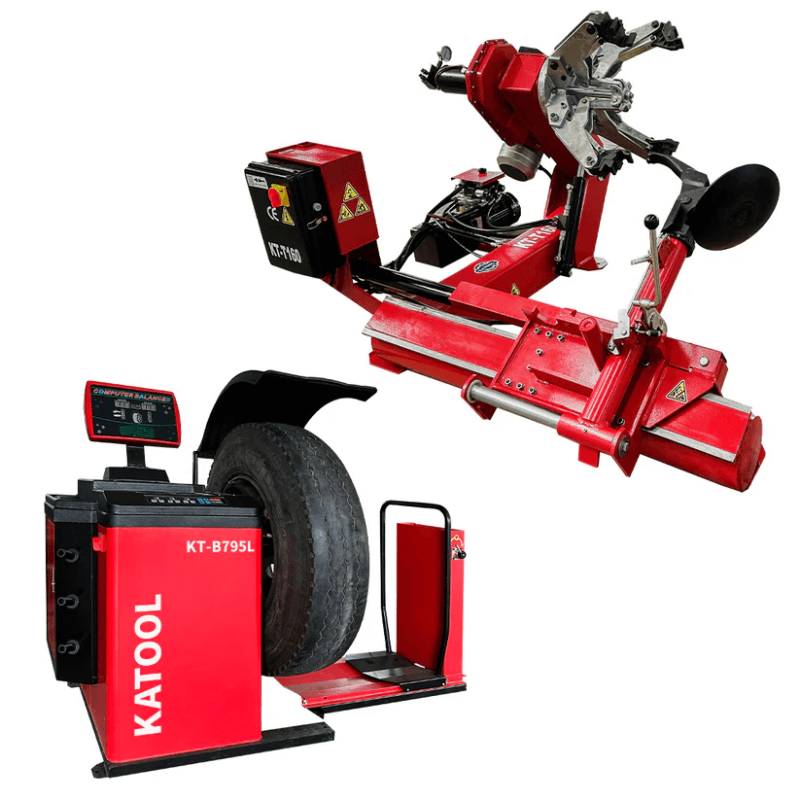

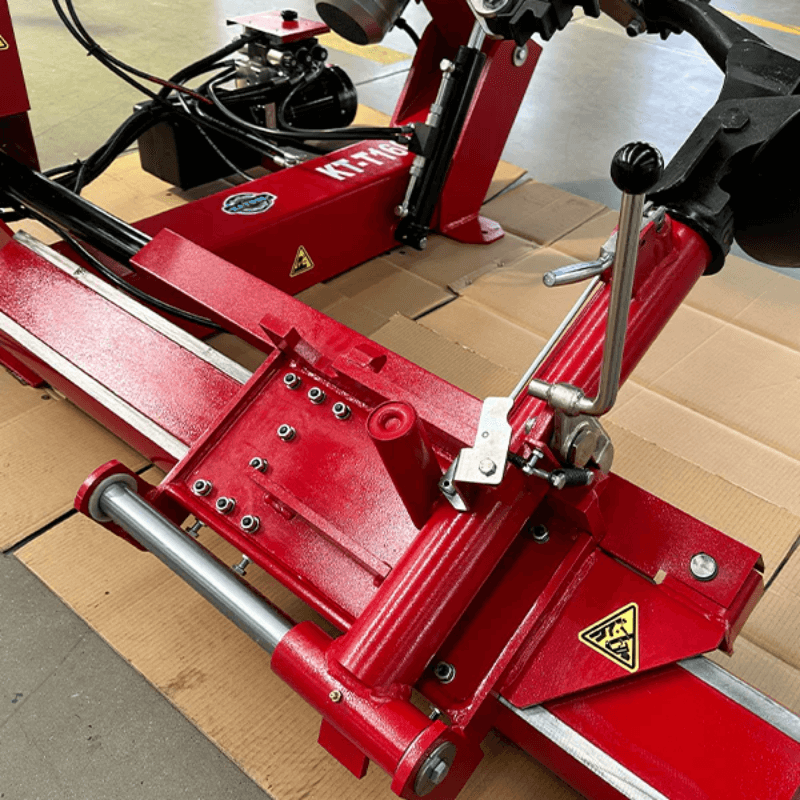

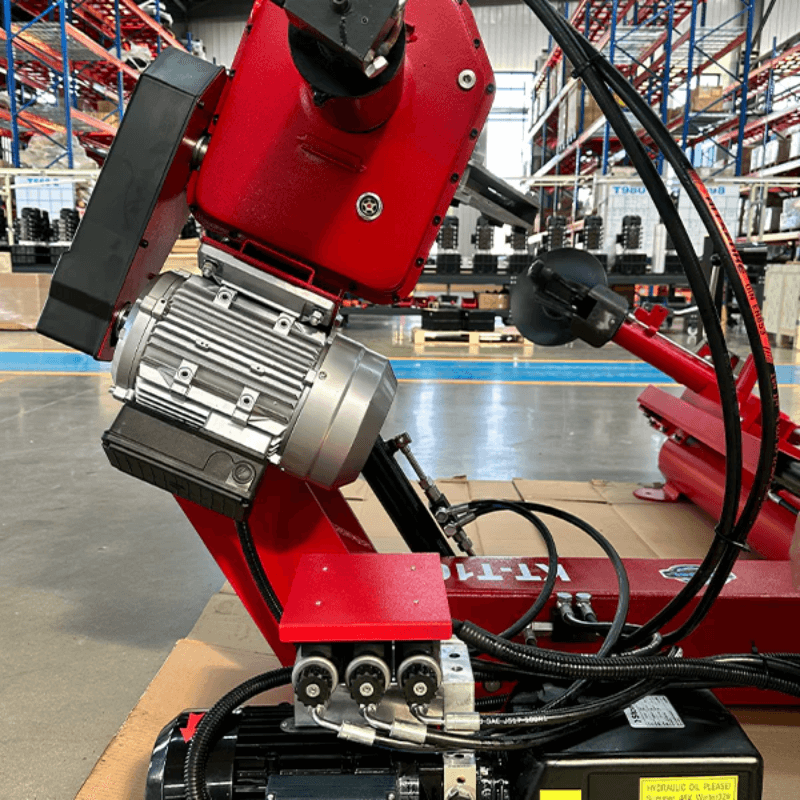

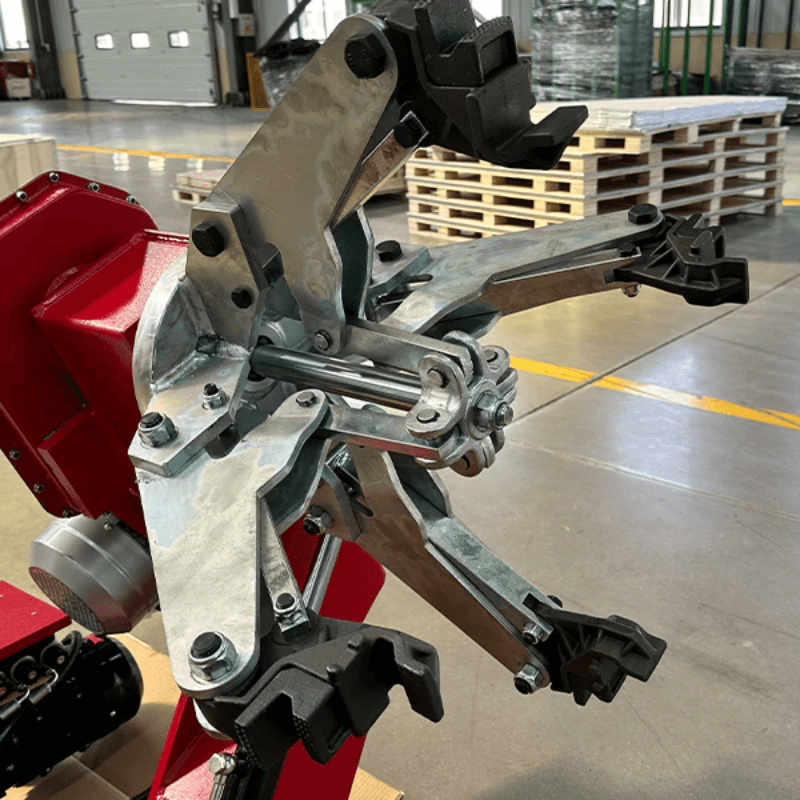

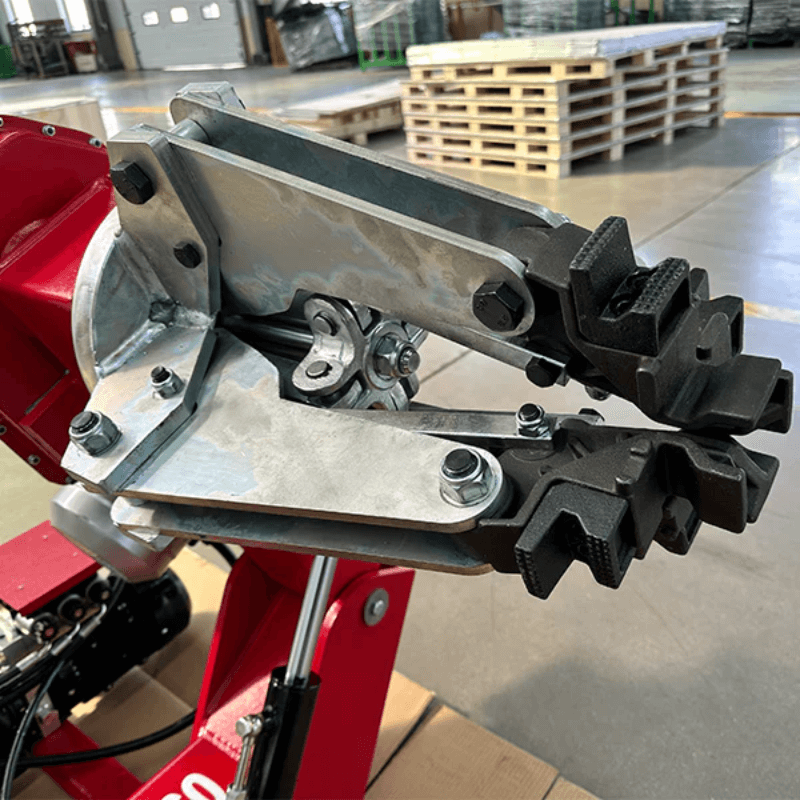

KT-T160 Tire Changer — Features
- Accommodates wheel diameters up to 62" and rim sizes from 14" to 26", covering a wide range of heavy vehicles
- Electro-hydraulic system delivers powerful, precise tire changing for fast, efficient service
- Multifunctional controls allow safe, convenient operation from any position
- Rugged construction built to withstand the demands of heavy-duty tire changing for long-term reliability
KT-B795L Wheel Balancer — Features
- Handles rim diameters from 10" to 28" and rim widths from 1.5" to 20", accommodating a broad range of wheel sizes
- Supports wheels weighing up to 440 lbs for heavy-duty applications
- Fast measurement cycle boosts productivity in high-volume shop environments
- Well-lit display monitor provides clear, accurate readings for easy operation
Specifications
Katool KT-T160 Tire Changer
- Max wheel diameter: 62"
- Max wheel width: 30"
- Rim diameter: 14"-26"
- Working pressure: ≤130 bar
- Power supply: 220V 1PH

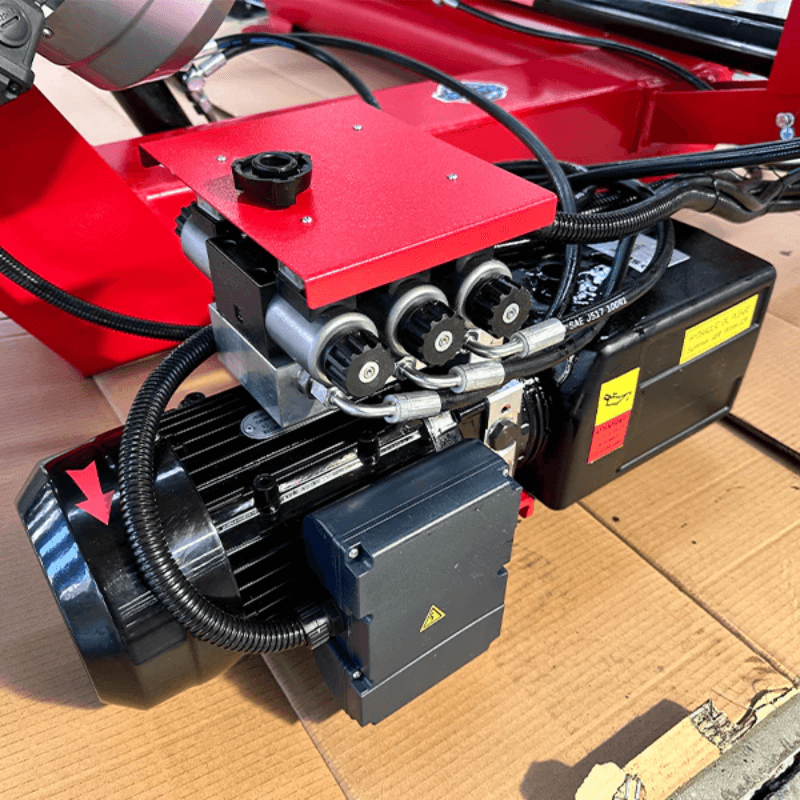

- Pump motor power: 1.5KW(2.0HP)
- Gear box motor power: 2.2KW(3.0HP)
- Net weight: 570 KG / 1257 lbs
- Oil: AW-46 or AW-32 (colder climates)
Katool KT-B795L Wheel Balancer
- Steel Cycle Width: 1.5" to 20"
- Diameter of Steel Cycle: 13" to 24"
- Max Diameter of Wheel: 51.18"
- Max Weight of Wheel: 150 kg
- Running Environment Temperature: 0°C to -45°C
- Power Supply: 220V
- Running Noise: <65 dB
- Measurement Time: 8 seconds per measurement
- Occupying Acreage: About 98-118"
- Net Weight of Machine:529 lbs
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
Claims must be submitted within the active warranty period
Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
Approved replacement parts are provided at no cost, with free shipping included
