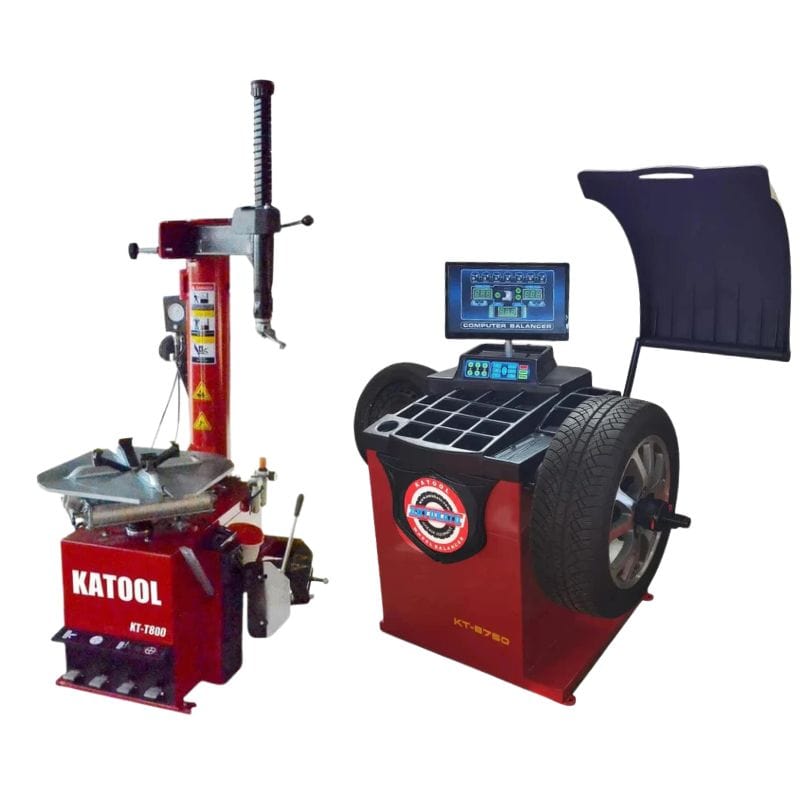

The Katool KT-T800 and KT-B750 Combo pairs a wheel-clamp tire changer with a precision wheel balancer in a single purchase — everything a repair shop or tire operation needs to mount and balance tires without sourcing machines separately. Both units are built on heavy-duty steel frames and designed for daily professional use.

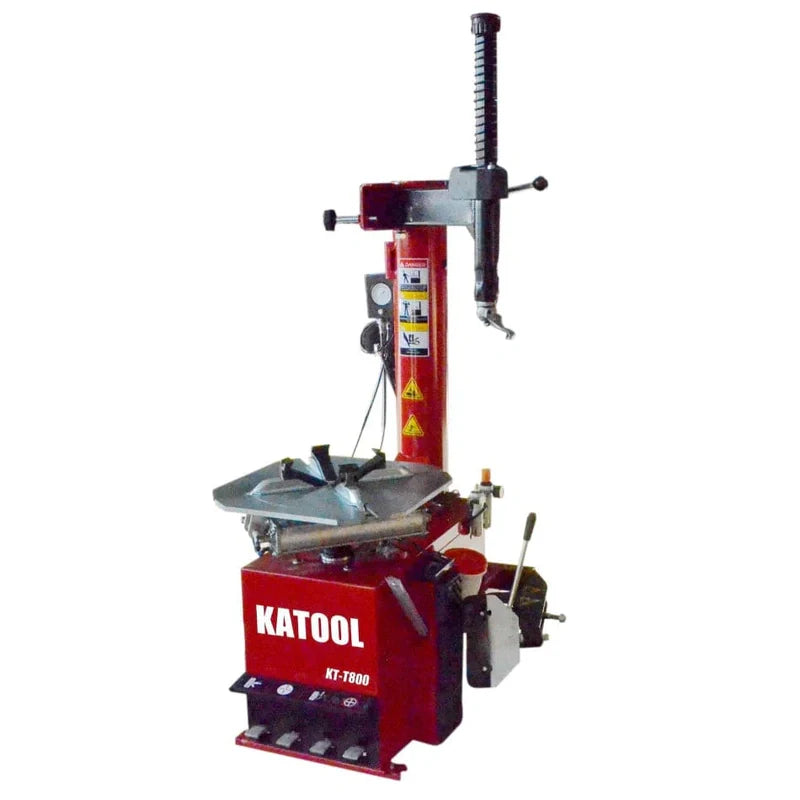

The KT-T800 tire changer runs on a 2.0 HP pure copper winding motor with carburization-treated alloy steel jaws — a hardening process that extends jaw life under repeated clamping cycles. The stainless steel mounting head is fitted with a rim-protecting plastic cover so the head contacts the wheel finish rather than bare steel. Pedal-controlled inflation keeps both hands free during the inflation step, and the closed-body design shields internal components from the shop grit that shortens the life of open-frame machines.

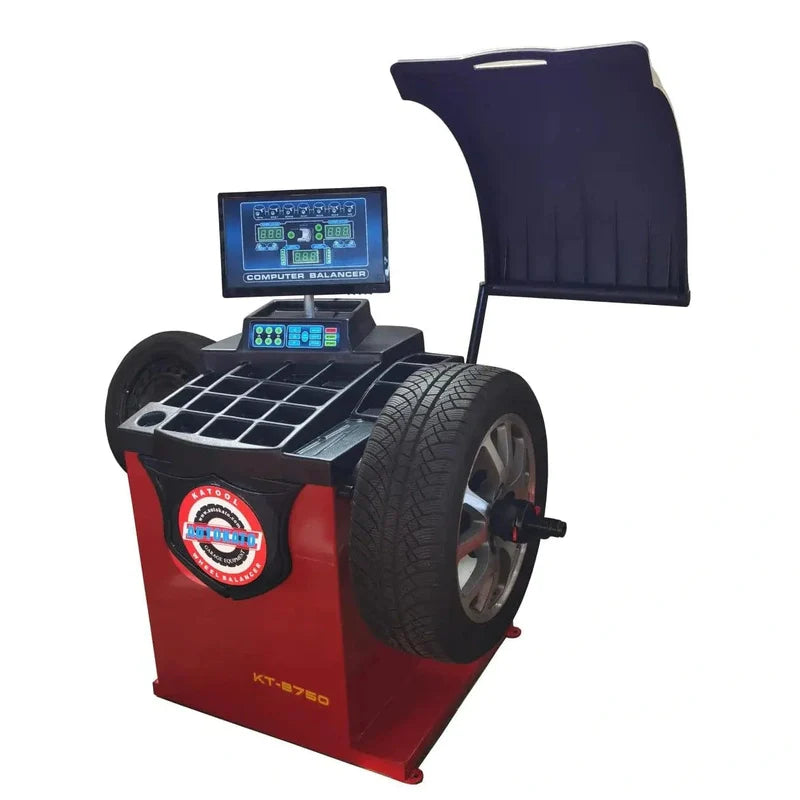

The KT-B750 balancer handles the back half of the workflow. The automatic measurement ruler reads A and D values without manual input, cutting setup time on every wheel. A 3mm steel frame minimizes vibration at the sensor level, and the moisture-proof, dust-proof control board holds up in shop environments where standard electronics degrade faster. Multiple balance modes cover different rim styles, and built-in self-calibration with fault diagnosis keeps the machine dialed in without technician-managed calibration routines.
The combo is a strong fit for independent tire shops and repair operations equipping a new bay or replacing aging equipment, dealership service departments that handle tire service in-house, and serious home garage builds where both a changer and balancer are part of the long-term plan and buying as a package makes financial sense.
Features:

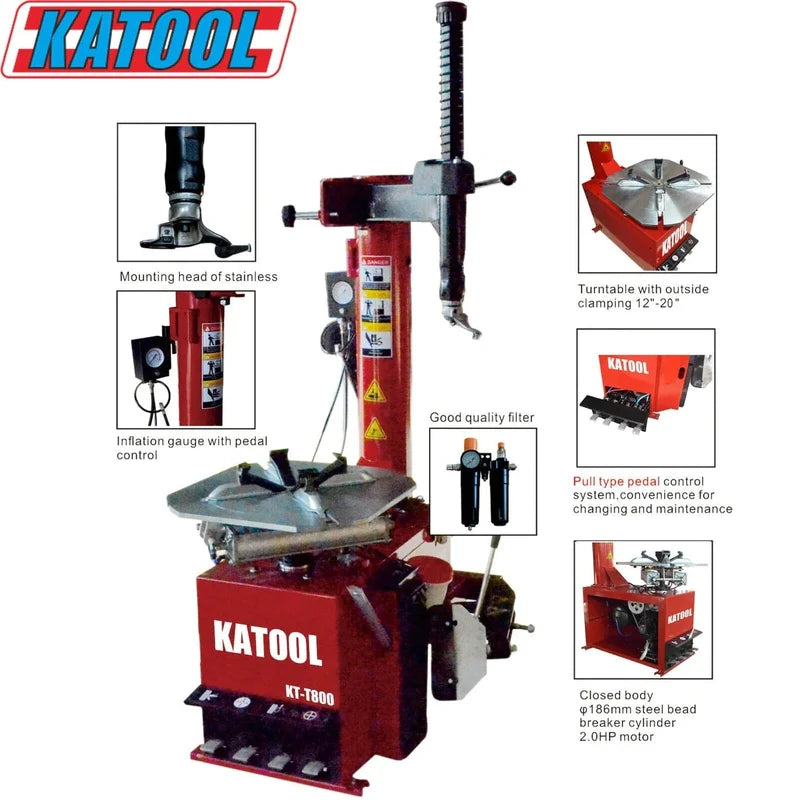

Katool KT-T800 Wheel Clamp Tire Changer
-

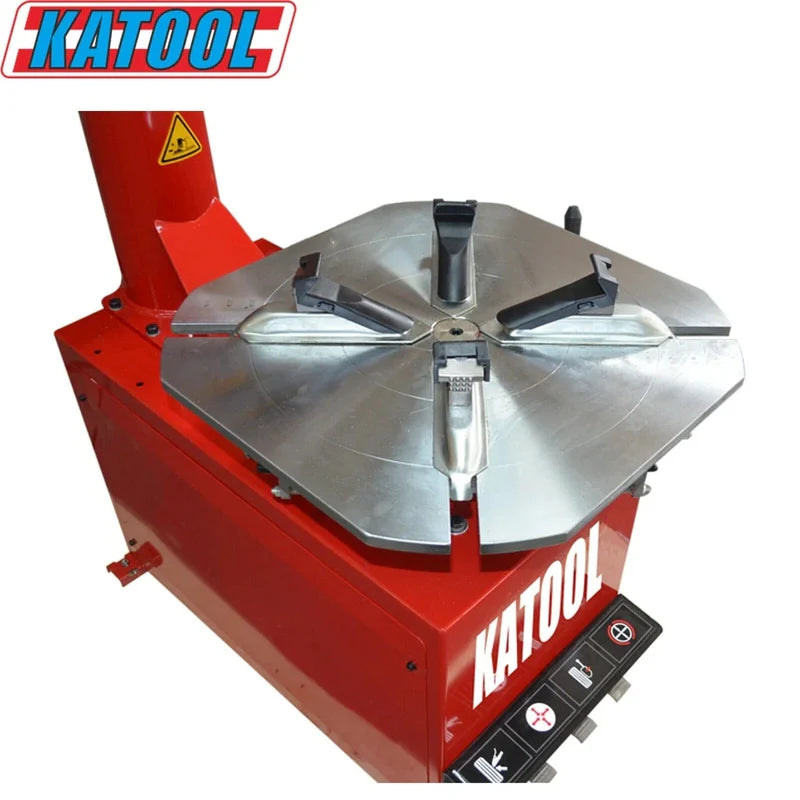

Durable Alloy Steel Jaw: Carburization-treated for enhanced hardness and superior long-term strength under demanding use.
-
Stainless Steel Mounting Head: Corrosion-resistant construction paired with a rim-protecting plastic cover to prevent wheel surface damage during operation.
-

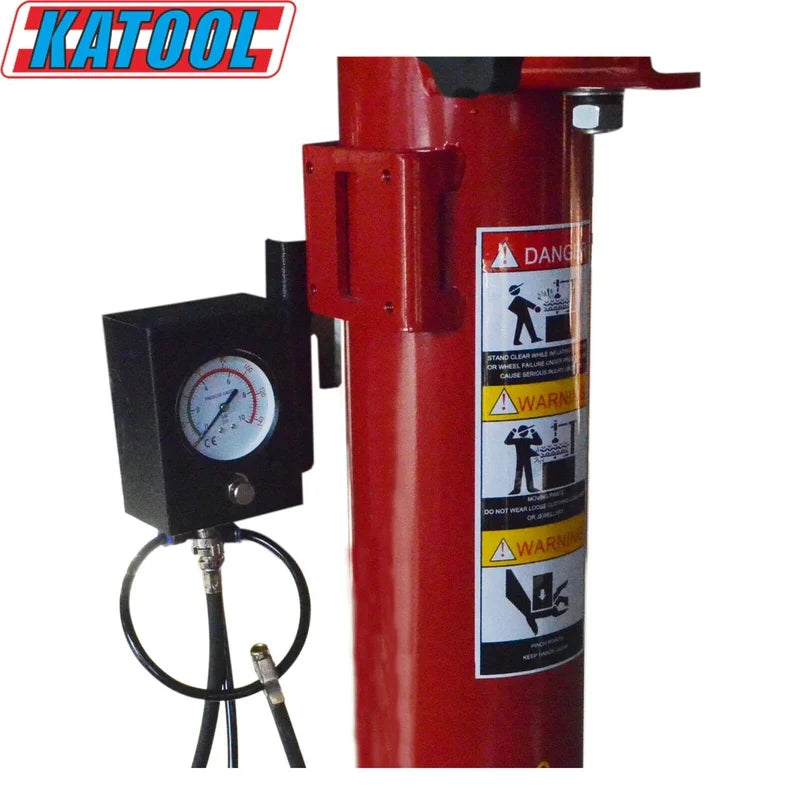

Pedal-Controlled Inflation Gauge: Hands-free inflation control for added convenience and a smoother, more efficient workflow.
-

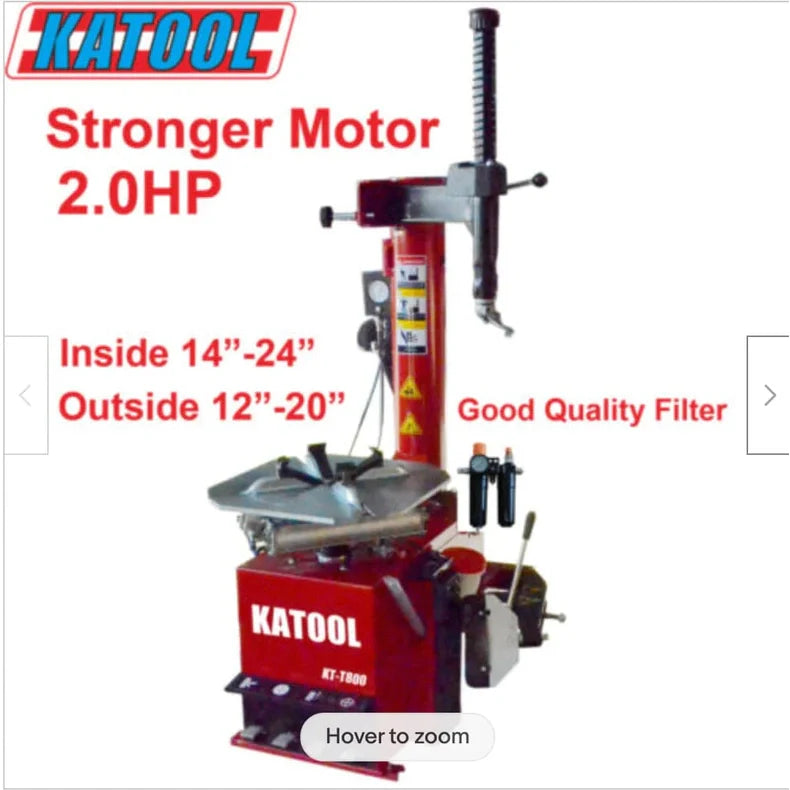

Powerful Motor: 2.0HP pure copper winding motor delivers maximum efficiency and reliable performance throughout daily use.
-

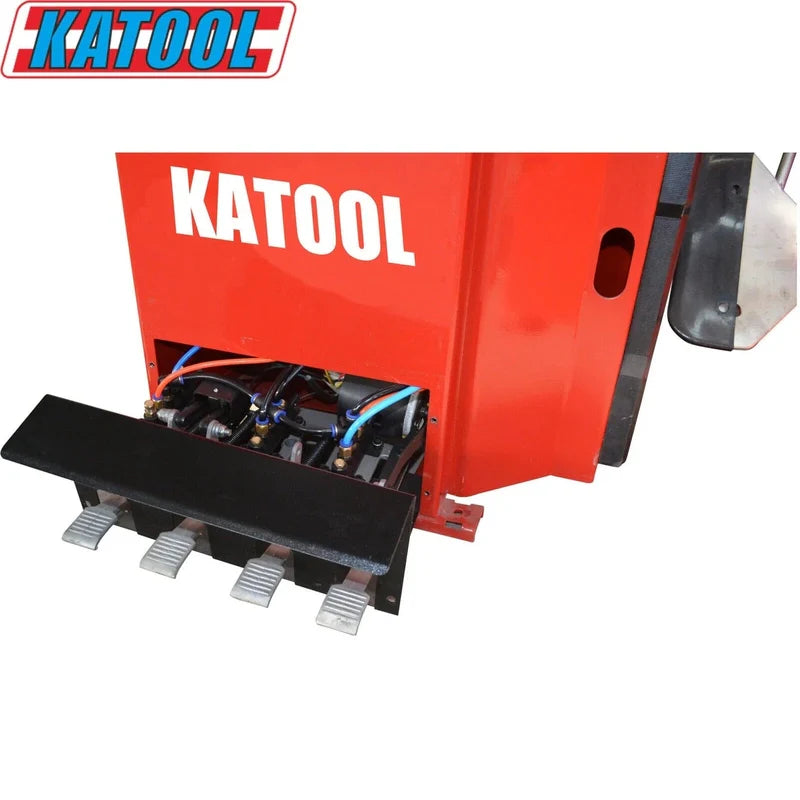

Pull-Type Pedal Control System: Designed for smooth, precise tire changing with minimal operator effort.
-

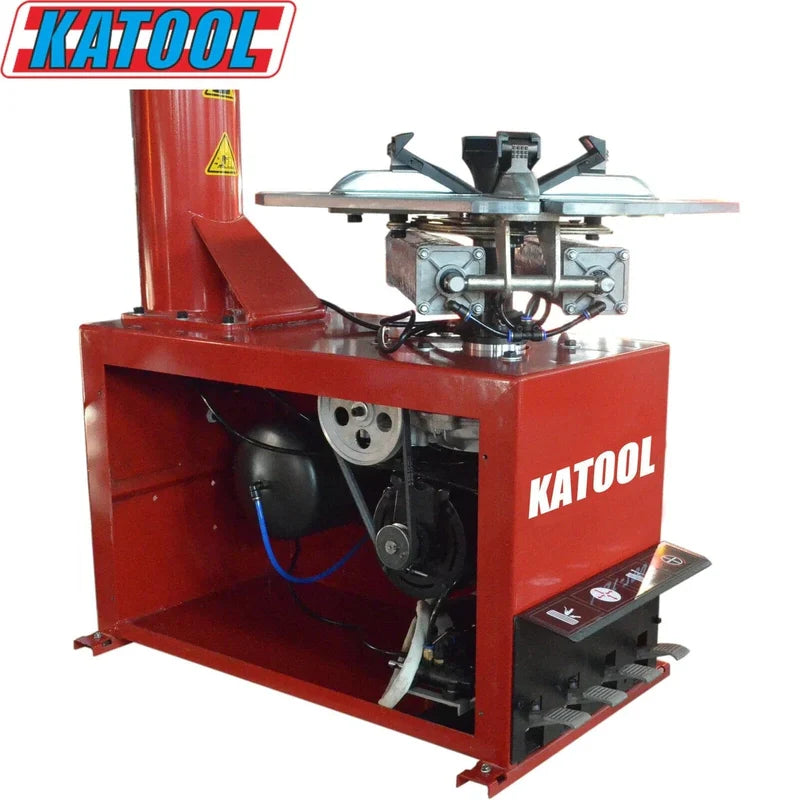

Closed-Body Design: Fully enclosed housing shields internal components from dust, debris, and wear for improved long-term durability and reduced maintenance.

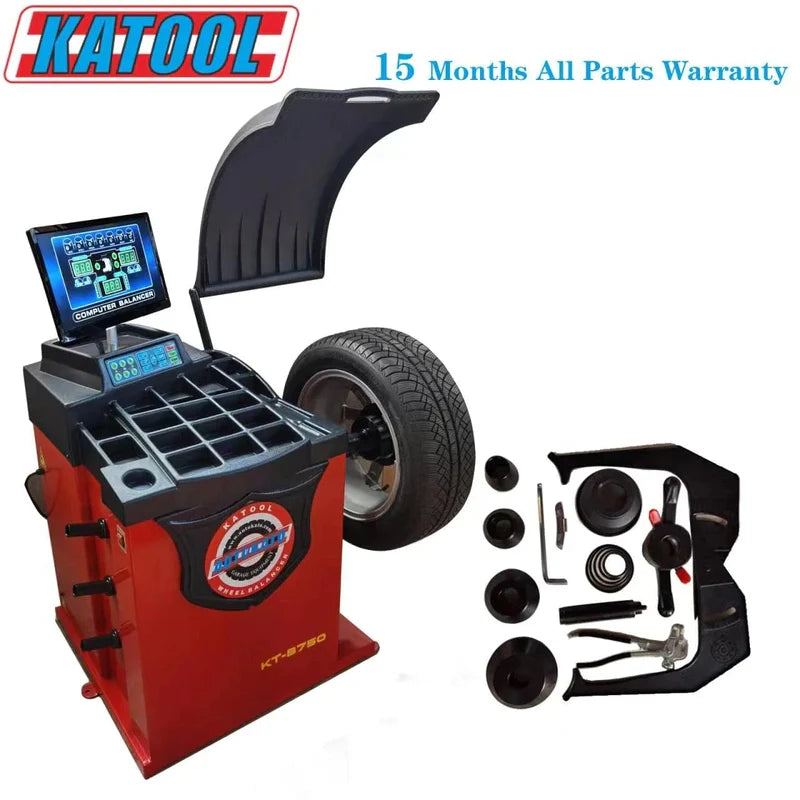

Katool KT-B750 Wheel Balancer
-

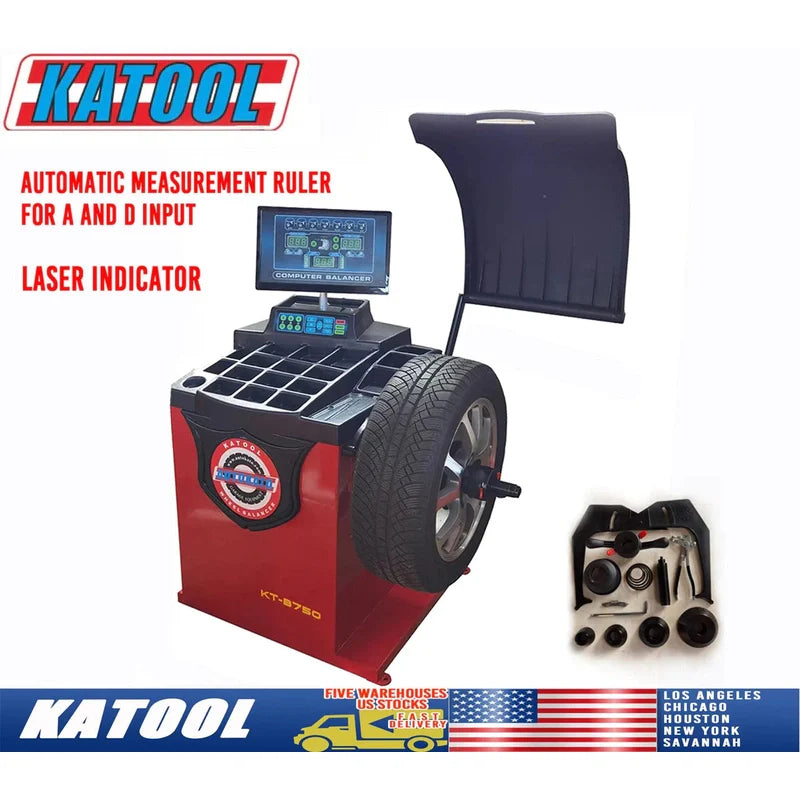

Automatic Measurement Ruler: Auto-input for A and D values.
-
3mm-Thick Heavy-Duty Steel Body: Reduces vibration for stability.
-
Advanced Sensor System: Ensures precise wheel balancing.
-
Moisture-Proof & Dust-Proof Control Board: Designed for longevity.
-
Multiple Balance Modes: Adjusts to different rim styles.
-
Built-in Fault Diagnosis & Self-Calibration: Increases reliability.
Specifications:

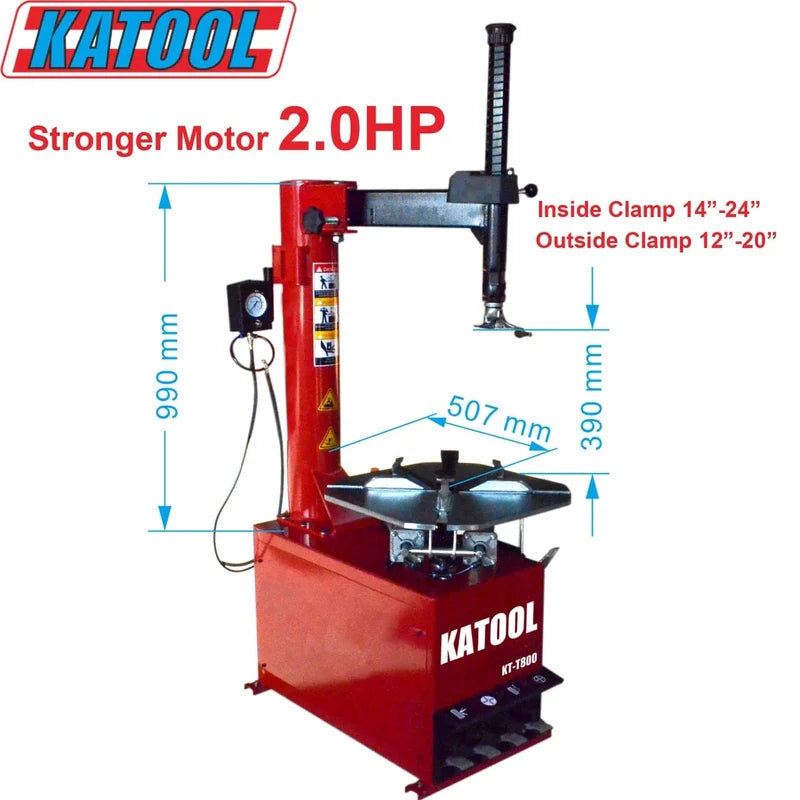

Katool KT-T800 Wheel Clamp Tire Changer
-
Max Wheel Diameter: 41" (1040mm)
-
Max Wheel Width: 15" (380mm)
-
Outside Clamp: 12"-20"
-
Inside Clamp: 14"-24"
-
Power Supply: 110V 1PH
-
Motor Power: 2.0HP (1.5KW)
-
Rotation Speed: 6.8 RPM
-
Air Pressure: 0.8-1.0 Mpa (116-145 PSI)
-
Net Weight: 186 KG (410 lbs)
Katool KT-B750 Wheel Balancer
-
Rim Diameter: <30"
-
Wheel Width: 15"
-
Max Wheel Diameter: <880mm
-
Balancing Speed: 180 RPM
-
Power Supply: 120V 1PH
-
Motor Power: 0.25KW
-
Rim Center Hole Diameter: <135mm
-
Max Wheel Weight: <65 KG
-
Balancing Accuracy: ±1g
-
Measuring Time: 7 seconds
Manuals & Resources
Download the user manuals for both machines:
Warranty & Support
Katool offers a limited 1-year (12-month) warranty covering parts, electronics, and power units. An extended 2-year warranty is available for added protection.
Warranty Includes:
- Power units, motors, displays, electronics, and cylinders.
- Vehicle lifts include an additional 3-year structural warranty.
Warranty Conditions:
- Claims must be submitted within the warranty period.
- Warranty is non-transferable and requires proof of purchase.
- Replacement parts and shipping are covered at no cost.
- Labor is not included.
