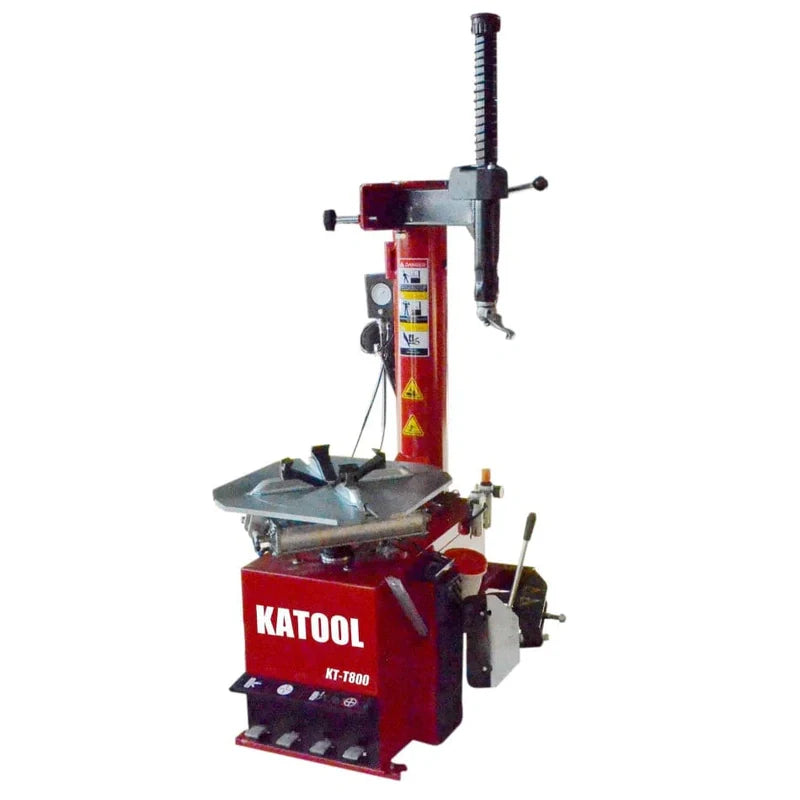

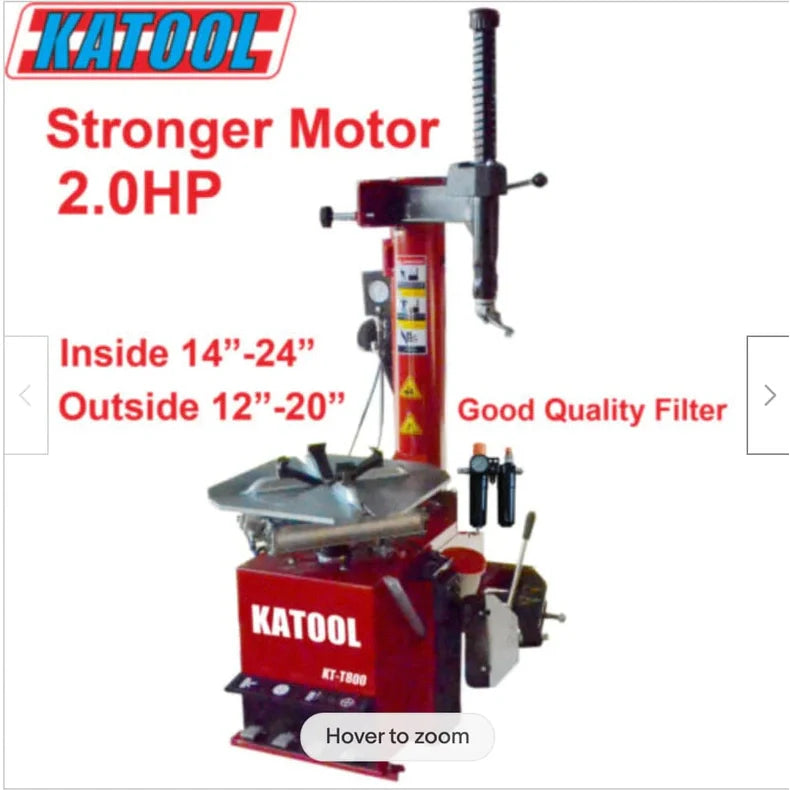

The Katool KT-T800 is a wheel-clamp tire changer built for shops and serious home garages that need reliable, repeatable performance. It runs on a 110V/1-phase, 2.0 HP motor with pure copper windings ā a construction detail that translates to stronger torque, faster heat dissipation, and a longer service life than motors built with aluminum substitutes. The closed-body design keeps internal components protected from the dirt and debris that's unavoidable in any working shop.
Where the KT-T800 earns its place is in the details that protect your customers' wheels. The alloy steel jaw features carburization treatment to a depth of 0.8ā1.1mm, followed by a full quenching process ā hard on the outside for durability, tough on the inside to resist cracking. A jaw cover adds a final layer of rim protection. The stainless steel mounting head is solution-treated and interface-polished, shaped to follow engineering mechanics principles, and fitted with a plastic cover so it won't scratch alloy or chrome rims during the bead-seating process.
Day-to-day operation is handled through a pull-type pedal control system that keeps both hands free for the tire, along with a pedal-controlled inflation gauge and a high-quality spade cover to prevent rim contact damage during inflation. The onboard lubricator delivers consistent oil-drop lubrication while filtering compressed air, which extends the life of the pneumatic system over time.
The KT-T800 is a practical choice for independent auto repair shops, tire specialty centers, and well-equipped home garages that want a machine capable of handling daily volume without babysitting. If you're changing tires regularly and want a setup that protects rims as well as it performs, this is a machine worth considering.

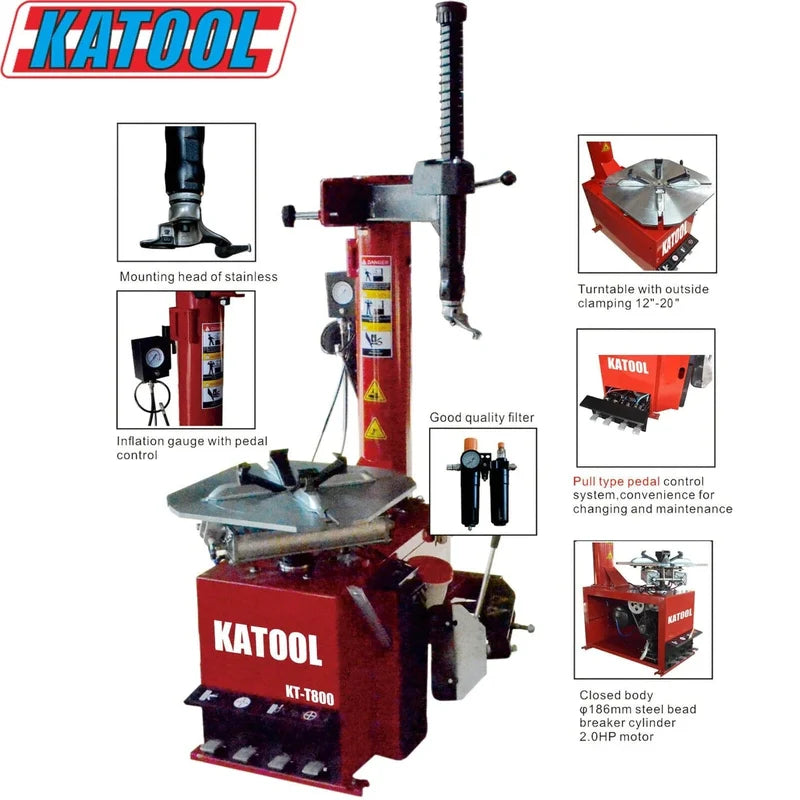

Features

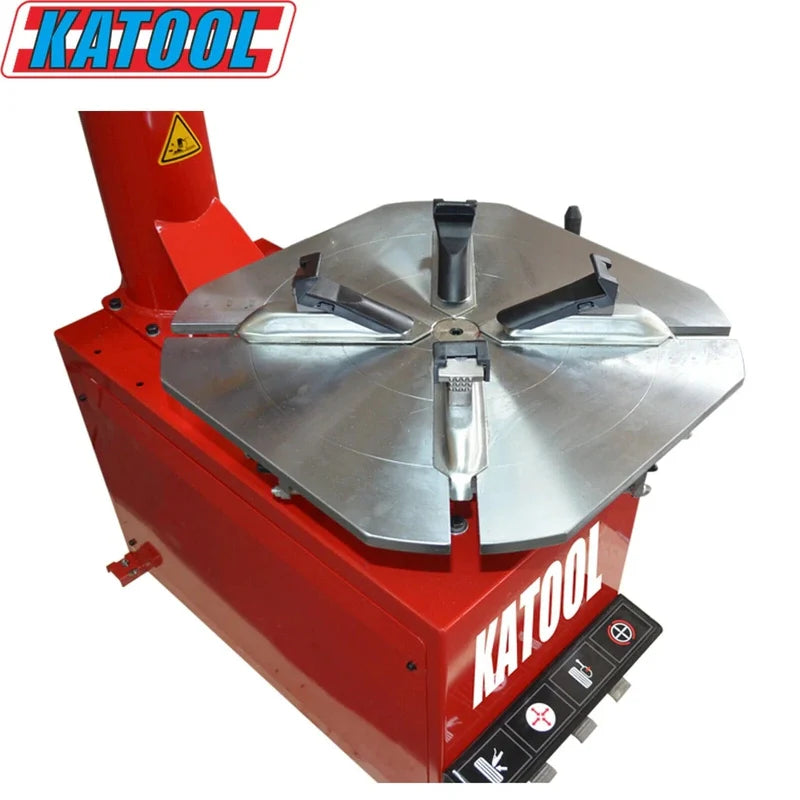

- Alloy steel jaws feature carburizing heat treatment to a depth of 0.8ā1.1mm, followed by full quench hardening ā creating a tough core with a hardened outer surface. Jaw covers are included to protect the wheel rim.
- The mounting head is crafted from stainless steel with solution annealing and a polished surface finish. Its ergonomically engineered profile minimizes stress concentration, and a plastic cover is included for rim protection.

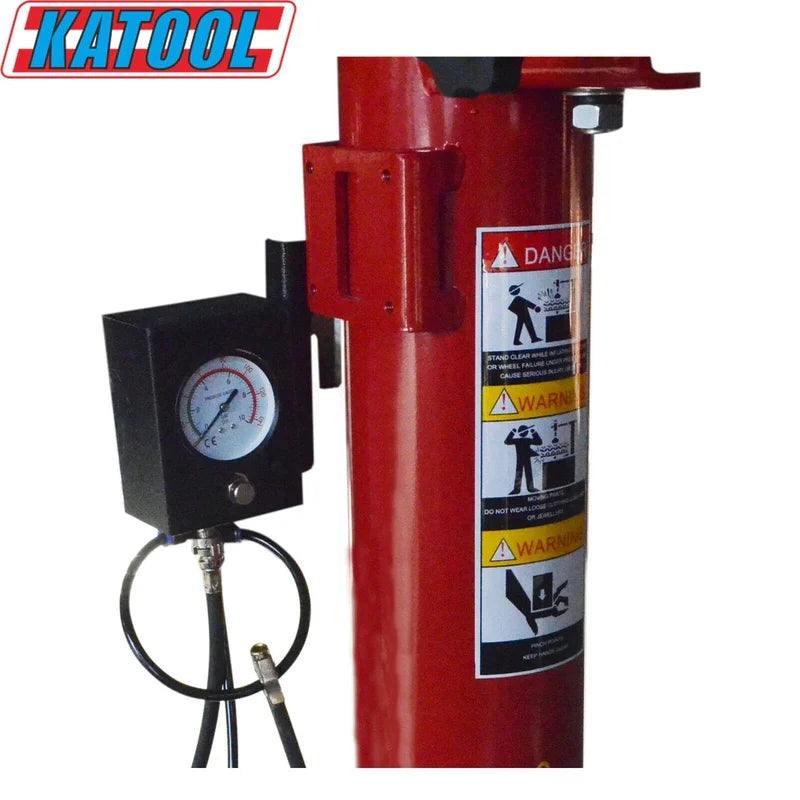

- Foot pedal-controlled inflation gauge for hands-free operation.
- Premium spade covers provide reliable protection against wheel rim damage during tire changes.

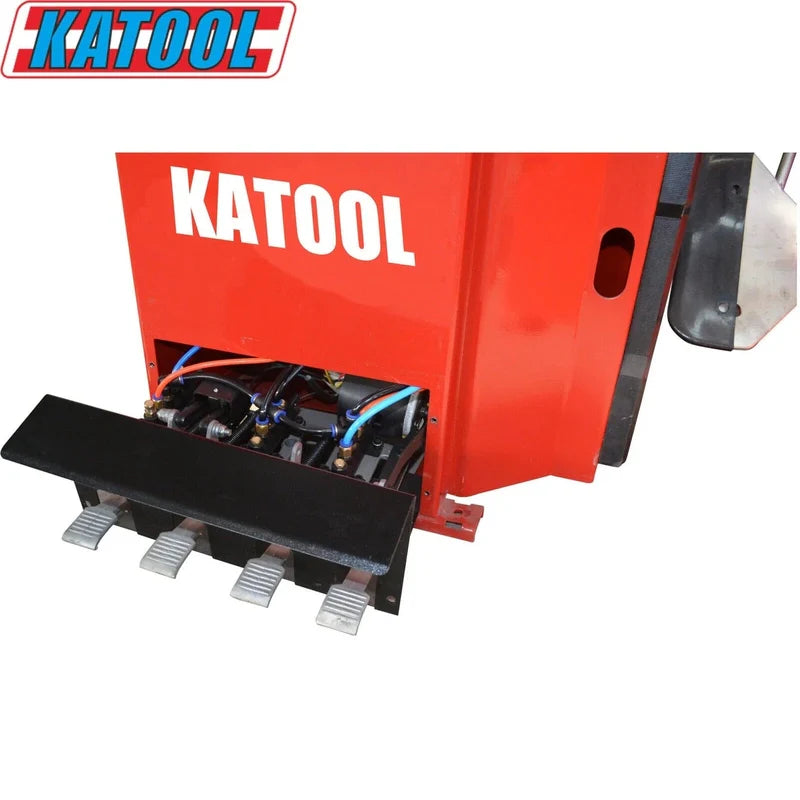

- Pull-type foot pedal control system ensures smooth, effortless tire mounting and demounting.
- Industrial-grade motor with pure copper windings delivers increased torque, improved thermal management, reduced failure rates, and extended service life.
- A high-quality lubricator ensures consistent oil delivery and filters compressed air effectively, prolonging the service life of the pneumatic system.
- North American models support a 110V / 1-phase / 2.0HP motor for maximum power output and operational efficiency.

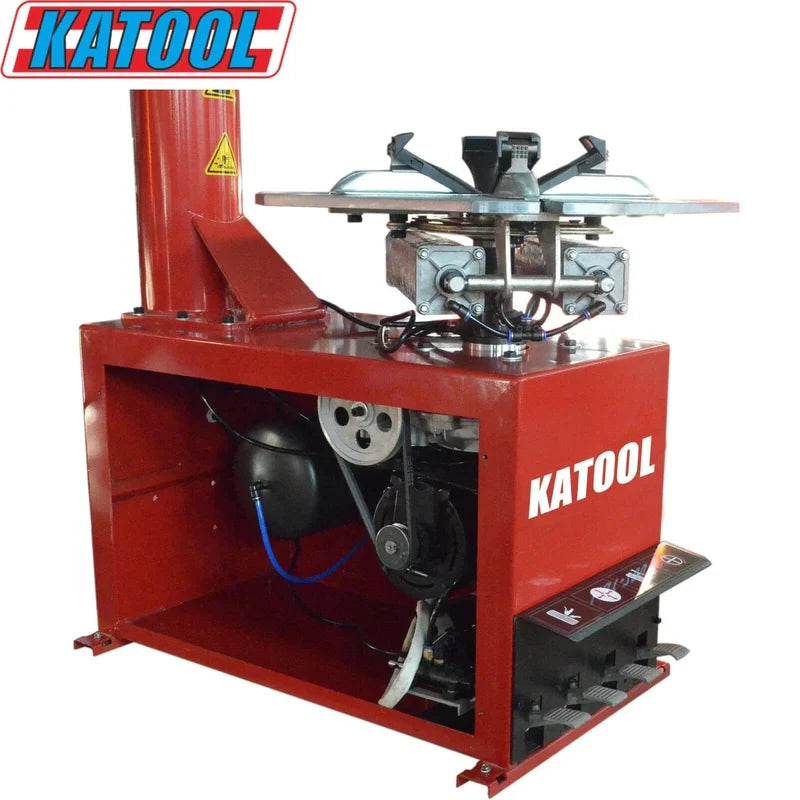

- Fully enclosed cabinet design safeguards internal components from dust, debris, and damage.

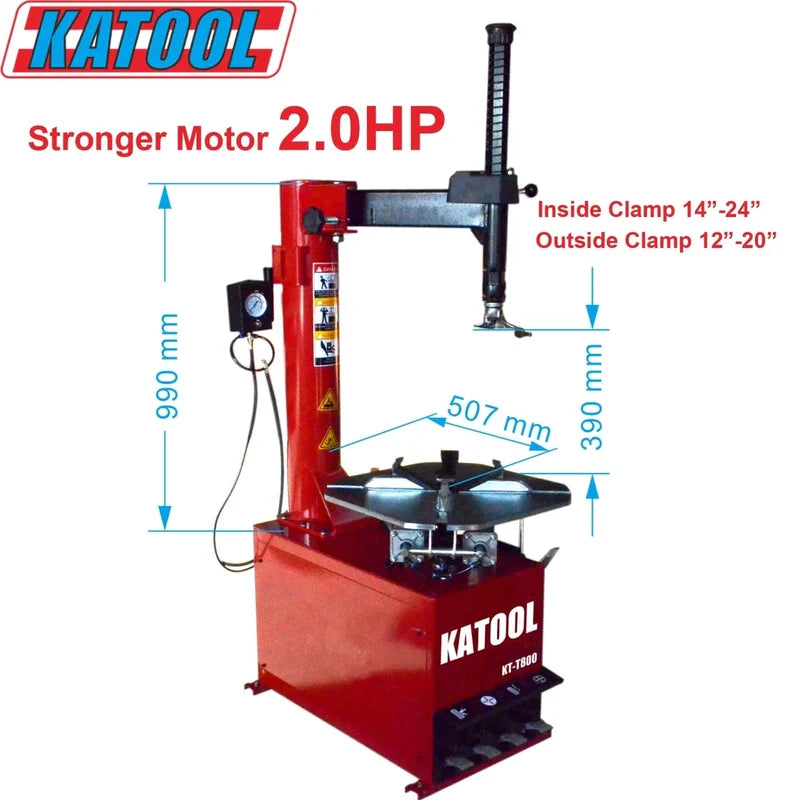

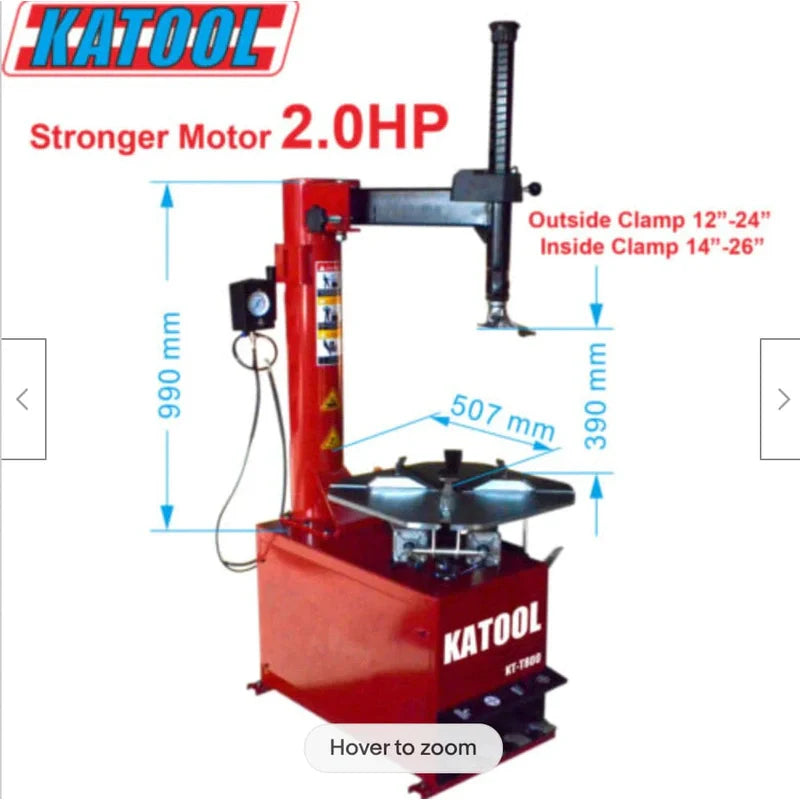

Specifications
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-20" |
| Inside Clamp: |
14"-24" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
186KG/410lbs |
Ā
Warranty
Katool provides a limited one-year (12-month) warranty on all parts and product defects at no charge. A two-year extended warranty plan is also available for any Katool or M&E automotive equipment.
Coverage Includes: All cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts additionally carry a three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved replacement parts will be provided at no cost, including free shipping.
Important Notes:
- All warranty claims are subject to review and approval by the Katool warranty and service department.
- Photos and/or videos of the reported defect may be required to process a claim.
- Do not disassemble any equipment prior to issue assessment, as doing so may void the claim.
- Equipment falling outside the scope of this warranty will not be covered; the buyer assumes full responsibility for replacement parts and associated shipping costs.
- Labor costs are not covered under this warranty.
