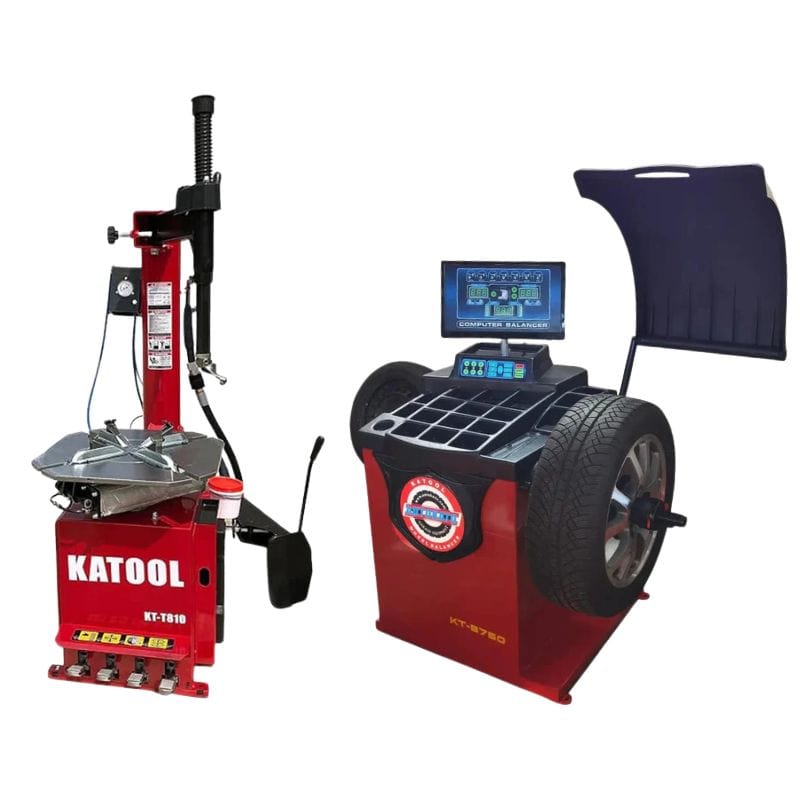

The Katool KT-T810 & KT-B750 Combo gives you a complete tire service station — a wheel-clamp tire changer and a balancing machine in one package — built for shops and serious home garages that need both speed and accuracy. The 2.0 HP pure copper-wound motor on the KT-T810 delivers consistent torque and sheds heat faster than aluminum-wound alternatives, and the closed-body design keeps the internals protected in a working shop environment.
What separates this combo from buying two mismatched machines is how well the individual features hold up under daily use. On the changer side, the alloy steel jaw is carburization-treated — hard at the surface, tough at the core — with a jaw cover and a plastic-covered stainless steel mounting head that won't scratch alloys or chrome. The bead blast seater with post tank handles stubborn low-profile and run-flat tires without the usual back-and-forth. A pull-type pedal system and pedal-controlled inflation gauge keep both hands free during the process. On the balancer side, the KT-B750 is built around a 3mm heavy-duty steel body that reduces vibration at the source for more accurate readings. An automatic measurement ruler auto-inputs A and D values, cutting setup time per wheel, while the advanced sensor system, built-in self-calibration, and fault diagnosis keep results consistent without manual intervention. The moisture- and dust-proof control board is built for the realities of a shop floor, not a lab.
This combo makes the most sense for independent repair shops and tire service centers running consistent volume, and for enthusiast garages and seasonal wheel-swap setups where matching equipment and a single support source matters. Two machines, one workflow, no guesswork.
Features:

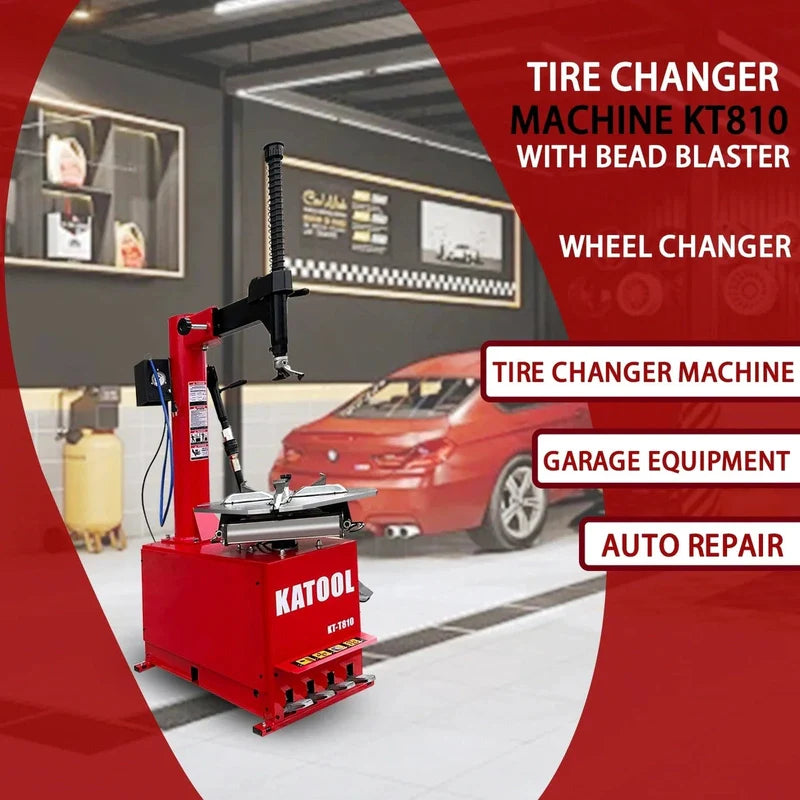

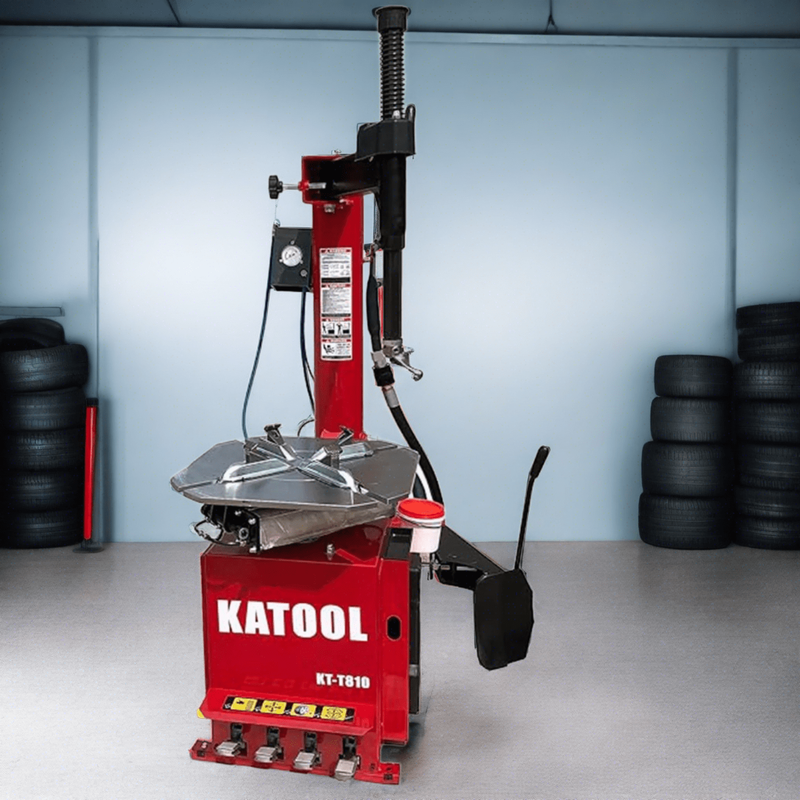

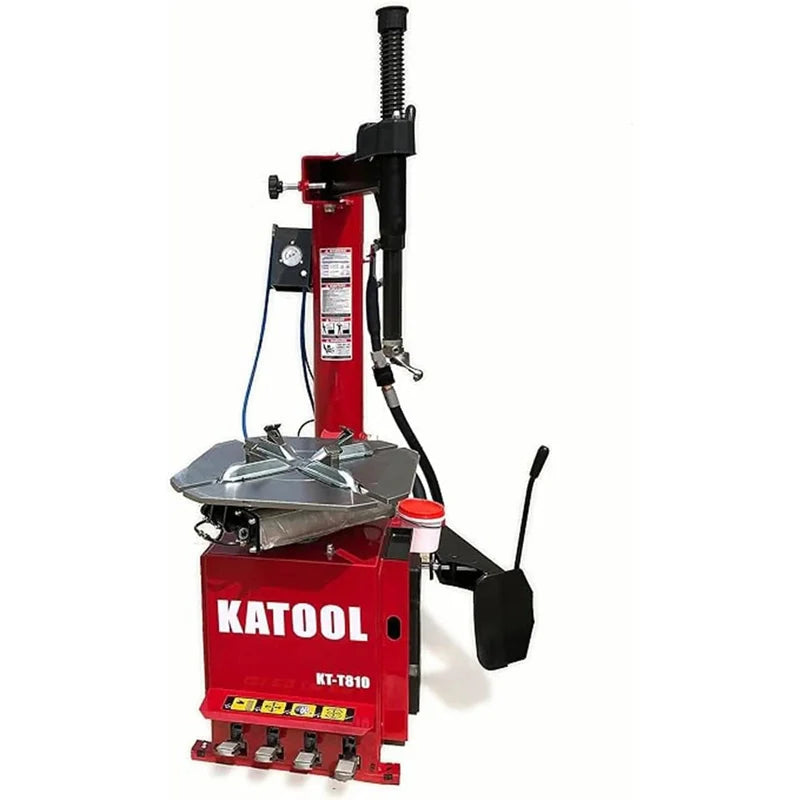

Katool KT-T810 Wheel Clamp Tire Changer
-

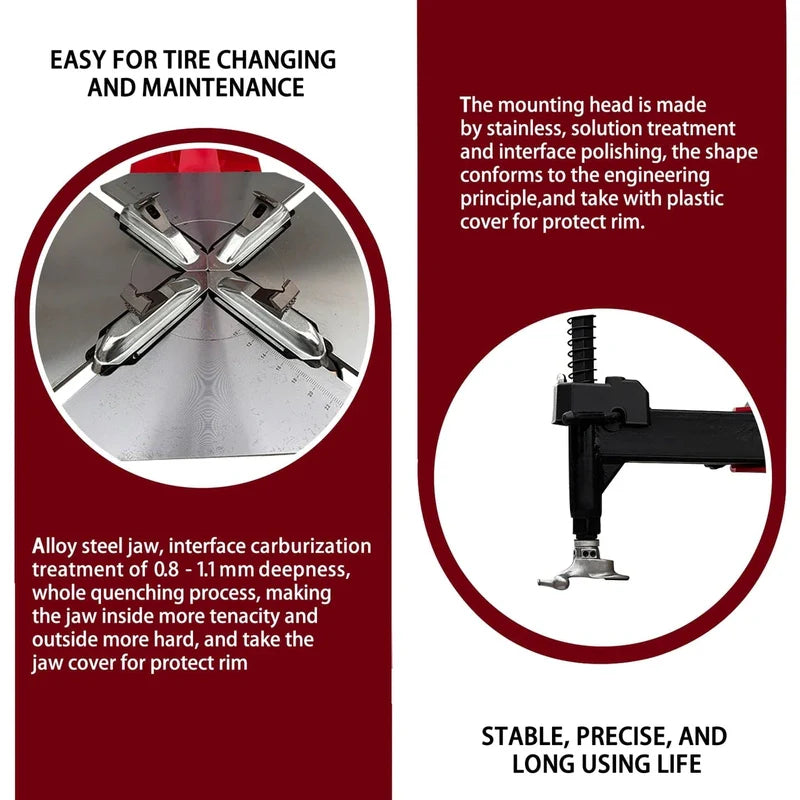

Heavy-Duty Alloy Steel Jaw — Carburization-treated to deliver exceptional strength, toughness, and long-term durability.
-
Stainless Steel Mounting Head — Engineered to protect wheel rims from damage, complete with a plastic protection cover.
-

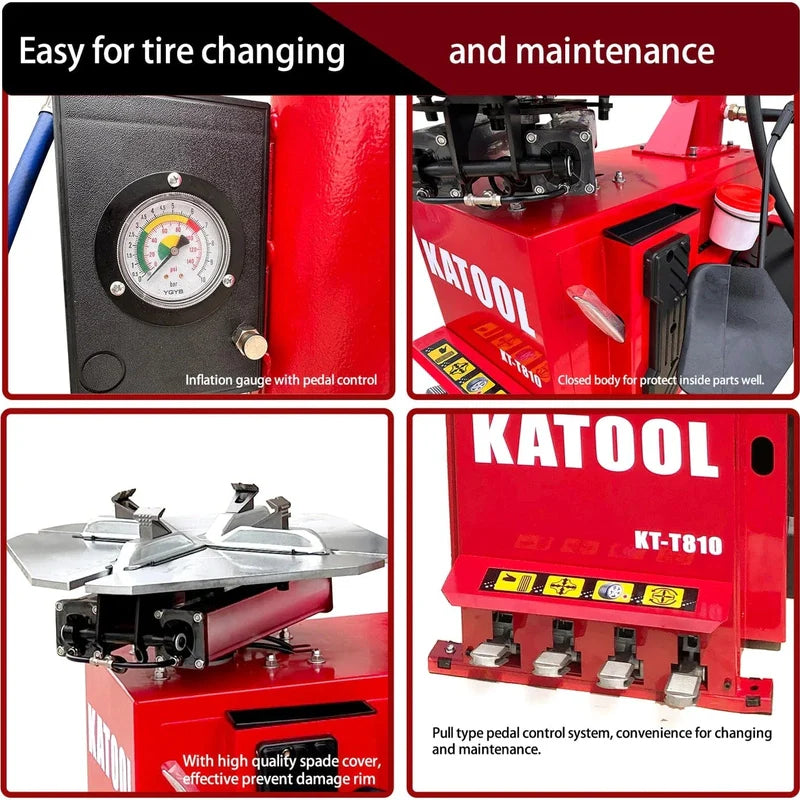

Pedal-Controlled Inflation Gauge — Hands-free inflation control for a faster, more convenient tire changing experience.
-
High-Quality Spade Cover — Shields rims from scratches and impact damage throughout the mounting process.
-
Powerful 2.0HP Motor — Pure copper windings deliver superior power output, improved efficiency, and extended motor life.
-
Pull-Type Pedal Control System — Designed for smooth, effortless operation to simplify every tire change.
-
Bead Blast Seater Head with Post Tank — Guarantees fast, reliable, and secure tire seating every time.
-
Closed-Body Design — Fully enclosed cabinet protects internal components from dust and debris, ensuring lasting performance.

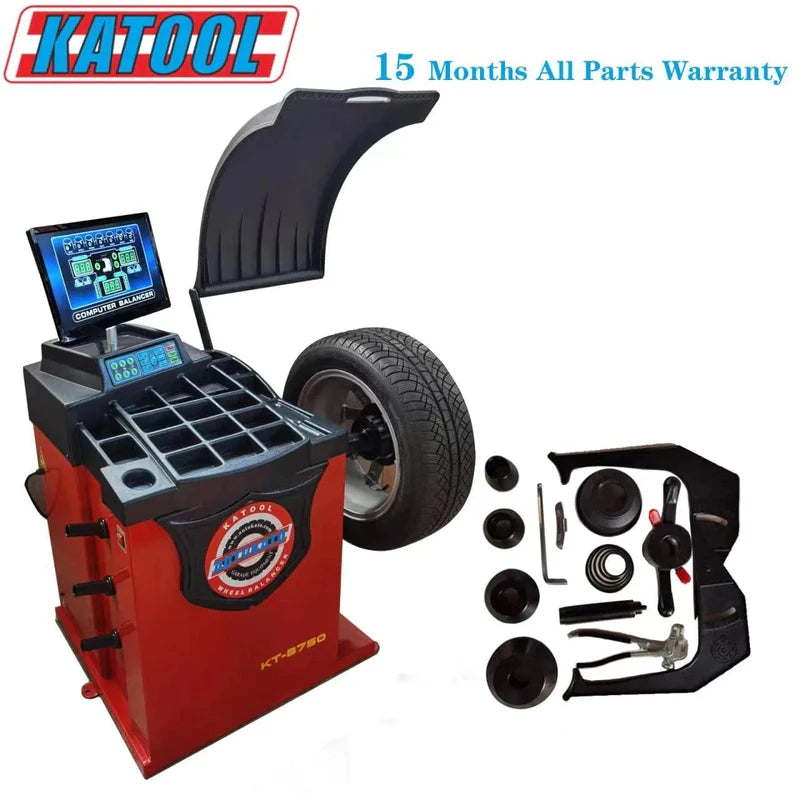

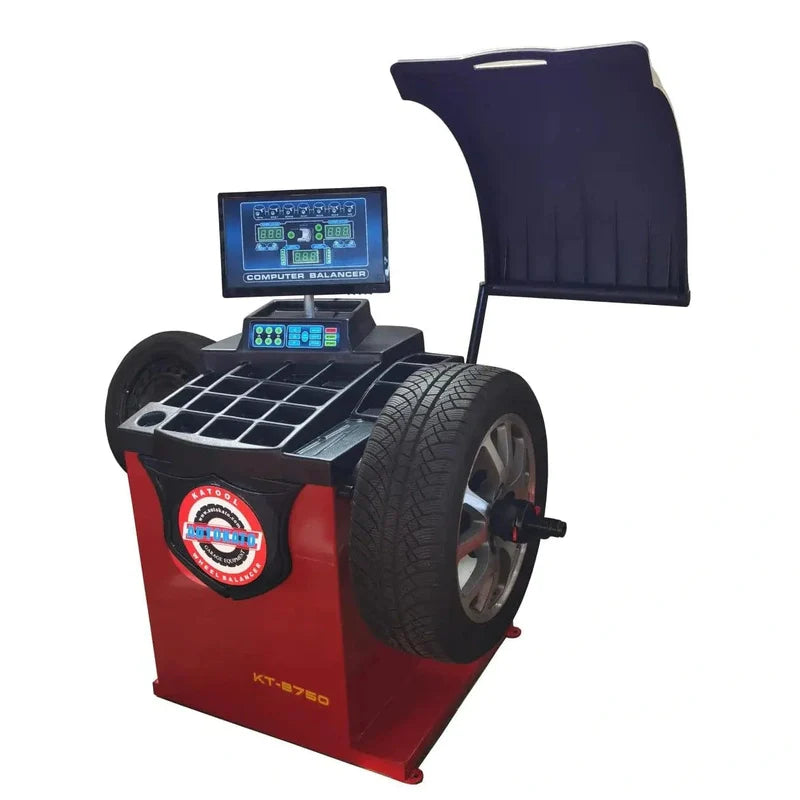

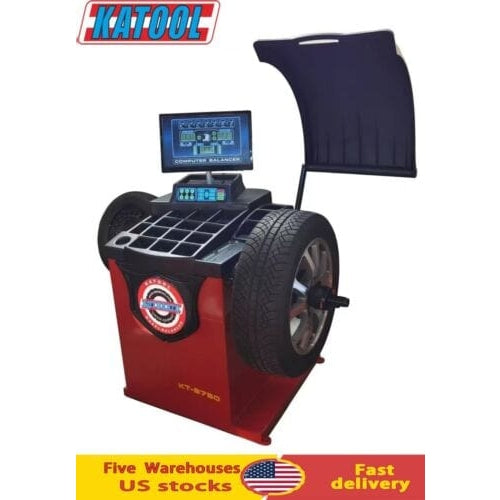

Katool KT-B750 Wheel Balancer
-

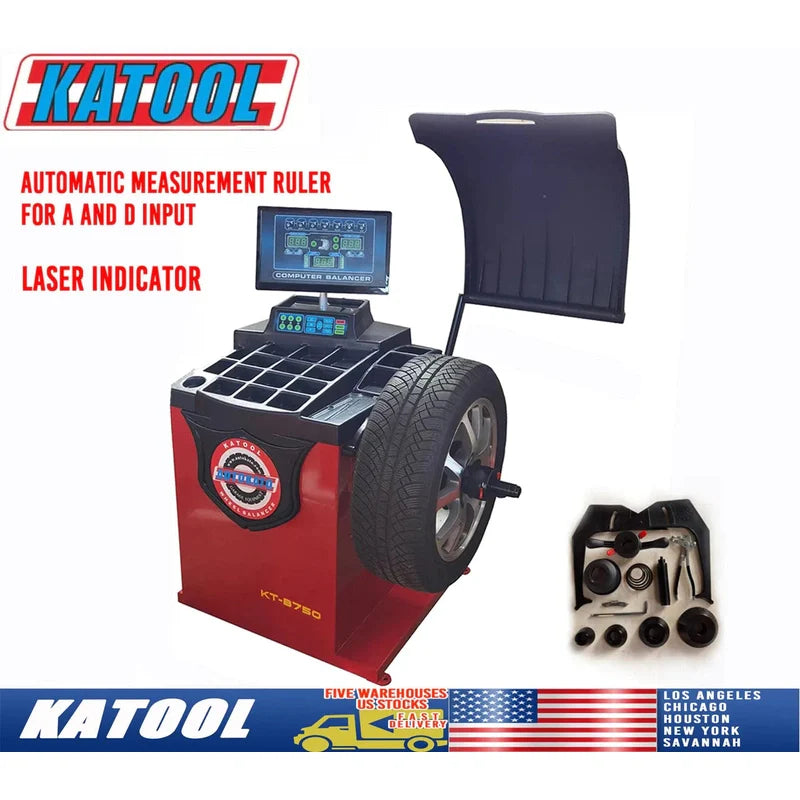

Automatic Measurement Ruler — Instantly auto-inputs A and D values for a faster, more streamlined balancing workflow.
-
Heavy-Duty 3mm Steel Body — Robust steel construction minimizes vibration, delivering a stable and precise balancing process.
-
Advanced Sensor System — High-sensitivity sensors ensure consistently accurate and reliable balancing results.
-
Built-in Fault Diagnosis & Self-Calibration — Automatic diagnostics and self-calibration maintain peak performance and long-term dependability.
-
Multiple Balance Modes — Versatile balancing modes adapt seamlessly to a wide range of rim types and sizes.
-
Moisture-Proof & Dust-Proof Control Board — Sealed and protected against moisture and dust for enhanced durability and an extended service life.
Specifications

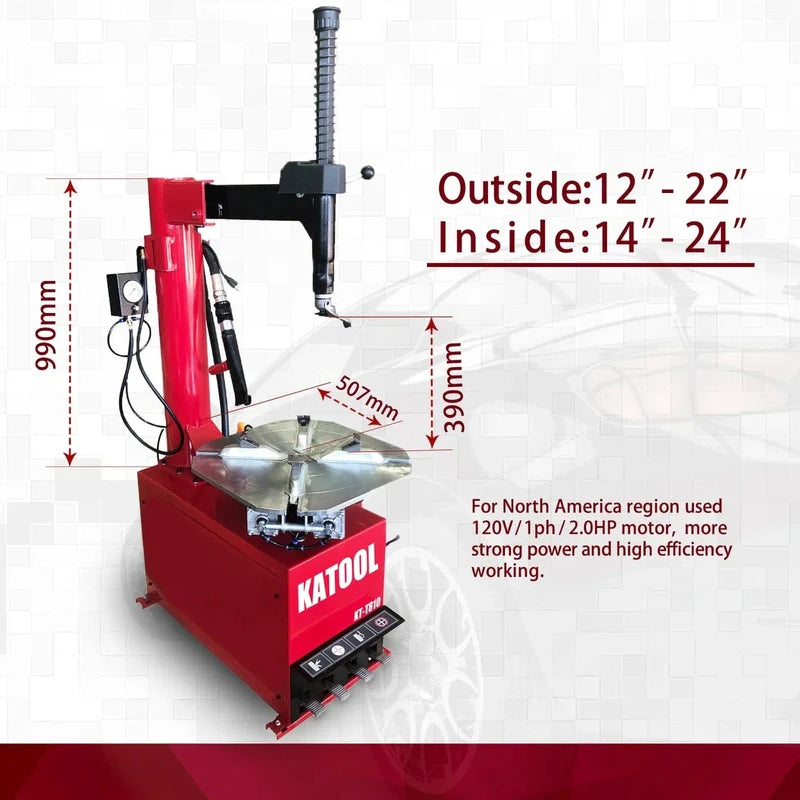

Katool KT-T810 Wheel Clamp Tire Changer
-
Max Wheel Diameter: 41" (1040mm)
-
Max Wheel Width: 15" (380mm)
-
Outside Clamp: 12"-22"
-
Inside Clamp: 14"-24"
-
Power Supply: 120V 1PH
-
Motor Power: 2.0HP (1.5KW)
-
Rotation Speed: 6.8 RPM
-
Air Pressure: 0.8-1.0 Mpa (116-145 PSI)
-
Net Weight: 186 KG
Katool KT-B750 Wheel Balancer
-
Rim Diameter: <30"
-
Wheel Width: 15"
-
Max Wheel Diameter: <880mm
-
Balancing Speed: 180 RPM
-
Power Supply: 120V 1PH
-
Motor Power: 0.25KW
-
Rim Center Hole Diameter: <135mm
-
Max Wheel Weight: <65 KG
-
Balancing Accuracy: ±1g
-
Measuring Time: 7 seconds
Warranty & Support
Katool provides a limited one-year (12-month) warranty covering parts, electronics, and power units, at no charge. An extended two-year warranty is also available for additional peace of mind.
Coverage Includes:
- Power units, motors, displays, electronics, and cylinders.
- Vehicle lifts carry an additional three-year structural component warranty.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires valid proof of purchase.
- Approved replacement parts and shipping costs are covered at no charge.
- Labor costs are not included under this warranty.
