Katool KT-T810 Wheel Clamp Tire Changer Machine

The Katool KT-T810 is a wheel-clamp tire changer built around a 120V/1-phase, 2.0 HP pure copper-wound motor — a spec that delivers stronger torque, faster heat dissipation, and a longer service life than motors using aluminum windings. The closed-body design shields the internal components from shop debris, and the onboard high-quality filter provides consistent oil-drop lubrication while keeping the pneumatic system clean and extending its working life.

Rim protection is engineered into every contact point on the KT-T810. The alloy steel jaw is carburization-treated to a depth of 0.8–1.1mm and fully quenched — tough internally to resist cracking, hard externally for durability — with a jaw cover for direct contact. The stainless steel mounting head is solution-treated and interface-polished to follow engineering mechanics principles, fitted with a plastic cover so it won't mark alloy or chrome wheels. A high-quality spade cover adds another layer of protection during the bead-seating process. The bead blast seater with post tank handles stubborn low-profile and run-flat tires without repeated attempts, and the pull-type pedal control system with pedal-controlled inflation gauge keeps both hands free on the tire throughout.

The KT-T810 is a solid match for independent repair shops and tire service centers that need a dependable daily driver, as well as well-equipped home garages and enthusiast setups rotating through multiple wheel sets seasonally. If you're changing tires on a regular basis and want a machine that protects your customers' wheels as reliably as it performs, the KT-T810 is built to handle the workload.

Features

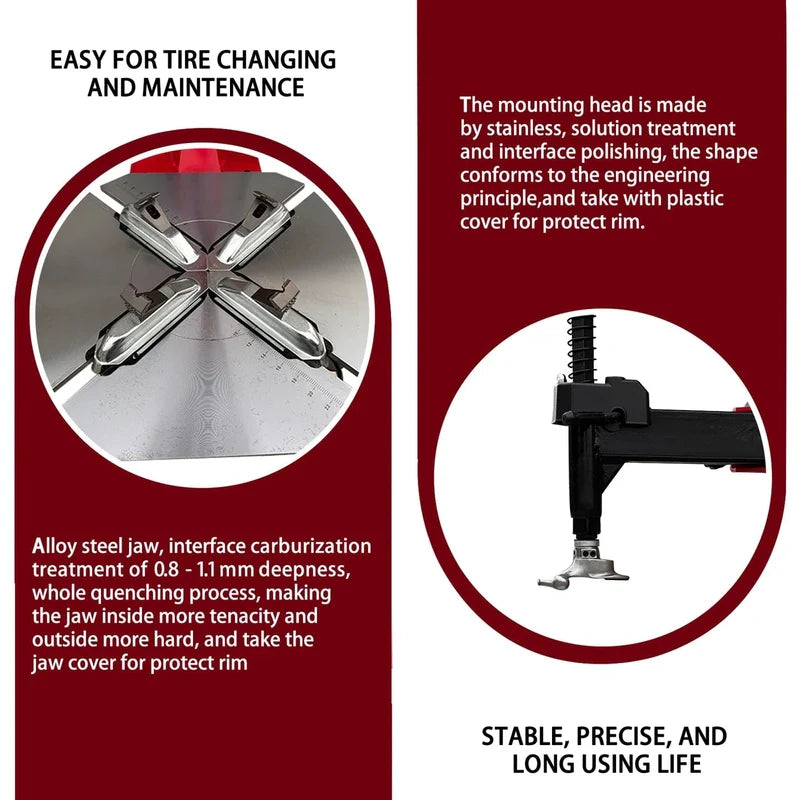

• Alloy Steel Jaw — Carburization-treated to a depth of 0.8–1.1mm with a full quench hardening process, resulting in a tough inner core and a hardened outer surface for superior durability. Jaw covers are included to protect the wheel rim.
• Stainless Steel Mounting Head — Crafted from stainless steel with solution annealing and a polished surface finish. Its ergonomically engineered profile ensures smooth operation, and a plastic cover is included for rim protection.

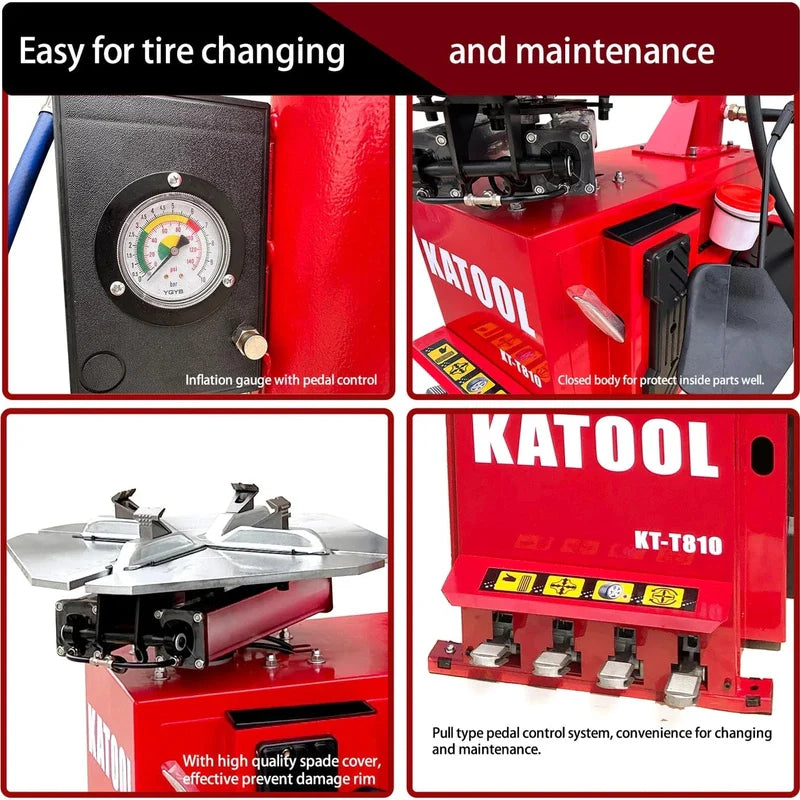

• Pedal-Controlled Inflation Gauge — Foot pedal operation allows for hands-free, convenient inflation control.
• High-Quality Spade Cover — Effectively shields the wheel rim from scratches and damage throughout the tire changing process.
• Pull-Type Pedal Control System — Designed for smooth, effortless operation to simplify tire mounting and demounting.
• Top-Grade Motor with Pure Copper Windings — Delivers rapid heat dissipation, reduced failure rates, and an extended service life for consistent, reliable performance.
• Bead Blast Seater Head with Post Tank — Ensures fast, secure, and reliable tire seating every time.
• High-Quality Lubricator & Air Filter — Provides consistent oil delivery and effectively filters compressed air, significantly extending the service life of the pneumatic system.

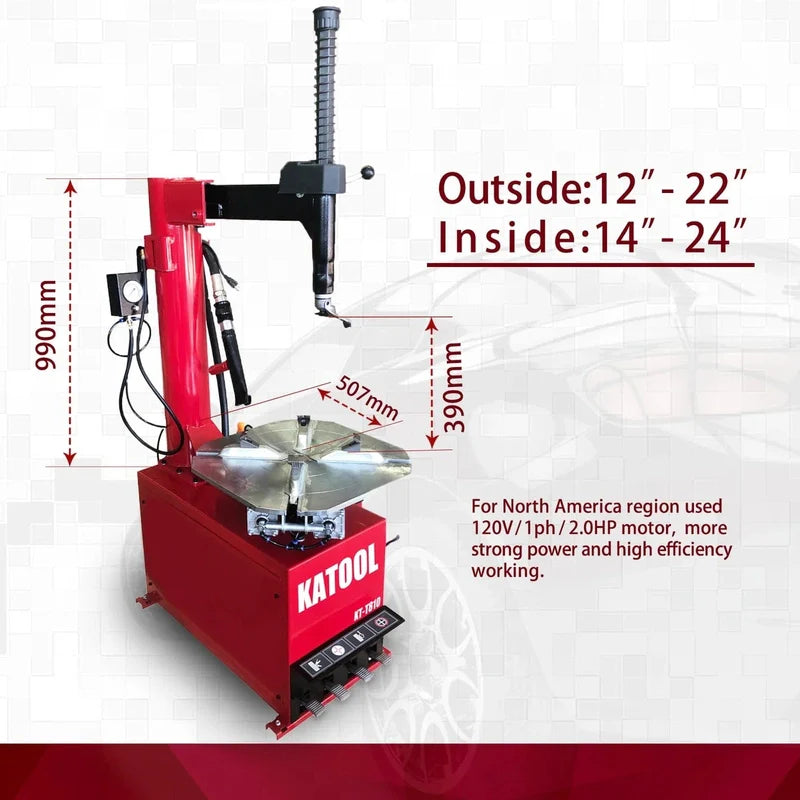

• 120V / 1-Phase / 2.0HP Motor — Optimized for the North American market, delivering maximum power output and high operational efficiency.
• Closed-Body Design — Fully enclosed cabinet safeguards internal components from dust, debris, and damage for long-lasting performance.


Specifications

Warranty

Katool provides a limited one-year (12-month) warranty on all parts and product defects at no charge. A two-year extended warranty plan is also available for any Katool or M&E automotive equipment.

Coverage Includes:

• Cylinders, power units, motors, displays, electronics, and related components.
• Vehicle lifts additionally carry a three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved replacement parts will be provided at no cost, including free shipping.

Important Notes:

• All warranty claims are subject to review and approval by the Katool warranty and service department.
• Photos and/or videos of the reported defect may be required to process a claim.
• Do not disassemble any equipment prior to issue assessment, as doing so may void the claim.
• Equipment falling outside the scope of this warranty will not be covered; the buyer assumes full responsibility for replacement parts and associated shipping costs.
• Labor costs are not covered under this warranty.
