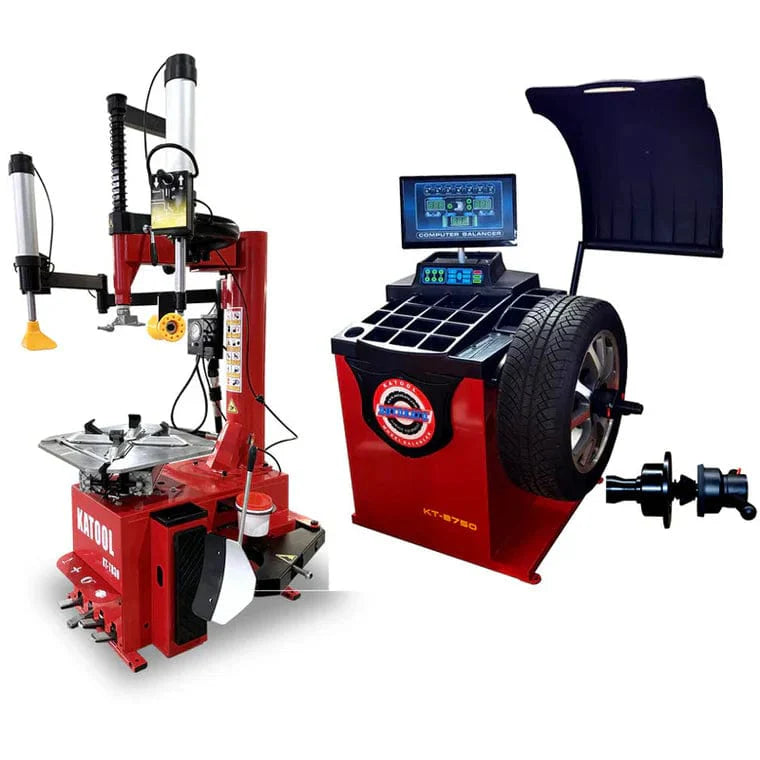

The Katool KT-T830 & KT-B750 Combo pairs a heavy-duty wheel-clamp tire changer with a high-precision balancer, giving automotive shops and serious home garages a complete tire service setup in one purchase. Both machines run top-level motors with pure copper windings for stronger output, faster heat dissipation, and lower failure rates over time — built to handle daily volume, not occasional use.
On the changer side, the KT-T830's alloy steel jaw is carburization-treated to 0.8–1.1mm depth and fully quenched — hard on the surface, tough at the core — with a jaw cover for rim contact. The stainless steel mounting head is treated, polished, and fitted with a plastic cover to protect alloy and chrome wheels throughout the process. A pedal-controlled inflation gauge, pull-type pedal system, and high-quality spade cover keep operations hands-free and rim-safe, while the onboard lubricator filters compressed air and maintains the pneumatic system for the long haul. The KT-B750 balancer is built around a 3mm thick steel body with solid welding to minimize vibration at the source. Its all-in-one pressure sensor support features 8mm-thick bottom and side boards for stable, high-precision readings. The 36mm shaft thread is quench-treated for strength, and a longer shaft accommodates wider wheels. An automatic measurement ruler auto-inputs A and D values, the moisture-, dust-, and anti-static computer board is engineered for shop conditions, and built-in fault diagnosis with double-side self-calibration keeps results accurate without manual adjustment. Ounce/gram and MM/inch unit selection adds flexibility, and an optional wheel guard is available for added safety.
This combo is purpose-built for independent tire shops and automotive service centers running consistent daily volume, and equally well-suited for enthusiast garages and performance shops that demand accuracy when swapping staggered fitments or wide-body setups. Two matched machines, one workflow.
Features
KT-T830Tire Changer Features:
-
Durable Alloy Steel Jaw — Carburization-treated to a depth of 0.8–1.1mm with a full quench hardening process, delivering a tough inner core and a hardened outer surface for superior strength and longevity. A jaw cover is included to protect the wheel rim.
-
Stainless Steel Mounting Head — Precision-crafted from stainless steel with solution annealing and a polished surface finish. Its engineering-optimized profile ensures smooth, reliable operation, and a plastic cover is included for added rim protection.
-
Pedal-Controlled Inflation Gauge — Foot pedal operation enables precise, hands-free inflation control for a faster and more convenient tire changing experience.
-
Protective Spade Cover — High-quality spade cover effectively shields the wheel rim from scratches and impact damage throughout the tire mounting process.
-
Pull-Type Pedal Control System — Ergonomically designed for smooth, effortless operation, simplifying every tire mounting and demounting task.
-
High-Performance Motor — Top-grade motor with pure copper windings delivers increased power output, rapid heat dissipation, reduced failure rates, and an extended service life for consistent, dependable performance.
-
Efficient Lubrication System — A high-quality lubricator ensures consistent oil delivery and effectively filters compressed air, significantly prolonging the service life of the pneumatic system.
Katool KT-B750 Wheel Balancer Features:
-
Automatic Measurement Ruler — Instantly auto-inputs A and D values for a faster, more streamlined balancing workflow and enhanced overall efficiency.
-
Robust 3mm Steel Body — Heavy-duty steel construction with high-strength, solid welding and minimal vibration for a stable and precise balancing process.
-
Integrated Pressure Sensor Support — All-in-one pressure sensor support design with 8mm-thick bottom and side boards ensures consistent stability and high-precision balancing results.
-
High-Performance Motor — Top-grade motor with pure copper windings delivers increased power output, rapid heat dissipation, reduced failure rates, and an extended service life.
-
Hardened 36mm Shaft Thread — Quench-treated shaft thread provides superior strength and long-term durability under demanding operating conditions.
-
Advanced Computer Board — Built with advanced welding technology and fully protected against moisture, dust, and static for a significantly extended service lifespan.
-
Versatile Balance Modes — Multiple balancing modes adapt seamlessly to a wide range of rim types and sizes for consistently precise results.
-
Built-In Diagnostics & Self-Calibration — Integrated fault diagnosis and self-calibration programs with double-sided calibration ensure reliable performance and ease of operation.
-
Flexible Unit Selection — Conveniently switch between Ounce/Gram and MM/Inch units to suit your preferred measurement standard.
-
Stable Power Board — High-quality integrated power board ensures smooth, stable, and reliable operation throughout every balancing session.
-
Optional Wheel Guard — An available wheel guard accessory provides an added layer of operator safety during use.
-
Extended Shaft Length — A longer shaft design accommodates wider wheels, expanding compatibility across a broader range of vehicle types.
Specifications
Tire Changer T830 Specifications:
- Max Wheel Diameter: 41"/1040mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 12"-24"
- Inside Clamp: 14"-26"
- Power Supply: 120V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa (116-145psi)
- Net weight: 240KG/529lbs
Wheel Balancer B750 Specifications:
- Rim Diameter:<30"
- Wheel Width:15"
- Wheel Diameter:<880mm
- Balancing Speed:180rpm
- Power Supply:120V 1PH
- Motor Power:0.25KW
- Rim Center Hole Dia.:<135mm
- Wheel Weight:<65KG
- Balancing Accuracy:±1g
- Measuring Time:7S
Warranty
Katool provides a limited one-year (12-month) warranty on all parts and product defects at no charge. A two-year extended warranty plan is also available for any Katool or M&E automotive equipment.
Coverage Includes:
- Cylinders, power units, motors, displays, electronics, and related components.
- Vehicle lifts additionally carry a three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved replacement parts will be provided at no cost, including free shipping.
Important Notes:
- All warranty claims are subject to review and approval by the Katool warranty and service department.
- Photos and/or videos of the reported defect may be required to process a claim.
- Do not disassemble any equipment prior to issue assessment, as doing so may void the claim.
- Equipment falling outside the scope of this warranty will not be covered; the buyer assumes full responsibility for replacement parts and associated shipping costs.
- Labor costs are not covered under this warranty.
