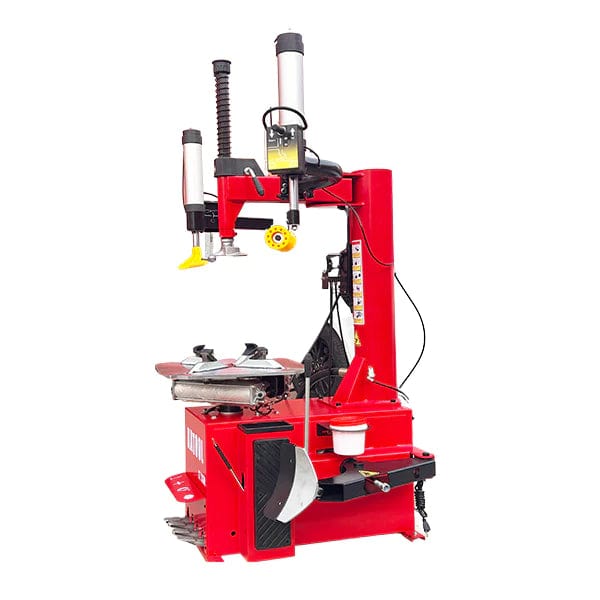

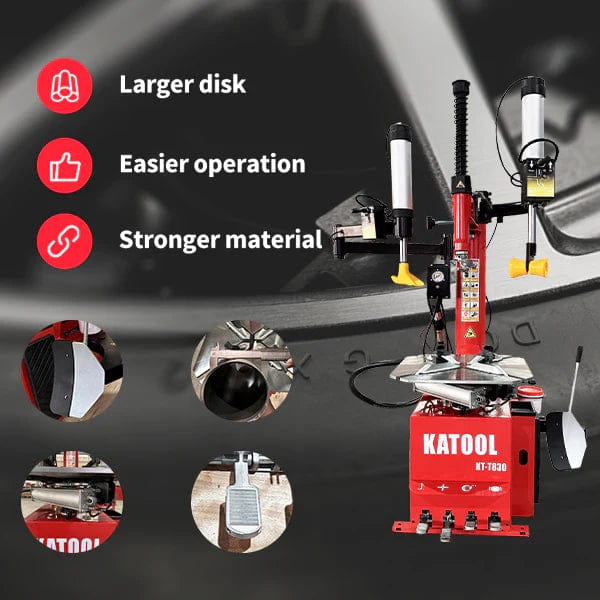

Katool KT-T830 Wheel Clamp Tire Changer Machine

The Katool KT-T830 is a wheel-clamp tire changer running a 110V/1-phase, 2.0 HP pure copper-wound motor — built for the North American market with the torque and heat dissipation needed for consistent, high-volume use. Two features push it past standard changers at this price point: a double-side assist arm for better leverage on stubborn tires, and a 186mm (7.32") stainless steel bead breaker cylinder that handles tough sidewalls without the usual struggle.

Rim protection is built into every contact point. The alloy steel jaw is carburization-treated to 0.8–1.1mm depth and fully quenched — tough at the core, hard at the surface — with a jaw cover for direct rim contact. The stainless steel mounting head is solution-treated, interface-polished, and fitted with a plastic cover to keep alloy and chrome wheels mark-free throughout the process. A high-quality spade cover adds protection during bead seating, and the bead blast seater with post tank seats low-profile and run-flat beads fast and cleanly. The pull-type pedal control system and pedal-controlled inflation gauge keep both hands on the tire where they belong. A high-quality onboard lubricator delivers reliable oil-drop lubrication while filtering compressed air, extending the life of the pneumatic system over time. The closed-body design keeps internal components shielded from shop debris.

The KT-T830 is a strong fit for independent repair shops and tire service centers dealing with daily volume and a mixed range of vehicles, as well as enthusiast garages that regularly work with low-profile performance tires or run-flats and need the tooling to match.

Features

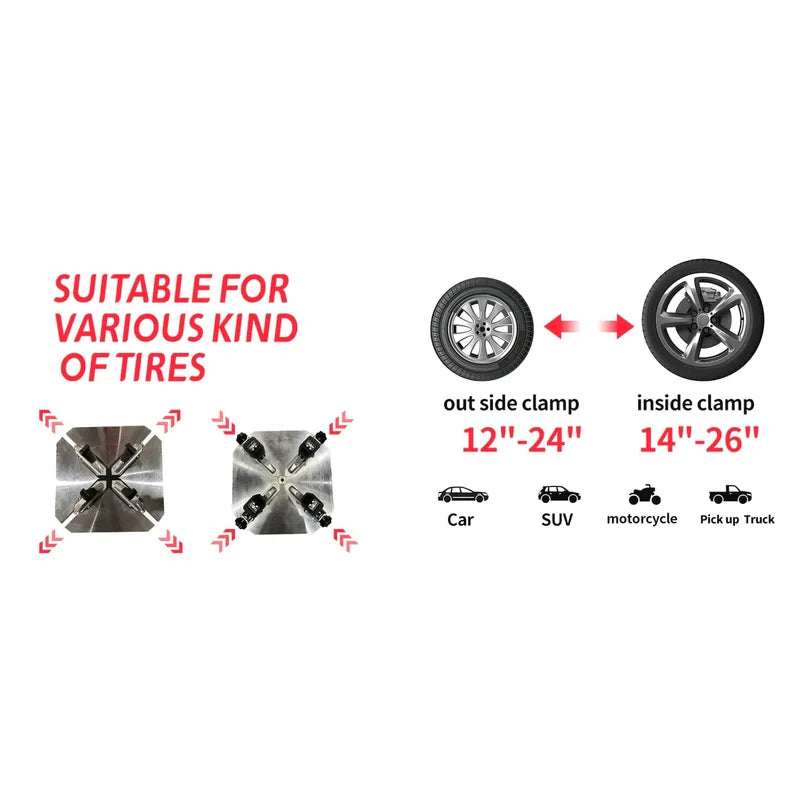

• Alloy Steel Jaw — Carburization-treated to a depth of 0.8–1.1mm with a full quench hardening process, delivering a tough inner core and a hardened outer surface for superior strength and durability. A jaw cover is included to protect the wheel rim.
• Stainless Steel Mounting Head — Precision-crafted from stainless steel with solution annealing and a polished surface finish. Its engineering-optimized profile ensures smooth, reliable operation, and a plastic cover is included for added rim protection.
• Pedal-Controlled Inflation Gauge — Foot pedal operation enables precise, hands-free inflation control for a faster and more convenient tire changing experience.
• High-Quality Spade Cover — Effectively shields the wheel rim from scratches and impact damage throughout the tire mounting and demounting process.

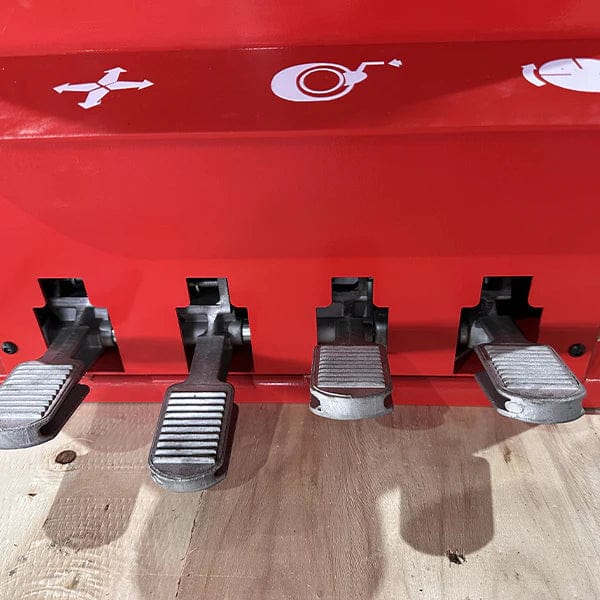

• Pull-Type Pedal Control System — Ergonomically designed for smooth, effortless operation, simplifying every tire mounting and demounting task.
• Top-Grade Motor with Pure Copper Windings — Delivers increased power output, rapid heat dissipation, reduced failure rates, and an extended service life for consistent, dependable performance.

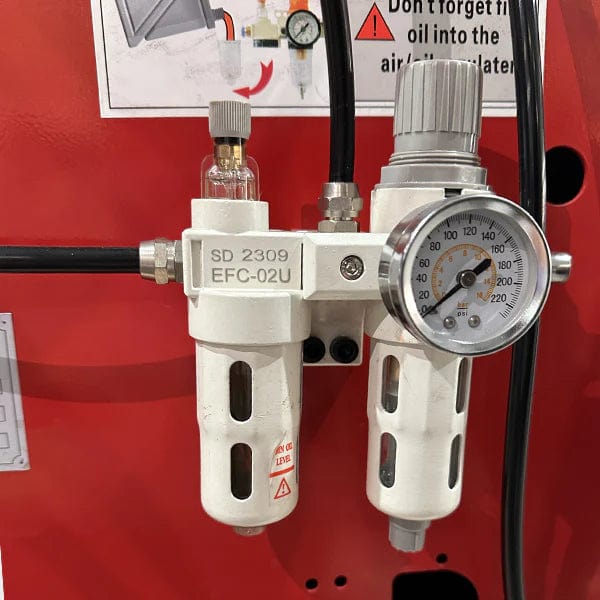

• High-Quality Lubricator & Air Filter — Ensures consistent oil delivery and effectively filters compressed air, significantly prolonging the service life of the pneumatic system.

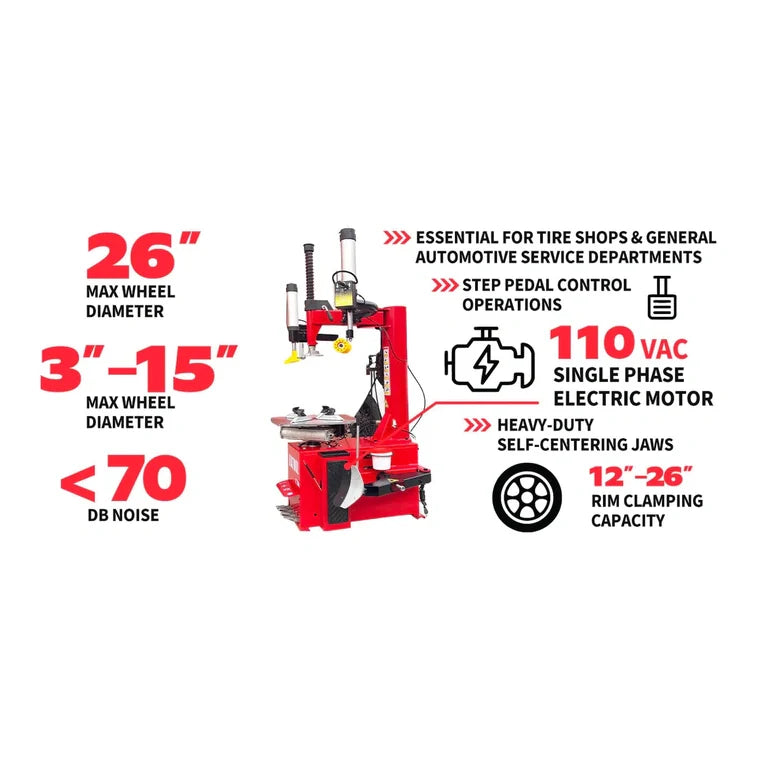

• 110V / 1-Phase / 2.0HP Motor — Optimized for the North American market, delivering maximum power output and high operational efficiency.

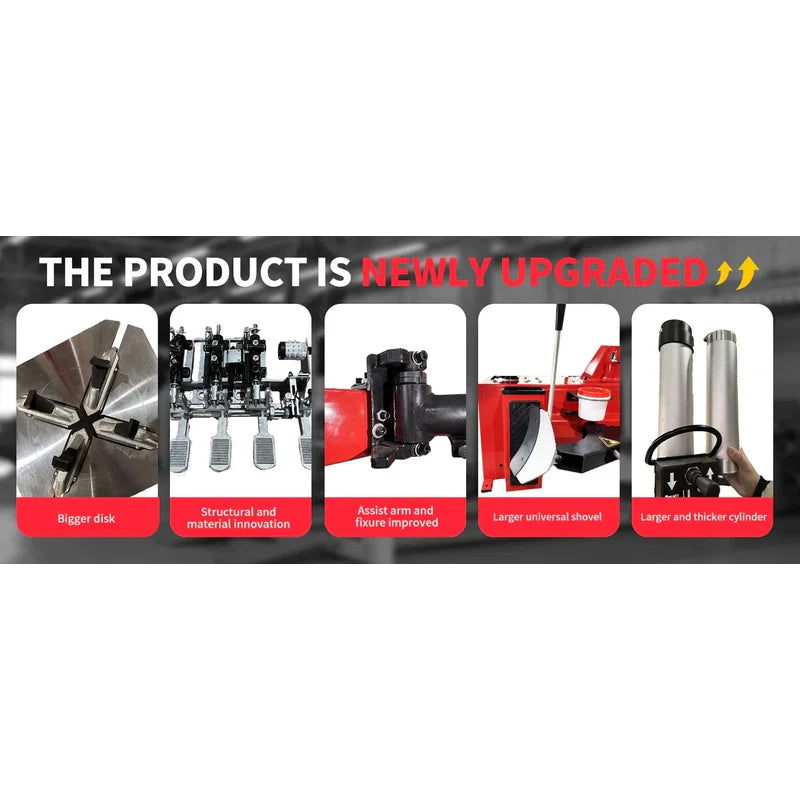

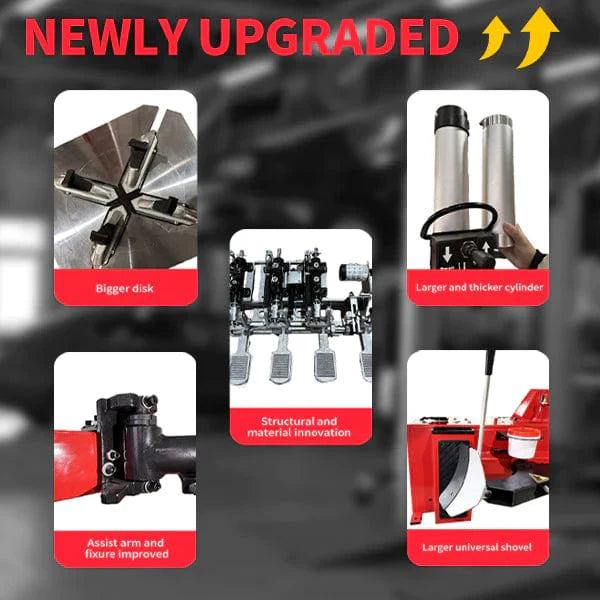

• Double-Side Assist Arm — Provides enhanced support and stability during tire mounting and demounting for improved control and ease of use.
• Bead Blast Seater Head with Post Tank — Ensures fast, secure, and reliable tire seating every time.

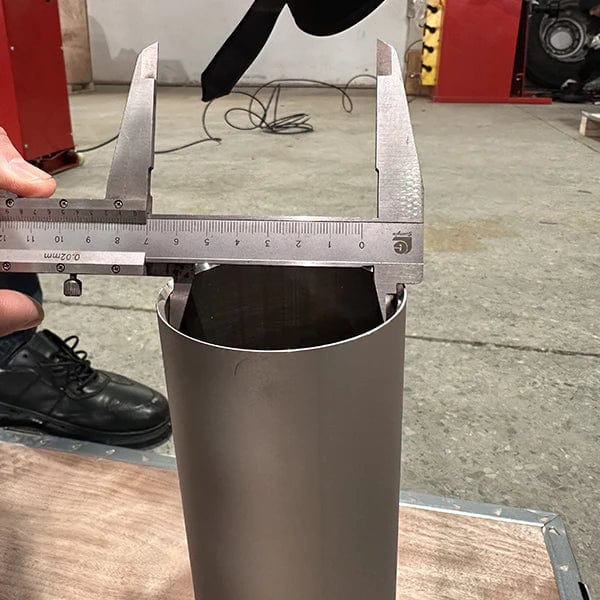

• 186mm / 7.32" Stainless Steel Bead Breaker Cylinder — Heavy-duty stainless steel construction delivers powerful, precise bead breaking performance for a wide range of tire sizes.
• Closed-Body Design — Fully enclosed cabinet safeguards internal components from dust, debris, and damage for long-lasting performance.

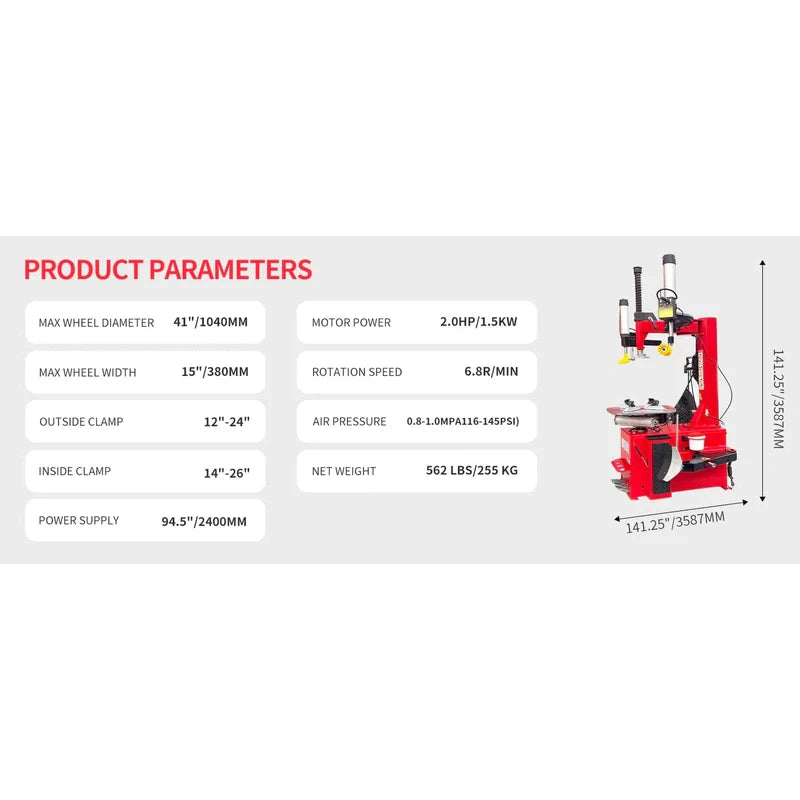

Specifications

Warranty

Katool provides a limited one-year (12-month) warranty on all parts and product defects at no charge. A two-year extended warranty plan is also available for any Katool or M&E automotive equipment.

Coverage Includes:

• Cylinders, power units, motors, displays, electronics, and related components.
• Vehicle lifts additionally carry a three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved replacement parts will be provided at no cost, including free shipping.

Important Notes:

• All warranty claims are subject to review and approval by the Katool warranty and service department.
• Photos and/or videos of the reported defect may be required to process a claim.
• Do not disassemble any equipment prior to issue assessment, as doing so may void the claim.
• Equipment falling outside the scope of this warranty will not be covered; the buyer assumes full responsibility for replacement parts and associated shipping costs.
• Labor costs are not covered under this warranty.

Resources

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
